Introduction to UV-C Technology
Ultraviolet germicidal irradiation represents one of the most effective methods for eliminating harmful microorganisms from indoor environments. This technology harnesses the power of UV-C light, operating within the wavelength range of 200-280 nanometers, to neutralize bacteria, viruses, and other pathogens by disrupting their DNA and RNA structures. When designing a UV-C germicidal system, engineers must carefully balance efficacy, safety, and practical application to create solutions that protect occupants while remaining energy efficient.
The growing demand for improved indoor air quality has accelerated interest in UV-C disinfection systems across residential, commercial, and industrial settings. From whole-home air purification units to specialized room sanitization equipment, these systems offer a chemical-free approach to maintaining healthier environments. Understanding the fundamental principles behind UV-C germicidal design enables informed decisions when selecting or implementing these powerful disinfection solutions.
Germicidal Lamps: The Heart of UV-C Systems
Low-pressure mercury vapor lamps serve as the primary UV-C source in most germicidal applications. These specialized lamps emit radiation predominantly at 253.7 nanometers, a wavelength that coincides with the peak absorption spectrum of nucleic acids found in microorganisms. The efficiency of these lamps in converting electrical energy to germicidal UV output makes them the preferred choice for disinfection systems.
Modern germicidal lamp designs incorporate various configurations to suit different applications. Linear tube lamps offer broad coverage for duct-mounted and upper-room installations, while compact configurations provide flexibility for portable and point-of-use devices. Amalgam lamps represent an advancement that maintains stable UV output across wider temperature ranges, making them particularly suitable for HVAC integration where air temperatures fluctuate significantly.
Key specifications to evaluate when selecting germicidal lamps include UV-C output measured in watts, lamp life expectancy, warm-up characteristics, and ozone generation properties. Some lamps produce ozone as a byproduct, which requires additional consideration in enclosed spaces. Ozone-free variants utilize special quartz glass that filters the 185-nanometer wavelength responsible for ozone production while allowing the germicidal 254-nanometer light to pass through unimpeded.
Understanding Germicidal Dose
The effectiveness of any UV-C disinfection system depends fundamentally on delivering adequate germicidal dose to target surfaces or air volumes. Dose, measured in millijoules per square centimeter (mJ/cm²), represents the product of UV-C irradiance intensity and exposure time. This relationship means designers can achieve required dose levels through higher intensity for shorter periods or lower intensity over extended exposure times.
Different microorganisms require varying dose levels for effective inactivation. Common bacteria typically require doses between 2-10 mJ/cm² for 90% reduction, while more resistant organisms like bacterial spores may need 20-50 mJ/cm² or higher. Viral pathogens generally fall within the lower to middle range, though specific susceptibility varies considerably among viral families. System designers must account for the most resistant target organisms when calculating required output.
Key Dose Calculation Factors
When calculating germicidal dose requirements, engineers must consider lamp output degradation over time, reflection and absorption characteristics of surrounding surfaces, shadowing effects that may prevent direct exposure, air movement patterns affecting contact time, and temperature influences on lamp performance. Each factor introduces variables that require safety margins in system design.
The inverse square law governs UV-C intensity distribution, meaning irradiance decreases proportionally to the square of distance from the source. Doubling the distance from a lamp reduces intensity to one-quarter of the original value. This physical principle significantly impacts system geometry and lamp placement strategies, particularly in applications requiring uniform dose distribution across large areas or volumes.
Doorway Disinfection Applications
Doorway and portal disinfection systems represent a specialized application of UV-C technology designed to sanitize individuals as they transition between spaces. These installations require careful engineering to deliver effective dose levels to complex human body geometry while maintaining safe exposure limits for skin and eyes. The challenge lies in achieving thorough coverage of all body surfaces within practical transit times.
Effective doorway systems typically employ multiple lamp arrays positioned strategically around the portal perimeter. Computer modeling helps optimize lamp placement to minimize shadow zones created by body contours. Some advanced designs incorporate rotating or scanning mechanisms to improve coverage uniformity, while others rely on carefully calculated static configurations that account for typical walking postures and movements.

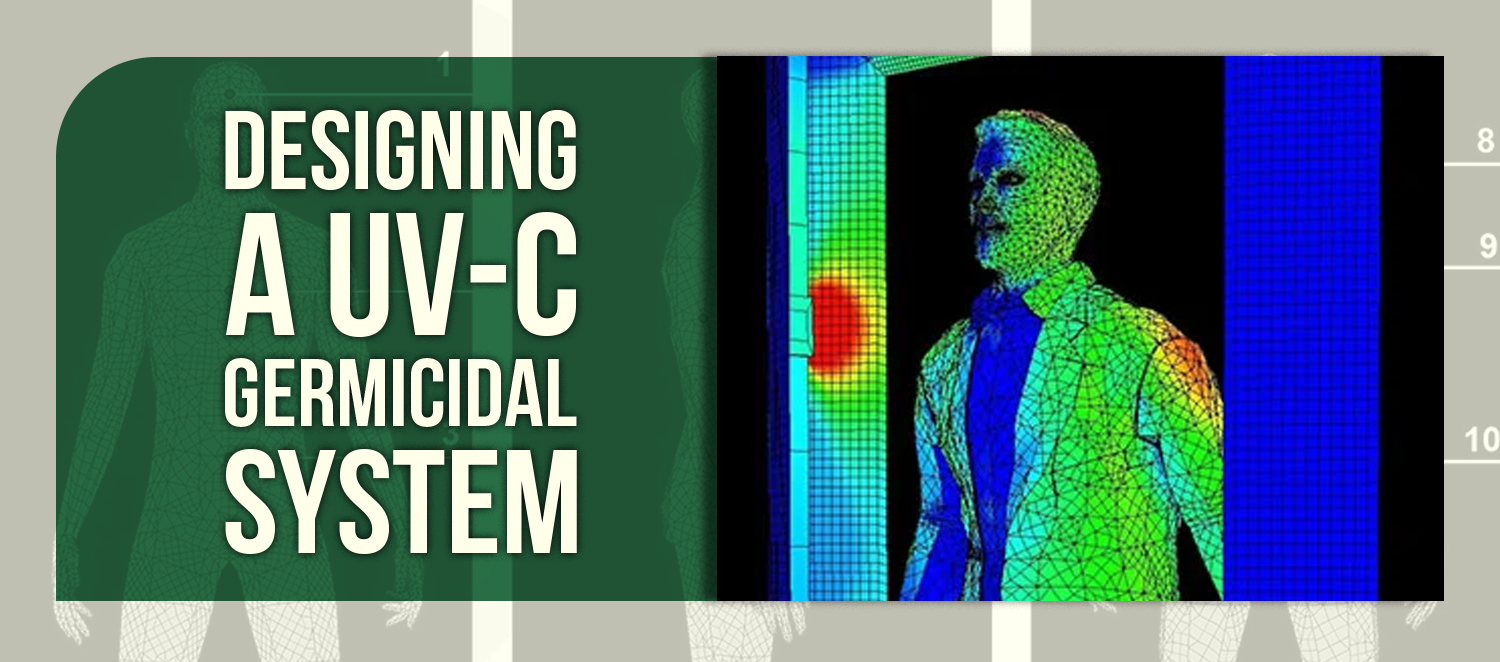

Thermal imaging and dose mapping studies reveal that certain body areas consistently receive lower exposure due to geometric shadowing. Underarms, areas between legs, and regions shaded by arms present particular challenges. Design solutions include angled lamp orientations, reflective chamber surfaces, and extended exposure zones that allow more complete coverage as individuals pass through the system.
UV-C Dose Distribution Analysis
| Configuration | Min Dose (mJ/cm²) | Max Dose (mJ/cm²) | Uniformity Ratio |
|---|---|---|---|
| Baseline Design | 3.2 | 45.8 | 14.3:1 |
| Extended Exposure Zone | 5.8 | 52.4 | 9.0:1 |
| Reflective Wall Surfaces | 8.4 | 58.2 | 6.9:1 |
| Fully Optimized System | 12.6 | 61.3 | 4.9:1 |
Safety Considerations and Thresholds
UV-C radiation poses inherent risks to human tissue, requiring careful attention to exposure limits and safety controls. The American Conference of Governmental Industrial Hygienists establishes threshold limit values for occupational UV exposure, with the permissible daily dose for unprotected skin and eyes set at 6 mJ/cm² at the 254nm wavelength. System designers must ensure that any direct human exposure remains well below these thresholds.
Safety engineering in UV-C systems encompasses multiple layers of protection. Interlocks prevent lamp operation when access panels are open or occupancy sensors detect presence in restricted zones. Shielding contains UV radiation within designated treatment areas. Warning indicators alert personnel to active UV conditions. Proper safety design enables the germicidal benefits of UV-C while protecting workers and building occupants from harmful exposure.
Material compatibility also factors into safety planning. Prolonged UV-C exposure degrades certain plastics, rubber compounds, and organic materials. System enclosures and nearby fixtures must utilize UV-resistant materials to prevent degradation that could compromise safety or system function over time.
Advancing UV-C Technology
Ongoing research continues to expand UV-C germicidal applications and improve system effectiveness. Far-UVC wavelengths around 222 nanometers show promise for direct human exposure applications, as this shorter wavelength cannot penetrate beyond the outer dead cell layers of skin or the tear layer protecting eyes. If validated through continued study, far-UVC could enable continuous occupied-space disinfection without the safety constraints of conventional 254nm systems.
LED-based UV-C sources represent another frontier, offering potential advantages in controllability, instant-on operation, compact form factors, and elimination of mercury. While current UV-C LED efficiency lags behind traditional mercury lamps, rapid improvements suggest they may become competitive for many applications in coming years. These developments point toward a future of more versatile, safer, and more accessible UV-C germicidal solutions.
Conclusion
Designing effective UV-C germicidal systems requires balancing multiple technical considerations: lamp selection and placement, dose calculations, coverage uniformity, safety controls, and material compatibility. Successful implementations deliver meaningful pathogen reduction while protecting human health and maintaining practical operability. Whether integrated into HVAC systems, deployed as standalone room disinfection units, or configured for specialized applications like doorway sanitization, UV-C technology offers a proven approach to improving indoor environmental quality.
As awareness of airborne disease transmission grows and expectations for indoor air quality increase, UV-C germicidal systems will continue gaining importance across residential and commercial applications. Understanding the engineering principles outlined here enables informed evaluation and implementation of these valuable disinfection solutions for healthier living and working environments.
