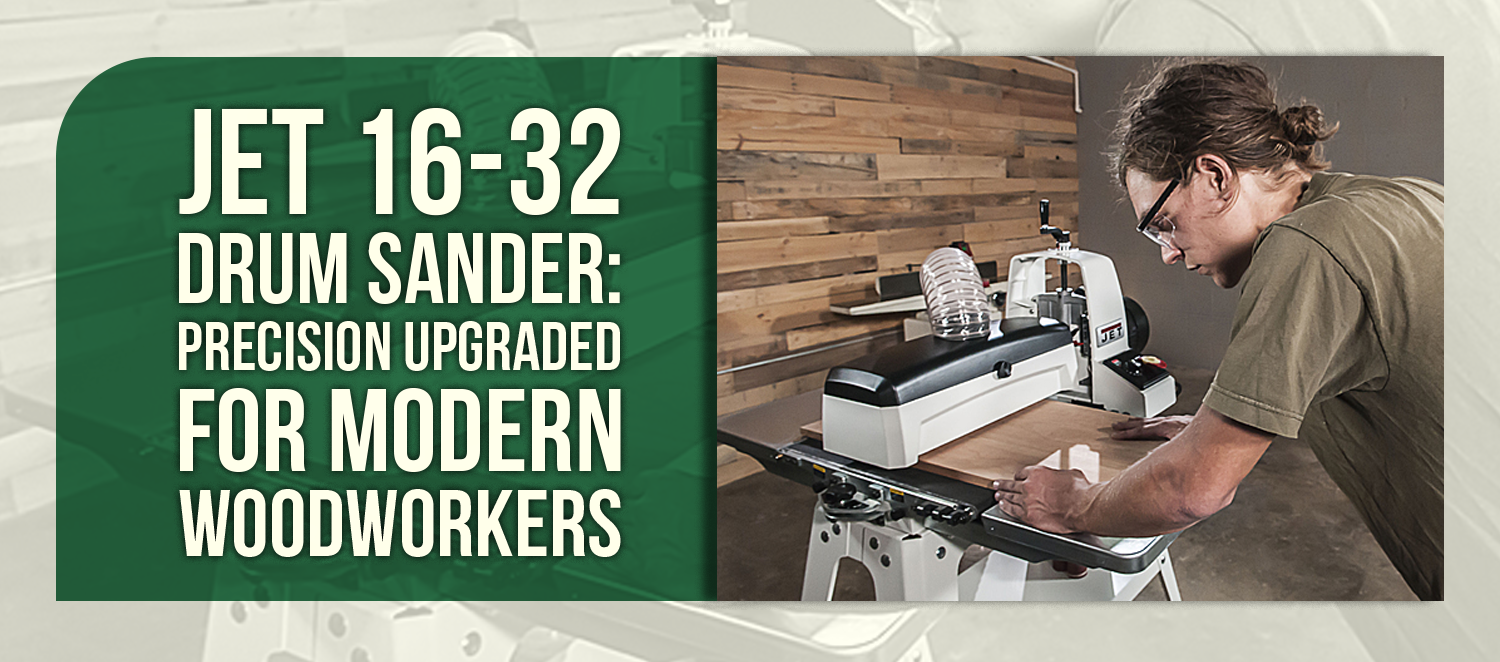

For well over a decade, the JET 16-32 Drum Sander with Stand has established itself as one of the most trusted machines in the woodworking community. Renowned for its reliability and performance, JET has now unveiled an upgraded version packed with enhanced features designed to elevate your sanding experience. These improvements include tool-free conveyor belt parallelism adjustment, an intuitive depth scale on the drum height handwheel, and a redesigned dust hood for superior dust collection.
Conveyor Belt Parallelism Made Simple
The new JET 16-32 places special emphasis on conveyor belt parallelism. Adjusting the precision-flattened, reinforced-steel belt no longer requires any tools—simply turn the dial located on the left side of the conveyor. Additionally, the conveyor system has been reengineered to pull the workpiece through the sander rather than push it, which significantly reduces stress on the belt and improves overall performance.
Precision Depth Control at Your Fingertips
A newly integrated depth scale now accompanies the large handwheel on top of the machine, allowing you to adjust drum height with remarkable accuracy. The sander handles material from 1/32 inch up to 3 inches thick and accommodates pieces as short as 2-1/4 inches in length. Each complete turn of the crank adjusts the drum height by 1/16 inch, giving you precise control over sanding thickness.
The combination of drum height adjustment and downward pressure also helps minimize snipe. Thanks to the open-ended design, the JET 16-32 can sand workpieces up to 32 inches wide by making two passes. A convenient camber adjustment ensures you can avoid witness marks on wide boards with ease.
Advanced Dust Collection System
To enhance dust collection efficiency, JET has completely redesigned the hood to feature an integrated channel that mirrors the drum's shape. This channel expertly directs dust and debris to a 4-inch-diameter dust port positioned on top of the hinged hood, keeping your workspace cleaner and your lungs healthier.
Powerful Motor Configuration
The JET 16-32 Drum Sander is equipped with two TEFC motors for optimal performance. A 1-1/2 HP, single-phase, 110V, 14-amp motor drives the sanding drum at 1,725 RPM, while a separate direct-drive DC motor powers the conveyor belt. This dual-motor configuration ensures consistent sanding power and fine control over conveyor speed.
0-10
Feet Per Minute Feed Rate
1,725
RPM Drum Speed
32"
Maximum Sanding Width
Intelligent SandSmart™ Control
The infinitely variable control produces conveyor feed rates ranging from 0 to 10 feet per minute. JET's exclusive SandSmart™ control continuously monitors the load on the drum motor and automatically adjusts conveyor speed to maintain the optimal feed rate. When the sanding depth is too aggressive or the feed rate too fast, a red indicator light alerts you immediately.
A safety-keyed On/Off switch with overload protection is conveniently mounted on the control box next to the SandSmart control panel for easy access.
Patented Belt Trackers™ Technology
The patented conveyor belt Trackers™ dramatically reduce the need for manual belt adjustments. Should tracking adjustments become necessary—such as after installing a new conveyor belt—independent tracking adjusters on either side of the conveyor are easily accessible for quick fine-tuning.
Premium Drum Construction
Measuring 5 inches in diameter by 16 inches in length, the sanding drum is engineered for smooth operation and efficient heat dissipation. The precision-machined and balanced, extruded aluminum drum features a self-cooling design that prevents heat damage to both the workpiece and the abrasive sleeve.
Sealed and permanently lubricated 1-inch-diameter ball bearings ensure smooth operation and extended service life. The patented abrasive take-up clips make changing abrasive sleeves quick and effortless, and the drum itself is removable for maintenance or replacement.
Robust Steel Stand & Optional Accessories
The JET 16-32 Drum Sander's steel stand features a generous 20 x 37-inch footprint for exceptional stability and includes a convenient storage shelf with pre-drilled holes for casters. Optional accessories include a set of infeed/outfeed tables priced at $129.99, each measuring 16-3/4 inches wide by 10 inches deep, which expand the sander's total support surface to more than 42 inches.
A set of four full-swivel locking casters with polyurethane-covered wheels is also available as an optional upgrade for $133.99, allowing you to easily move the sander around your workshop.
"The JET 16-32 Drum Sander has proven itself to be a user-friendly, precision machine with plenty of capacity to efficiently handle a wide variety of sanding jobs. Our new, upgraded version is sure to become an indispensable tool in many small- to mid-size woodshops, as well as enthusiasts' home workshops."
— Joan Duvall, JET Senior Director of Marketing
Investment & Warranty Protection
The JET 16-32 Drum Sander with Stand (model JWDS-1632) is available at $1,299.99 and comes backed by a comprehensive 5-year warranty. Additionally, it includes JET's RED Assurance™ program—the industry's most dependable service and support guarantee—giving you complete peace of mind with your purchase.
