Master the Most Misunderstood Concepts in Professional Irrigation Systems
Whether you're a professional irrigator, landscaper, plumber, pool specialist, or outdoor enthusiast, understanding the critical distinction between water flow and water pressure is essential for optimal system performance. These are the two most frequently misunderstood terms in the irrigation industry, yet they form the foundation of every successful irrigation installation.
What exactly separates these two concepts? How do you measure them with precision? And why does accurate measurement matter so much for your irrigation system's success? Let's break down everything you need to know.
Water Flow Explained
Flow represents the volume of liquid that moves through your system within a specific timeframe. This measurement can be expressed in several standard units:
- LPM - Litres per minute
- L/S - Litres per second
- m3/h - Cubic metres per hour
- LPH - Litres per hour
Standard Conversion: For most irrigation applications, flow measurements are standardized to LPM. The conversion formula is: 2 L/S = 120LPM, or alternatively 3m3/h (3000LPH) = 50LPM.
The Bucket Test Method
To determine your tap's flow rate accurately, follow this straightforward procedure:
- Remove all tap fittings and attachments
- Open the tap to full capacity
- Position a bucket directly beneath the open tap
- Time how long it takes to fill the bucket completely
Example Calculation: If a 9L bucket fills in 12 seconds, your flow rate is 45LPM
(Formula: 60 seconds ÷ 12 seconds × 9L = 45LPM)
Water Pressure Explained
Pressure is the force exerted by the moving liquid in your system. Understanding pressure dynamics is crucial for proper irrigation system design and component selection.
Pressure Fundamentals: For every meter of vertical height, a downward force or pressure of 10kPa (kilopascals) is generated.
If water is released from a 1-meter height, the resulting pressure is 10kPa. From 20 meters, the pressure increases to 200kPa. Since most irrigation components are engineered to operate at specific pressure ranges, ensuring the correct pressure delivery from your tap or pump system is absolutely critical.
The Flow & Pressure Relationship
Understanding the Critical Difference
Consider these comparative examples that illustrate why flow and pressure are independent measurements:
Scenario A: A 9L bucket emptied from a 1-meter height takes 1 second. The resulting measurements are 9L/S @ 10kPa.
Scenario B: The same 9L bucket emptied from a 20-meter height takes 20 seconds. The measurements are 3LPM @ 200kPa.
Critical Insight: The same volume of water released from different heights produces vastly different pressure readings and flow durations. This demonstrates that FLOW IS NOT PRESSURE. High flow doesn't guarantee adequate pressure, and sufficient pressure doesn't ensure proper flow rates.
Every tap, pump, water outlet, and irrigation component must be independently tested and measured to determine both its actual flow rate and pressure output. This dual measurement approach ensures your irrigation system receives the proper water flow volume and the correct pressure level for optimal performance.
Professional Measurement Solutions
While the bucket test method provides a practical way to measure water flow, pressure measurement requires specialized equipment. Professional-grade pressure gauges are available from tap or irrigation system suppliers, though traditional gauges can cost hundreds of dollars for devices with combined flow meter and pressure tester functionality.
Cost-Effective Professional Solution

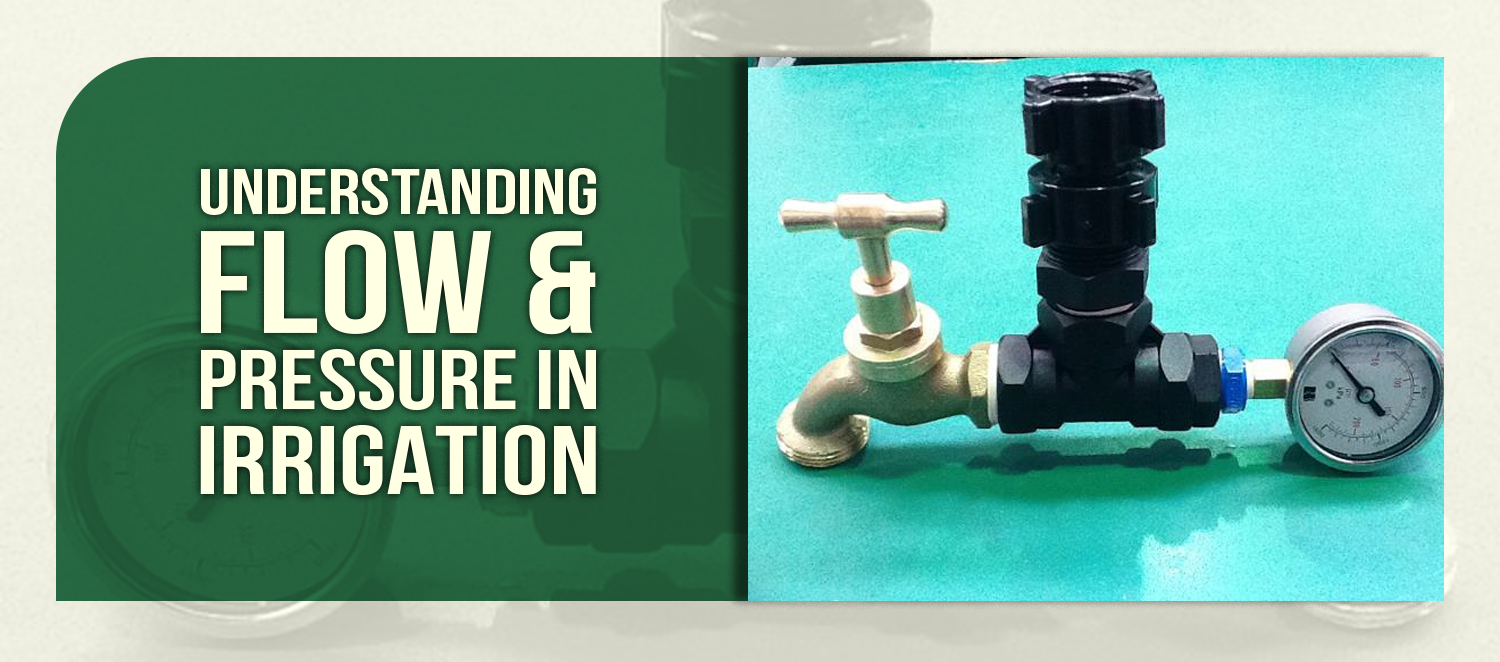

BACKYARD PROVIDER offers an innovative, budget-friendly compact device that seamlessly integrates both water pressure testing and bucket test capabilities. This professional-grade tool combines the accuracy of expensive equipment with the affordability every irrigator needs.
This comprehensive measurement solution enables you to perform complete flow and pressure assessments without the significant investment traditionally required for professional irrigation testing equipment.
Why Accurate Measurement Matters
Proper irrigation system installation requires precise design calculations based on accurate flow and pressure measurements. Without this critical data, you risk encountering several common but avoidable problems:
- Sprinkler performance issues from incorrect sizing or spacing
- System inefficiency due to under or over-specification of pumps
- Pressure regulation failures in sensitive irrigation setups
- Premature component failure from operating outside design parameters
Calculating water flow and pressure with precision allows you to select the appropriate pressure regulators for drip irrigation systems and other pressure-sensitive irrigation configurations, ensuring long-term reliability and optimal performance.
Always Complete Accurate Flow & Pressure Testing!
Invest in professional-grade measurement tools to ensure your irrigation system performs flawlessly from day one.
Manual Electric HydrometerInderstanding the distinction between water flow and water pressure is fundamental to successful irrigation system design and installation. By implementing accurate measurement practices and selecting the right professional tools, you ensure optimal system performance, component longevity, and water efficiency. Make precise flow and pressure testing a standard part of every irrigation project you undertake.
