your vision for the ideal living space includes sophisticated aesthetics paired with robust, customized climate management, the ceiling cassette mini split system stands out as an exceptional choice.
For property owners who want a heating and cooling solution that operates quietly in the background—truly invisible yet remarkably effective—the ceiling cassette delivers on both elegance and efficiency. Whether you're upgrading a single room or embarking on a comprehensive renovation, this guide will walk you through everything you need to select and install the ideal unit for your property.

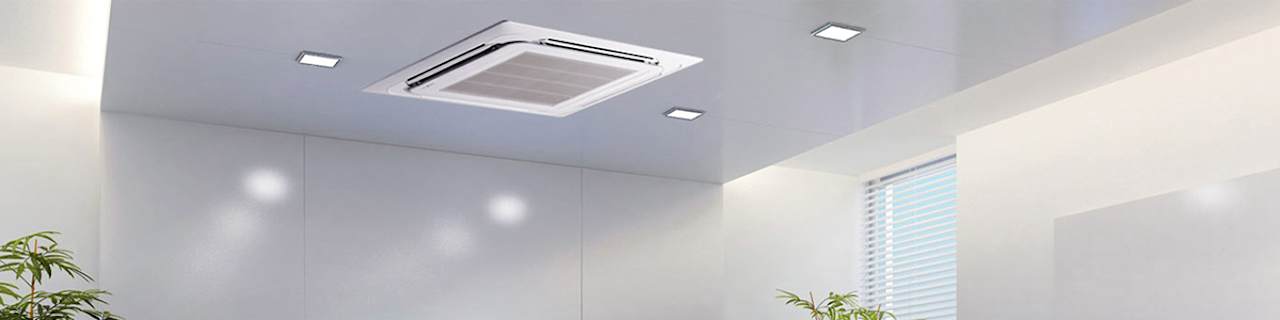

What Exactly is a Ceiling Cassette Mini Split?
The defining characteristic of a ceiling cassette unit lies in its remarkable subtlety. The entire mechanical system is skillfully tucked away above your ceiling, revealing only a slender, visually pleasing grille—generally around one inch in thickness—within your room. This makes it a perfect solution for environments where maintaining unobstructed wall surfaces and maximizing functional floor area is essential.
Beyond their sleek appearance, ceiling cassettes deliver impressive operational advantages:
Enhanced Coverage
Engineered to condition expansive areas with greater effectiveness than conventional wall-mounted mini splits, ensuring uniform temperature distribution throughout your space.
Precision Comfort
Featuring air distribution from four directional outlets (one on each side), these systems excel at eliminating hot zones and cold pockets in spacious, open-concept living areas.
ceiling Cassette Installation and Positioning
Achieving seamless integration demands meticulous attention to every detail. Understanding the technical requirements ensures your installation proceeds smoothly and delivers optimal performance.
Sizing and Fit Requirements
Most standard ceiling cassette units measure approximately 24 by 24 inches—perfectly suited for drop ceiling grid installation. When mounting in a finished ceiling, several structural factors require careful consideration:
Ceiling Clearance: Ensure a minimum of 10 to 12 inches of accessible vertical space above your ceiling to properly house the unit's body and support its suspension mechanism.
Joist Configuration: Properties with standard 16-inch on-center joists may necessitate custom framing modifications for four-way cassette models. Alternatively, a single-direction cassette is specifically designed to fit comfortably within these standard joist dimensions, though it provides more limited air distribution.
Drainage and Optimal Location
Condensate Handling: Ceiling cassettes come equipped with an integrated lift pump designed to manage moisture produced throughout the cooling process. This pump necessitates connection to 1"–1.25" rigid PVC drainage piping, which must be properly routed to your home's exterior.
Strategic Placement: These systems perform most effectively when positioned centrally within the ceiling, optimizing four-directional airflow coverage. If central placement isn't feasible, ensure you seal any vents that would otherwise blow directly against a wall surface, as this impedes proper air circulation throughout the room.
The Essential Role of Proper Insulation
When your unit is being installed within an unconditioned area, such as an attic space, proper insulation is absolutely critical. Operating a cassette system without adequate insulation in an unconditioned zone will result in harmful condensation forming on the unit's exterior surfaces, ultimately causing damaging water leaks into your living areas below.
Additional Ceiling Cassette Capabilities
Leading manufacturers offer an extensive array of features that empower you to customize your indoor climate experience for peak results:
Directional Airflow Control
Numerous models permit you to close one or two of the four vents, providing the flexibility to fine-tune airflow direction and prevent uncomfortable drafts in particular zones (such as avoiding direct air onto a workstation or seating area).
Remote Temperature Sensing
While cassettes include built-in thermostats, mounting a remote temperature sensor on the far side of the room conditions the entire space more precisely, since the unit's ceiling-mounted location may not accurately reflect actual room temperature.
Branch Duct Compatibility
Certain ceiling cassette configurations can accommodate a support branch duct, enabling a single powerful unit to condition both a primary living area (like a great room) and an adjacent secondary space (such as a hallway or den), maximizing efficiency and reducing equipment needs.
Fresh Air Intake Option
Many units provide the capability to connect to a fresh air supply. This innovative feature allows your system to draw in, condition, and circulate outdoor air into your home, going beyond simply recycling stale indoor air for a noticeably superior interior environment.
Whether you're building from the ground up or incorporating advanced climate control into a major remodel, BACKYARD PROVIDER offers the personalized guidance, comprehensive selection of premium brands, and specialized expertise to transform your vision of comfortable, climate-controlled living into reality.
