Single-phase industrial motors represent a cornerstone of modern manufacturing, delivering dependable power solutions across countless applications. Their straightforward construction, reliability, and widespread availability make them indispensable for both residential and commercial settings. From powering workshop machinery to driving HVAC blowers and outdoor equipment, these versatile motors provide the foundation for countless everyday operations.
Whether you're upgrading workshop equipment, maintaining HVAC systems, or building outdoor installations, understanding single-phase motors helps you select the right power solution for your specific needs.
What Are Single-Phase Motors?
Single-phase motors operate using alternating current (AC) technology, drawing electricity from a single voltage source. Unlike their three-phase counterparts found in heavy industrial settings, single-phase variants connect easily to standard household and commercial electrical systems. This accessibility makes them particularly popular for residential applications, light commercial use, and remote installations where three-phase power isn't readily available.
These motors typically deliver power outputs ranging from fractional horsepower up to approximately 10 horsepower. Their compact design and simplified wiring requirements contribute to easier installation procedures and reduced maintenance demands compared to more complex motor configurations.
How Do Single-Phase Motors Work?

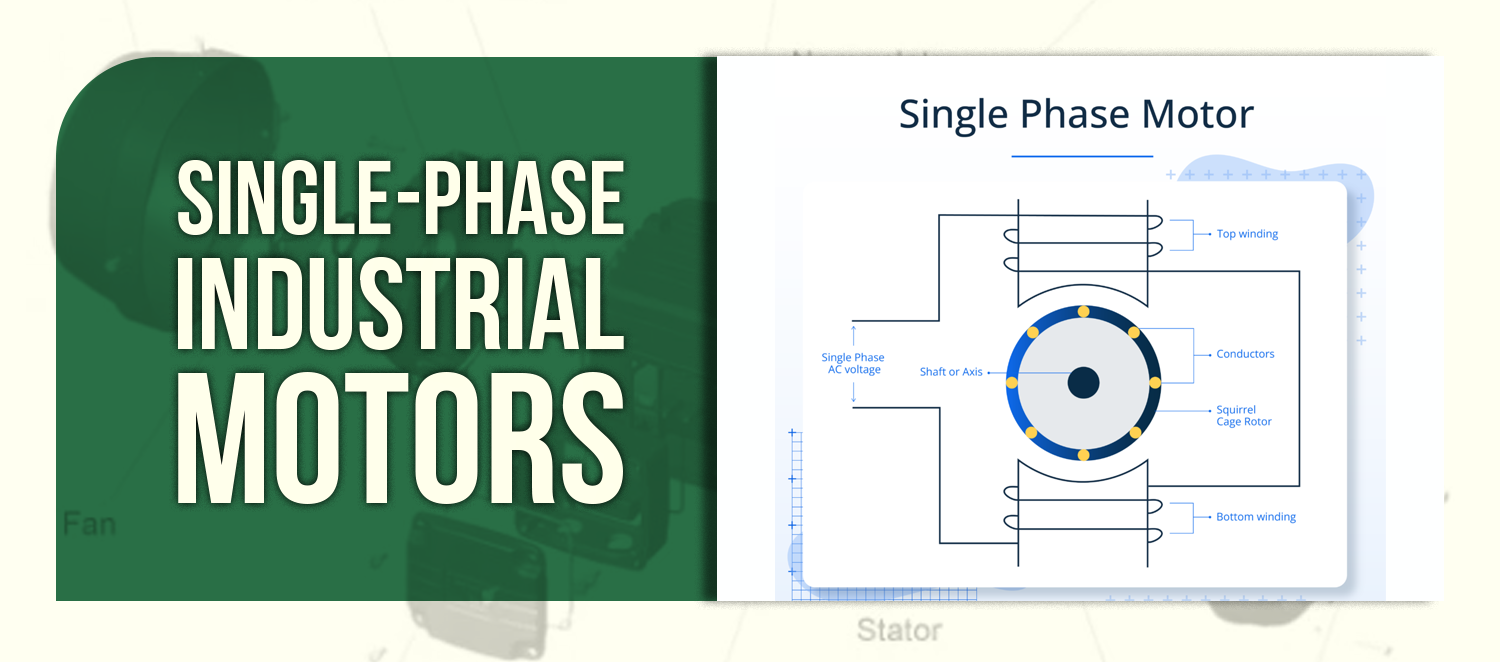

Similar to all AC motors, single-phase motors feature both stationary stator windings and a rotating rotor assembly. However, the electromagnetic field produced by a single-phase supply differs fundamentally from three-phase systems. Rather than generating a naturally rotating magnetic field, single-phase current creates an oscillating or pulsating field pattern.
This presents an engineering challenge: the pulsating field alone cannot initiate rotation from a standstill. Manufacturers overcome this limitation through various starting mechanisms that artificially create the phase displacement needed for initial rotation. Once the rotor begins spinning, the motor's inherent design maintains continuous operation efficiently.
Stator Component
The stationary outer structure containing copper windings that generate electromagnetic fields when energized by AC current.
Rotor Assembly
The rotating inner component, typically featuring a squirrel-cage design, that converts electromagnetic energy into mechanical rotation.
Types of Single-Phase Motors
The term "single-phase motor" encompasses several distinct designs, each engineered for specific performance characteristics and applications. Understanding these variations helps you select the optimal motor for your particular requirements.
Split-Phase Motors
Split-phase motors incorporate an auxiliary starting winding positioned alongside the main operating winding. This secondary winding features different wire gauges and turn counts compared to the primary coils, creating the necessary phase displacement for startup. A centrifugal switch automatically disconnects the starting winding once the motor reaches approximately 75% of operating speed, allowing efficient continuous operation.
Typical Applications: Belt-driven equipment, small pumps, shop grinders, and general-purpose workshop machinery.
Capacitor-Start & Capacitor-Start-Capacitor-Run Motors
These motors employ capacitors to enhance starting torque and operational efficiency. Capacitor-start designs utilize a high-capacitance electrolytic capacitor during startup, which disconnects after the motor reaches speed. Capacitor-start-capacitor-run variants maintain a smaller run capacitor throughout operation, delivering superior efficiency and performance under varying load conditions.
Typical Applications: Air compressors, refrigeration equipment, large pumps, and demanding commercial applications requiring high starting torque.
Permanent Split Capacitor Motors
Permanent split capacitor (PSC) motors maintain their capacitor connection continuously during both starting and running phases. This eliminates the need for centrifugal switches or starting relays, creating a simpler and more reliable design. While PSC motors offer moderate starting torque, they excel in applications requiring smooth, quiet operation and variable speed control capabilities.
Typical Applications: HVAC blower systems, ventilation fans, and equipment requiring speed adjustment.
Shaded Pole Motors
Representing the simplest single-phase motor design, shaded pole motors utilize copper rings (shading coils) embedded in portions of the stator poles. These rings create a delayed magnetic field that produces enough phase displacement for self-starting capability. While efficiency and starting torque remain limited, their robust construction and low cost make them suitable for many light-duty applications.
Typical Applications: Small fans, household appliances, light-duty equipment, and applications where cost efficiency takes priority.
Applications and Selection Criteria
Selecting the appropriate single-phase motor depends on matching the motor's characteristics with your application requirements. Key factors include starting torque demands, efficiency priorities, noise considerations, and budget constraints.
Working Characteristics Comparison
Split-Phase
Moderate starting torque, economical choice, ideal for easy-start loads
Capacitor-Start
High starting torque, excellent for demanding startup conditions
PSC Motors
Smooth operation, variable speed capability, quiet performance
Shaded Pole
Simple, reliable, cost-effective for light-duty applications
Starting Torque Requirements
Consider whether your equipment starts under load. Compressors and pumps typically require higher starting torque compared to fans or blowers.
Efficiency Priorities
For equipment running continuously, invest in higher-efficiency motor designs. The energy savings compound significantly over extended operation periods.
Environmental Conditions
Outdoor installations, dusty workshops, or high-humidity environments demand appropriate enclosure ratings and construction materials.
Marathon Motors C1160 General Purpose Motor
A versatile 1.5 HP single-phase motor delivering reliable 1725 RPM performance. Designed for demanding workshop applications with flexible voltage options (115/208-230V) to accommodate various electrical configurations.
1.5 HP
Power Output
1725
RPM Speed
1 PH
Single Phase
Multi-V
115/208-230V
Where Can You Source Quality Single-Phase Motors?
Numerous manufacturers produce single-phase motors suited for various applications. Reputable brands like Marathon, Leeson, Baldor, and Dayton maintain extensive product lines covering diverse horsepower ratings, enclosure styles, and mounting configurations. When selecting a supplier, prioritize manufacturers offering comprehensive specifications, warranty support, and technical assistance.
At BACKYARD PROVIDER, we stock dependable single-phase motors designed for outdoor equipment, workshop machinery, and HVAC applications. Our selection emphasizes quality construction, reliable performance, and compatibility with standard residential and commercial electrical systems.
Summary
Single-phase industrial motors provide accessible, reliable power solutions for countless residential and commercial applications. Their compatibility with standard electrical systems, combined with straightforward installation requirements, makes them invaluable for workshops, HVAC systems, pumps, compressors, and outdoor equipment installations.
Understanding the distinctions between split-phase, capacitor-start, PSC, and shaded pole designs enables informed purchasing decisions. Match your motor selection to your application's specific starting torque, efficiency, and environmental requirements for optimal long-term performance and value.
This article provides general educational information about single-phase industrial motors. Always consult qualified electricians and refer to manufacturer specifications when installing or servicing electrical equipment. Proper sizing, installation, and maintenance ensure safe, efficient operation.
