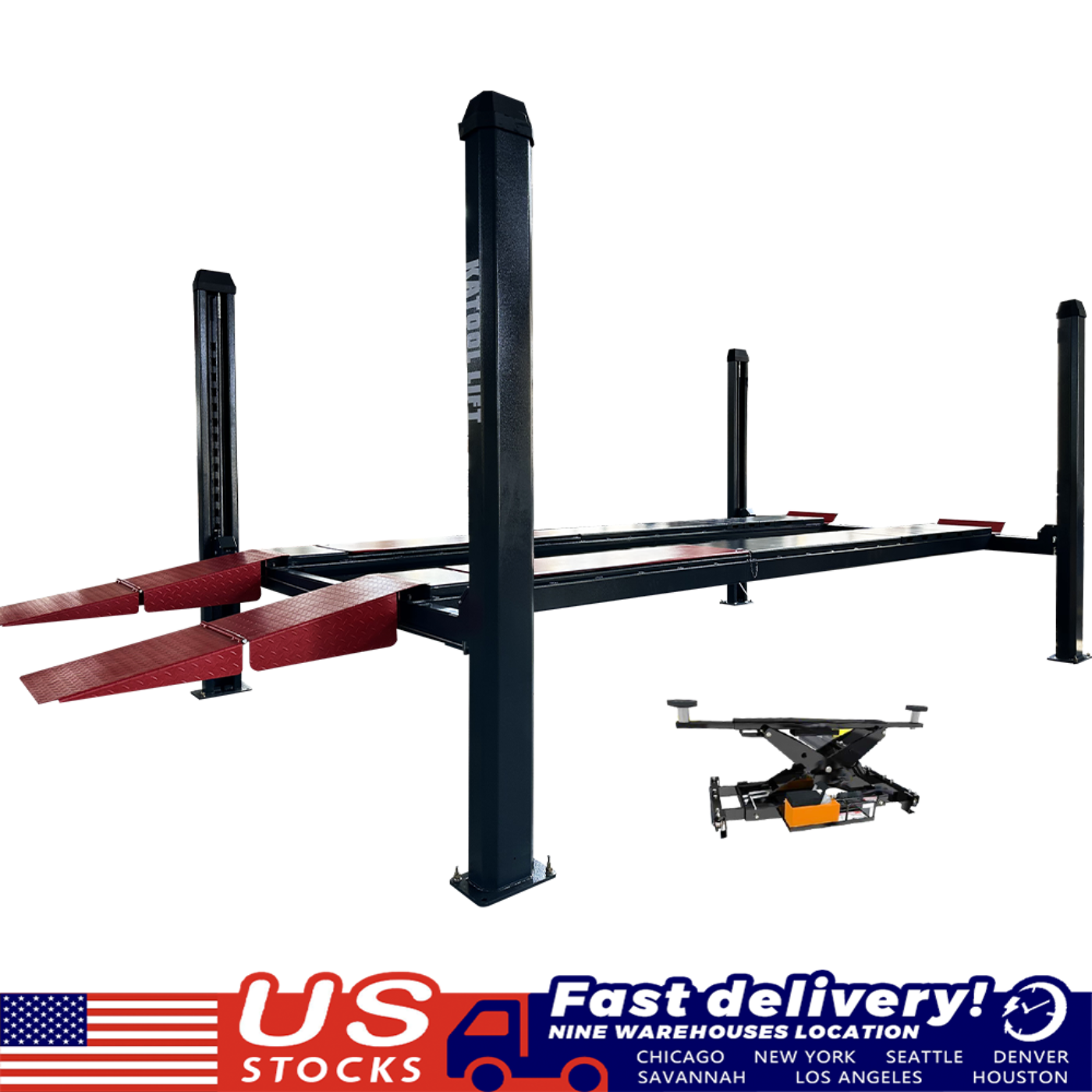

Katool KT Heavy Duty Four Post Lift 12,000 lbs Capacity - 4H120X
The Katool 4H120X Four-Post Lift is engineered for professional automotive shops, restoration facilities, and serious enthusiasts who demand strength, stability, and dependable performance. Built with heavy-duty materials and precision manufacturing, the 4H120X is designed to safely lift a wide range of vehicles — from passenger cars to trucks and SUVs — with confidence and efficiency.
With a 12,000 lb rated lifting capacity, this lift delivers exceptional durability for daily shop use. The generous 86.9 in (2208 mm) lifting height provides excellent under-vehicle access for maintenance, inspections, and repairs, while smooth hydraulic operation ensures consistent, controlled lifting and lowering.
Designed with productivity in mind, the 4H120X features a fast ≤ 83 second raise time and controlled ≥ 40 second lowering time, helping reduce downtime and keep vehicles moving through your shop. Its wide stance and substantial steel construction offer outstanding stability, even under heavier loads.
Whether you’re performing routine service, alignments, restorations, or long-term vehicle storage, the Katool 4H120X delivers professional-grade reliability at an exceptional value.
Features
-
12,000 lb lifting capacity for cars, trucks, and SUVs
-
220 Volts for efficiency
-
86.9 in (2208 mm) max lifting height for comfortable undercar access
-
Fast lifting speed (≤ 83 seconds) for efficient workflow
-
Heavy-duty steel construction for long-term durability
-
Wide column spacing for improved vehicle compatibility
Specification
| Model |
KT-4H120X |
| Rated Load |
12,000 lbs |
| Lifting Height |
86.9 in (2208 mm) |
| Raising Time |
≤ 83 sec |
| Lowering Time |
≥ 40 sec |
| Net Weight |
3373 lbs (1530 kg) |
| Width Between Columns |
112.81 in (2865 mm) |
| Machine Width |
135.2 in (3435 mm) |
| Machine Height |
94.88 in (2410 mm) |
What our Experts Think
-
Serious 12,000 lb lifting power
-
Easily supports cars, trucks, and SUVs—ideal for commercial shops and advanced home garages
-
Outstanding stability & safety
-
Four-post design provides superior balance and even weight distribution under heavy loads
-
Full-rise working height
-
Generous lift height allows comfortable undercar access for maintenance and inspections
-
Efficient performance
-
Fast lifting cycle improves workflow and reduces downtime in busy environments
-
Heavy-duty construction
-
Built with industrial-grade steel for long-term durability and consistent daily use
-
Versatile service capability
-
Compatible with rolling jacks for wheel-off work like brakes, suspension, and alignments
-
User-friendly design
-
Wide runways and column spacing make vehicle positioning easier and more convenient
Q&A
Q: What is the lifting capacity of this 4-post lift?
A: It supports up to 12,000 lbs, ideal for cars, SUVs, and light-duty trucks.
Q: Is this lift suitable for professional use?
A: Yes, it’s built for commercial shops, fleet service, and advanced home garages with heavy-duty daily use.
Q: What is the maximum lifting height?
A: Approximately 86.9 inches, providing excellent undercarriage access for repairs and inspections.
Q: Does it include a rolling jack?
A: Yes, many packages include a 7,000 lb pneumatic rolling jack for wheel-free service like brakes and suspension work.
Q: What power requirements does it need?
A: Typically operates on 220V power, standard for professional automotive equipment.
Q: How fast is the lifting cycle?
A: Raises in about 83 seconds and lowers in around 40 seconds for efficient workflow.
Q: Is it good for vehicle storage?
A: Yes, the 4-post design is perfect for both servicing and long-term vehicle storage.
Q: What safety features are included?
A: It includes mechanical safety locks, cable synchronization system, and backup locking mechanisms for secure lifting.
Q: Does it require bolting to the floor?
A: It can be used freestanding, but installation on reinforced concrete is required for safety.
Q: Why choose a 4-post lift like this?
A: It offers higher weight capacity, easier drive-on access, and better stability compared to 2-post lifts.
Maintenance Tips
-
Inspect Cables & Pulleys Monthly: Ensure equal tension across all four cables to maintain synchronized lifting and prevent safety lock issues.
-
Lubricate Moving Components: Grease pulleys, cable sheaves, locks, and joints regularly for smooth, quiet operation.
-
Check Hydraulic System: Monitor fluid level and condition; replace oil annually to keep lifting performance consistent.
-
Test Safety Locks & Release System: Verify locks engage evenly on all posts—critical for 12,000 lb load stability and operator safety.
-
Tighten Bolts & Structural Parts: Inspect columns, crossbeams, and runways for loose hardware due to heavy-duty use.
-
Keep Runways Clean: Remove oil, debris, and buildup from diamond प्लेट surfaces to prevent slipping and corrosion.
-
Inspect Electrical Components: Check power unit, wiring, and control box—ensure proper 220V supply and no moisture exposure.
-
Monitor Lift Speed Changes: Slower lift times (normally ≤83 sec up) may indicate hydraulic or mechanical wear.
-
Annual Professional Service: Perform full inspection of cables, locks, and hydraulic system for long-term durability.
