Hoshizaki FS-1022MLJ-C | 22" Wide Remote-Cooled Small Cubelet Ice Maker Serenity Series (Dispenser & Condenser Sold Separately) - FS-1022MLJ-C
The FS-1022MLJ-C is capable of producing approximately 830 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Remote-cooled with SRC-10H icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The FS-1022MLJ-C requires a Single phase, See Remote Condenser, *115V supply for the FS Icemaker is supplied from the 230V SRC Remote Condenser electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: Beverage Dispensers. Please consult the Specification Sheet for additional details
Features
- Dimensions: 22″ W x 16-1/2″ D x 26″ H
- Up to 830 lbs of ice produced per 24 hours
- Mount units side-by-side for x the ice production
- Produces small cubelet nugget-style ice
- Durable stainless steel exterior

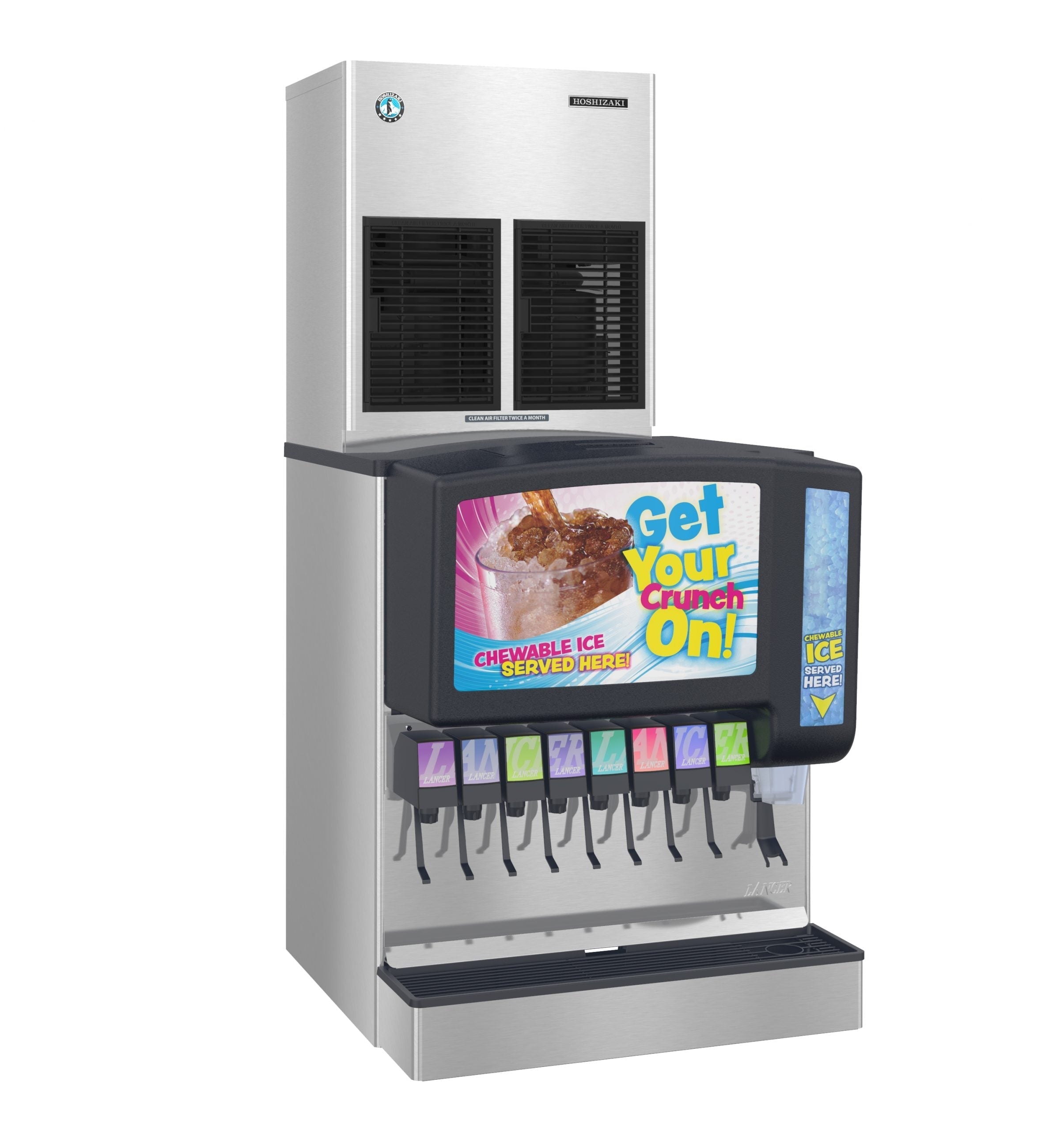

- Compatible bins & dispensers, sold separately: Beverage Dispensers (DM-4420N, DM-200B)
- Ice removed from evaporator after every shut down cycle
- Advanced CleanCycle24™ design
- Reduces heat in the kitchen and minimizes noise
- R-404A refrigerant (4 oz. / 113 g)
- Heat Rejection:9800 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 9.3 amps (20 Amp Max fuse)
- 5.96 kwh/100 lbs.@ 90/70
- Single phase, See Remote Condenser, *115V supply for the FS Icemaker is supplied from the 230V SRC Remote Condenser
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
Specifications
| Brand |
Hoshizaki |
| Model Number |
FS-1022MLJ-C |
| Weight |
140 lbs |
| Width |
22" |
| Depth |
16.5" |
| Height |
26" |
| Compatible With |
ice & water dispenser |
| Cooling |
air-cooled |
| Ice Type |
nugget ice |
| Refrigeration |
remote (refrigeration not included) |
| Production per 24 hr (Lbs) |
889 |
| Voltage |
115 |
| Phase |
1 |
| Drain Type |
gravity drain |
What our Experts Think
-
Designed for use with SRK-10J, SRK-12J, SRK-12J3, SRK-15J, and SRK-15J3 remote condensers.
-
Requires professional installation including brazing and refrigerant charging.
-
Durable construction ensures long-lasting, reliable performance in commercial settings.
-
Enables efficient refrigerant flow for consistent ice production and cooling.
-
Maintenance tips: regularly check for leaks, keep tubing clean, and avoid kinks during handling.
Q&A
Q: What is the Hoshizaki HS-0250?
A: A 25 ft ice bin tubing kit designed for use with specific Hoshizaki ice machines (SRK-10J, SRK-12J, SRK-12J3, SRK-15J, SRK-15J3).
Q: Is installation easy?
A: Installation requires brazing for a secure, leak-free connection.
Q: What machines is it compatible with?
A: Compatible with SRK-10J, SRK-12J, SRK-12J3, SRK-15J, and SRK-15J3 models.
Q: What is the purpose of this tubing kit?
A: It efficiently transports ice from the ice maker to the bin.
Q: Why choose genuine Hoshizaki tubing?
A: Ensures optimal performance, durability, and compatibility with your ice machine.
Maintenance Tips
-
Ensure professional brazing for secure, leak-free connections.
-
Inspect tubing regularly for wear or damage.
-
Clean tubing during routine maintenance to prevent blockages.
-
Replace tubing immediately if leaks or corrosion are detected.
-
Follow manufacturer guidelines for installation and maintenance
