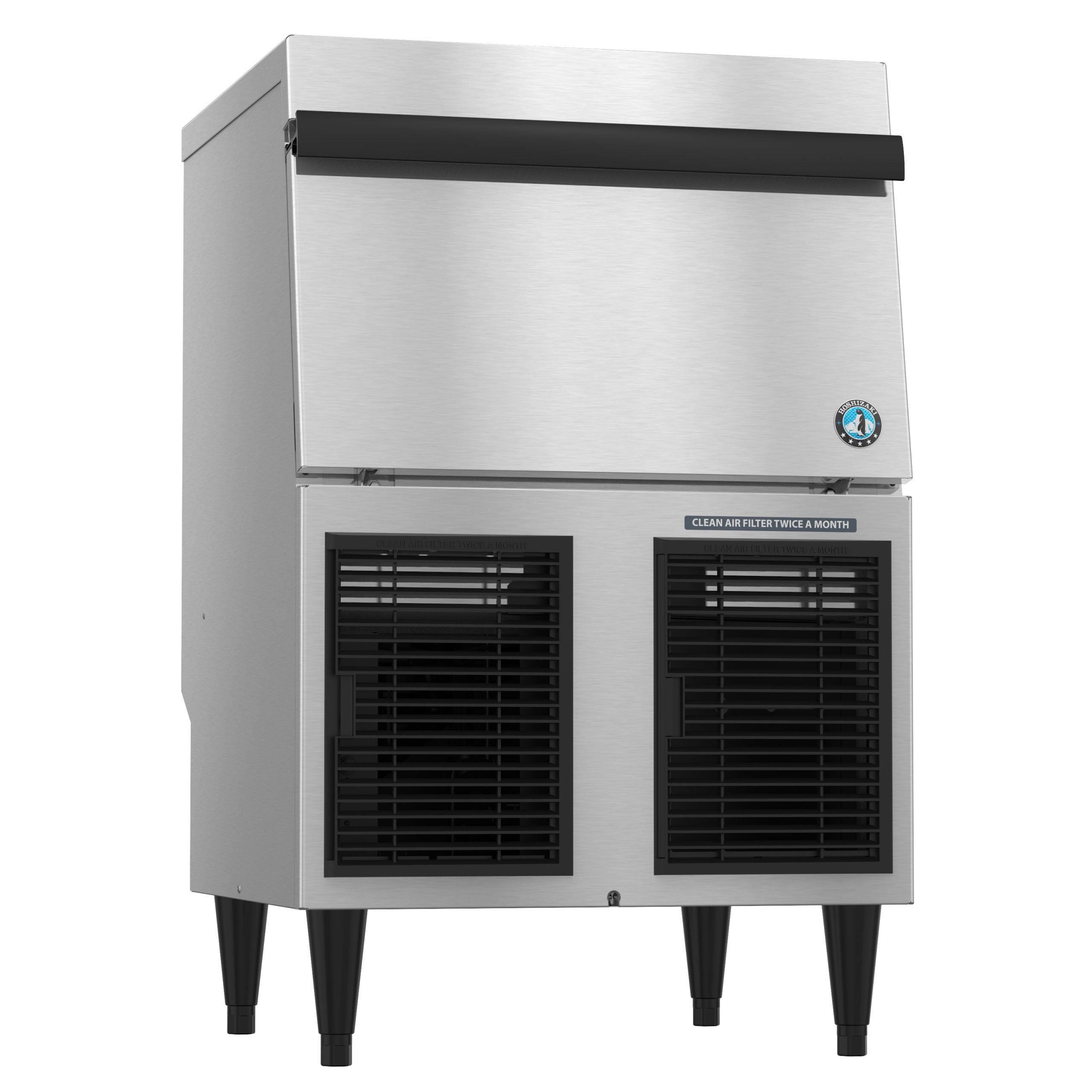

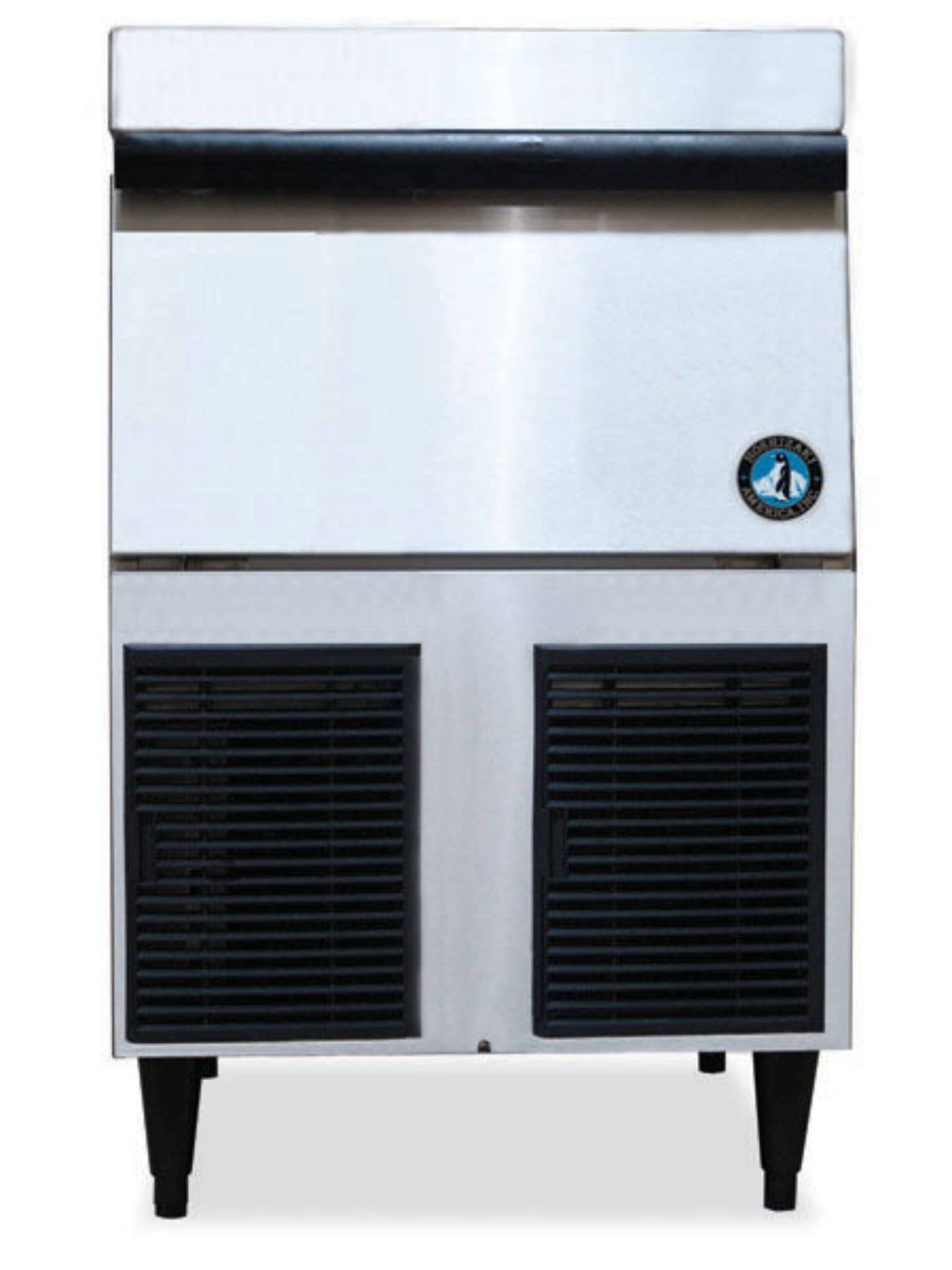

Hoshizaki F-330BAJ | 24" Wide Air-Cooled Undercounter Flaker Ice Maker w/ Built-In Storage Bin - F-330BAJ
The F-330BAJ is capable of producing approximately 332 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Air-cooled, Self Contained, Built in Storage Bin icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-330BAJ requires a Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug electrical connection that is hard-wired at the installation site. Front in, front out airflow. Please consult the Specification Sheet for additional details.
Features
- Dimensions: 24″ W x 26″ D x 39″ H
- Up to 332 lbs of ice produced per 24 hours
- Up to 80 lbs of built-in storage capacity (2.7ft3)
- Produces flaked ice
- Durable stainless steel exterior
- Front in, front out airflow
- 2 second rinse every hour to remove sediment
- Advanced CleanCycle24™ design
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant (7.1 oz. / 200 g)
- Heat Rejection:3400 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 6.9 amps (15 Amp Max fuse)
- 5.91 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor on entire machine.
Specifications
| Brand |
Hoshizaki |
| Model Number |
F-330BAJ |
| Weight |
178 lbs |
| Width |
24" |
| Depth |
26" |
| Height |
39" |
| Installation Type |
undercounter |
| Cooling |
air-cooled |
| Ice Type |
flake ice |
| Refrigeration |
self-contained refrigeration |
| Finish |
stainless steel |
| Production per 24 hr (Lbs) |
332 |
| Bin storage capacity (Lbs) |
80 |
| Voltage |
115 |
| Phase |
1 |
| Drain Type |
gravity drain |
What our Experts Think
-
High Ice Production: Produces up to 332 lbs of flaked ice per day, ideal for establishments requiring substantial ice supply.
-
Compact Design: With dimensions of 24" W x 26" D x 39" H, it fits in tight spaces without compromising on capacity.
-
Built-In Storage: Features an 80 lb built-in storage bin, reducing the need for additional storage solutions.
-
Advanced Cleaning: Equipped with CleanCycle24™ and H-GUARD Plus antimicrobial protection for cleaner ice and easier maintenance.
-
Energy Efficient: Operates at 5.91 kWh per 100 lbs of ice produced, contributing to lower energy costs.
Q&A
Q: What is the ice production capacity of the Hoshizaki F-330BAJ?
A: Produces up to 395 lbs of flake ice per 24 hours.
Q: What are the unit’s dimensions?
A: Compact 24" wide undercounter design for space-saving installation.
Q: What type of cooling system does it use?
A: Air-cooled for efficient, low-maintenance operation.
Q: Does it include an ice storage bin?
A: Yes, built-in storage bin included for seamless ice storage.
Q: What type of ice does it produce?
A: Produces soft, moldable flake ice ideal for food presentation and healthcare.
Q: What materials are used?
A: Durable stainless steel exterior for long-lasting performance and easy cleaning.
Maintenance Tips
-
Clean and descale the ice-making components regularly to prevent buildup.
-
Sanitize the storage bin and water system frequently for hygiene.
-
Clean condenser coils monthly to maintain cooling efficiency.
-
Replace water filters as recommended to ensure ice quality.
-
Schedule professional servicing to optimize performance and extend lifespan
