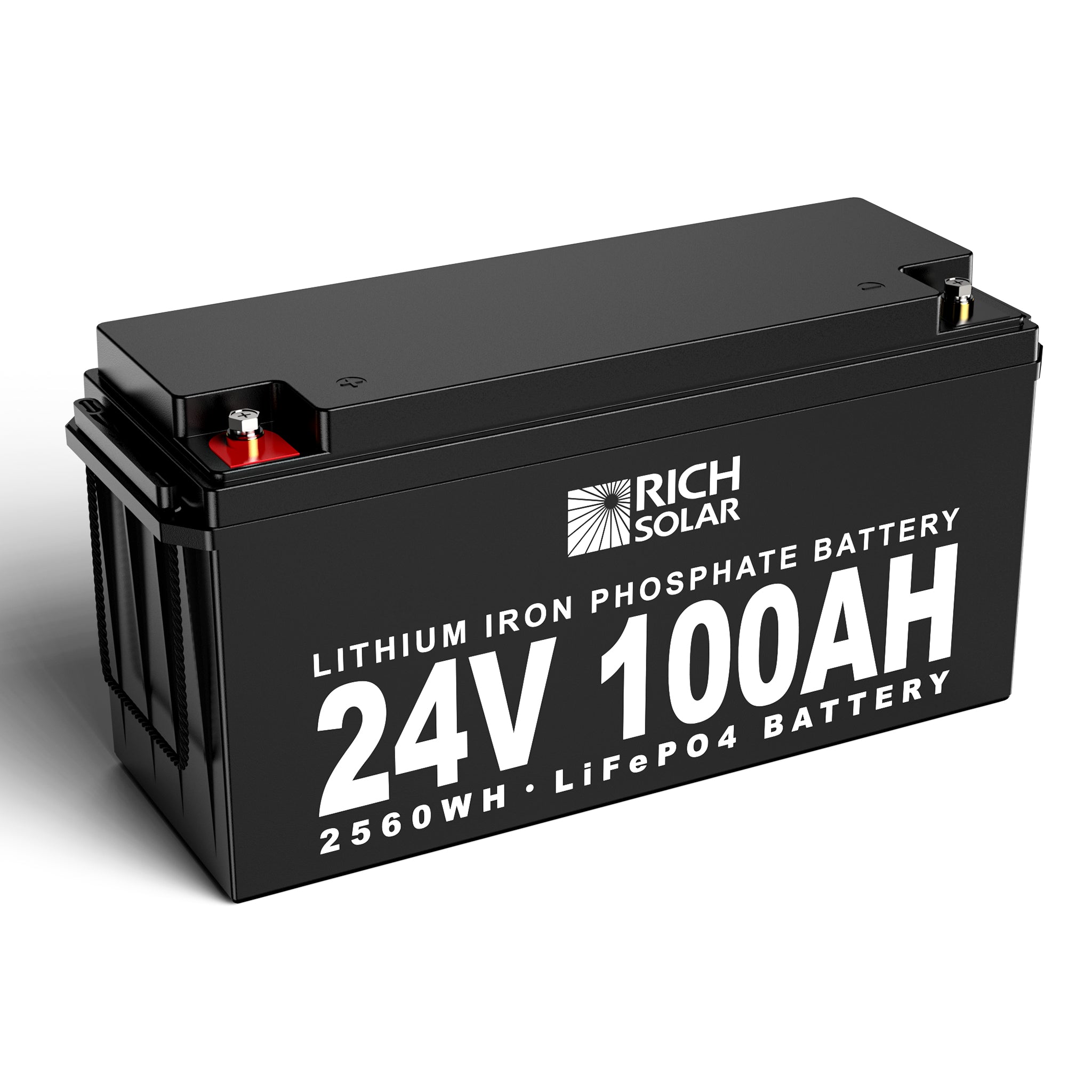

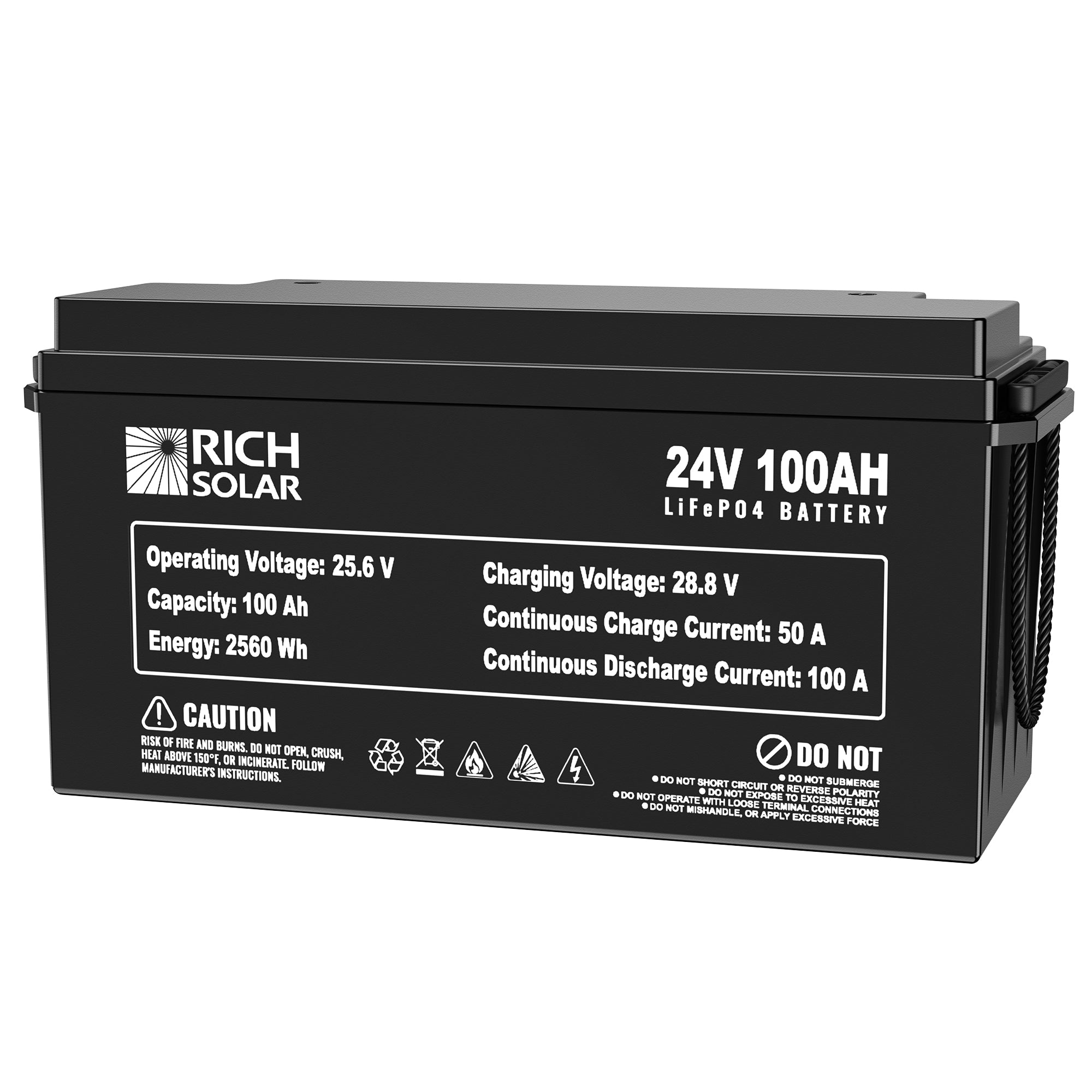

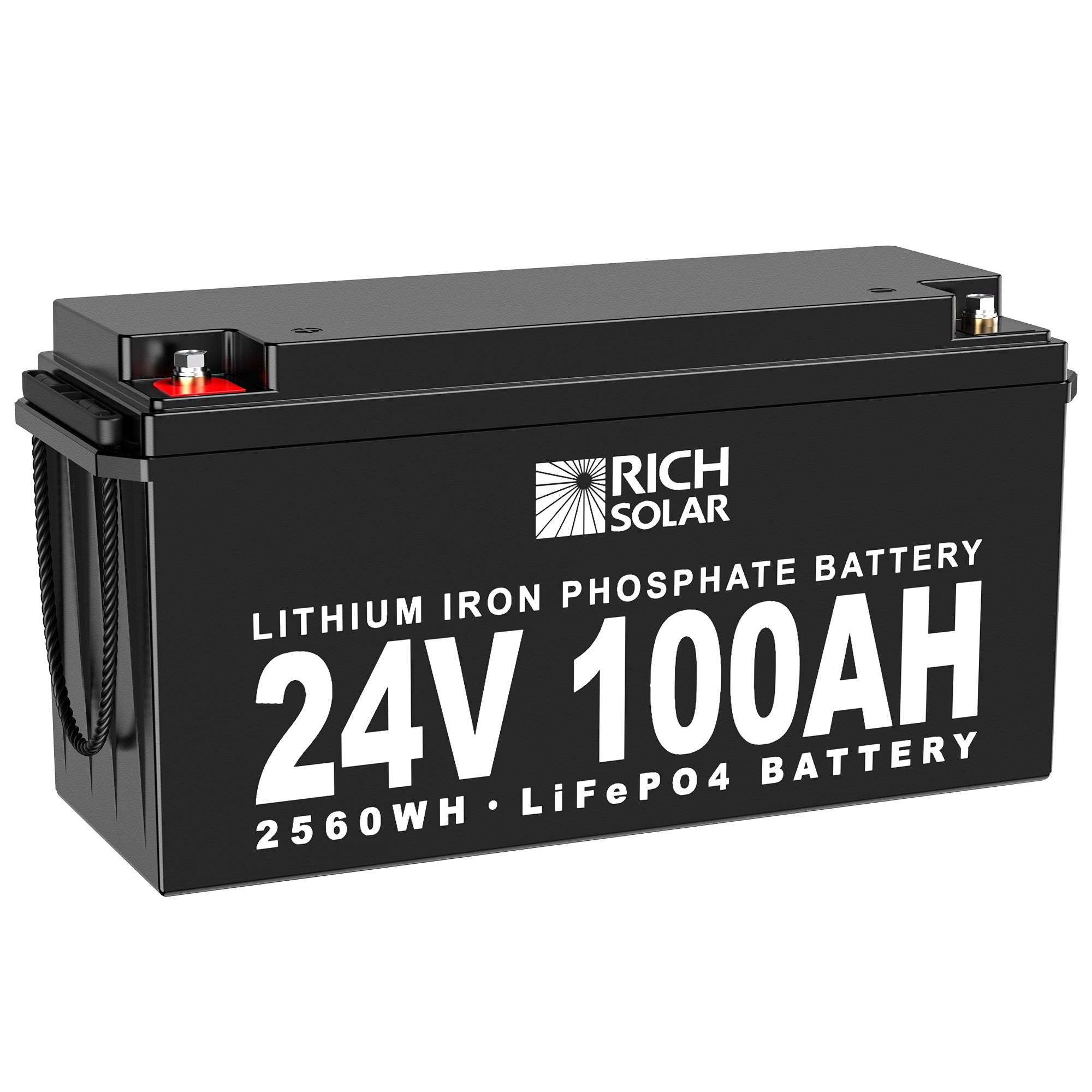

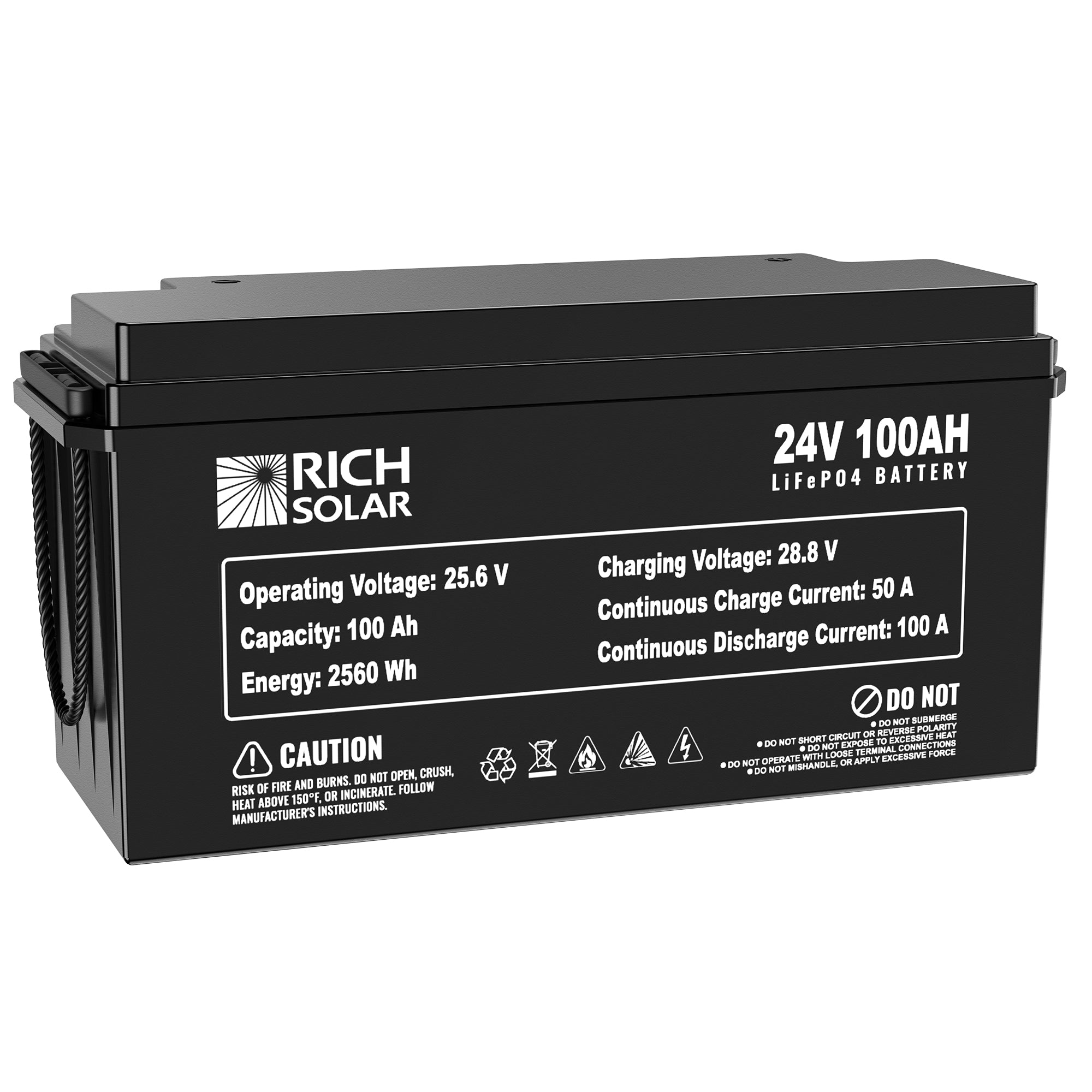

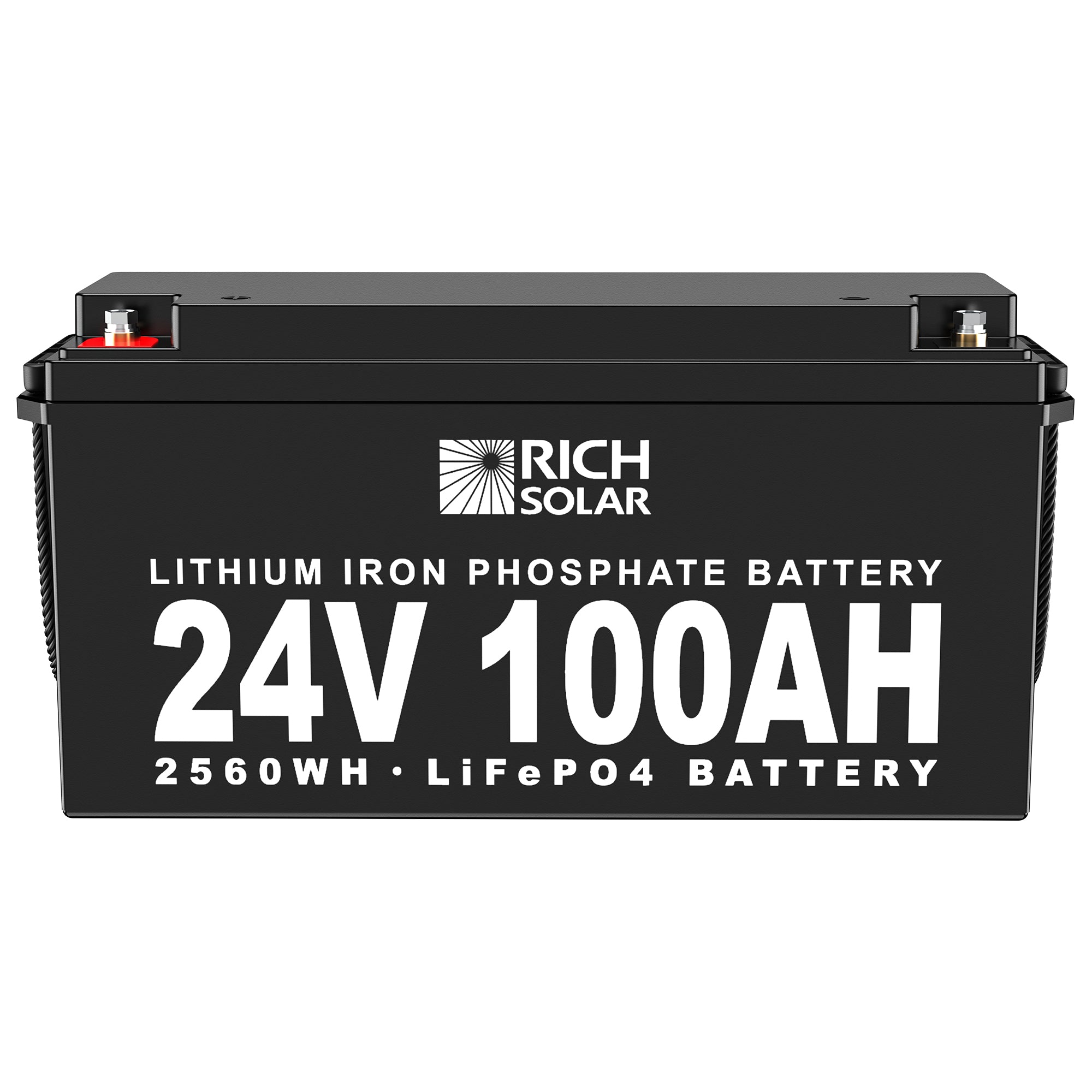

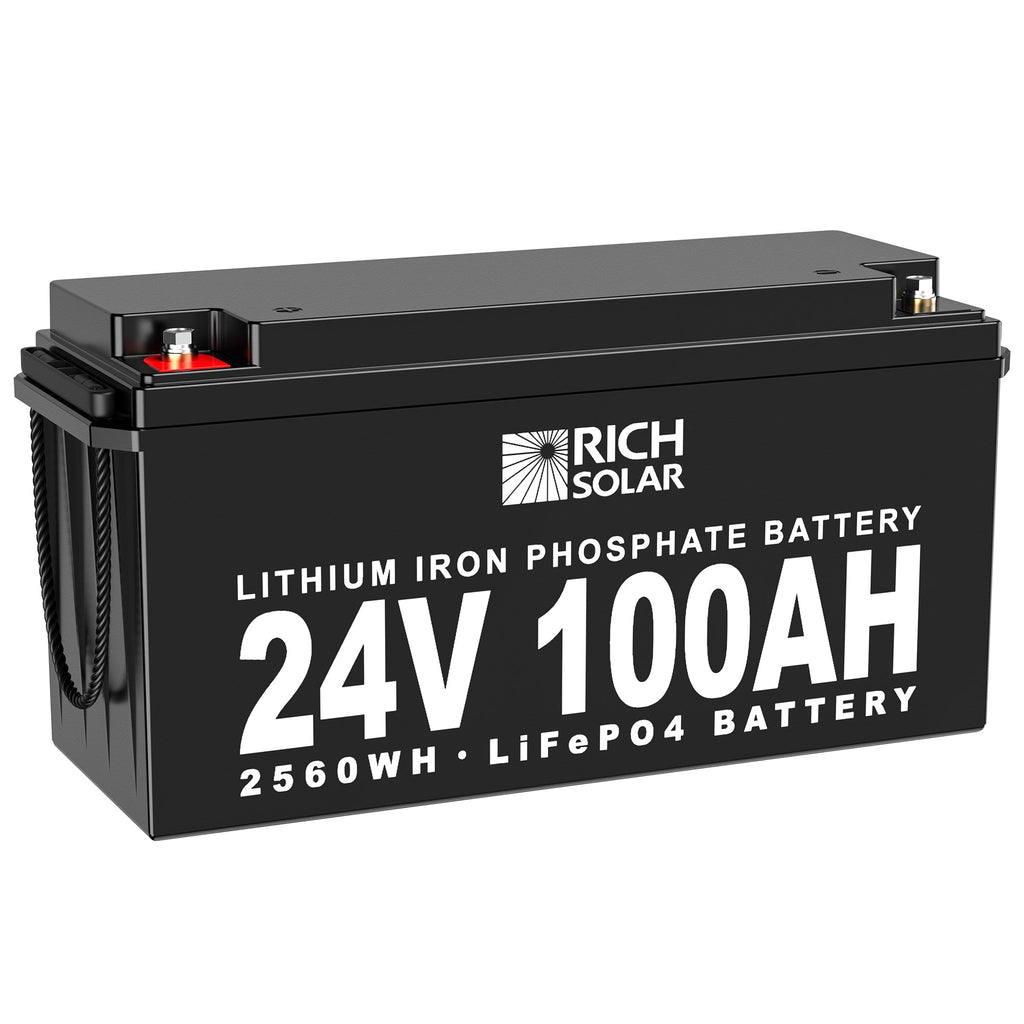

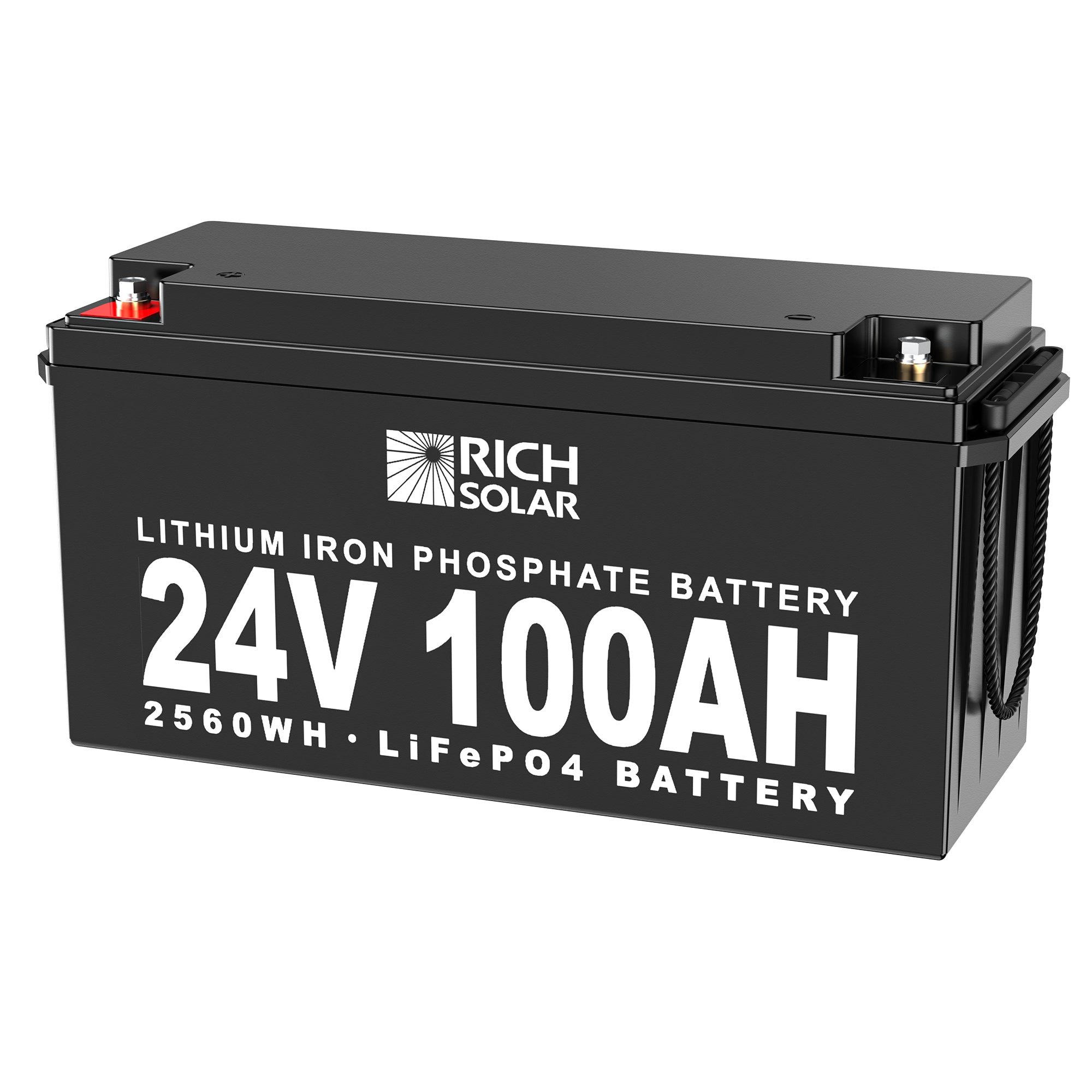

RICH SOLAR 24V lithium battery has a much longer cycle life capacity, and is easier to maintain compared to other battery technologies. The LiFePO4 technology has better thermal and chemical stability, which improves battery safety and packed with power in a small and lightweight footprint. Easily uses the same space as your existing 24V battery and replaces lead acid, AGM or Gel battery applications in RVs, boats, commercial vehicles, off grid back up power and much more. Not intended to replace starting batteries.
Features
- Extremely high number of charge/discharge cycles
- > 10 Year lifespan with proper maintenance
- Built-in smart battery management system
- Wide operating temperature range
- Unsurpassed high temperature performance
- Green energy without metal contaminant
- Low maintenance
- High amp capacity
- Stable output voltage
- Little self-discharge
- Lifetime customer support
- Over charging or discharging protection.
- Over current & short circuit protection.
- High & low temperature disconnects
- Charge Voltage: 28.8V
- Max Charge Current: 50 A
- Max Discharge Current: 100 A
- Battery Dimensions: 19.0″L x 6.7″W x 9.5″H
- Weight: 42.5 lb
BMS Safety Protection
- Each cell is fused and if for some unlikely situation a cell fails, this design will isolate the cell stopping any other damage and allows the battery to function safely
- Convenient removable carry handle
- Lightweight
- Short circuit protected
- Physical damage to battery case will not cause fire
- Excessive thermal exposure will not cause a fire
- Able to withstand over-charge/over-discharge without damage to the battery
- Sophisticated Battery Management System (BMS)
Specs
| Electrical Specifications |
| Nominal Voltage: |
25.6V |
| Nominal Capacity(at .5C, 77°F): |
100Ah |
| Minimum Capacity (at .5C, 77°F): |
95Ah |
| Expected Cycle Life: |
>3000 cycles w/1C charge and discharge rate, at 77°F, 80% DOD
|
| Operating Specifications |
| Charge Method: |
Smart charger, constant current, constant voltage |
| Operating Voltage: |
25.6 V |
| Capacity: |
100 Ah |
| Energy: |
2560 Watt Hours |
| Charge Voltage Range: |
28.8 -29.2V |
| Continuous Charge Current: |
50A |
| Continuous Discharge Current: |
100A |
| Over Voltage Shutdown: |
31.2 +/-0.2V |
| Discharge Cut-off Voltage: |
21.6V =/- 0.5V |
| Self Discharge (stored at 50% SOC): |
< 3%/month |
| Waterproof: |
IP65 |
| Temperature Performance |
| Charge Temperature: |
32° F to 140° F |
| Discharge Temperature: |
-4° F to 140° F |
| Storage Temperature: |
-4° F to 140° F |
| BMS High Temperature Cut-off: |
149°F
|
| BMS Low Temperature Cut-off: |
32°F
|
| Physical Specifications |
| Battery Dimensions: |
19.0″L x 6.7″W x 9.5″H |
| Weight: |
42.5 lb |
| Group Size: |
62 |
| Battery post size: |
5/16″ |
| Over Charge Protection |
| Over charge detection voltage: |
3.65 +/- 0.05V |
| Over charge detection delay time: |
0.96 – 1.4s |
| Over charge release voltage: |
3.55 +/-0.05V |
| Maximum charge voltage: |
3.65 +/-0.05V |
| Over Discharge Protection |
|
Over discharge detection voltage:
|
2.0V +/- 0.05V |
| Over discharge detection delay time: |
1s |
| Over discharge release voltage: |
2.7V +/- 0.10V |
| Over Current Protection Over current detection delay time: |
9 +/- 2ms |
| Over current release condition: |
Cut load |
What Our Experts Think
-
High-Capacity Power: The 24V 100Ah LiFePO4 Lithium Iron Phosphate Battery offers a robust energy storage solution with long-lasting power for off-grid systems, RVs, or backup power setups.
-
Advanced Lithium Technology: LiFePO4 chemistry ensures greater safety, higher efficiency, and longer lifespan compared to traditional lead-acid batteries.
-
Reliable Performance: Provides consistent, deep cycle discharge, making it ideal for high-demand applications where reliable power is essential.
-
Eco-Friendly & Sustainable: A greener choice, with a lower environmental impact and higher energy density than other battery types.
-
Built to Last: With a long cycle life (up to 4000-5000 charge/discharge cycles), this battery outperforms conventional batteries in both longevity and reliability.
Q&A
Q: What is the capacity of the 24V 100Ah LiFePO4 Lithium Iron Phosphate Battery?
A: The battery has a capacity of 24V and 100Ah, providing reliable power storage for various off-grid applications.
Q: What are the benefits of LiFePO4 technology?
A: LiFePO4 (Lithium Iron Phosphate) batteries are known for their long lifespan, safety, and high efficiency, offering more cycles than traditional lead-acid batteries.
Q: What can this battery power?
A: This battery is ideal for RVs, solar systems, off-grid cabins, boats, and other 24V applications, powering lights, appliances, and electronics.
Q: How long does this battery last?
A: LiFePO4 batteries can last up to 10-15 years, with over 3,000 charge/discharge cycles.
Q: Is the battery compatible with solar systems?
A: Yes, it works seamlessly with solar power systems, providing efficient energy storage for off-grid setups.
Q: Is the battery safe to use?
A: Yes, LiFePO4 batteries are considered the safest lithium battery chemistry, with built-in protection mechanisms against overcharging and overheating.
Q: How is the battery charged?
A: The battery can be charged using a compatible 24V charger or solar panel system with a charge controller.
Q: What warranties are included?
A: The battery comes with a manufacturer warranty for quality assurance and peace of mind.
Maintenance Tips
-
High Capacity: 100Ah provides reliable, long-lasting power for off-grid systems, RVs, or solar setups.
-
Long Life Cycle: Offers up to 4,000 charge cycles, significantly outlasting lead-acid batteries.
-
Lightweight & Compact: More efficient and space-saving compared to traditional batteries.
-
Safe & Durable: Built with advanced LiFePO4 technology for enhanced safety, thermal stability, and longevity.
-
Eco-Friendly: Low environmental impact with less maintenance and no toxic chemicals.
