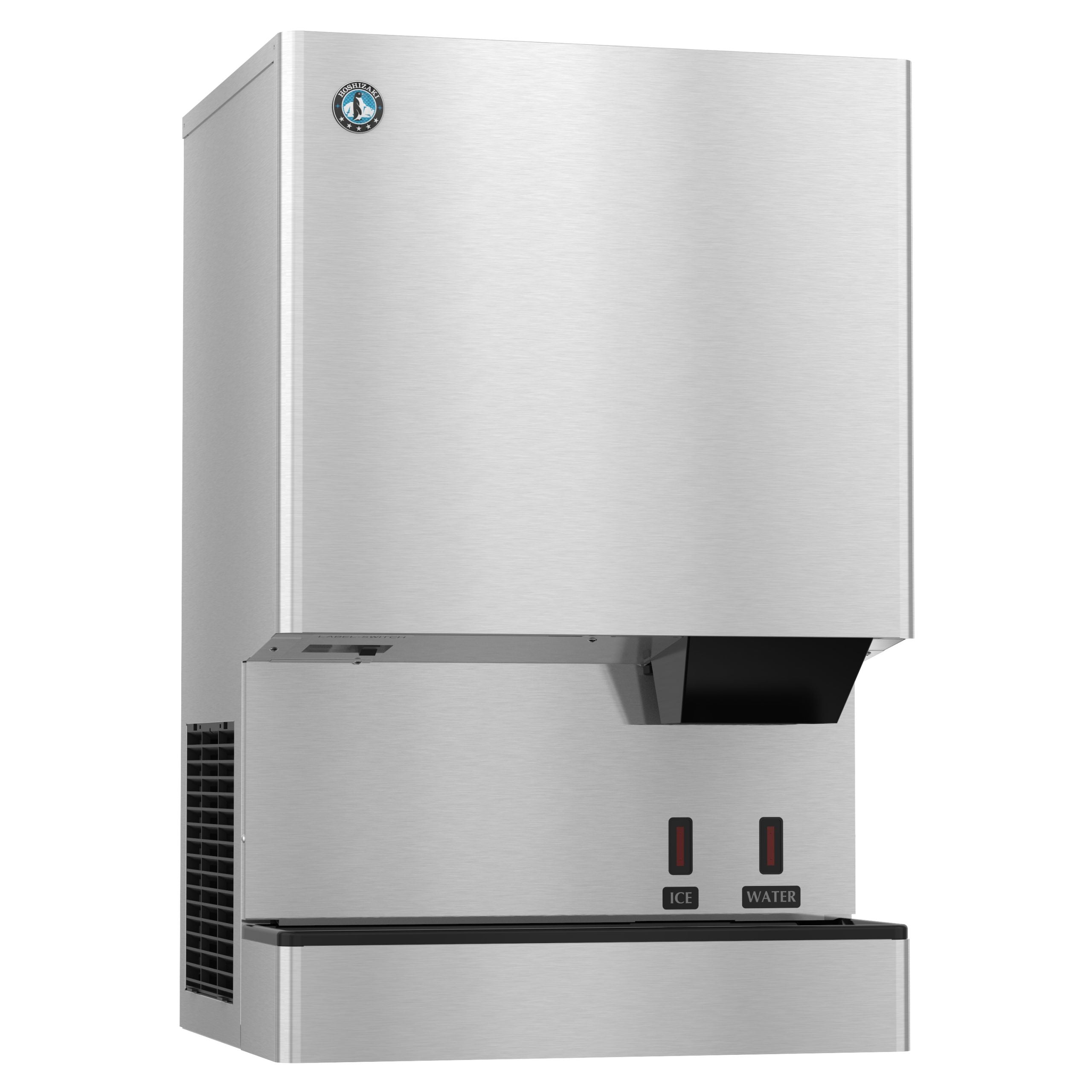

Hoshizaki DCM-300BAH-OS | 26" Wide Air-Cooled Mini Cubelet Ice & Water Dispenser w/ Built-In Storage Bin - DCM-300BAH-OS
The DCM-300BAH-OS is capable of producing approximately 321 lbs of Cubelet nugget-style ice cubes per day, The built-in storage bin will hold up to 40 lbs of ice* at a time. This Air-cooled icemaker has an LED remote sensor for hands-free operation with opaque containers. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows easy to chew, cubelet ice to be dispensed with a simple push of a button. This model features CleanCycle12™ – Every 12 hrs, it performs 15 min purge to clean itself and it is Protected by H-GUARD Plus Antimicrobial Agent. The sanitary dispenser design keeps ice fully contained until it is needed, minimizing the opportunity for cross-contamination and keeping your ice clean. Keep your kitchen running smoothly with this Cubelet Ice and Water Dispenser. Stand not included.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.
Features
- Dimensions: 26″ W x 22-1/2″ D x 40″ H
- Up to 321 lbs of ice produced per 24 hours
- Up to 40 lbs of built-in storage capacity (1.3ft3)

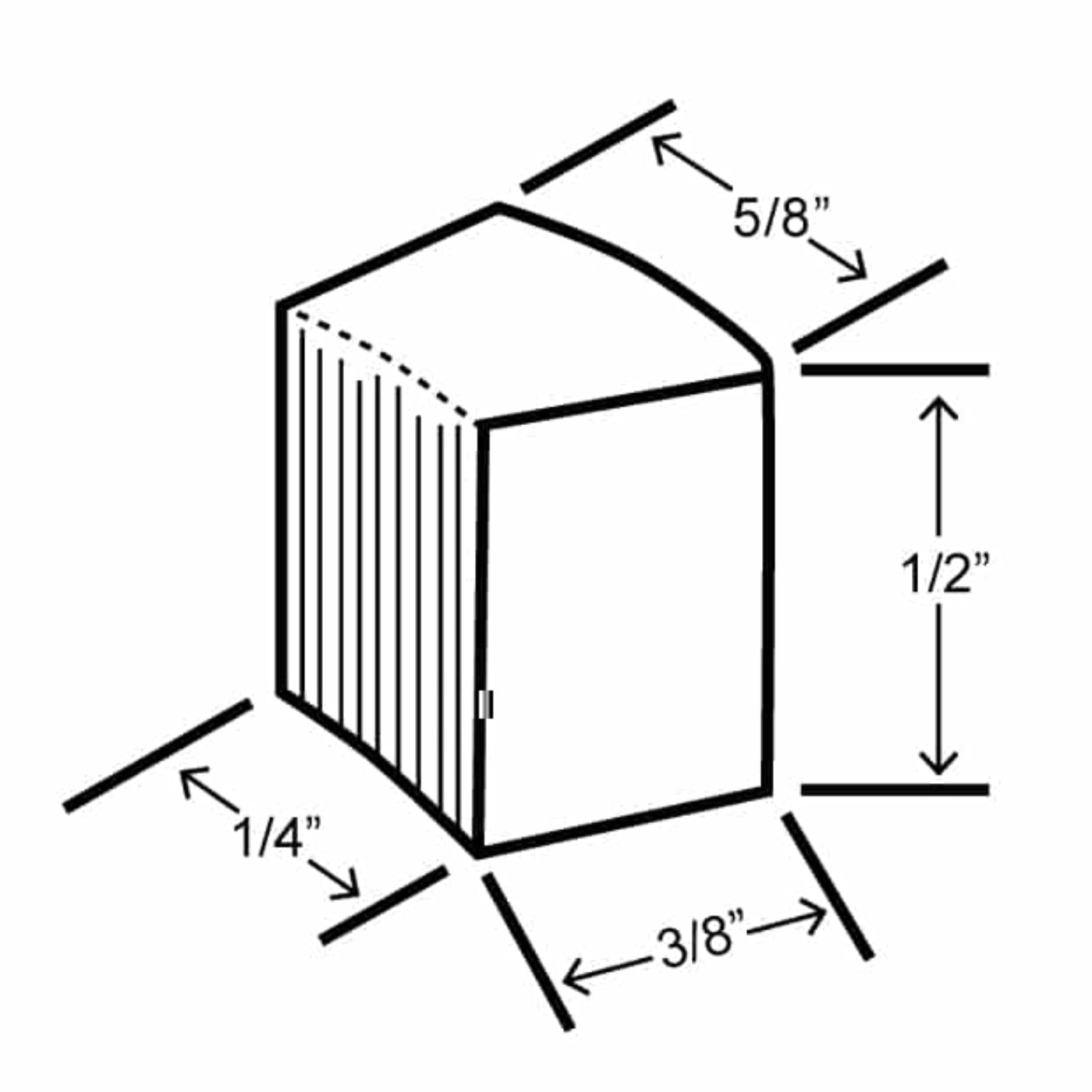

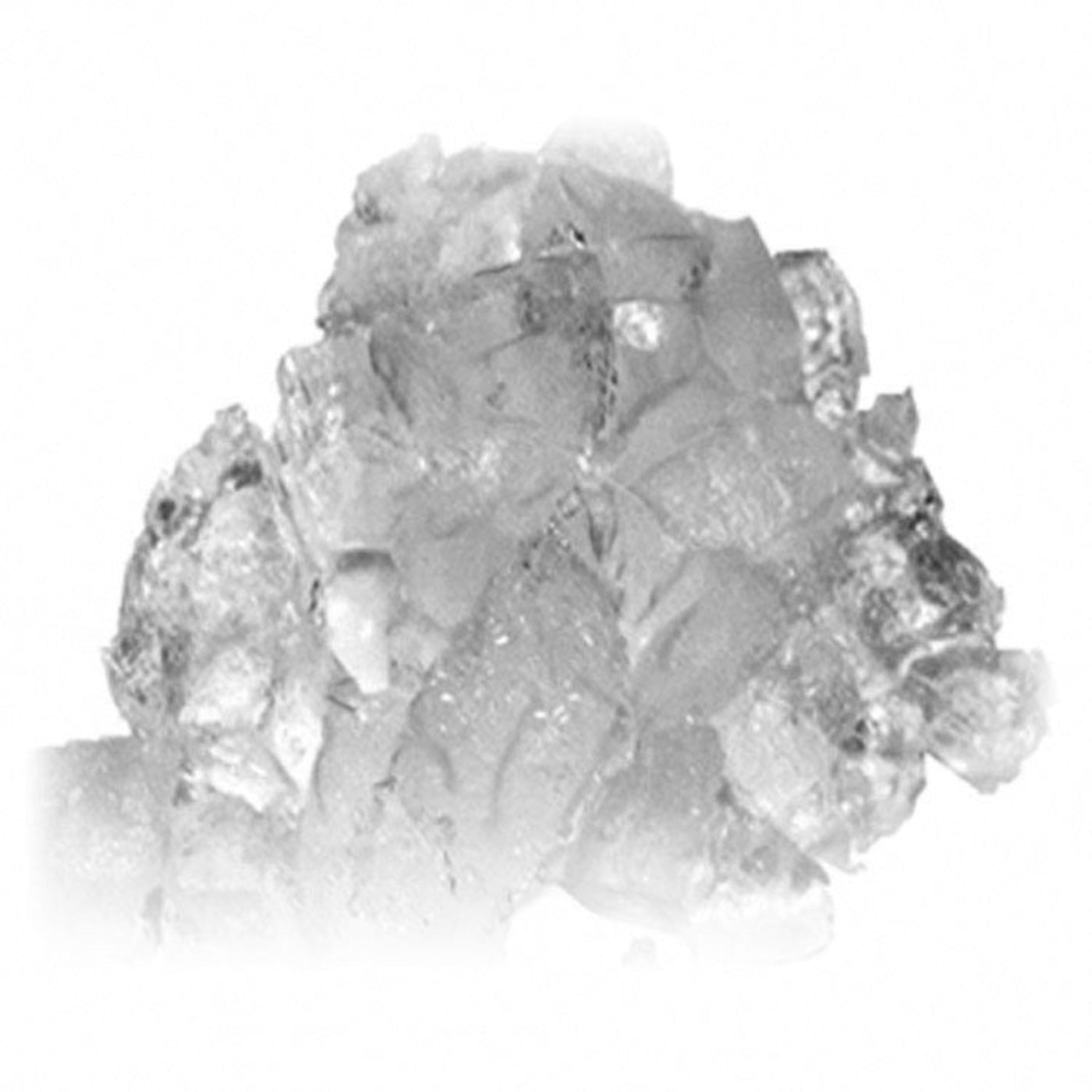

- Produces mini cubelet nugget-style ice
- Durable stainless steel exterior

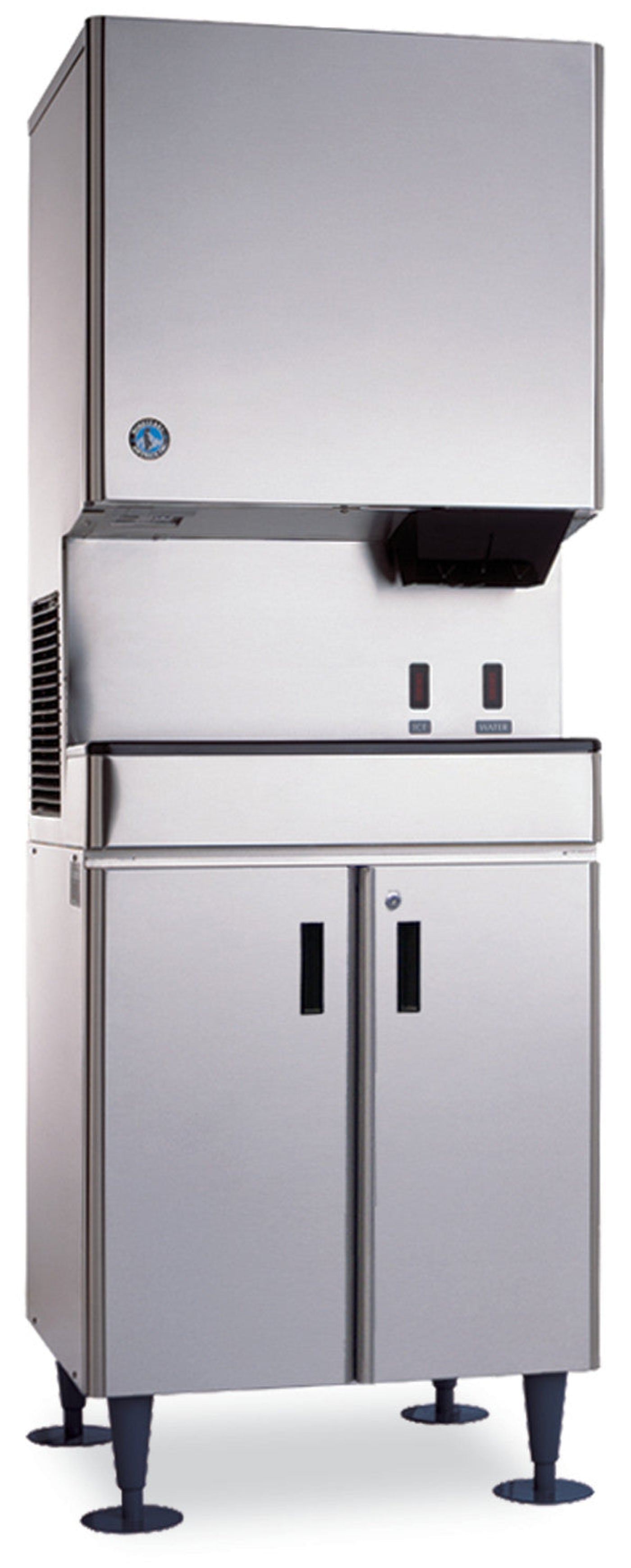

- Place on countertop or optional stand: SD-450, SD-500
- LED remote sensor for hands-free operation with opaque containers
- CleanCycle12™ – Every 12 hrs, it performs 15 min purge to clean itself
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant (15.9 oz. / 450 g)
- Heat Rejection: BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 10.25 amps (20 Amp Max fuse)
- 7.6 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
Specifications
| Brand |
Hoshizaki |
| Model Number |
DCM-300BAH-OS |
| Weight |
220 lbs |
| Width |
26" |
| Depth |
22.5" |
| Height |
40" |
| Installation Type |
countertop |
| Cooling |
air-cooled |
| Ice Type |
nugget ice |
| Refrigeration |
self-contained refrigeration |
| Dispenser Type |
sensor |
| Dispenses |
Ice & Water |
| Production per 24 hr (Lbs) |
321 |
| Bin storage capacity (Lbs) |
40 |
| Voltage |
115 |
| Phase |
1 |
What our Experts Think
-
Designed for use with SRK-10J, SRK-12J, SRK-12J3, SRK-15J, and SRK-15J3 remote condensers.
-
Requires professional installation including brazing and refrigerant charging.
-
Durable construction ensures long-lasting, reliable performance in commercial settings.
-
Enables efficient refrigerant flow for consistent ice production and cooling.
-
Maintenance tips: regularly check for leaks, keep tubing clean, and avoid kinks during handling.
Q&A
Q: What is the Hoshizaki HS-0250?
A: A 25 ft ice bin tubing kit designed for use with specific Hoshizaki ice machines (SRK-10J, SRK-12J, SRK-12J3, SRK-15J, SRK-15J3).
Q: Is installation easy?
A: Installation requires brazing for a secure, leak-free connection.
Q: What machines is it compatible with?
A: Compatible with SRK-10J, SRK-12J, SRK-12J3, SRK-15J, and SRK-15J3 models.
Q: What is the purpose of this tubing kit?
A: It efficiently transports ice from the ice maker to the bin.
Q: Why choose genuine Hoshizaki tubing?
A: Ensures optimal performance, durability, and compatibility with your ice machine.
Maintenance Tips
-
Ensure professional brazing for secure, leak-free connections.
-
Inspect tubing regularly for wear or damage.
-
Clean tubing during routine maintenance to prevent blockages.
-
Replace tubing immediately if leaks or corrosion are detected.
-
Follow manufacturer guidelines for installation and maintenance
