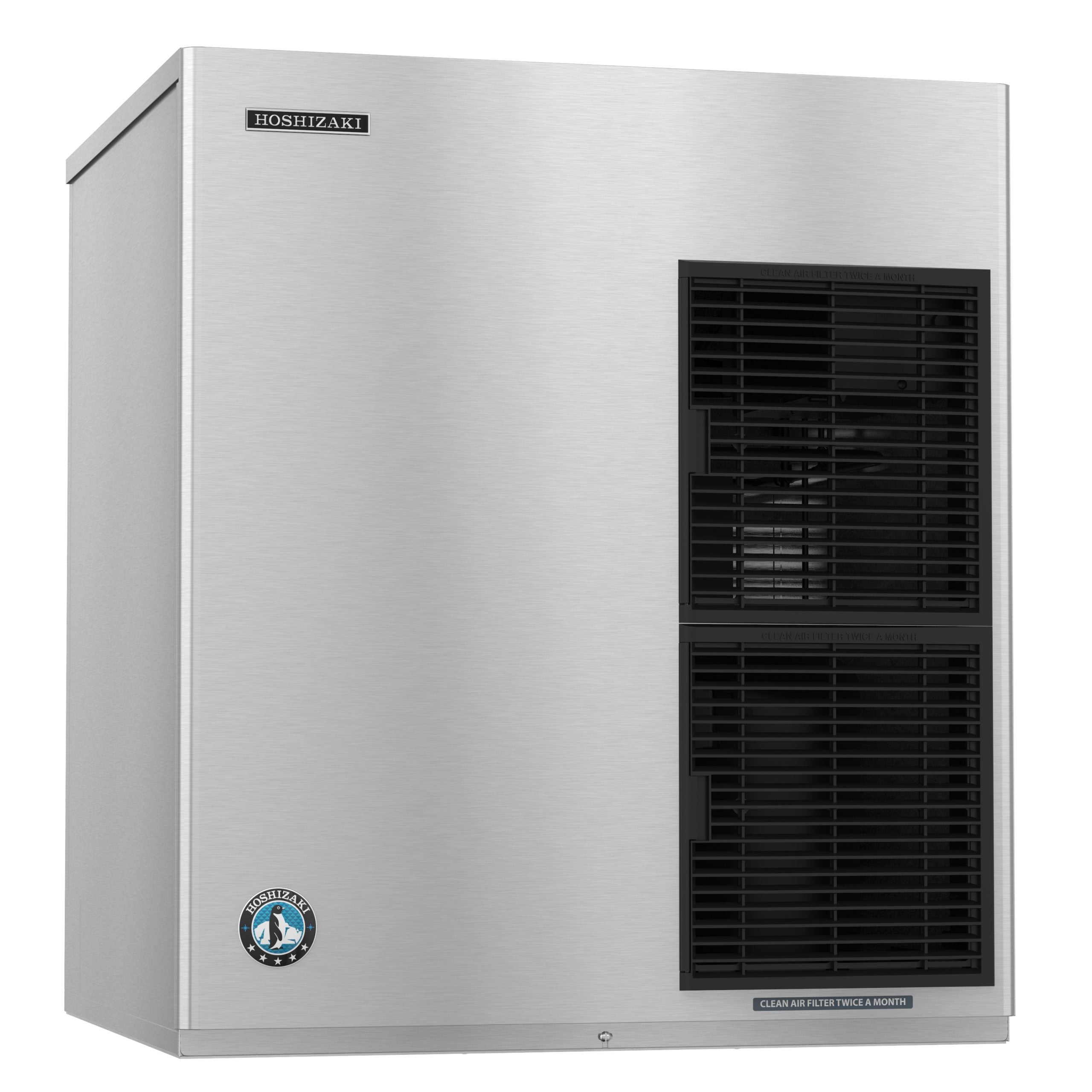

Hoshizaki F-1501MAJ | 30" Wide Air-Cooled Flaker Ice Maker (Bin Sold Separately) - F-1501MAJ

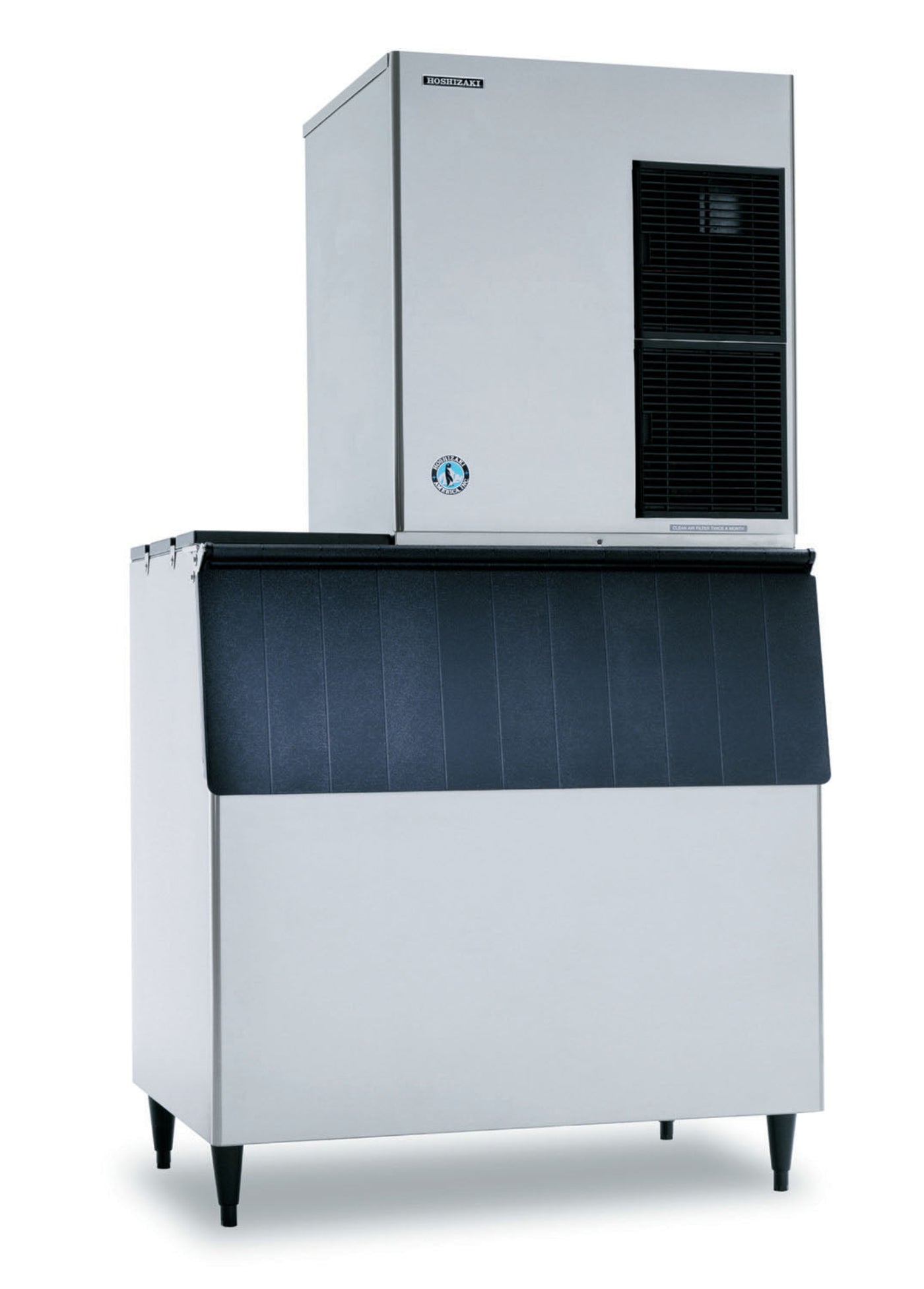

The F-1501MAJ is capable of producing approximately 1543 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Air-cooled, Modular icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-1501MAJ requires a Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.
Features
- Dimensions: 30″ W x 27-3/8″ D x 34-7/16″ H
- Up to 1543 lbs of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces flaked ice
- Durable stainless steel exterior
- Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1300, B-1500, B-1650
- 2 second rinse every hour to remove sediment
- Advanced CleanCycle24™ design
- Infrared bin control for easy cleaning and reliability
- R-404A refrigerant (2 lbs. 5 oz. / 1050 g)
- Heat Rejection:12300 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 187 – 253V
- 15.9 amps (20 Amp Max fuse)
- 4 kwh/100 lbs.@ 90/70
- Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
Specifications
| Brand |
Hoshizaki |
| Model Number |
F-1501MAJ |
| Weight |
325 lbs |
| Width |
30" |
| Depth |
27.38" |
| Height |
34.44" |
| Compatible With |
ice storage bin |
| Cooling |
air-cooled |
| Ice Type |
flake ice |
| Refrigeration |
self-contained refrigeration |
| Production per 24 hr (Lbs) |
1543 |
| Voltage |
208/230 |
| Phase |
1 |
| Drain Type |
gravity drain |
What our Experts Think
-
Compact & Powerful: At 30" wide, delivers consistent flake ice ideal for food prep and display.
-
Air-Cooled Efficiency: Simplifies installation and reduces water use compared to water-cooled models.
-
Stainless Steel Durability: Built to endure commercial environments with easy cleaning.
-
Customizable Storage: Bin sold separately, allowing flexible ice storage options.
Q&A
Q: What is the ice production capacity of the Hoshizaki F-1501MAJ?
A: Produces up to 1,525 lbs of flake ice per 24 hours.
Q: What are the dimensions of this ice maker?
A: Compact 30" wide design fits most commercial spaces.
Q: What type of cooling system does it use?
A: Air-cooled system for efficient and easy installation.
Q: What type of ice does it produce?
A: Produces soft, versatile flake ice ideal for food displays and preservation.
Q: Is an ice storage bin included?
A: No, the bin is sold separately to customize storage needs.
Q: What materials are used in construction?
A: Stainless steel exterior for durability and easy cleaning.
Maintenance Tips
-
Clean & Sanitize Monthly: Use Hoshizaki-approved cleaner to prevent scale and bacteria buildup.
-
Replace Water Filters Regularly: Maintain water quality for clear, pure ice.
-
Clean Condenser Coils Monthly: Remove dust to ensure efficient cooling and prevent overheating.
-
Check Drain Lines: Keep drains clear to avoid clogs and water backup.
-
Monitor Ice Production: Watch for reduced output or unusual noises signaling maintenance.
