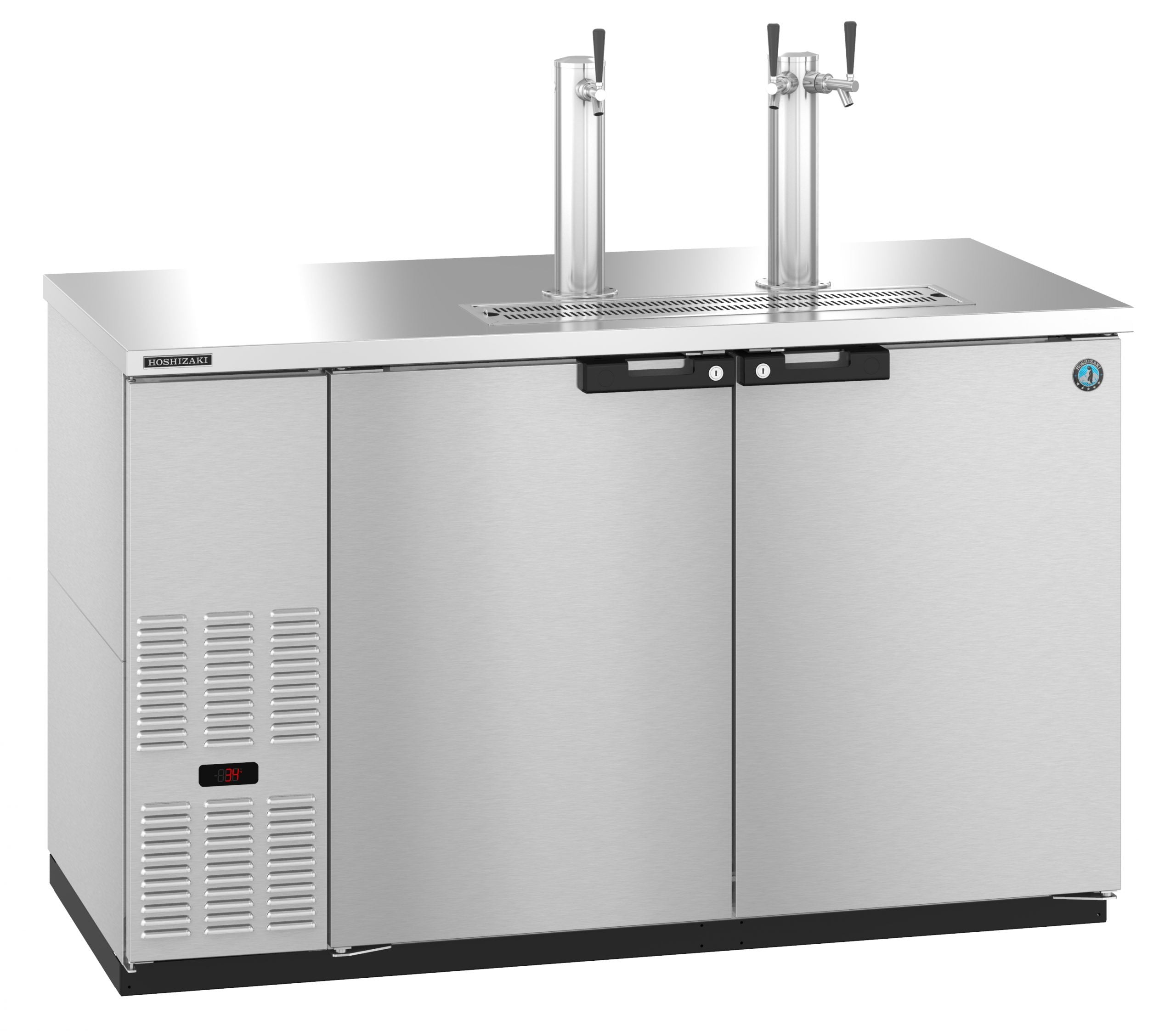

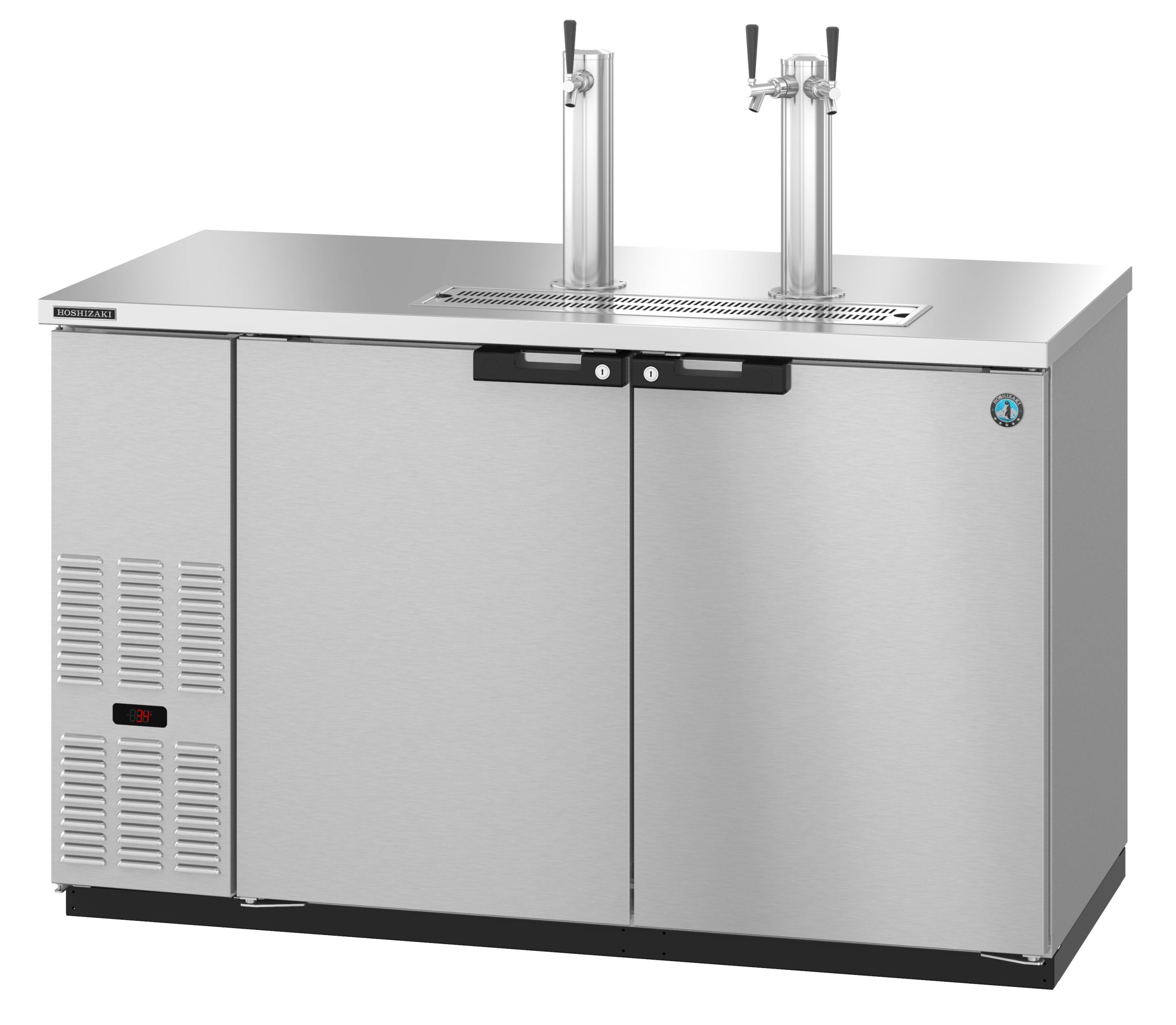

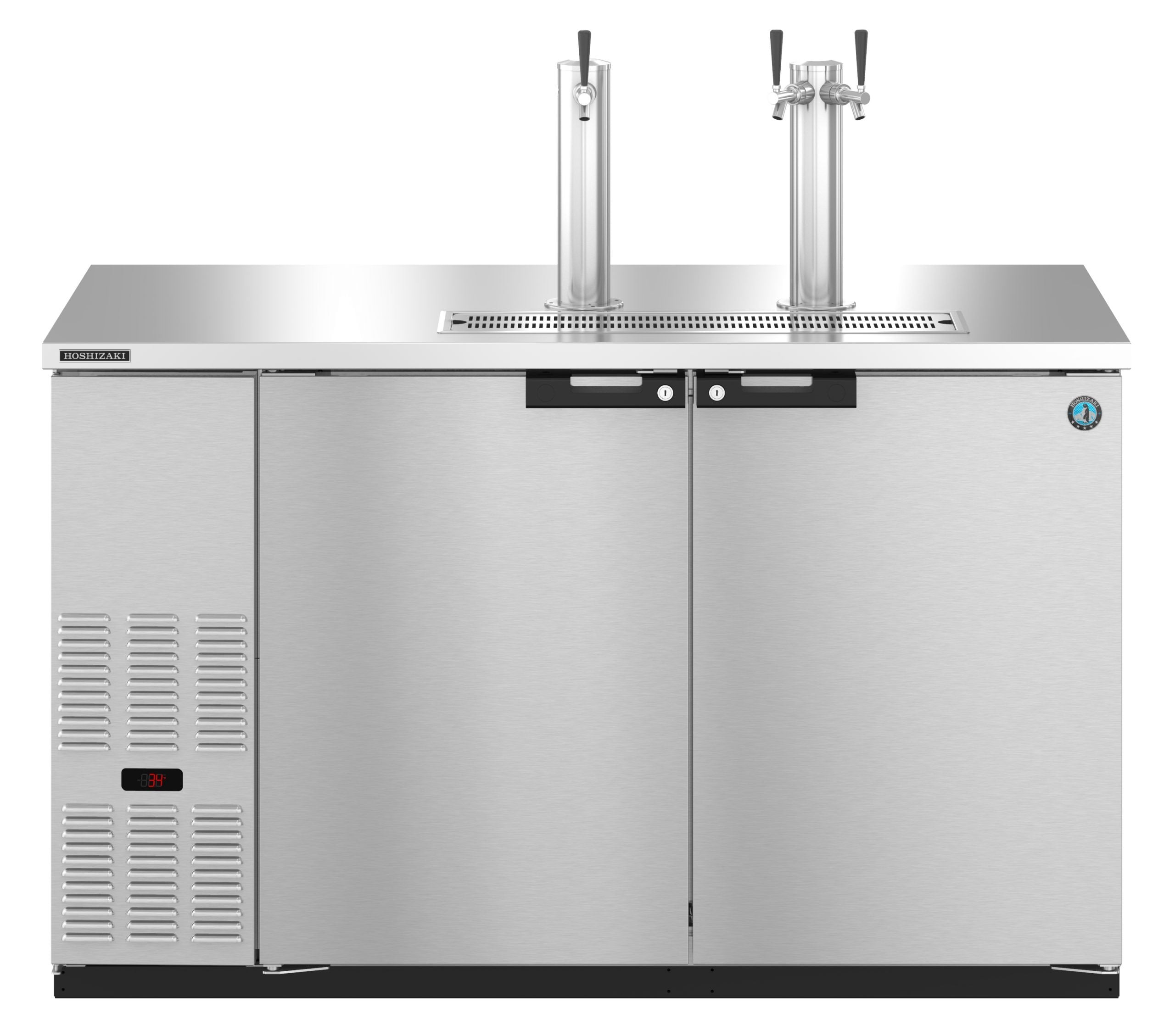

Hoshizaki DD59-S | 60" Wide 2 Section Stainless Steel
Direct Draw - DD59-S
The DD59-S Back Bar Direct Draw is a Two Section Refrigerator with a solid door that has all the right features. It boasts an impressive Net capacity of 18.45 cubic feet. The durable 1/3 HP motor that powers the compressor at the side of this unit that distributes air from left to right rather than from back to front. Side to side circular airflow ensures ice-cold products even when doors are opened regularly. Engineered to maintain food safe temperatures in +100°F kitchens. Plus the self-closing doors come standard with barrel locks.
The durable stainless steel interior with led lights and thick stainless steel threshold protects door frame when loading and unloading cabinet. While the stainless steel exterior front, sides and rear, plus a 18 gauge stainless steel top will endure many busy years! The DD59-S fits: (3) 1/2 barrels (keg), and (2) polished stainless steel insulated towers with (3) plated brass faucets, it also features electronic controller with led display (°f or °c). Made to Order. Cabinet fits: (2) 1/2 barrels and (1) 1/4 barrel, or (6) slim 1/4 barrels, or (8) 1/6 barrels, or (1) 1/2 barrel and (1) slim 1/4 barrel and (3) 1/6 barrels. The unit is ETL Safety (US & C) Listed, ETL Sanitation and includes a five years compressor warranty / three years parts and labor .
Features
- Dimensions: 59.5″ W x 29″ D x 36.88″ H
- Net capacity of 18.45 cubic feet
- Nominal Compres. of N/A BTU/hr at 1/3 HP
- Electrical consumption of N/A kWh/day at 2.5 Amps, 8 ft long cord with a 5 – 15P NEMA plug
- Engineered to maintain food safe temperatures in +100°F kitchens

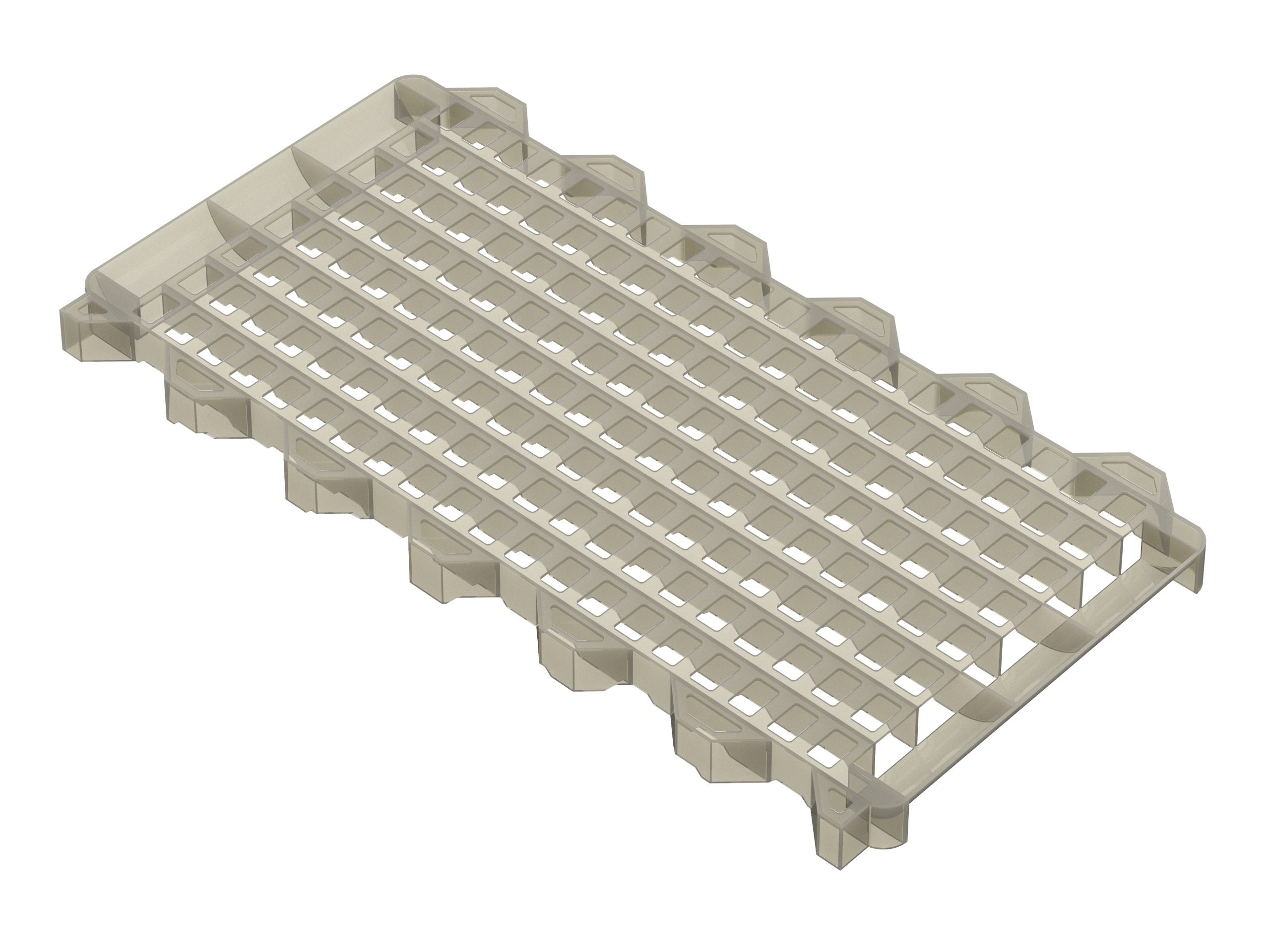

- Includes (3) keg cushions to protect floor and allow air to circulate below kegs
- One piece, vinyl coated steel handle with built-in lock
- (2) polished stainless steel insulated towers with (3) plated brass faucets
- Self-closing doors come standard with barrel locks
- Front breathing, side mount refrigeration that distributes air from left to right rather than from back to front
- Stainless Steel exterior front, sides and rear, plus a 18 gauge stainless steel top
- Stainless steel interior with LED lights
- R290 refrigerant
- Automatic “off cycle” defrost cycle
- Thick stainless steel threshold protects door frame when loading and unloading cabinet
- Fits: (3) 1/2 Barrels (Keg)
- Cabinets walls and doors well insulated (2″ thick) and are designed to maintain interior temperatures between 33°F to 38°F
- Electronic controller with LED display (°F or °C)
- Made to Order
- 115v/60/1, 8 ft. cord and plug
- Shipping Crate: 62.5″ L x 31.25″ D x 42.5″ H at 345 lbs
- Cabinet fits: (2) 1/2 barrels and (1) 1/4 barrel, or (6) slim 1/4 barrels, or (8) 1/6 barrels, or (1) 1/2 barrel and (1) slim 1/4 barrel and (3) 1/6 barrels
Specifications
| Brand |
Hoshizaki |
| Model Number |
DD59-S |
| Weight |
310 lbs |
| Width |
59.5" |
| Depth |
29" |
| Height |
36.88" |
| Usage |
Beer Dispenser |
| Keg Capacity |
2 |
| Exterior Finish |
stainless steel |
| Barrel Style |
1/2 barrel (full keg) |
| Column Qty |
2 columns / towers |
| Number of Taps |
3 |
| Compressor Location |
side mounted |
| Capacity (cu. ft.) |
18.45 |
| Voltage |
115 |
| Special Features |
locking |
What our Experts Think
-
Spacious Draft Dispensing: At 60" wide, holds up to three 1/2-barrel kegs, perfect for busy bars and restaurants.
-
Dual-Tower Setup: Features two stainless steel insulated towers with three plated brass faucets each for multiple beer options.
-
Efficient Cooling: Uses R290 refrigerant and a 1/3 HP compressor to maintain consistent 32°F–38°F temperatures, even in warm environments.
-
Durable Construction: Made with 18-gauge stainless steel for long-lasting use and easy cleaning.
-
User-Friendly Features: Includes self-closing doors with locks, LED lighting, and electronic temperature controls.
Q&A
Q: What are the dimensions of the Hoshizaki DD59-S?
A: It measures 60" wide, suitable for moderate volume beverage dispensing.
Q: How many sections does it have?
A: Features two sections for versatile drink options.
Q: What is the exterior finish?
A: Stainless steel for durability and a professional look.
Q: What is a direct draw system?
A: It chills and dispenses beverages directly from refrigerated kegs.
Q: Is it designed for commercial use?
A: Yes, ideal for bars, restaurants, and event spaces.
Q: What materials ensure durability?
A: Stainless steel construction with robust components for long-lasting use.
Maintenance Tips
-
Clean stainless steel surfaces regularly with a non-abrasive cleaner.
-
Sanitize faucets and drip trays daily to ensure hygiene.
-
Check and replace water filters as recommended to maintain water quality.
-
Inspect seals and gaskets for leaks and wear.
-
Schedule routine professional maintenance to ensure optimal cooling and performance.
