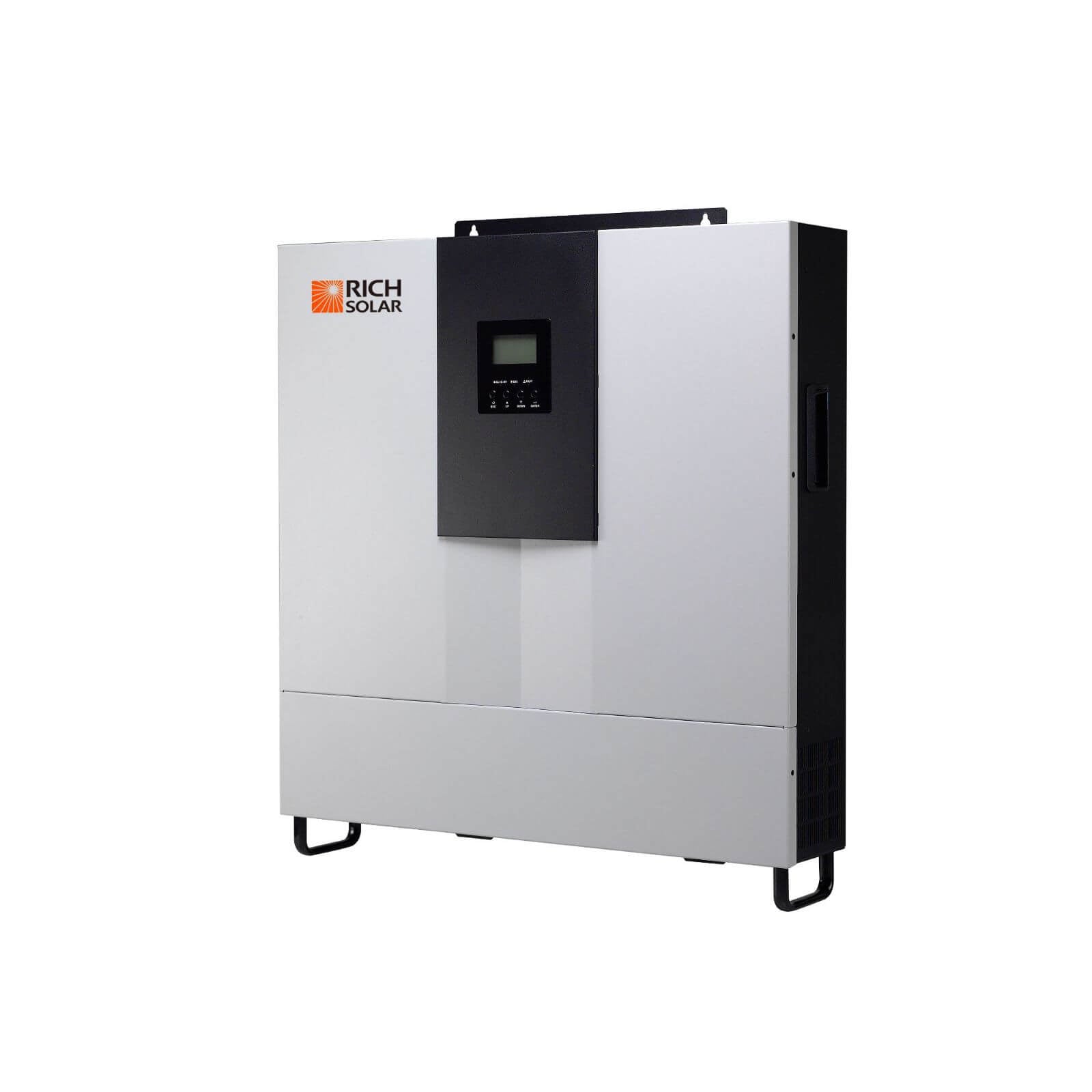

6000 Watt Off-grid Hybrid Split Phase Solar Inverter

$1,245.99
Sale price  $1,245.99 Regular price  $1,660.99
Skip to product information
6000 Watt Off-grid Hybrid Split Phase Solar Inverter - Backyard Provider
🌸 Offre de printemps : -15% uniquement cette semaine avec le code SPRINGBREAK
(offre valable jusqu'au 12 avril)

6000 Watt Off-grid Hybrid Split Phase Solar Inverter

$1,245.99
Sale price  $1,245.99 Regular price  $1,660.99
In stock
⚡ Commandez avant 00h 00m 00s .
zephyrtrack livraison

Expédition 72h Protection 90j

zephyr android ios

Compatible Android ou iOS

4,7/5 sur 600+ avis

Payment methods
    Livraison et retours
    • Traitement et expédition : 1 à 3 jours après validation de votre commande
    • Livraison en France métropolitaine : 6 à 9 jours. Lien vers la politique
    • Retours : vous disposez de 30 jours après réception pour nous retourner vos articles. Lien vers la politique

    6000 Watt Off-grid Hybrid Split Phase Solar Inverter

    Features
    • Pure sine wave inverter
    • Selectable output voltage at 120VAC/208VAC/240VAC depending on applications
    • Built-in 2 strings of MPPT solar charge controller
    • Selectable input voltage range for home appliances and personal computers
    • Configurable AC/Solar input priority via LCD setting
    • Compatible to mains voltage or generator power
    • Auto restart while AC is recovering
    • Overload and short circuit protection
    • Smart battery charger design for optimized battery performance
    • Cold start function
    • Maximum 3 units in parallel operation for single phase, split phase and three phase applications
    Specs

    Rated Power: 6000VA/6000W
    Parallel Capability: Yes, 3 units

    INPUT

    Rated Input Voltage: 110/120 VAC(L-N or L1-N-L2)
    Input Voltage Range: '95 ~ 140 VAC (For Personal Computers), 65 ~ 140 VAC (For Home Appliances)'
    Frequency Range: 50 Hz/60 Hz (Auto sensing)

    OUTPUT

    AC Voltage Regulation (Batt. Mode): 110/120 VAC(L-N or L1-N-L2)
    Efficiency(Peak): 90%
    Transfer Time: '10 ms (For Personal Computers), 20 ms (For Home Appliances)'
    Waveform: Pure sine wave

    BATTERY

    Battery Voltage: 48 VDC
    Floating Charge Voltage: 54 VDC
    Overcharge Protection: 60VDC

    SOLAR CHARGER & AC CHARGER

    Solar Charger Type: MPPT
    Maximum PV Array Open Circuit Voltage: 145 VDC
    Number of MPP Trackers: 2
    Maximum PV Array Power: 4000 W x 2
    MPP Range @ Operating Voltage: 60 VDC ~ 115 VDC
    Maximum Solar Charge Current: 80 A x 2
    Maximum AC Charge Current: 60 A
    Maximum Charge Current: 220 A
    Maximum MPPT Charging Efficiency: 96%
    Maximum AC Charging Efficiency: 92%

    OPERATING ENVIRONMENT

    Humidity: 5% ~ 95% non-condensing
    Operating Temperature: -10°C ~ 50°C
    Storage Temperature: -15ºC ~ 60ºC

    PHYSICAL

    Dimension(D X W X H): 130 x 622.6 x 610 mm
    Net Weight: 30 kg

    Manual
    6000 Watt Off-grid Hybrid Split Phase Solar Inverter User Manual
    6000 Watt Off-grid Hybrid Split Phase Solar Inverter












    What Our Experts Think
    • High Capacity & Versatility: The 6000 Watt Off-grid Hybrid Split Phase Solar Inverter is ideal for larger off-grid homes or cabins, providing reliable power for high-demand appliances, lights, and systems.
    • Hybrid Design: Offers both solar and grid power integration, allowing you to switch between energy sources for optimal efficiency and reliability.
    • Split Phase Output: Delivers 240VAC split-phase output, perfect for homes that require dual-phase power for heavy-duty equipment or multiple circuits.
    • Efficient & Reliable: Designed for off-grid systems, this inverter ensures steady and efficient energy conversion from solar power, with the flexibility to connect to the grid when needed.
    • Durable & Long-Lasting: Built with high-quality components to withstand harsh conditions and ensure years of dependable performance.
    Q&A

    Q: What is the 6000W Off-grid Hybrid Split Phase Solar Inverter?
    A: This inverter converts DC power from solar panels and batteries into 120V/240V AC power, providing reliable off-grid energy for homes, cabins, and RVs.

    Q: What is the power capacity of this inverter?
    A: The inverter has a 6000W capacity, capable of handling large loads and providing consistent power for multiple devices and appliances.

    Q: Can this inverter work with solar panels?
    A: Yes, it integrates seamlessly with solar panels and battery systems, supporting hybrid setups for both solar energy and backup power.

    Q: Is this inverter suitable for off-grid use?
    A: Yes, it is designed for off-grid applications, providing split-phase power for homes, cabins, or other remote locations without utility connections.

    Q: What is the output voltage?
    A: The inverter provides 120V/240V AC output, making it compatible with standard household appliances and devices.

    Q: Can this inverter be expanded?
    A: Yes, the system can be expanded by adding more solar panels or batteries to increase power capacity as your energy needs grow.

    Q: Does it offer monitoring features?
    A: Yes, it includes monitoring capabilities that allow you to track energy usage, system performance, and battery status in real time.

    Q: What warranties are included?
    A: The inverter comes with a manufacturer warranty for quality assurance and long-term reliability.

    Maintenance Tips
    • High Power Capacity: 6000W output, capable of powering large off-grid systems, homes, or cabins with a split-phase 240V AC output.
    • Hybrid Technology: Combines solar, battery storage, and grid power for maximum efficiency and flexibility, ensuring continuous power supply.
    • Advanced Battery Charging: Smart charging system to optimize battery life and ensure reliable energy storage.
    • Durable & Reliable: Built for off-grid and harsh environments, offering long-lasting performance and durability.
    • Eco-Friendly & Cost-Effective: Harness solar energy to reduce reliance on the grid and lower electricity costs.
