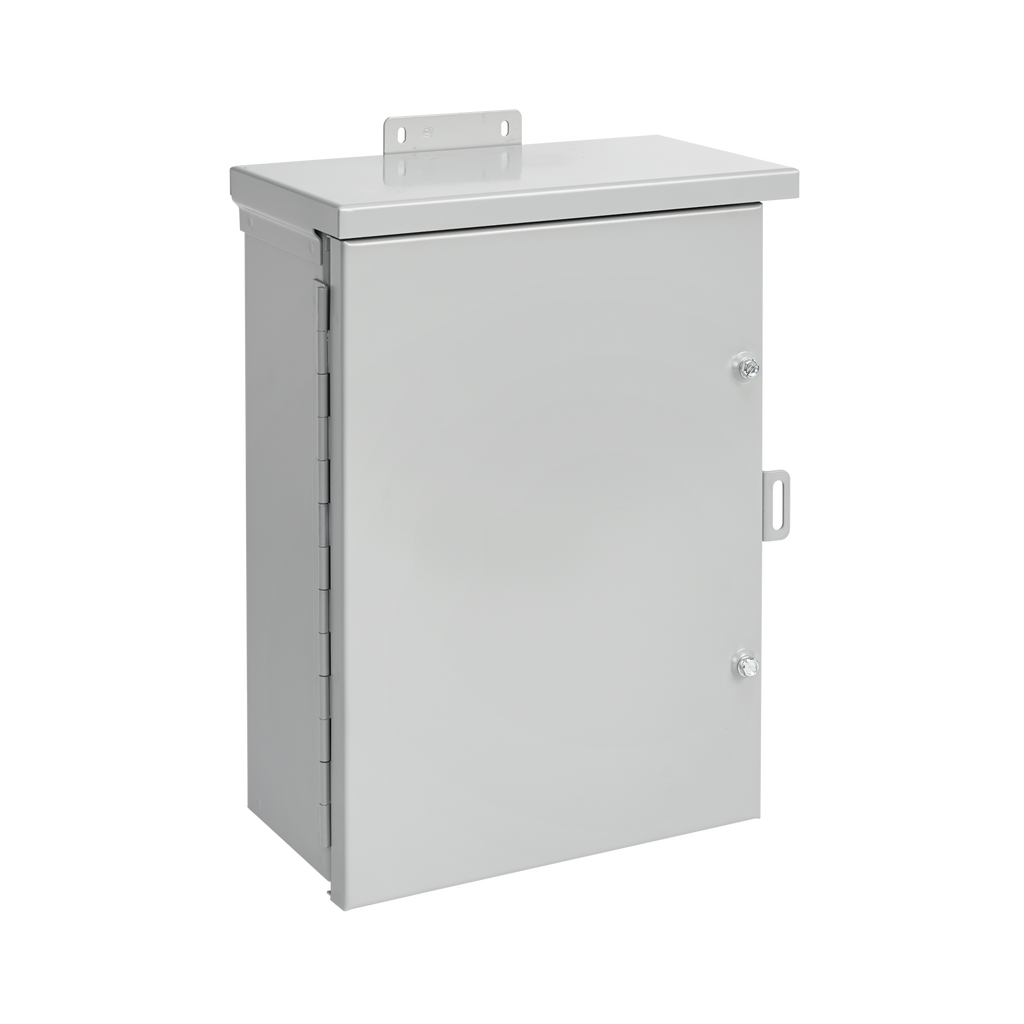

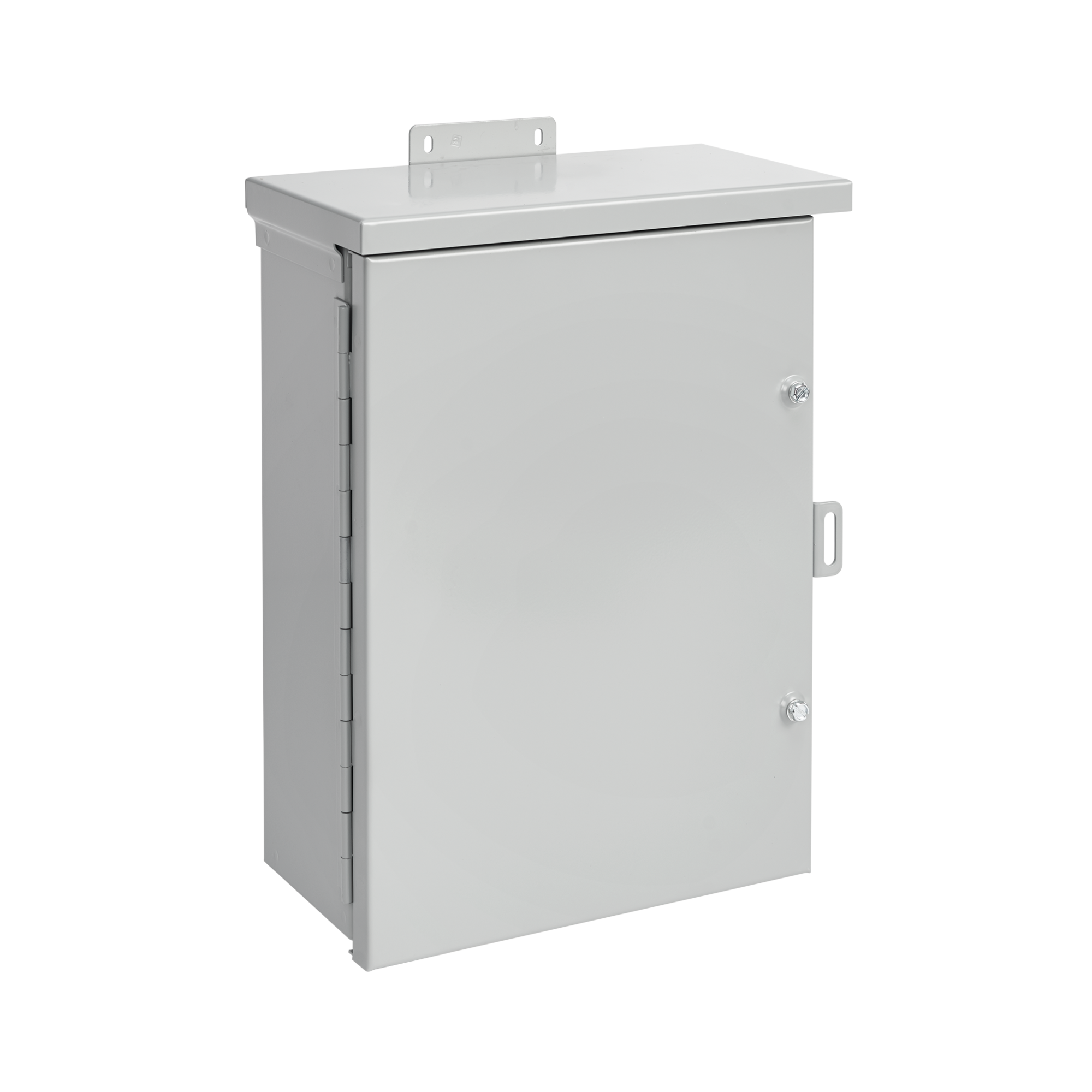

Nvent Hoffman Medium Drip-Shield Hinged-Cover Type 3R - A36R3612HCR
The Nvent Hoffman A36R3612HCR is a Medium Drip-Shield Hinged-Cover Enclosure designed to protect electrical wiring and components in outdoor applications requiring protection from rain, sleet, snow, or dripping water. This Type 3R enclosure offers reliable protection and durability in exposed environments
The A36R3612HCR enclosure is constructed from robust steel with a body thickness of 1.9 mm, providing strength and impact resistance. The enclosure's hinged cover design ensures convenient access to internal components for maintenance while maintaining environmental protection. The enclosure’s ANSI 61 gray polyester powder paint finish enhances corrosion resistance, making it ideal for outdoor conditions.
Features
- Type 3R Enclosure Rating: Provides protection against rain, sleet, snow, and dripping water.
- Robust Steel Construction: Ensures durability with 1.9 mm body thickness for enhanced strength.
- Hinged Cover Design: Provides convenient access to electrical components for maintenance.
- Collar Studs for Panel Mounting: Ensures flexibility for mounting additional equipment or panels.
- Padlock Provision: Enhances security by enabling secure locking options.
- Corrosion-Resistant Finish: Features ANSI 61 gray polyester powder paint for long-lasting durability.
- Ample Interior Space: With dimensions of 36" x 36" x 12", this enclosure accommodates various electrical devices.
- Compliance with Safety Standards: Certified to UL 50, CSA C22.2 No 94, and IEC 60529 for IP32 protection.
What our Experts Think
-
Weather‑Ready Protection: Type 3R drip‑shield design keeps rain and moisture out while allowing airflow.
-
Hinged Convenience: Easy access for maintenance without removing the entire cover.
-
Durable Build: Rugged construction stands up to industrial and outdoor conditions.
-
Reliable Seal: Helps protect internal components from dust and water spray.
-
Installer‑Friendly: Designed for straightforward mounting and alignment.
Q&A
Q: What is the A36R3612HCR enclosure?
A: A medium‑size, drip‑shield hinged‑cover electrical enclosure from nVent Hoffman rated NEMA 3R for outdoor protection.
Q: What environments is it designed for?
A: Built for outdoor use where protection from rain, sleet, snow, or dripping water is required.
Q: What materials and build features does it include?
A: Constructed from gray powder‑coated steel with a drip‑shield top, continuous hinge with stainless steel pin, and a hinged cover with captive screws.
Q: What are key practical benefits?
A: Offers durable environmental protection, easy access via hinged door, optional padlock security, and provisions for mounting internal panels.
Q: What are the dimensions and rating?
A: Approx 36 × 36 × 12 in (HxWxD), wall‑mount design with NEMA Type 3R/IP32 protection.
Q: What standards does it meet?
A: UL 50/50E, cUL, and NEMA 3R listed for outdoor electrical enclosure use.
Maintenance Tips
-
Regular Inspection: Check for dents, cracks, or corrosion on the enclosure and hinge.
-
Cleaning: Remove dirt, dust, and debris from the exterior and interior; avoid abrasive cleaners.
-
Hinge Lubrication: Apply light lubricant to hinge pivots for smooth operation.
-
Seal Check: Inspect gaskets and drip shield for wear or damage; replace if needed to maintain Type 3R protection.
-
Fastener Tightening: Ensure all screws and mounting hardware are secure to prevent water ingress.
-
Immediate Replacement: Replace any damaged panels or hardware to maintain safety and enclosure integrity.
