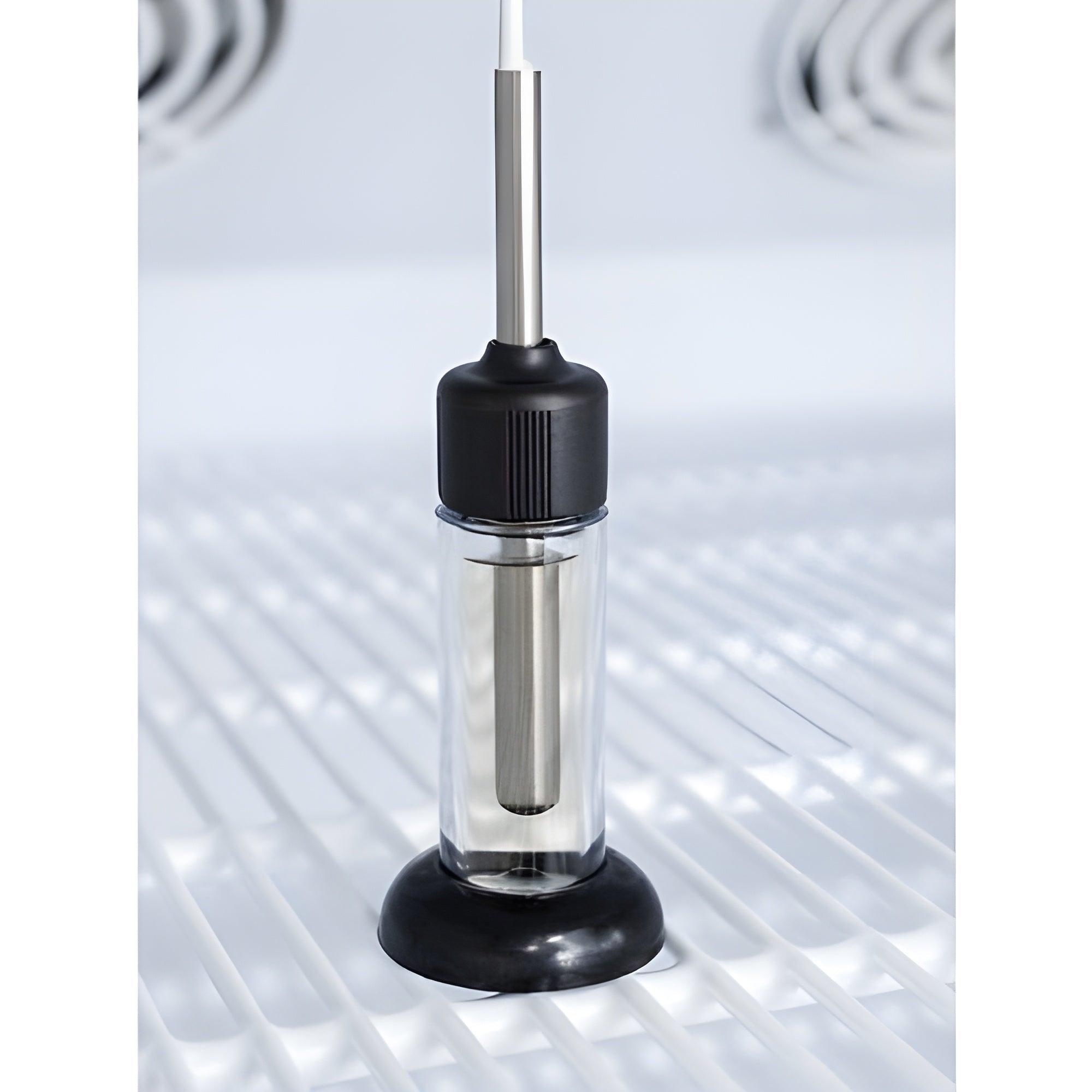

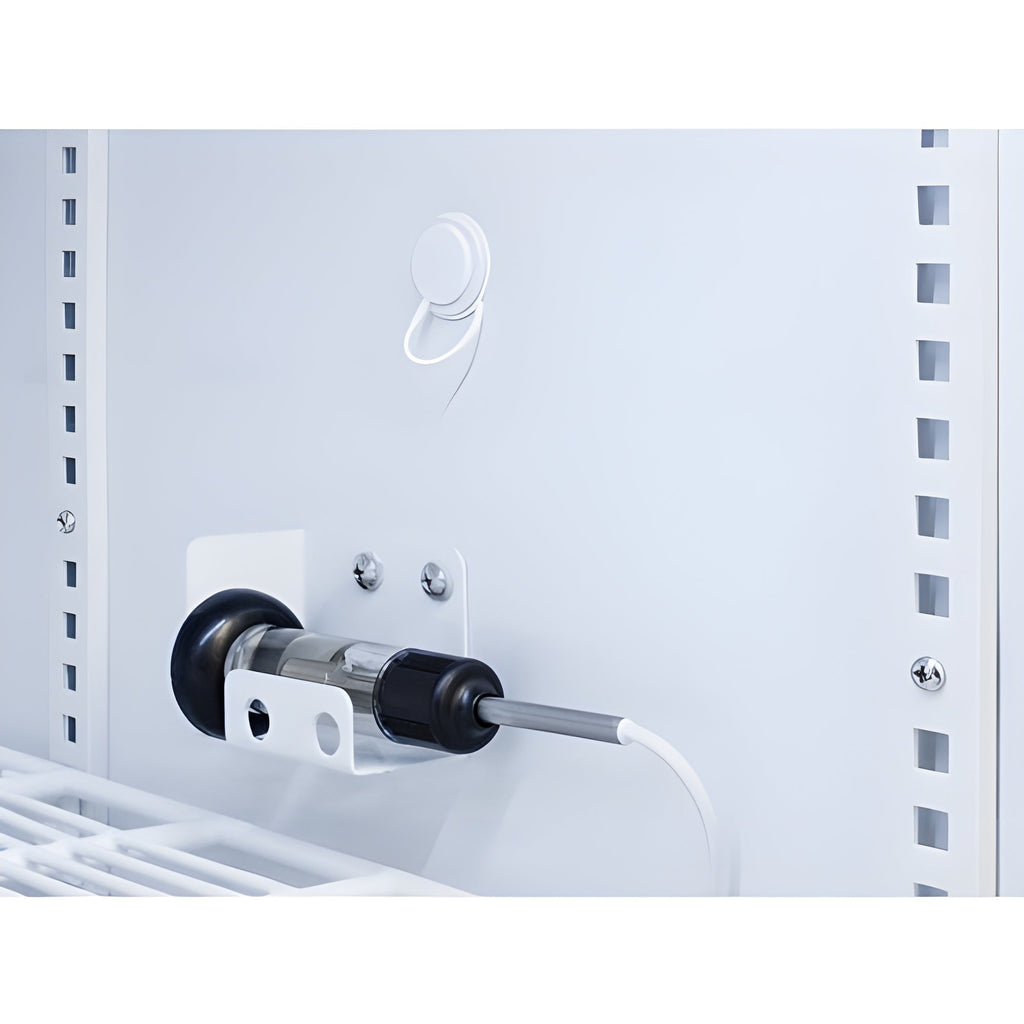

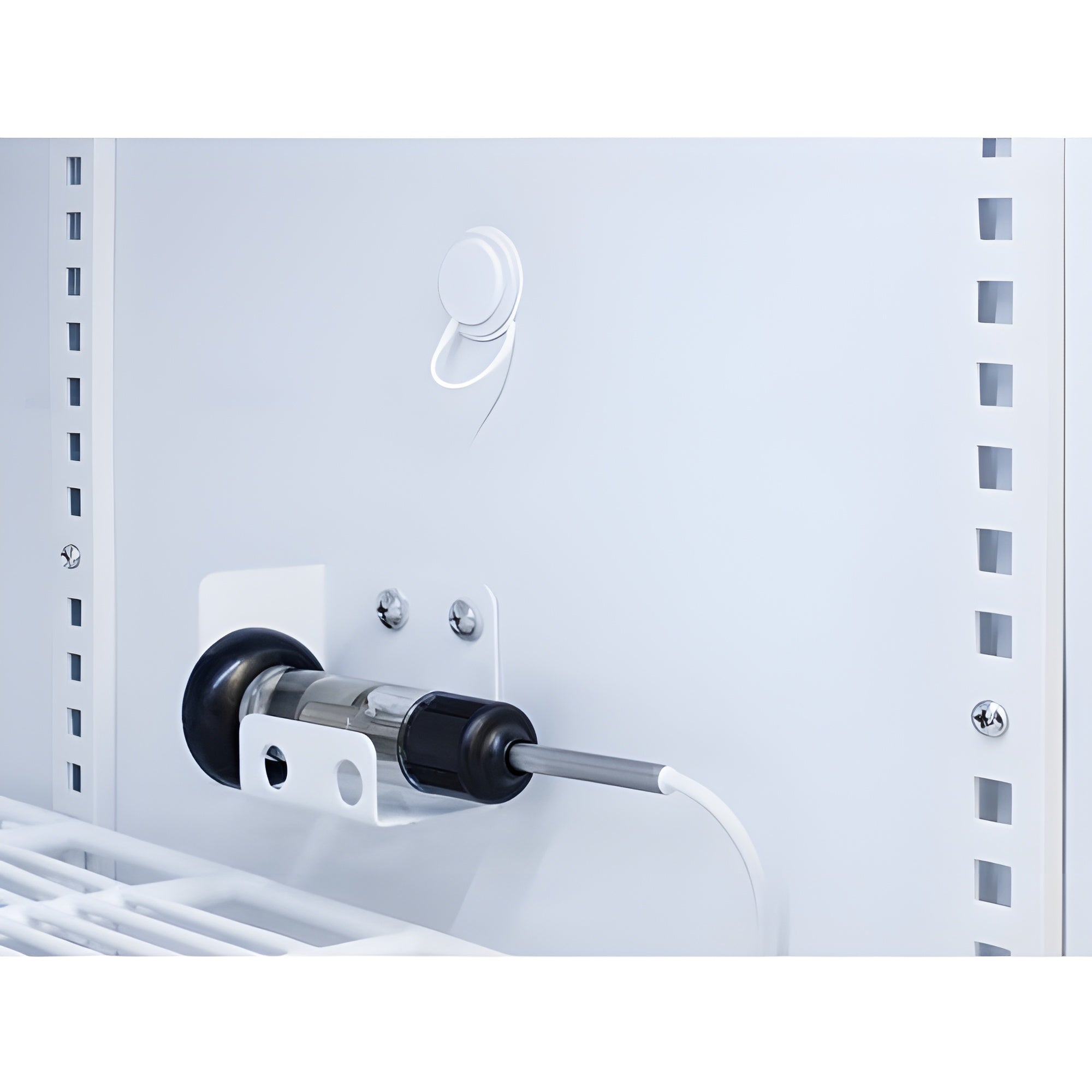

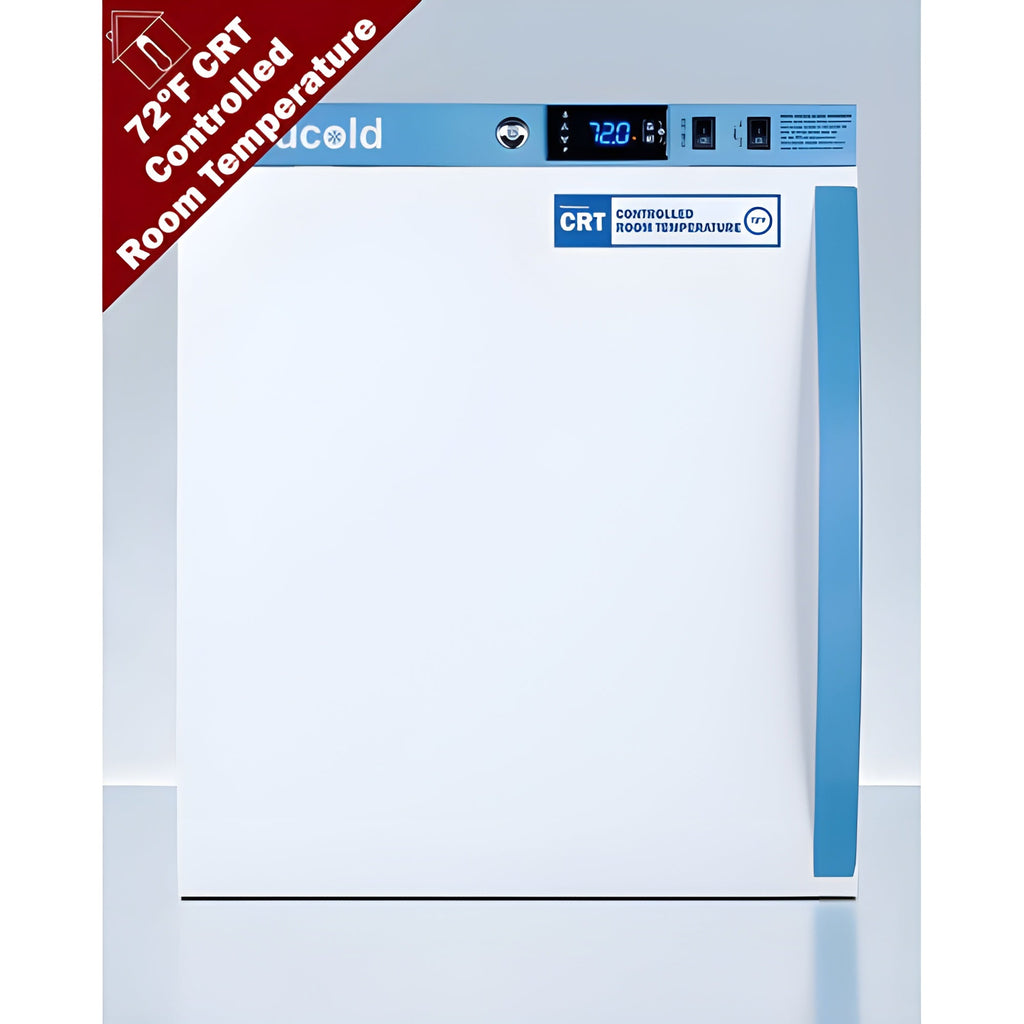

Performance Series Controlled Room Temperature Cabine The ARGSPV-CRTLHD is a 1.94 cu.ft. countertop unit designed for stable room temperature storage, preset to 72ºF with an adjustable range of 68º to 77ºF. Its microprocessor temperature controller is externally located to minimize door openings, ensuring product protection. A buffered temperature probe in a glycol-filled bottle simulates stored contents, while an additional sensor monitors air temperature for superior control. Audible and visual alarms alert users to temperature deviations, power failure, door open, or sensor issues. The unit features remote alarm contacts, a 1/2" probe port, and a hospital-grade cord for safety. Inside, cycle defrost prevents temperature spikes, while forced air cooling with an internal fan maintains stability. Adjustable wire shelves accommodate various items, and LED lighting provides visibility. A factory-installed lock with two keys ensures security, and a self-closing door enhances convenience. Designed with hydrocarbon refrigerant, this unit offers energy-efficient operation in environments ranging from 68ºF to 86ºF.
Features
Temperature Control & Stability
-
Purpose-Built Design: Supports pharmacy, medication, and vaccine storage within 68° - 77°F (20° - 25°C) per USP <1079> guidelines
-
Stable Operation: Maintains set temperature even in ambient conditions from 68°F to 86°F
-
Adjustable Temperature: Intuitive controls allow adjustments between 68°F and 77°F
-
+/-1.5ºC Variation: Temperature variation measured from NTC sensor in a 1 oz. vial at chamber center over 24 hours
Alarms & Security
-
Temperature Alarm: Visual and audible alerts if temperature deviates from the set range
-
Open Door Alarm: Sounds if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
-
Audible Power Failure Alarm: Battery-powered alarm in case of power loss
-
Sensor Failure Alarm: Alerts if the temperature sensor is disrupted
-
Password Protection: Control panel requires a password for parameter adjustments
-
Remote Alarm Contacts: Volt-free contact for alarm forwarding to external systems
Build & Design
-
Antimicrobial Handle: Silver ion-coated powder-coated handle reduces germ spread
-
Self-Closing Door: Ensures the unit stays closed in busy settings
-
Factory-Installed Lock: Keyed lock positioned at the top of the door for security (includes 2 keys)
-
Magnetic Door Gasket: Ensures a tight seal for efficiency and performance
-
Left-Hand Door Swing: Also available in a right-hand version (model ARS2PV-CRT)
Interior Features
-

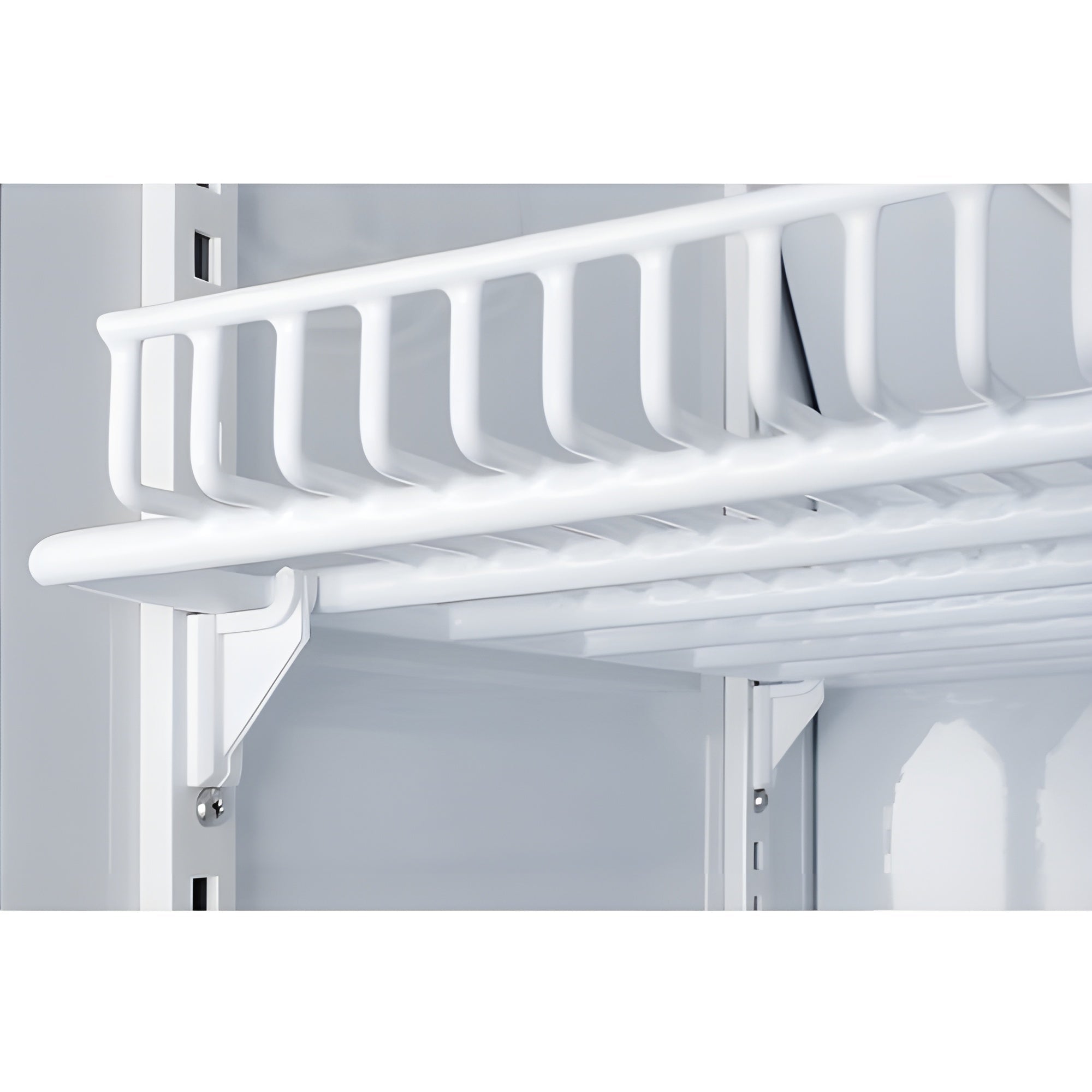

Adjustable Shelving: Plastic-coated wire shelves with 1/2" spacing for flexible storage
-
Durable Interior: White powder-coated metal walls for strength and temperature retention
-
LED Interior Light: Energy-efficient lighting with an internal on/off switch
-

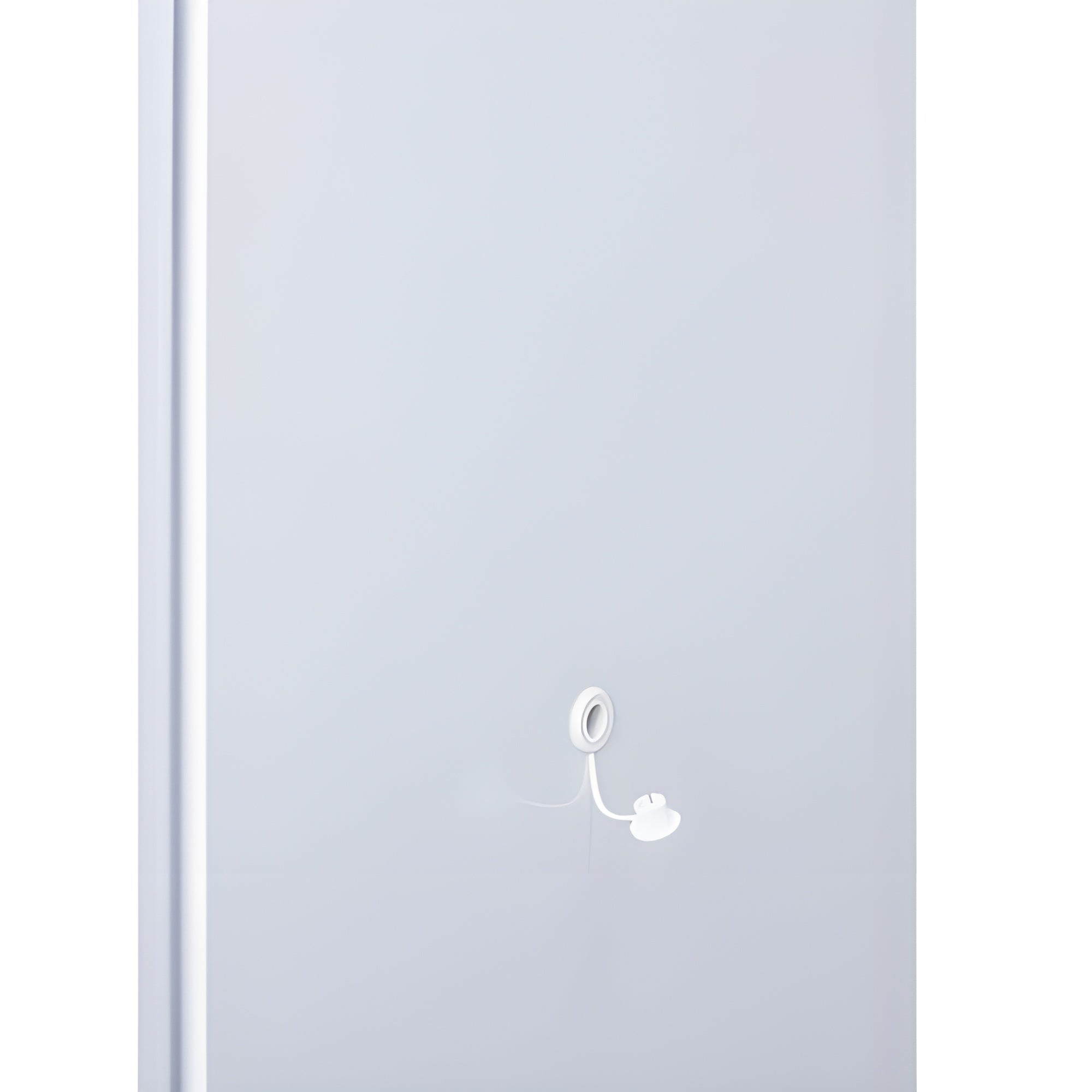

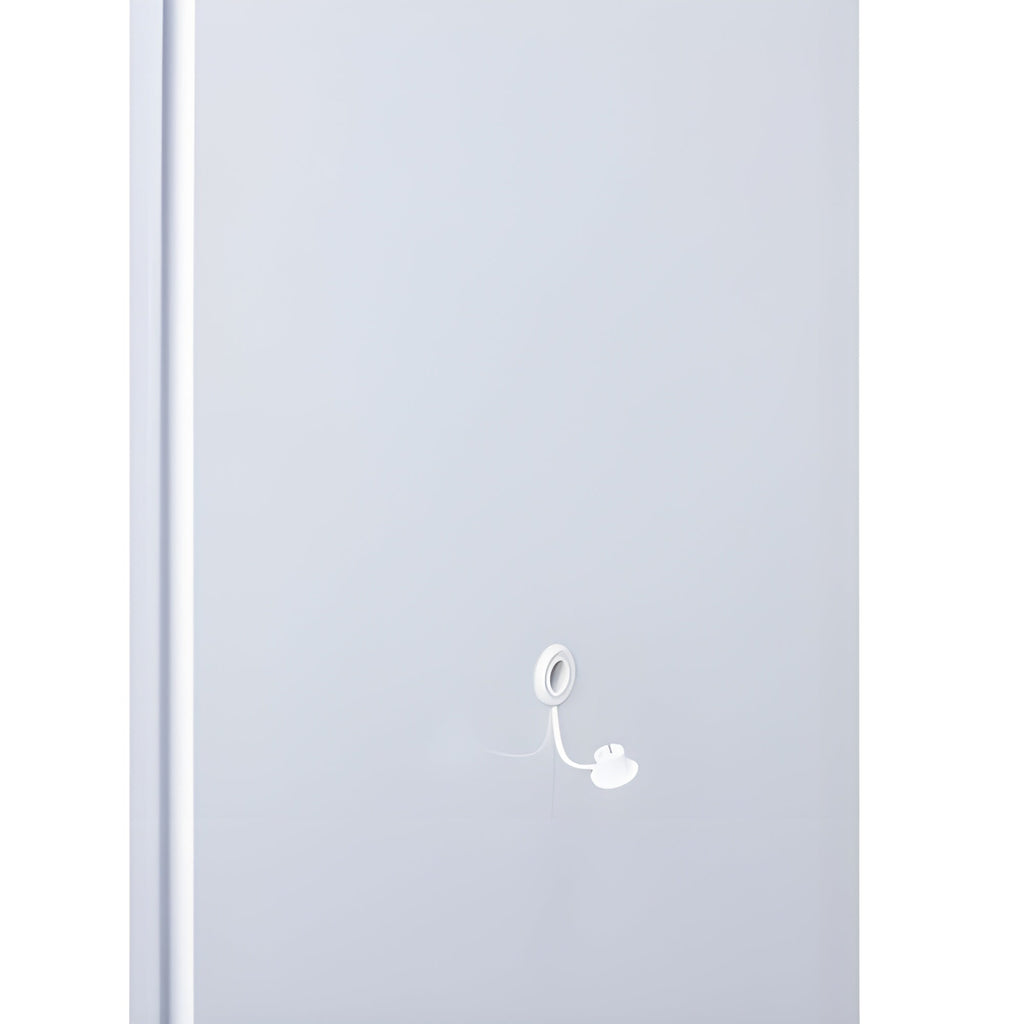

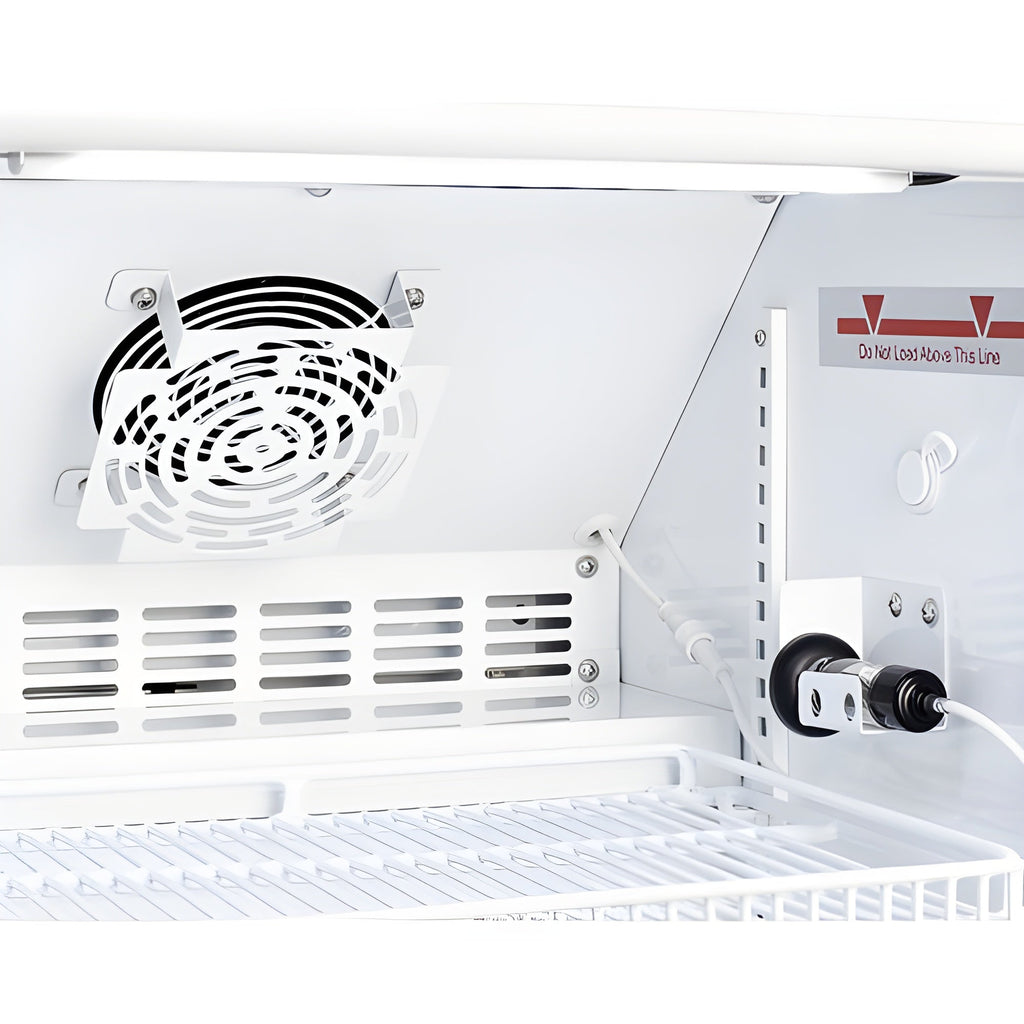

Access Port: Pre-installed 1/2" probe hole in right interior wall for monitoring equipment
Control Panel & Functionality
-

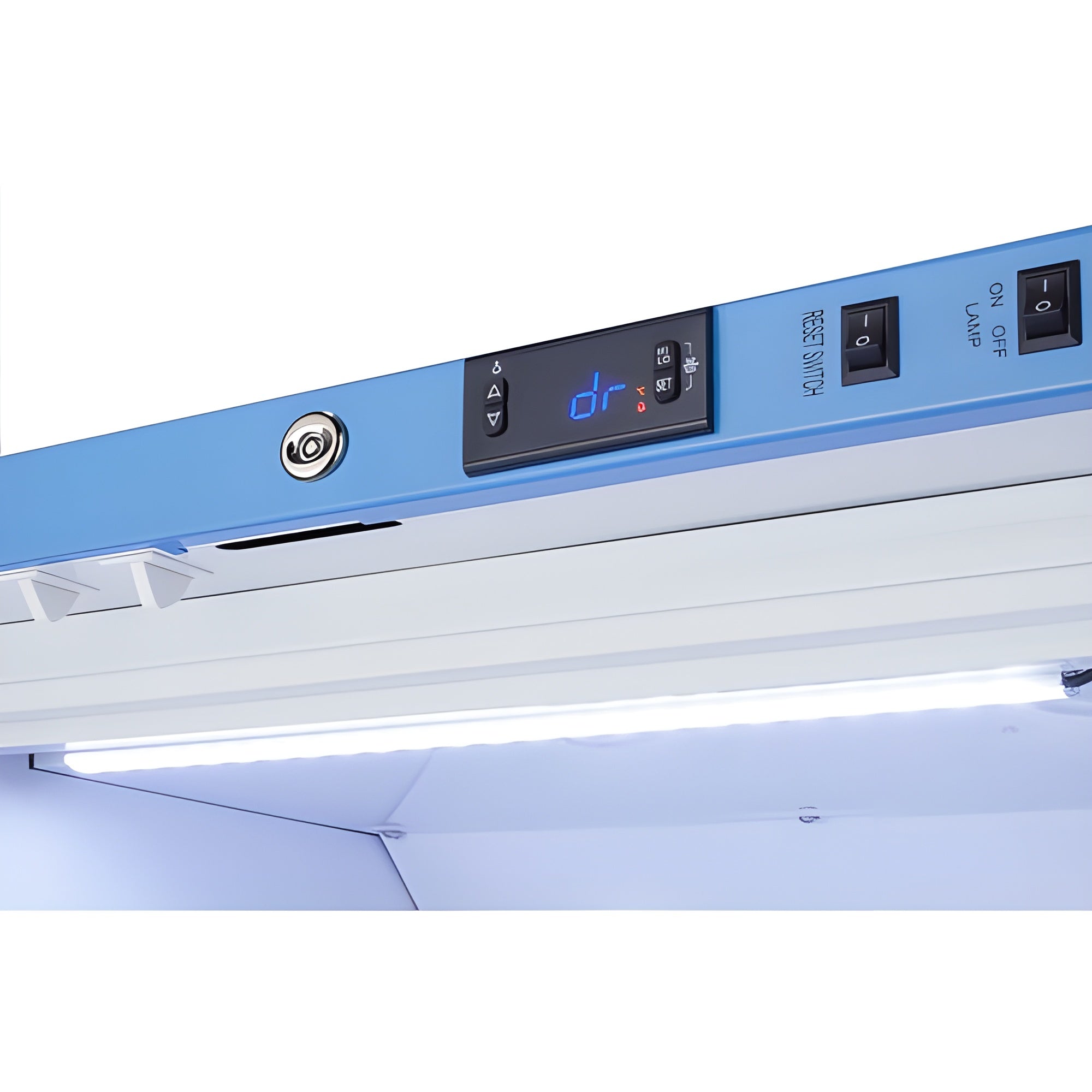

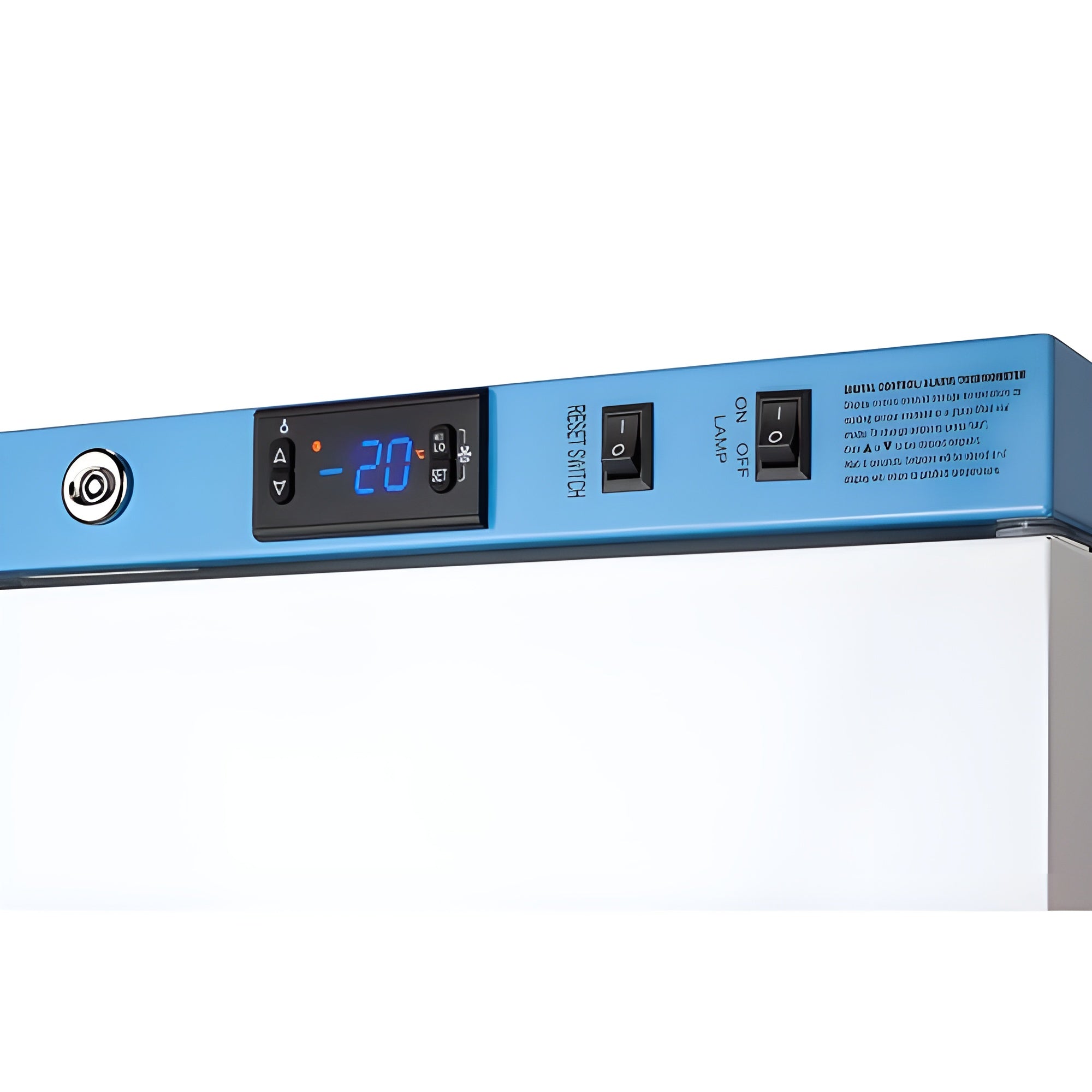

Microprocessor Control Panel: Digital controls with LED readout in Celsius or Fahrenheit
-
Resettable Min/Max Display: Records low and high temperatures in 15-minute increments
-
Automatic Defrost: Adjustable cycle defrost prevents ice buildup and temperature spikes
Power & Efficiency
-
Hospital-Grade Cord: Secure three-pronged cord with 'green dot' plug for added safety
-
Eco-Friendly Refrigerant: Hydrocarbon-based refrigerant for a greener footprint
-
100% CFC-Free: No ozone-damaging chemicals, CARB compliant
Additional Features
-
Extended Warranty: 2 years parts & labor / 5 years compressor coverage
-
Usage Stickers: Includes removable warning labels for “DO NOT UNPLUG” and “DO NOT ADJUST TEMPERATURE”
-
Versatile Design: Compatible with Pyxis®, Omnicell®, and AcuDose RX® systems
-
Multiple Size & Door Options: Available in solid or glass doors, with capacities from 1 to 18 cu. ft.
