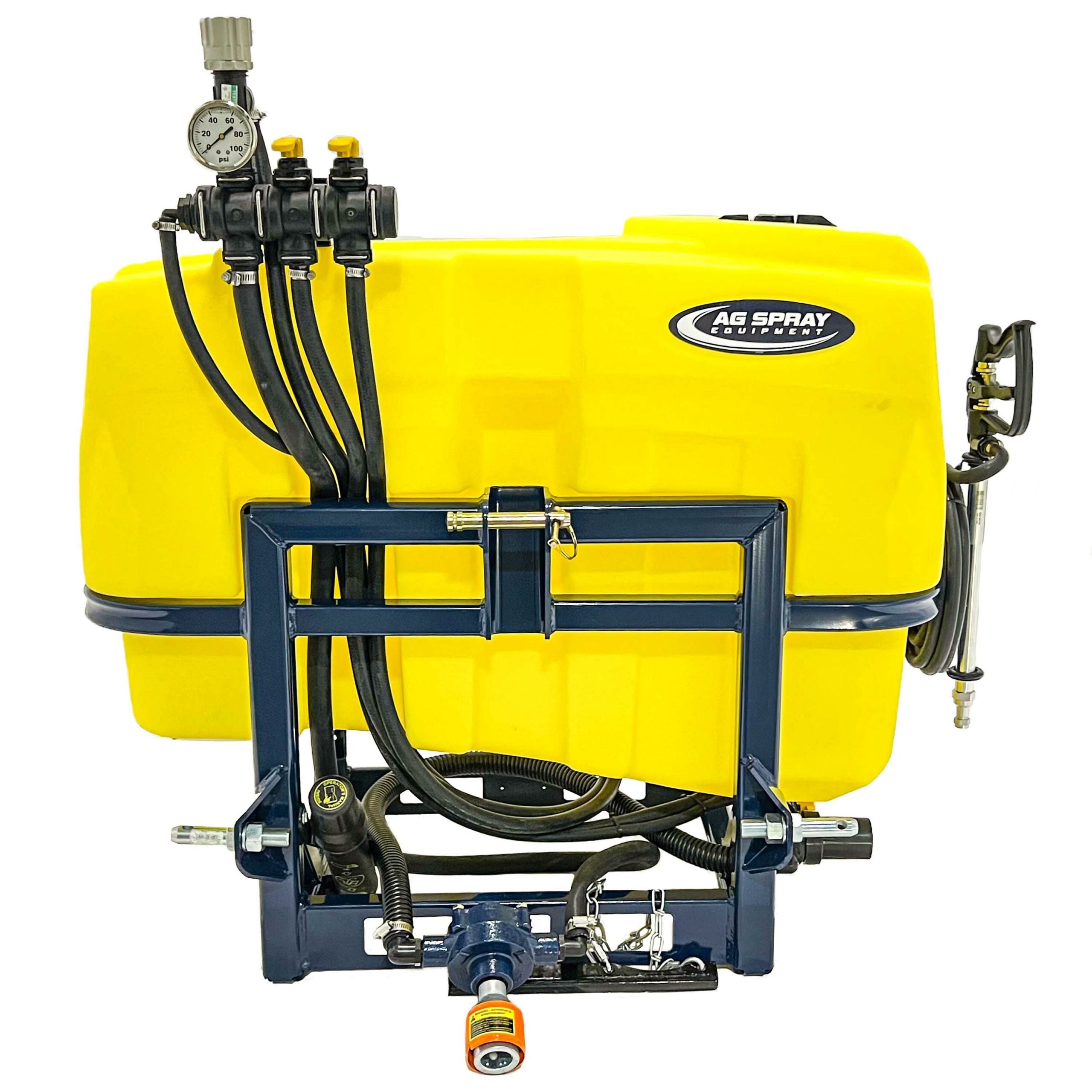

AG Spray 3-Point Hitch Sprayer BXT Nozzle/22″ Gun 60-Gal MC1 Series - 5303689-BLU

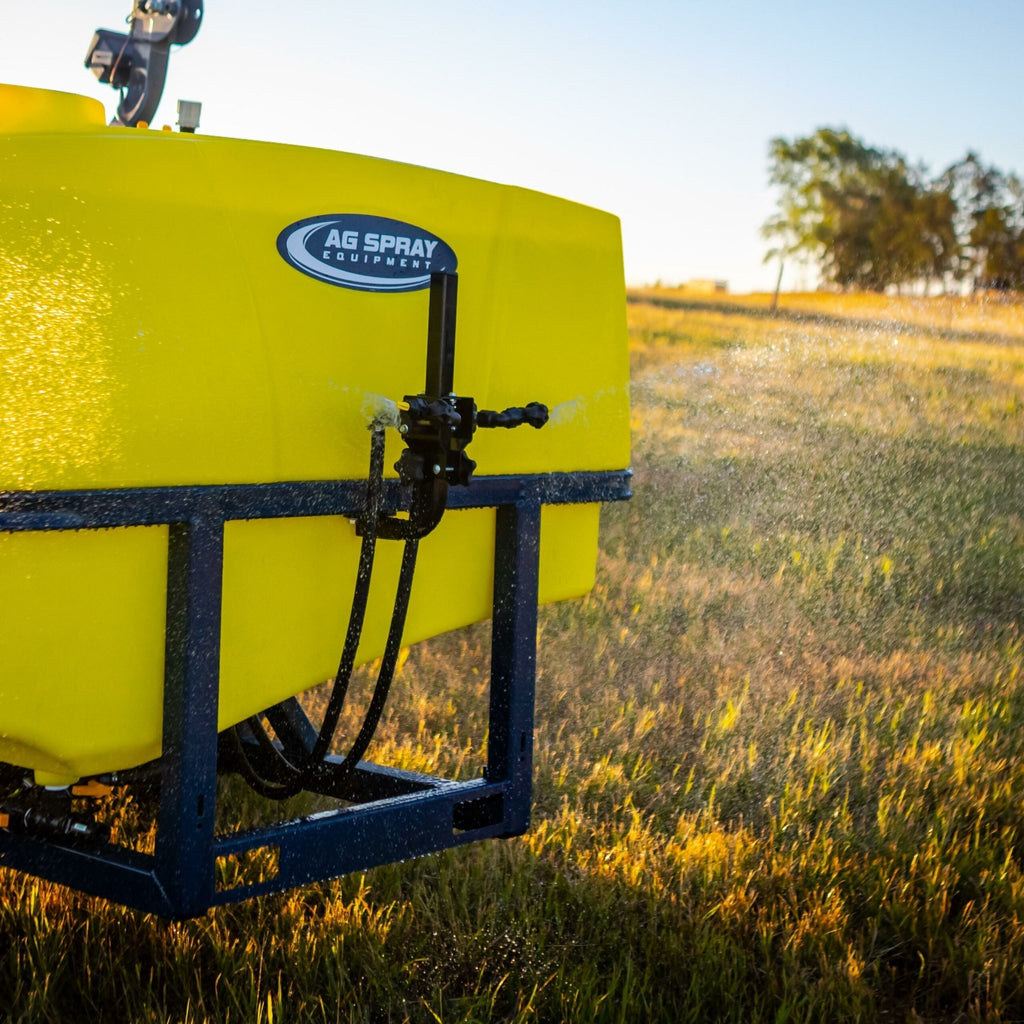

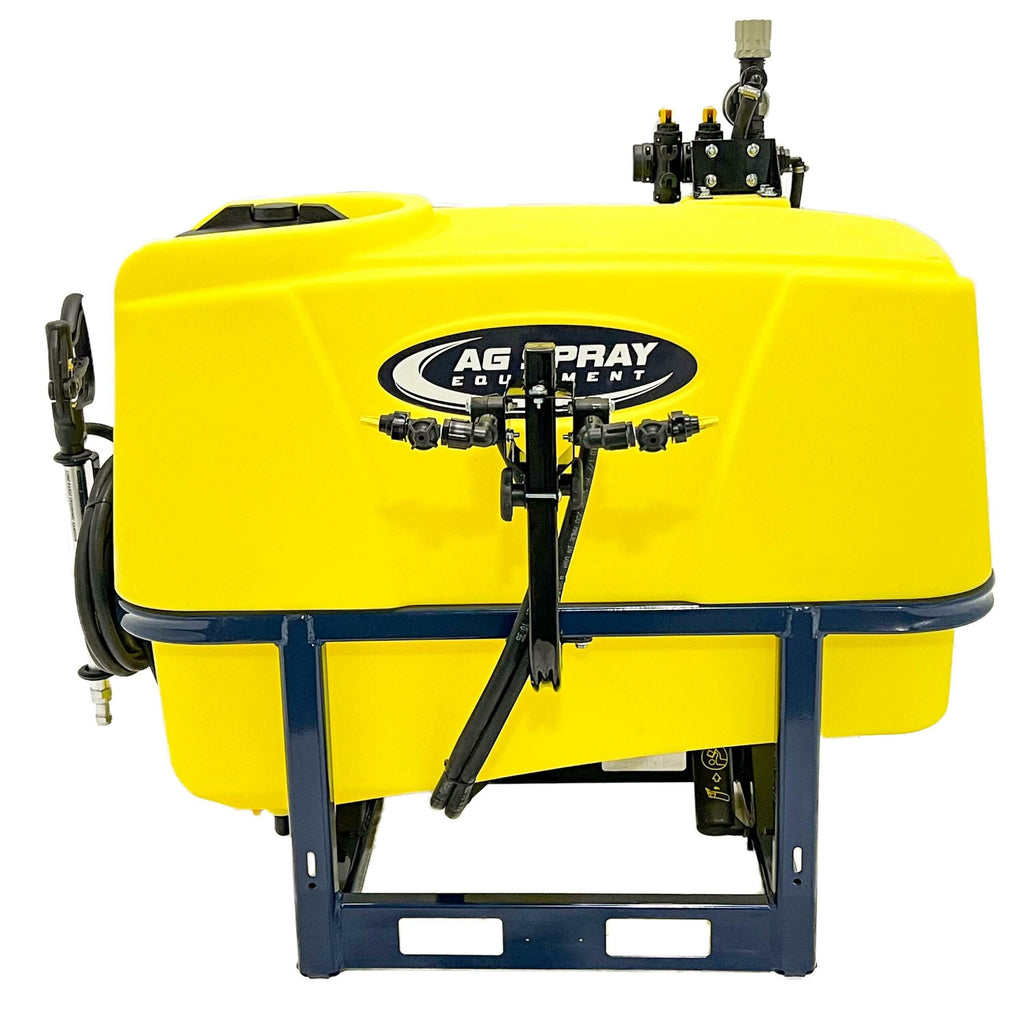

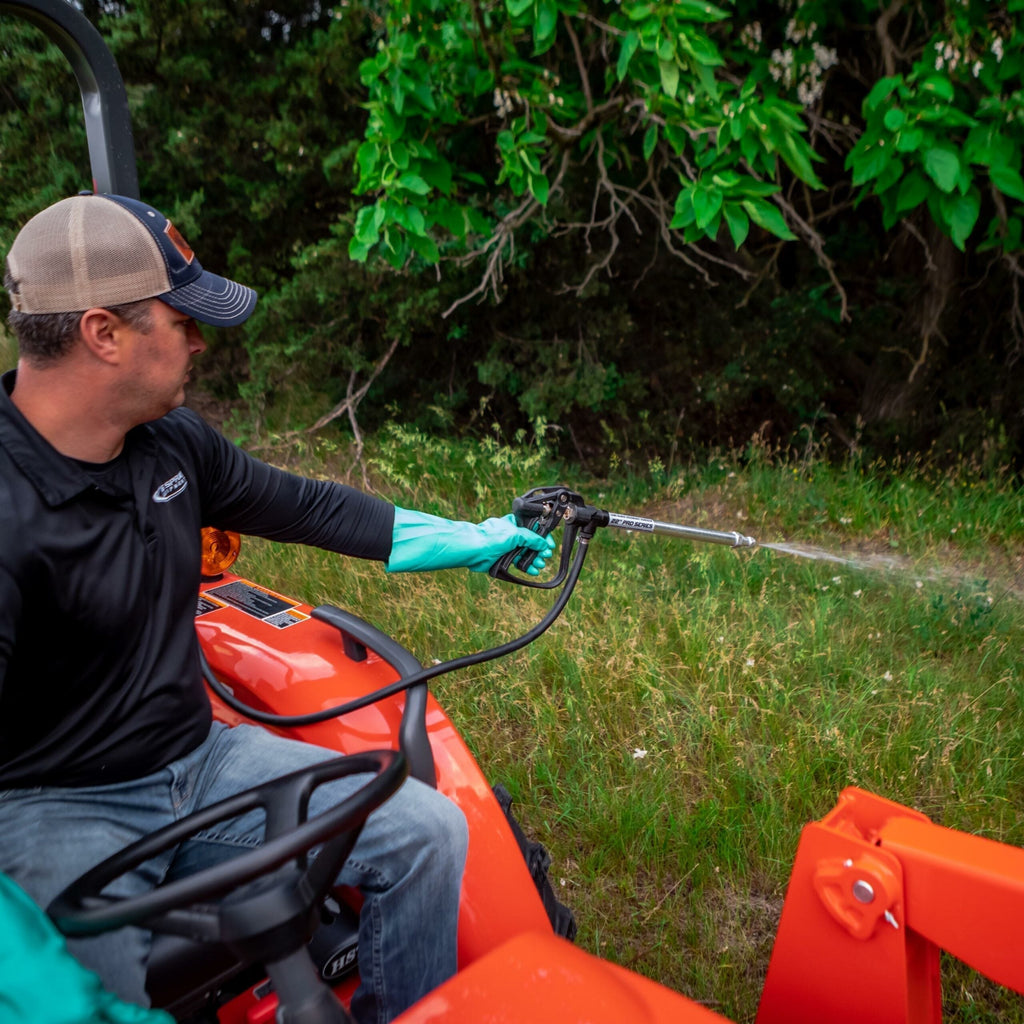

The AG SPRAY 5303689-BLU 60 Gallon MC 1 SERIES 3-POINT Sprayer maximizes your tractor’s carrying capacity and comes ready to go to the field. The heavy duty MC60BXT24-22PS-BLU 3 point sprayer is designed to be CAT 1 compatible while carrying the fluid load closer to the tractor allowing more capacity and greater stability. The 6-roller PTO pump has a combination quick coupler to easily connect to the tractor PTO shaft. The BXT Series Boom covers up to 32′ with Boom X-Tender nozzles designed to reduce drift and promote spray penetration. This “boomless” 2 nozzle configuration eliminates the wear and tear of a traditional boom, while still allowing the operator to cover a wide swath. Two section controls are conveniently placed making access easy from the tractor seat allowing the operator to spray 16’ left or 16’ right or the full 32’. Spot or fence line spraying can be done from the tractor seat or walking behind with the PRO 22″ Spray Gun equipped with 25 Feet of hose. Meet all of your liquid application needs with the 60 Gallon MC 1 Series Sprayer with more capacity, greater stability and better performance on all terrains.
Spraygun holder and 25’ hose wrap can be mounted on either side
of the unit. Conveniently mounted for easy operator access.
Outfit your new MC 1 3-Point with a boom option to meet your
application needs. Traditional folding booms from 8’ to 20’ and
boomless with coverage from 30’ to 50’.
Features
Option
-
Traditional Booms from 100” to 240” Coverage
-
Boomless Booms from 30’ to 50’ Coverage
-
Spray Wands with 25’ Hose & Hose Wrap
What Our Experts Think
-
Compact & Efficient: The AG Spray 60-Gal MC1 Series 3-Point Hitch Sprayer offers a compact solution for precise spraying tasks on smaller fields or specific areas.
-
BXT Nozzle & 22" Gun: Features a BXT nozzle and 22" gun for adjustable spray patterns, providing accurate and controlled application for various spraying needs.
-
Durable Construction: Built with high-quality, corrosion-resistant materials for long-term use in demanding agricultural conditions.
-
User-Friendly: Easy to set up and attach to most 3-point hitch systems, ensuring quick deployment and seamless operation.
-
Versatile Performance: Ideal for both spot spraying and general field applications, the 22" gun offers extended reach and efficient coverage.
Q&A
Q: What is the AG Spray 3-Point Hitch Sprayer BXT Nozzle/22" Gun 60-Gal MC1 Series used for?
A: This sprayer is designed for efficient agricultural spraying, featuring a 60-gallon tank, BXT nozzles for uniform spray, and a 22-inch spray gun for precise coverage in fields and crops.
Q: What features are included in the AG Spray 3-Point Hitch Sprayer BXT Nozzle/22" Gun 60-Gal MC1 Series?
A: It includes a 60-gallon tank, BXT nozzles for consistent spray distribution, a 22-inch spray gun for accuracy, and a 3-point hitch for easy attachment to tractors, ensuring reliable spraying performance.
Q: Is the AG Spray 3-Point Hitch Sprayer BXT Nozzle/22" Gun 60-Gal MC1 Series easy to operate?
A: Yes, it is designed for ease of use with intuitive controls, compatibility with most tractors, and efficient spray distribution for optimal coverage and performance.
Q: How does the AG Spray 3-Point Hitch Sprayer BXT Nozzle/22" Gun 60-Gal MC1 Series compare to other sprayers?
A: With its manageable 60-gallon tank, high-performance nozzles, and precise spray gun, the AG Spray 3-Point Hitch Sprayer is an excellent choice for accurate and effective spraying in smaller to medium-scale agricultural operations.
Maintenance Tips
-
Tank Cleaning: After each use, clean the 60-gallon tank to remove any leftover chemicals and debris. Use a non-corrosive cleaner, and rinse thoroughly to avoid residue buildup that could affect future applications.
-
Pump Maintenance: Inspect the pump regularly for signs of wear or leaks. Ensure that it is properly lubricated according to the manufacturer's instructions. If the pump isn’t functioning smoothly, check for clogs or damaged parts.
-
Nozzle and Gun Care: Inspect the BXT nozzle and 22″ gun for any blockages or wear. Clean the nozzle regularly to maintain an even spray pattern. If the nozzle is damaged, replace it promptly.
-
Hose Inspection: Check all hoses for signs of wear, cracks, or leaks. Ensure they are securely connected and replace any worn-out hoses to prevent loss of pressure during operation.
-
Valve Check: Ensure that all valves are operating properly, opening and closing without resistance. Lubricate and replace valves if necessary to maintain proper flow control.
-
Pressure Regulation: Check the pressure regulator to ensure the correct flow rate is maintained. If the pressure drops or fluctuates, check for leaks or blockages in the system and replace any faulty components.
-
Sprayer Calibration: Perform regular calibrations to ensure the sprayer is applying the correct amount of product at the right pressure. This will optimize the efficiency of your application and prevent overuse or waste of chemicals.
-
Winterizing: Before storing the sprayer during colder months, drain all fluids, including water and chemicals, to prevent freezing. Consider flushing the system with an antifreeze solution as recommended by the manufacturer.
-
Storage and Protection: When not in use, store the sprayer in a dry, sheltered area to protect it from environmental damage such as UV exposure, rust, and debris. Ensure it is elevated off the ground to prevent any damage from moisture.
