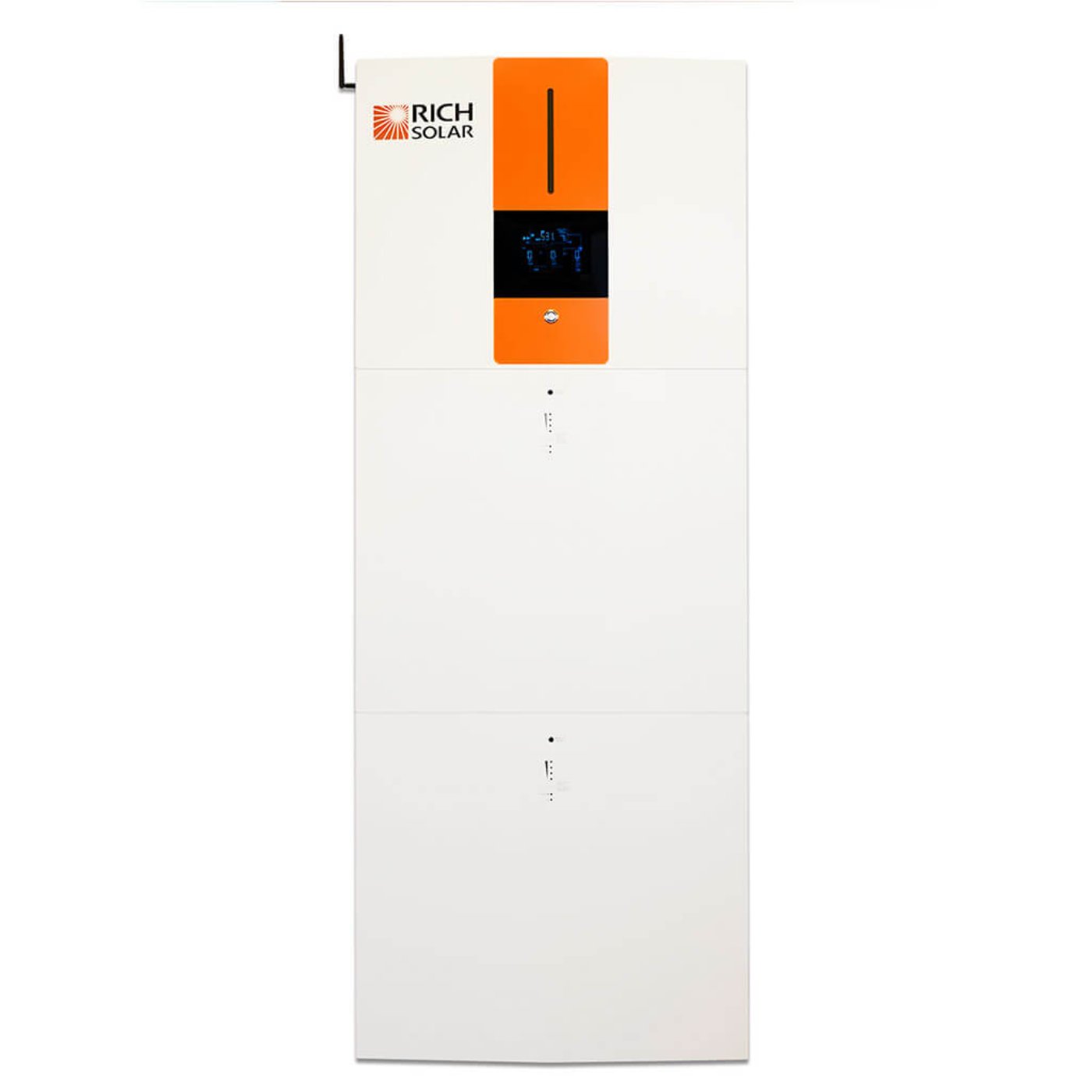

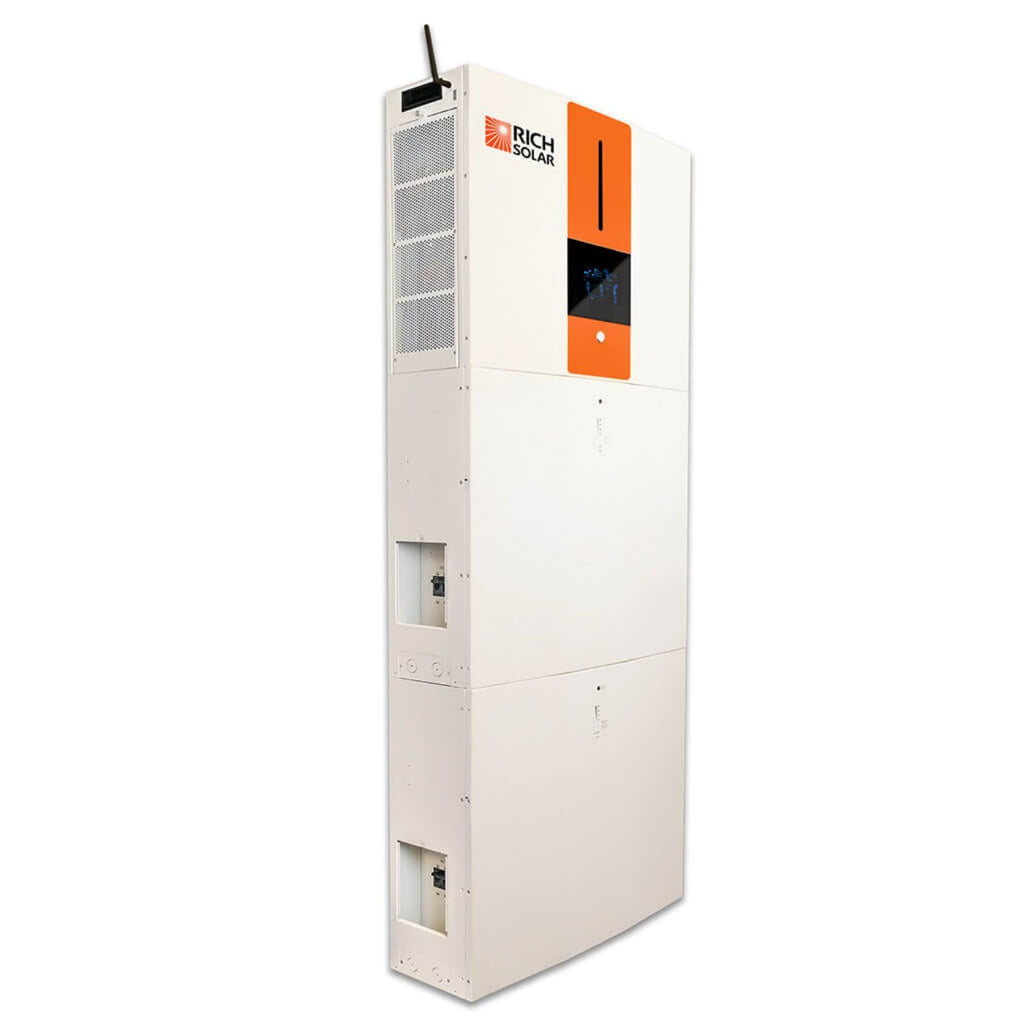

    Introducing the RICH SOLAR All-in-One Energy Storage System

    The RICH SOLAR All-in-One Energy Storage System is a powerful and efficient solar energy system designed to provide clean and reliable electricity. This innovative system integrates all the components required for solar power generation into a single, compact unit, including an inverter, batteries, and a charge controller.


    All in One Energy Storage System Features
    • Pure sine wave output
    • Off-Grid application
    • Programmable supply priority for PV, Battery, or Grid
    • User-adjustable battery charging current
    • Battery independent design


    • Multiple communication for USB, RS232, SNMP, Modbus, GPRS and Wi-Fi
    • Monitoring APP (Android and iOS) for real-time status display and parameter control
    • Built-in 2 MPPT trackers and AC/Solar charger up to 120A
    • Compatible with utility and generator
    • Scalable Li-Ion battery expansion
    All in One Energy Storage System Features


    All in One Energy Storage System Features

    The compact design of an All-in-One Energy Storage System makes it an attractive option for those with limited space, or for those who want a more discreet installation. It can also be easier to install and maintain compared to larger energy storage systems, which may require more extensive wiring and infrastructure.


    Specs

    SPECIFICATIONS

    Model: RS-A10
    Maximum PV Input Power: 8000W
    Rated Output Power: 6500W
    Maximum Charging Power: 6500W

    PV INPUT (DC)

    MPPT Range @ Operating Voltage: 90 ~ 230 VDC
    Maximum PV Array Open Circuit Voltage: 250 VDC
    Maximum Solar Charge Current: 120A
    Number of MPP Trackers / Maximum Input Current: 2 / 2 x 18 A

    AC INPUT

    Acceptable Input Voltage Range: 90-140 VAC (For Computers)
    80-140 VAC (For Home Appliances)
    Maximum AC Input Current: 60A

    BATTERY MODE OUTPUT

    Nominal Output Voltage: 120 VAC
    Maximum Conversion Efficiency (DC/AC): 93%

    BATTERY

    Nominal DC Voltage: 48 VDC
    Maximum Charging Current: 120 A
    Dimension: (D x W x H): 8.4″ x 24.4″ x 19.7″
    Net Weight: 99 lb
    Capacity: 5120Wh
    Nominal Voltage: 51.2VDC
    Full Charge Voltage(FC): 56V
    Full Discharge Voltage(FD): 42V
    Typical Capacity: 100 Ah
    Max Continuous Discharging Current: 120A
    Max Discharging Current: 192A at 1 min
    Protection: BMS, Breaker
    Float Charge Voltage: 52.5V
    Charge Current: 20A (0.2C)
    Maximum Charge current: 50A (0.5C)
    Standard Charge method: 0.2C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current declines to <0.05C
    Inner Resistance: ≤20m ohm

    ALL IN ONE SYSTEM PHYSICAL

    System Dimension (D X W X H): 19.7″ x 26″ x 49.2″
    Net Weight: 287 lb

    STANDARD

    Compliance Safety: IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3, UL 1741, CSA C22.2 No.107.1-16, FCC PART 15B
    Manual
    All in One Energy Storage System

    ALL IN ONE ENERGY STORAGE SYSTEM




    What Our Experts Think



    Q: What is an All-in-One Energy Storage System?
    A: It’s a complete solution that stores energy from renewable sources, like solar panels, in a single unit for later use in your home or RV.

    Q: What does the system include?
    A: Typically, it includes a battery storage unit, inverter, charge controller, and often a monitoring system, all integrated into one package.

    Q: How does the system work?
    A: The system stores excess energy generated by solar panels or other renewable sources and supplies it when needed, providing backup power.

    Q: What are the key features of an All-in-One Energy Storage System?
    A: Compact design, high capacity storage, integrated inverter/charger, easy installation, and smart monitoring.

    Q: Can the system be used off-grid?
    A: Yes, it’s perfect for off-grid homes or RVs, providing a reliable energy source without relying on the electric grid.

    Q: Is the system compatible with solar panels?
    A: Yes, it integrates seamlessly with solar panel systems, enabling efficient energy storage and usage.

    Q: How long does the battery last?
    A: The battery lifespan typically ranges from 10 to 15 years, depending on usage and maintenance.

    Q: Is it easy to install?
    A: Yes, most systems are designed for easy installation, with clear instructions and minimal setup required.

    Q: Is the system scalable?
    A: Yes, you can expand capacity by adding more units if your energy needs increase.

    Q&A
    • Comprehensive Energy Solution: The All-in-One Energy Storage System is designed to offer a complete power solution, integrating energy storage, management, and backup capabilities into one compact unit.
    • Seamless Integration: This system simplifies energy storage for residential or off-grid use, allowing for easy integration with solar panels, generators, or other renewable energy sources.
    • Efficient Power Management: Equipped with smart energy management, it efficiently stores excess energy and distributes it when needed, optimizing energy use and reducing reliance on the grid.
    • Reliable Backup: Provides reliable backup power during outages, ensuring that essential devices and systems remain operational, offering peace of mind during emergencies.
    • Space-Saving Design: Its all-in-one setup consolidates several components into one unit, saving space while still delivering powerful energy storage and performance.
    • Scalable Capacity: Many systems offer scalable solutions, allowing users to add more units as energy needs grow, making them suitable for both small and large applications.
    • User-Friendly Interface: With intuitive controls and monitoring features, users can easily manage their energy usage and storage, enhancing convenience and control.
    Maintenance Tips
    • Battery Health: Check battery status regularly via the management system and ensure proper charging cycles.
    • Cleaning: Dust off vents and exterior components to prevent overheating.
    • System Monitoring: Regularly review performance data to detect any irregularities or faults early.
    • Temperature Control: Ensure the system is stored in a cool, dry environment to optimize lifespan.
    • Inspection: Annually inspect wiring and connections for signs of wear or corrosion.
