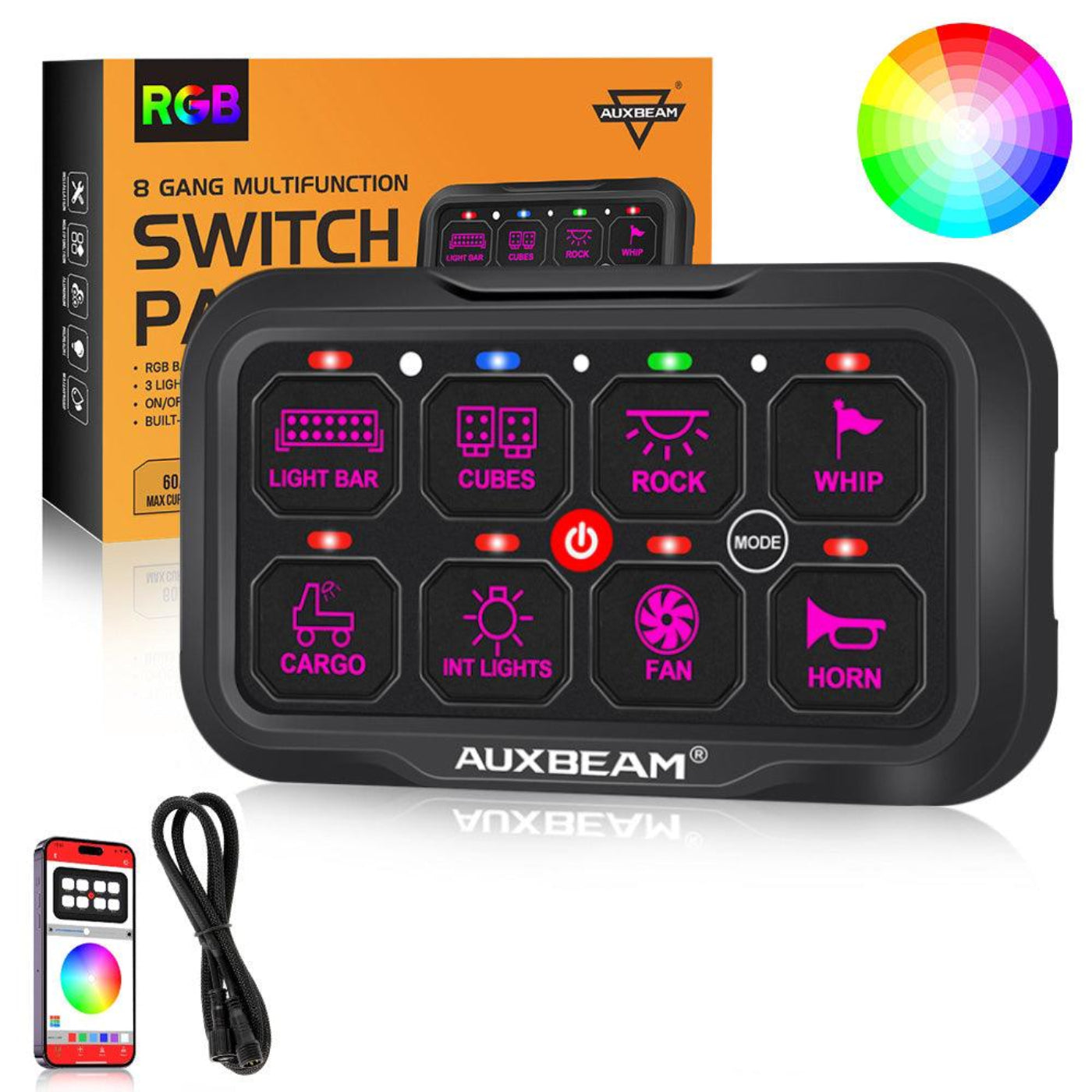

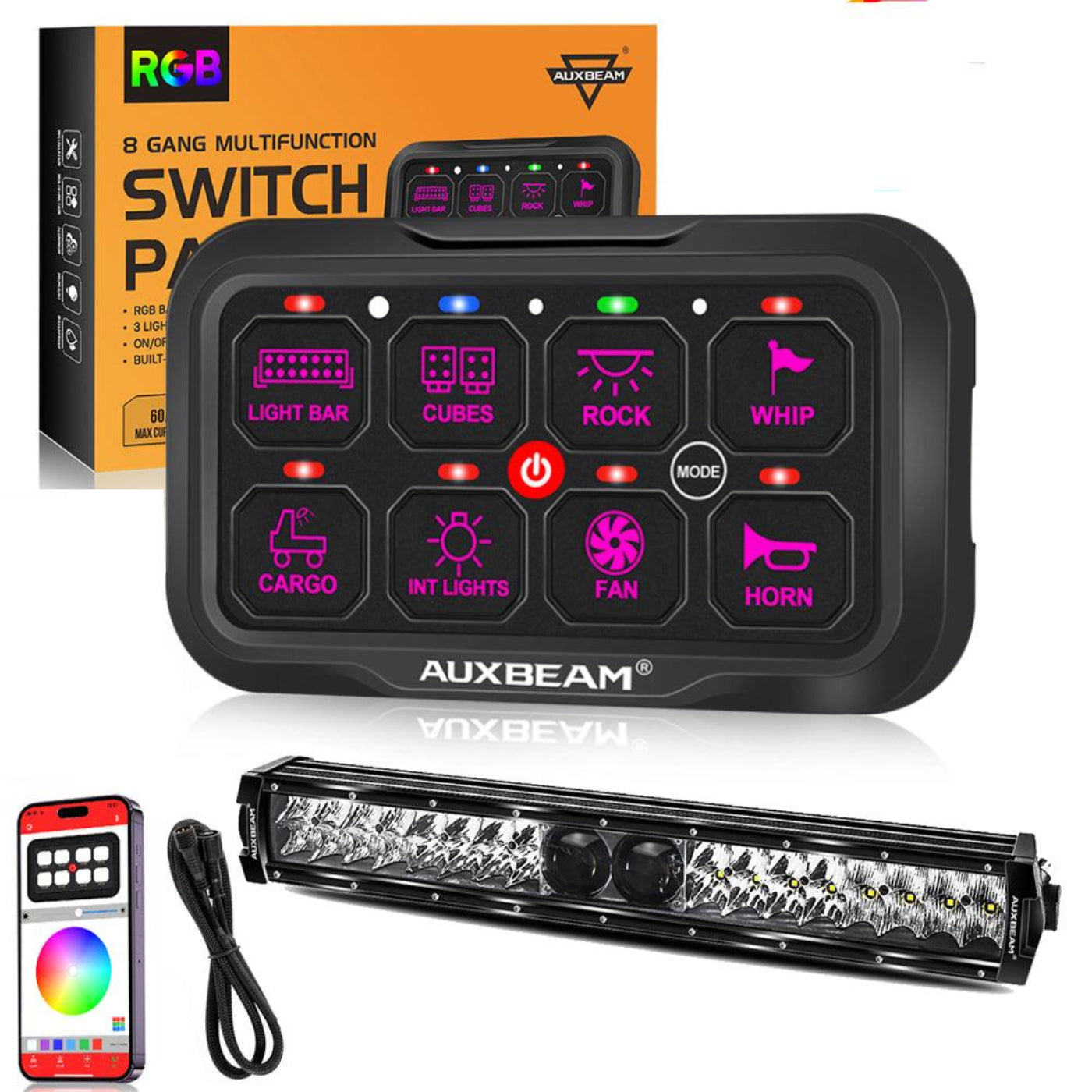

Auxbeam AR-800 RGB Switch Panel with APP+22 Inch 5D-PRO LED Light Bar, Toggle/ Momentary/ Pulsed Mode Supported - GP00012144
We do some big upgrades on switch panel! The latest system can be operated via switch panel or smartphone. It’s not limited to just controlling the “ON/OFF” of the LED Lights or electrical devices. Change the backlight color and lighting modes to have fun programming with Auxbeam latest RGB switch panel!
Specification

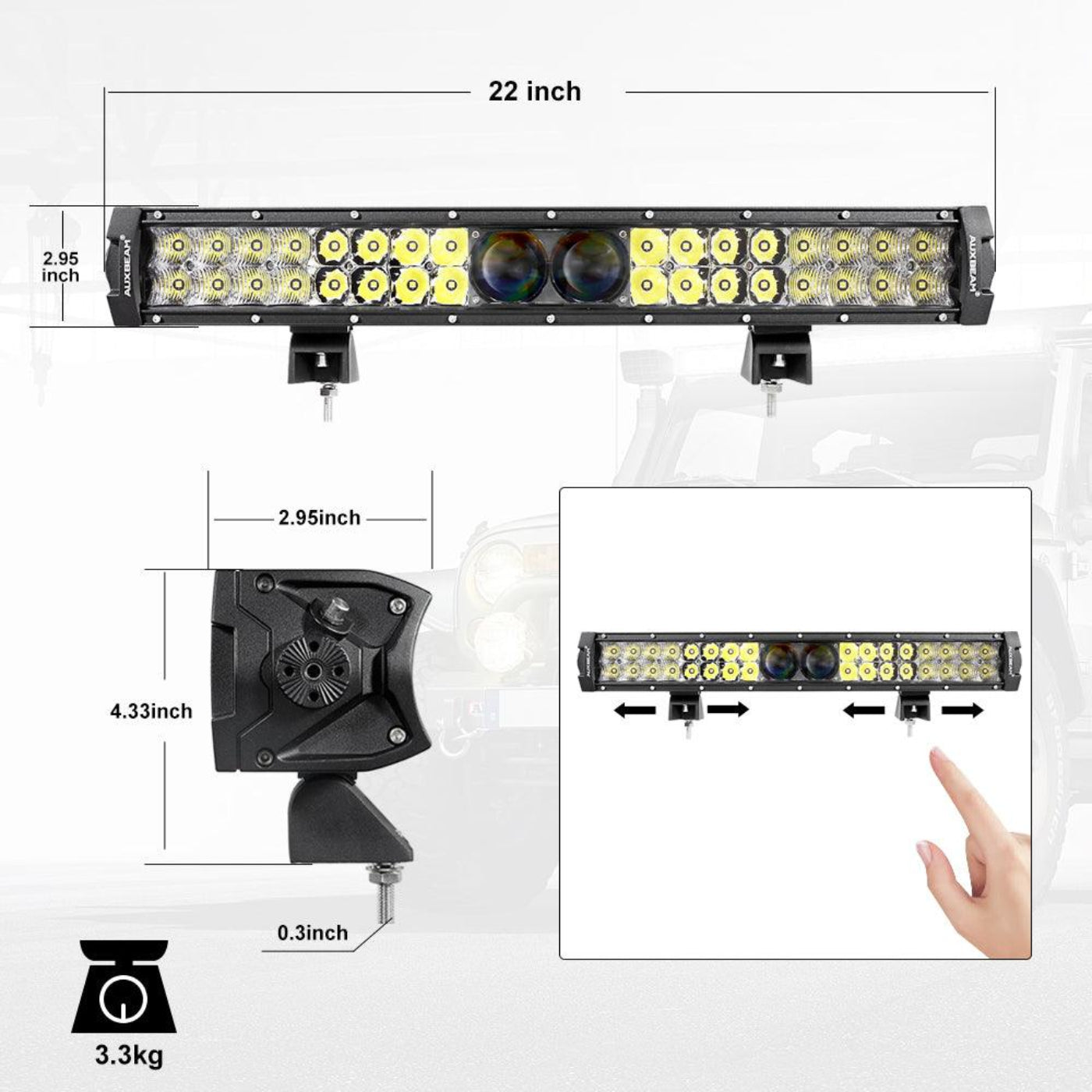

▶22 Inch 5D-PRO LED Light Bar
- Size: 22"
- Wattage: 180W
- Input voltage: 10-30V
- Lumens: 22000LM

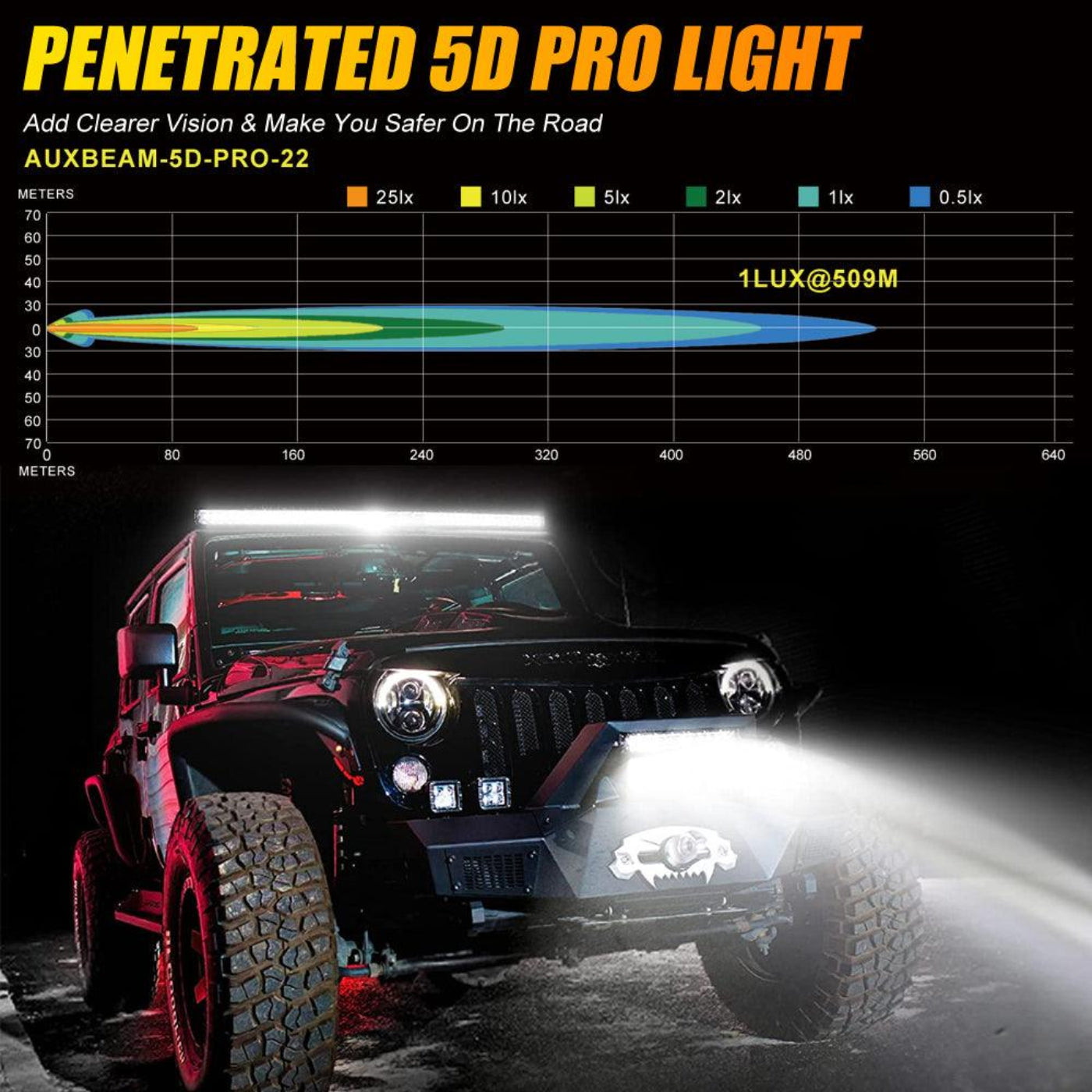

- Lighting Distance: 1LUX@509M
- LED Type: KW3+P8 chips
- LED Chips Quantity: KW3*2+P8*32
- Beam Type: Combo with 5D Projectors
- Color temperature: 6500K
- Light color: White
- Waterproof rate: IP68
- Body color: BLACK
PCS/SET: 1Pcs

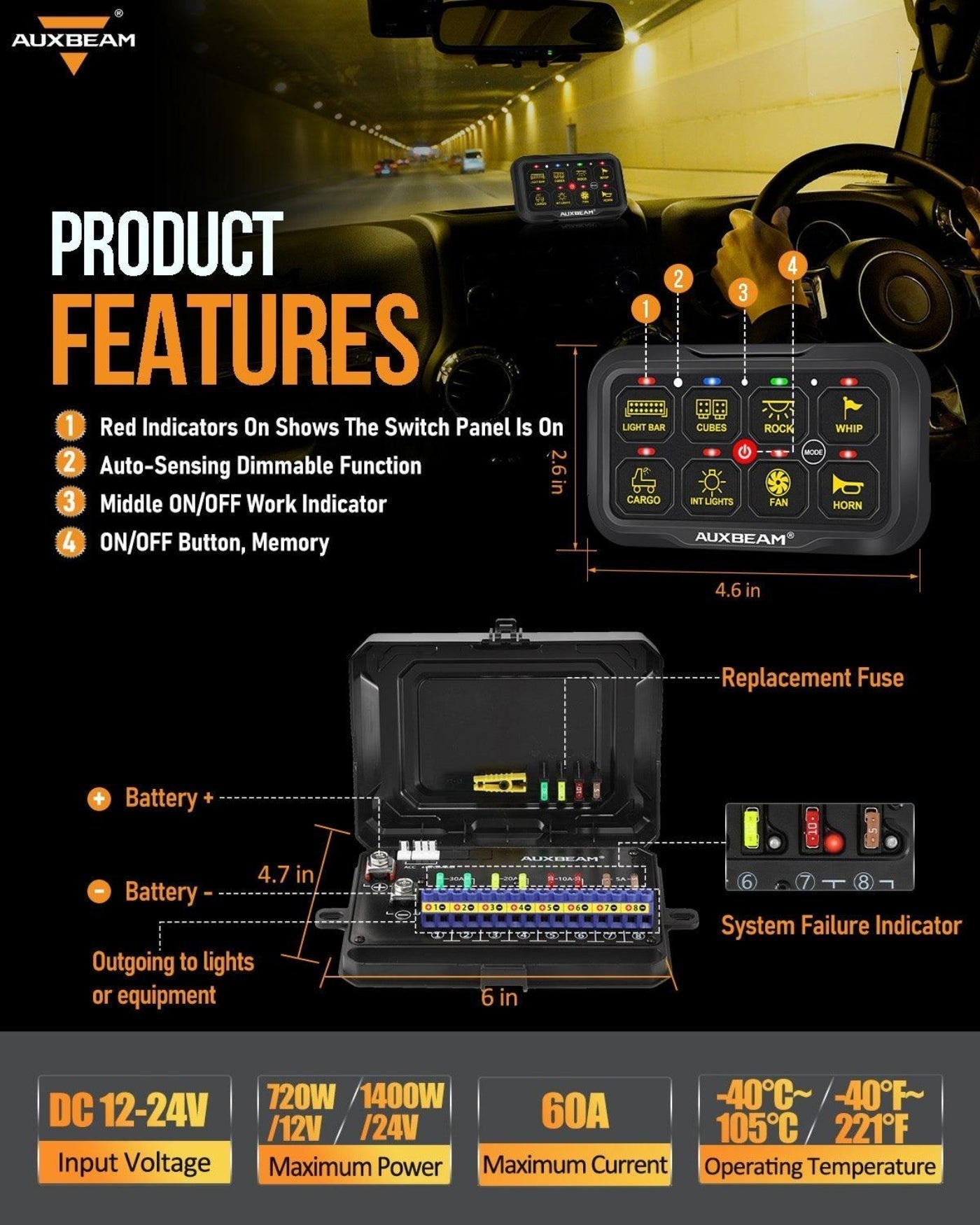

▶AR-800 RGB Switch Panel with Bluetooth APP
Working voltage: DC 12-24V
Max current: 60A
Rated voltage: 12V 20A / 24V 10A
Operating at 12 Volts: max power rating of 720W
Operating at 24 Volts: max power rating of 1400W
Switch operation: On-Off
Operating temperature: -40°C - +105°C
Waterproof rating: IP65
Features

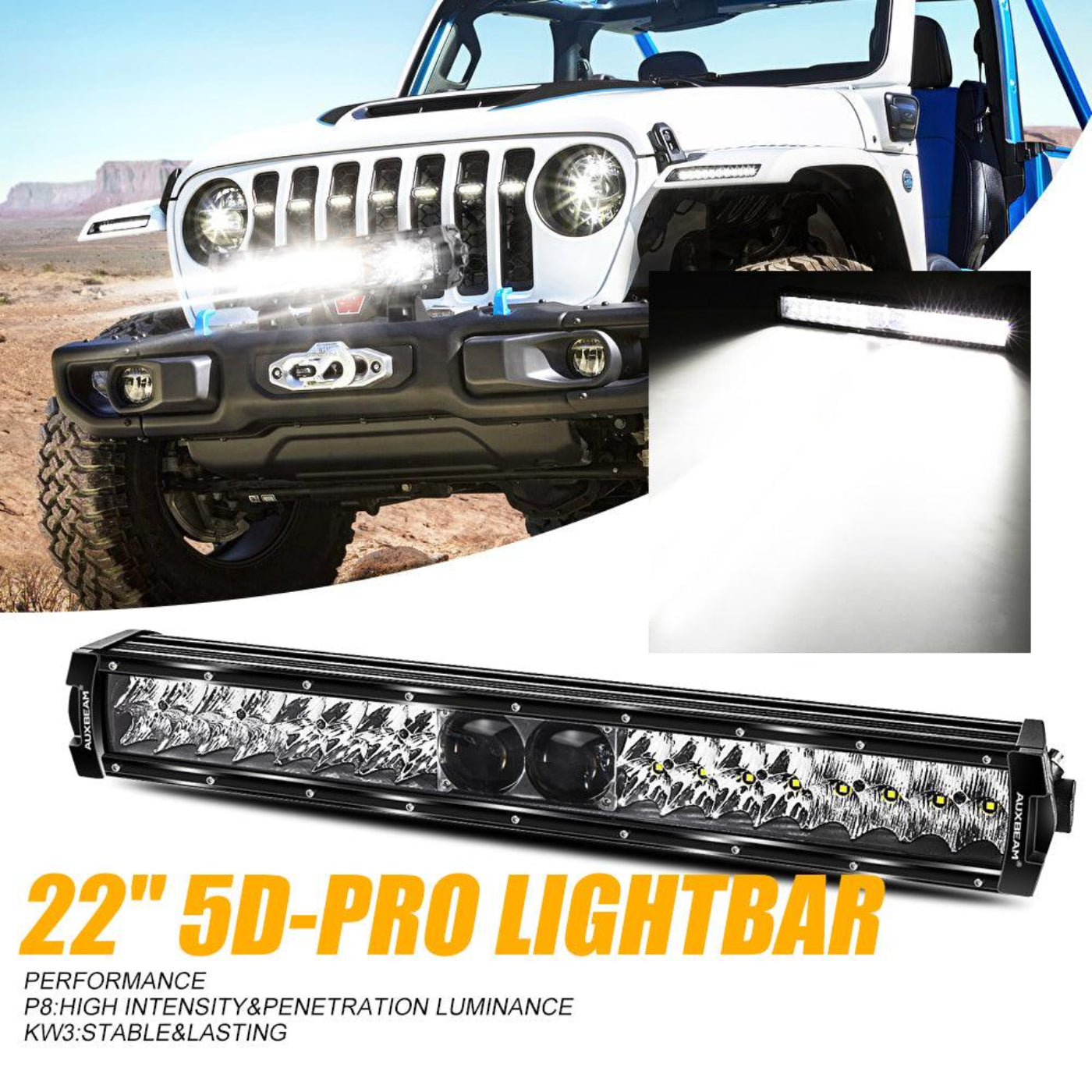

▶22 Inch 5D-PRO LED Light Bar

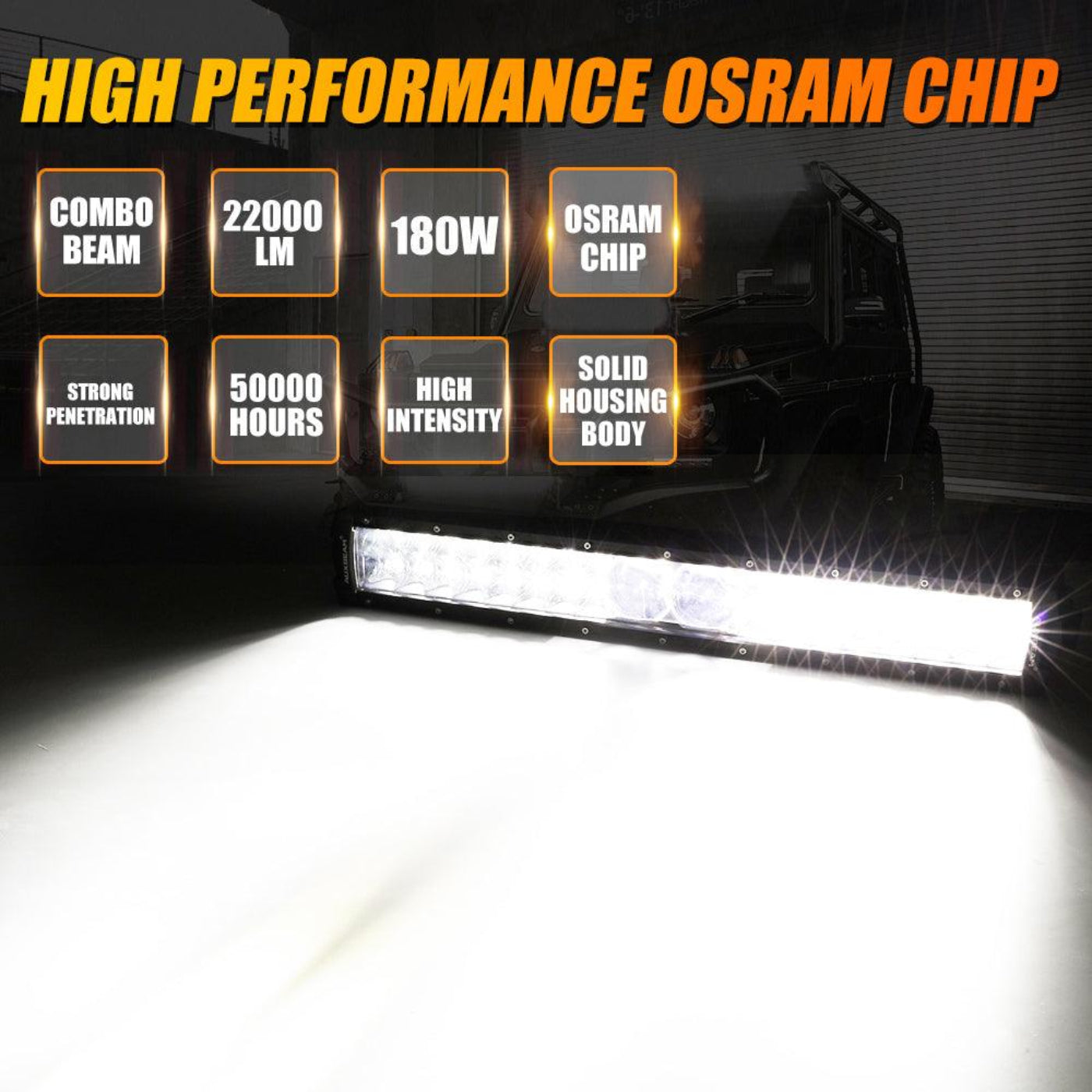

- Newest upgraded Design. High-intensity OSRAM P8+KW3 LED chips, central extra large projector, spot beam & flood reflector combo on both sides.
- The night vision light bar puts out an amazing amount of light and provides a high concentration of light beams that reach increased lighting coverage and longer distances for better visibility. Luminance improves 300%-400% compared with the ordinary light bar.
- Made of premium die-aluminum alloy material, the solid housing body effectively prevents the light bar from breaking when driving at high speeds.
- All-weather, IP68 waterproof, can withstand any harsh environment. High-efficiency cooling system for maximum component longevity.
-

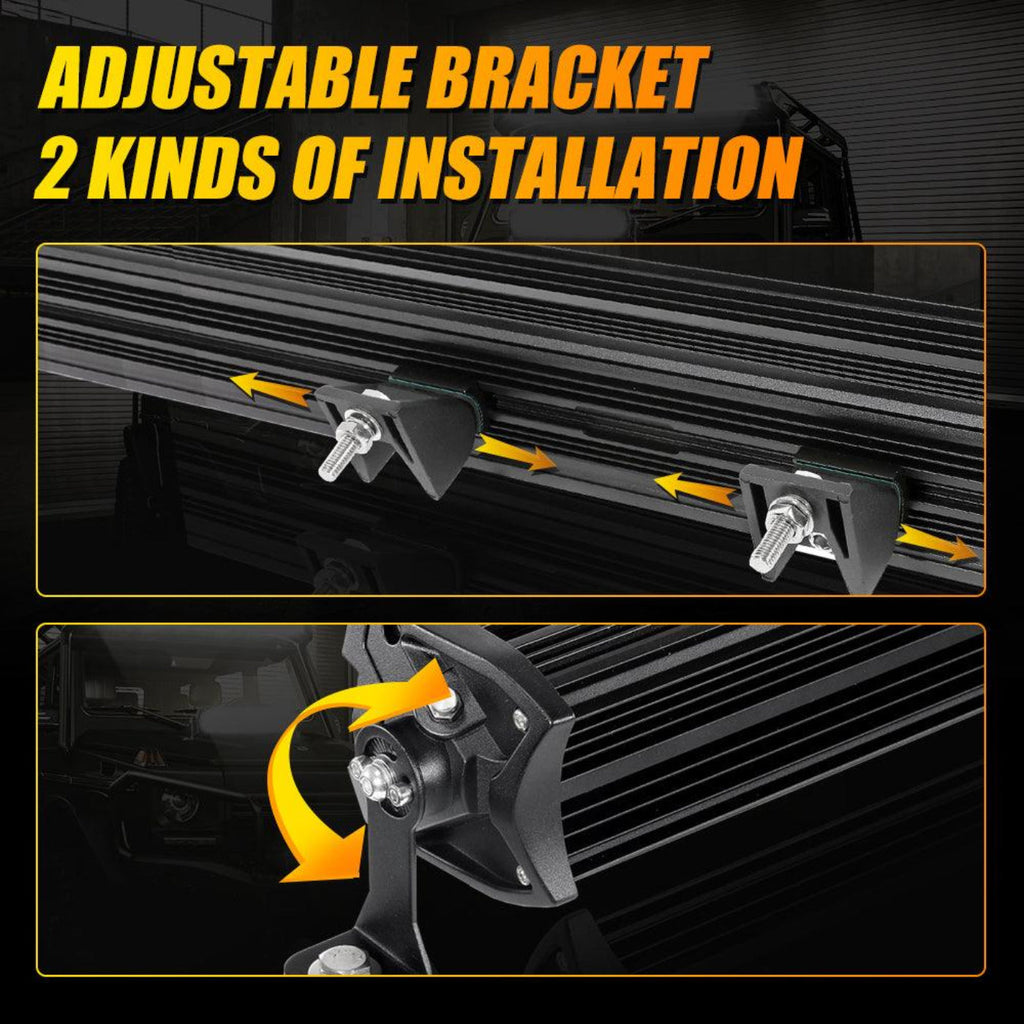

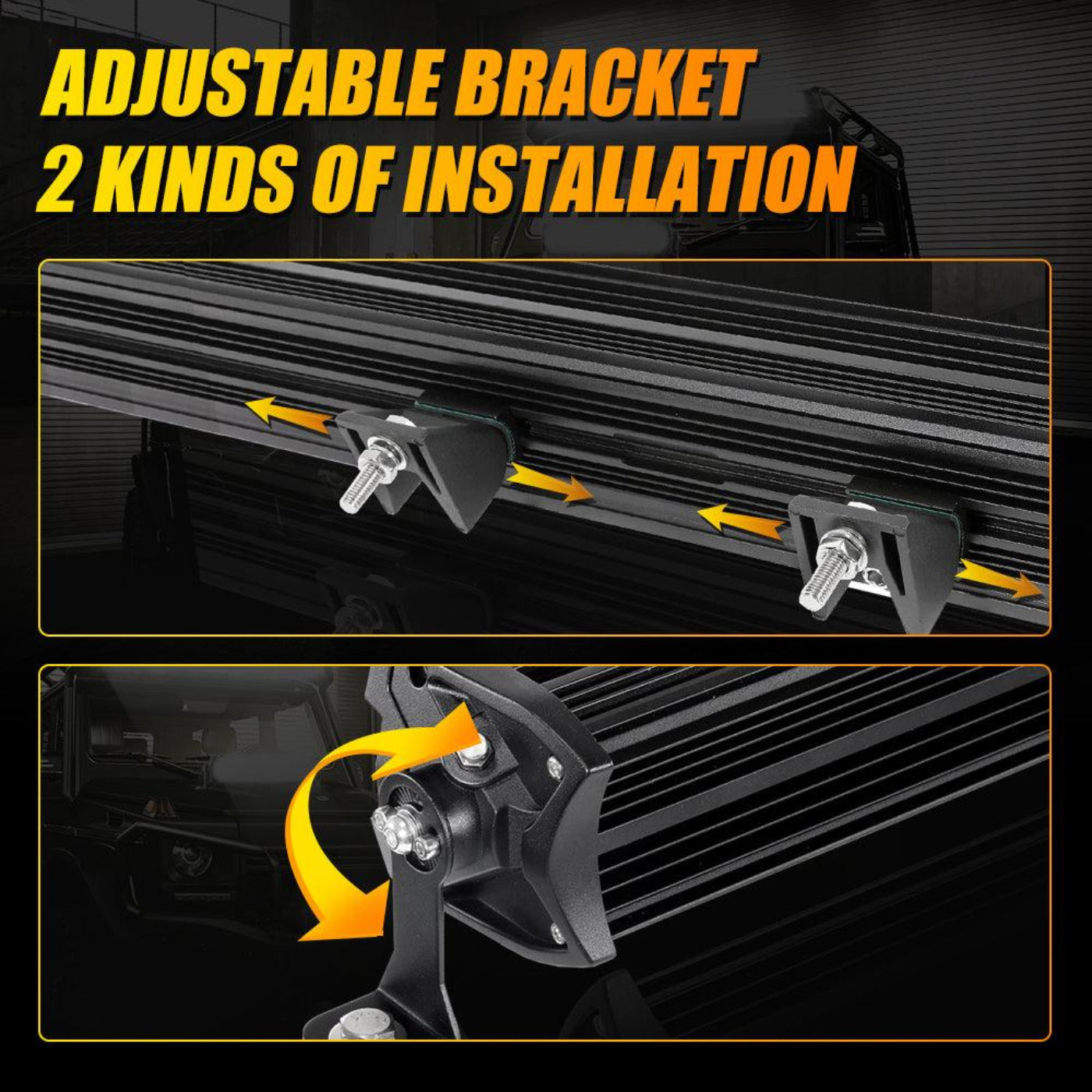

2 kinds of bracket installation, the light bar can be adjusted at any time according to the environment.
▶AR-800 RGB Switch Panel
-

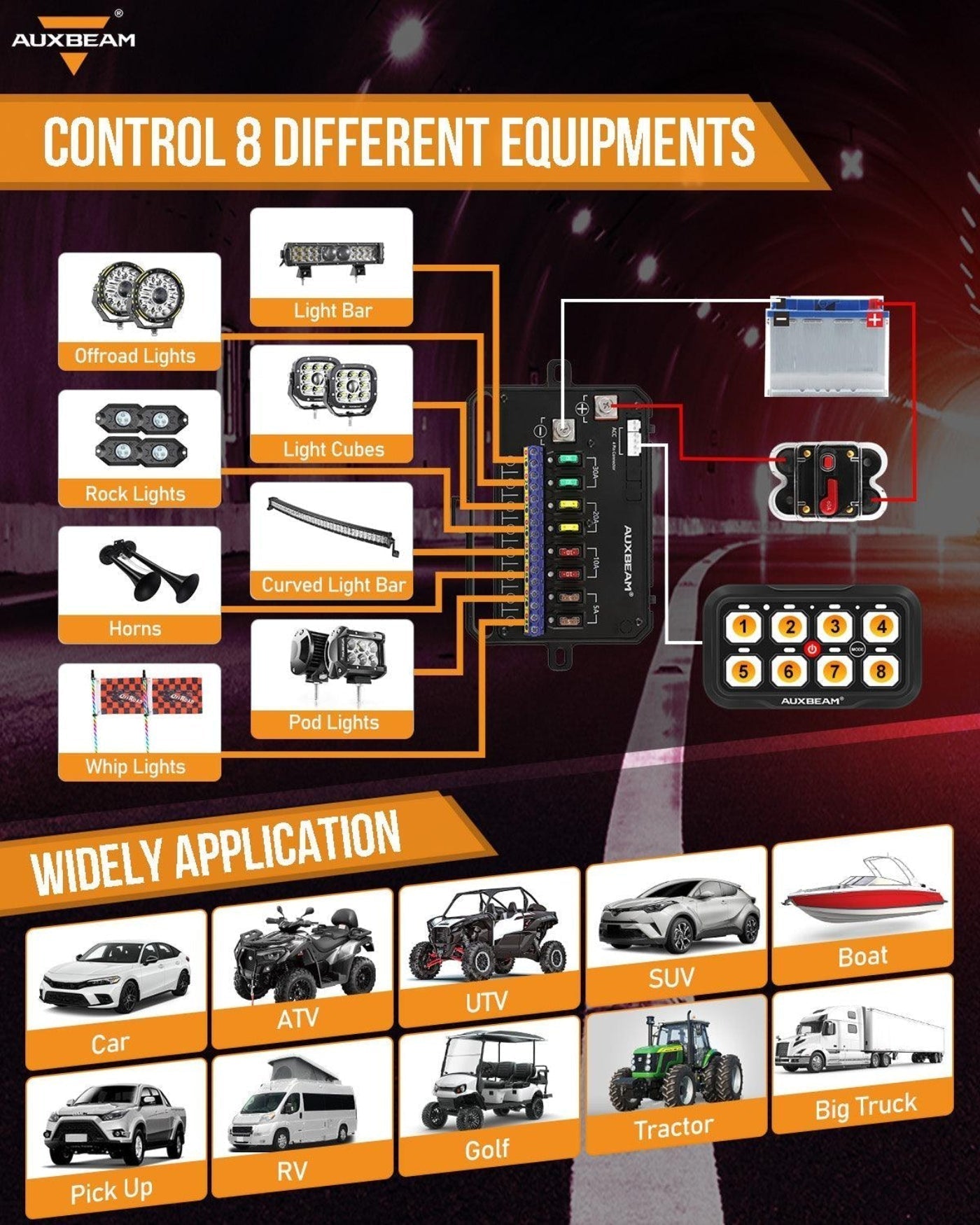

8-Gang one-sided outlet switch panel. It allows you to control up to 8 different LED lights or devices. Command all your vehicle accessories by the tap of your finger.
-

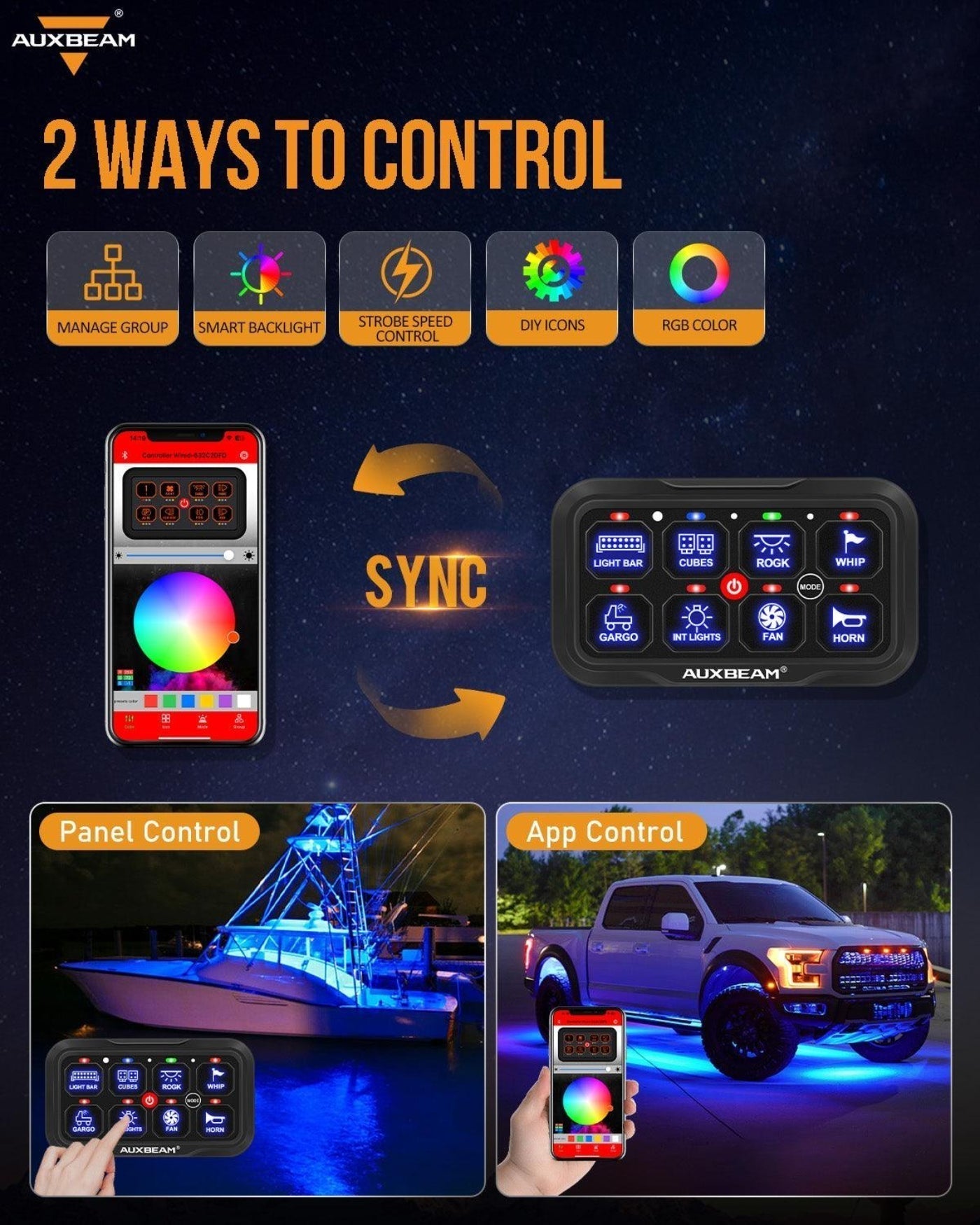

2 control methods - Switch panel & Bluetooth APP, work synchronously. Built-in Bluetooth module allows you to program and control the system anytime & anywhere.
-

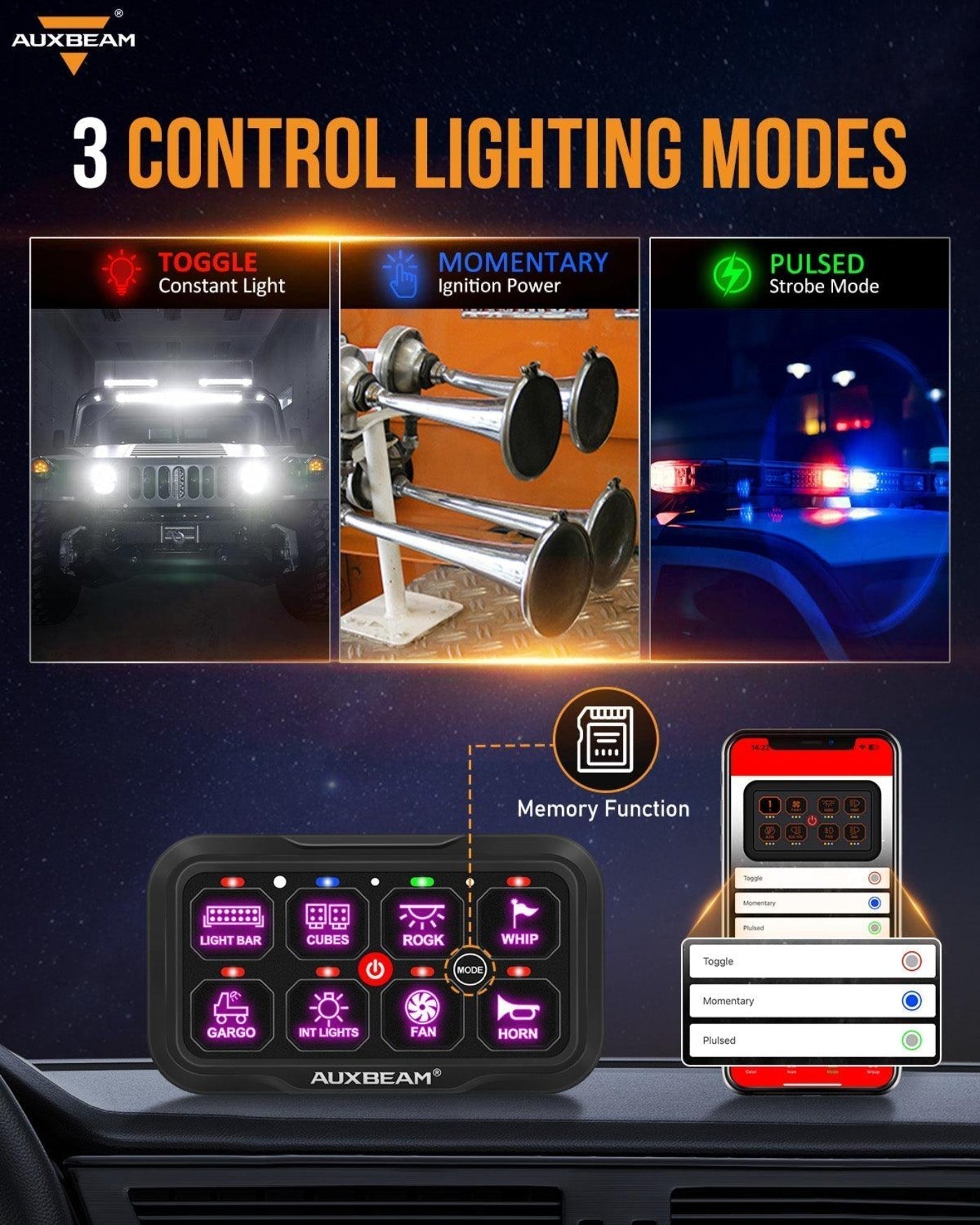

3 modes setting. Each switch has 3 kinds of light status, different indicator status represents different working modes.
● RED-Toggle, Constant light mode (Great for things like fog lights or driving.
● BLUE-Momentary, Press & hold the button to turn on, then release the button o turn off, just like pressing the horn button.
● GREEN-Pulsed, Flash mode. Press the switch once and the device will flash on/flash off, continuing until the switch is pressed again.
-

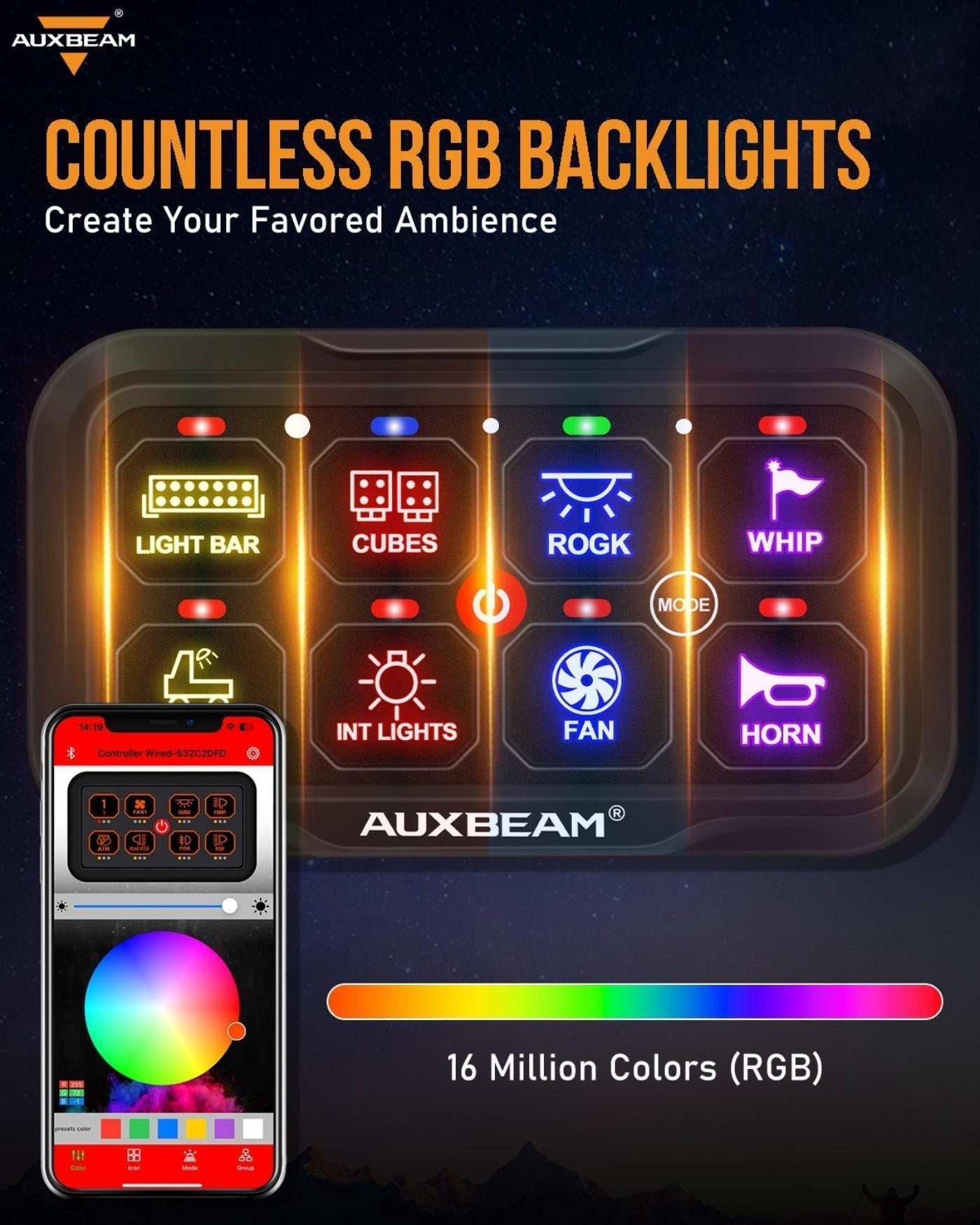

RGB backlight color. Adjust backlight color and brightness to match your vehicle.
-

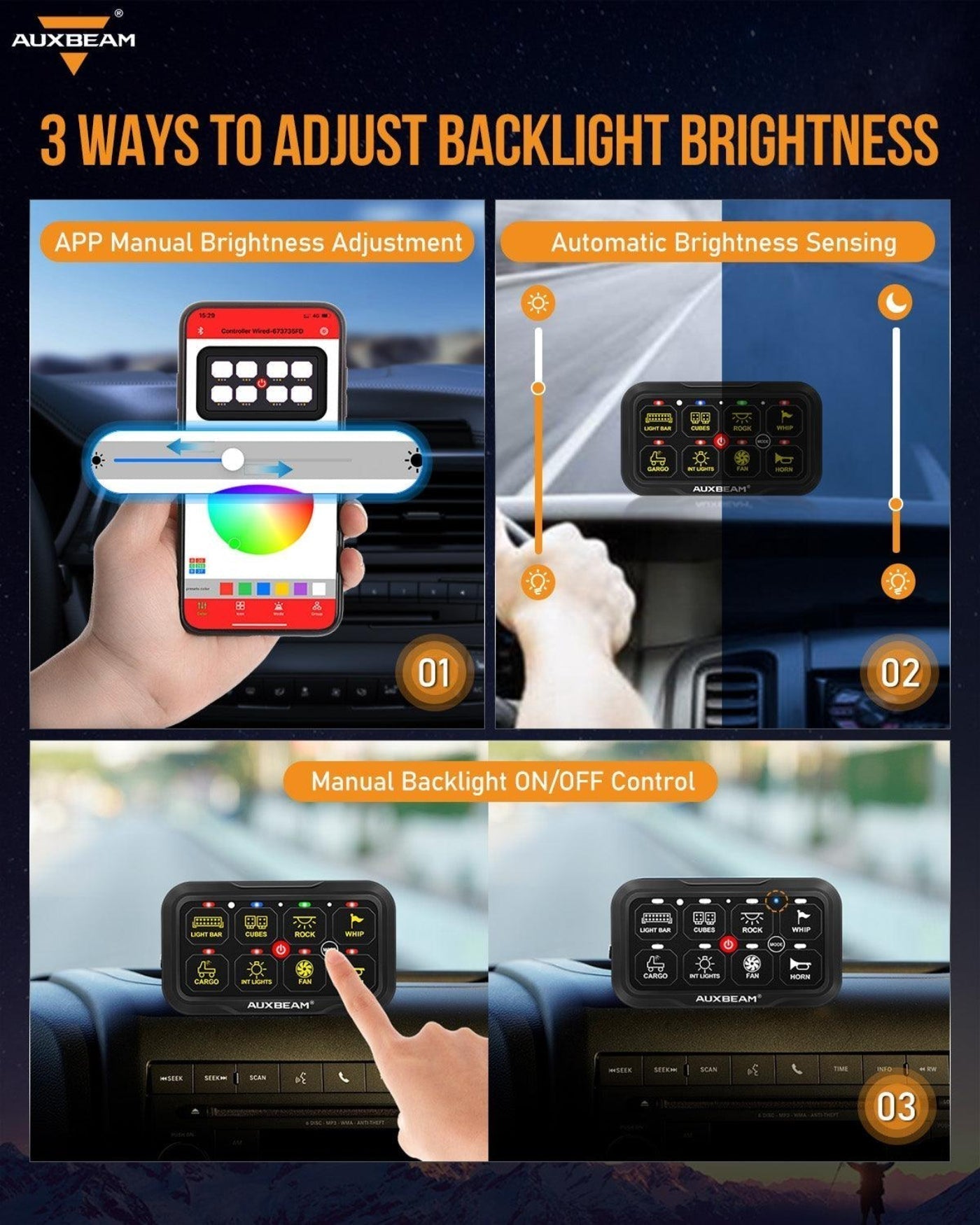

Backlight brightness automatic dimmable. Automatic adjustment according to the brightness variation of the environment.
-
Assign each switch a logo (60 universal stickers to choose from). Use the provided switch labels to indicate what’s connected to that switch.
-
DIY button icon on APP. 200 default icons or use your own photos from the phone album.
-
Setup group. Manage multiple accessories in your custom groups. Assign 2 or more accessories to the same switch button and then control them at the same time.
-
Universal fitment. Widely use for Truck, Boat, Car, Bus, Off-road, Powersports, Marine, ATV, UTV, SUV, Side by Side, SxS, Heavy-duty machines, etc.
-
Waterproof IP65, high sensitivity, stability and strong anti-interference ability.
-
Safety protection. Built-in resettable fuse, reverse polarity protection, over-voltage protection, and over-current protection. The fuse adapter make it easy to connect the control box to the vehicle's fuse box without cutting, splicing or damaging the original wiring in the vehicle.
-
Easy Installation. No complicated wiring, no need to cut a big hole in your vehicle. Plug & play wiring harness can connect the LED lights or accessories easily.
-
With 2 types of mounting brackets, you can mount the panel in the best location for your vehicle, such as the dash panel, center console, overhead sunglasses holder, etc.
▶47 Inch Extension Cable
- There is a 4-pin aviation video cable, a cable for transmitting video and power.
- It is widely used in truck / Trailer/Bus / Motorhome / long-distance Parking Aid, and connected with vehicle monitoring CCTV system.
- Compatible products: professional CCTV / monitor 4-pin connector monitor, rearview camera, DVD player TV box.
- Power input DC 12V - DC 24V.
- Specially thick hard wire 100% provides super protection against EMI interference and RF interference such as automotive circuit interference.
Bluetooth Connection Requirements:
-
Compatible with IOS & Android devices
-
IOS 9.0 or newer version, Android 4.5 newer version
-
Download the “Switch panel” app from Apple store or Google Play Store (free download). Scan QR code on the instructions.
- If your Android device can not connect to the APP, please turn on GPS positioning and allow “Switch Panel” to access your phone’s location while using the APP.

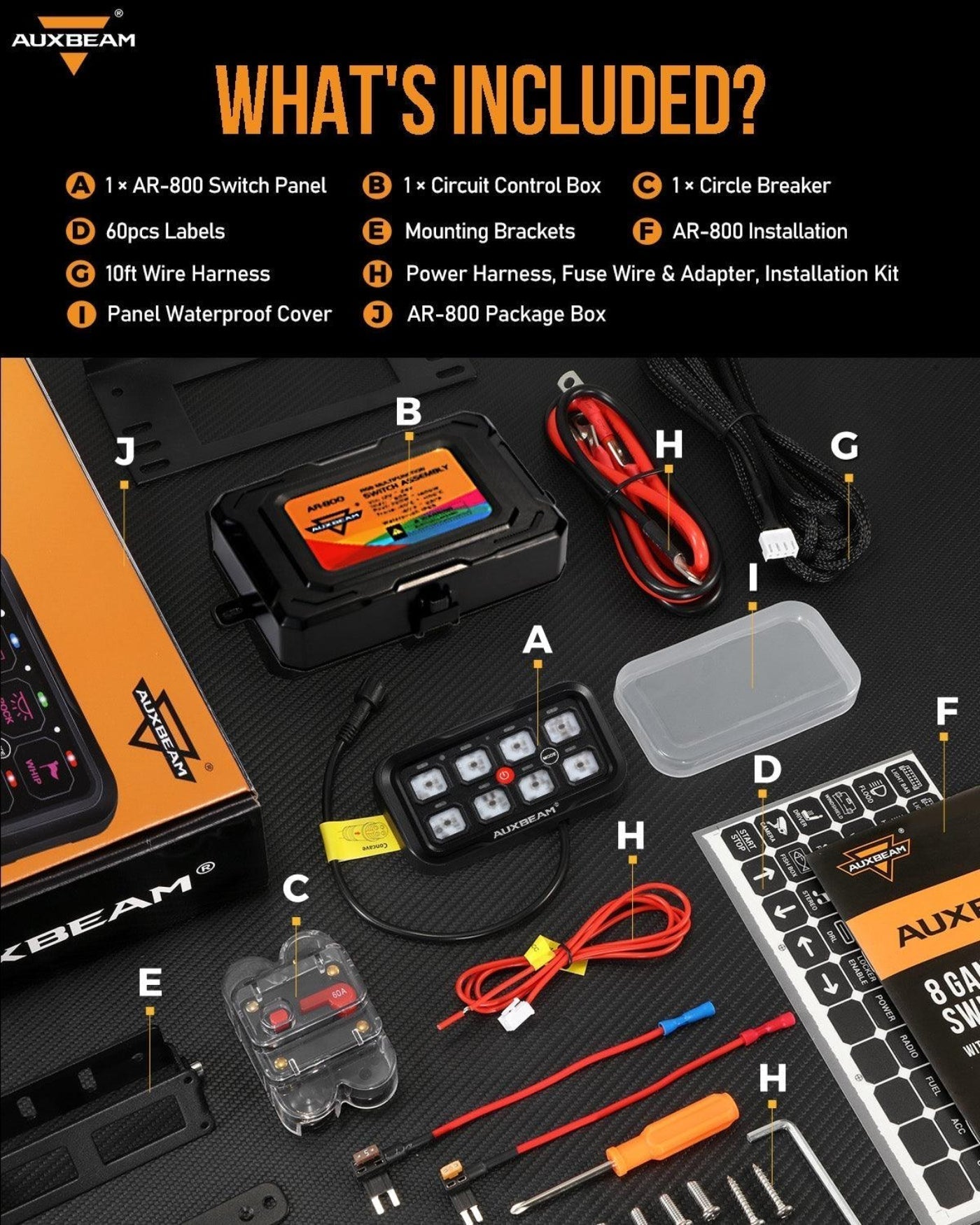

Package Included
-
8 Gang RGB Switch Panel (all necessary hardware and wiring harness is included)*1
-
Installation Instructions*1
- 47Inch Extension Cable*1
-
LED Light Bar*1

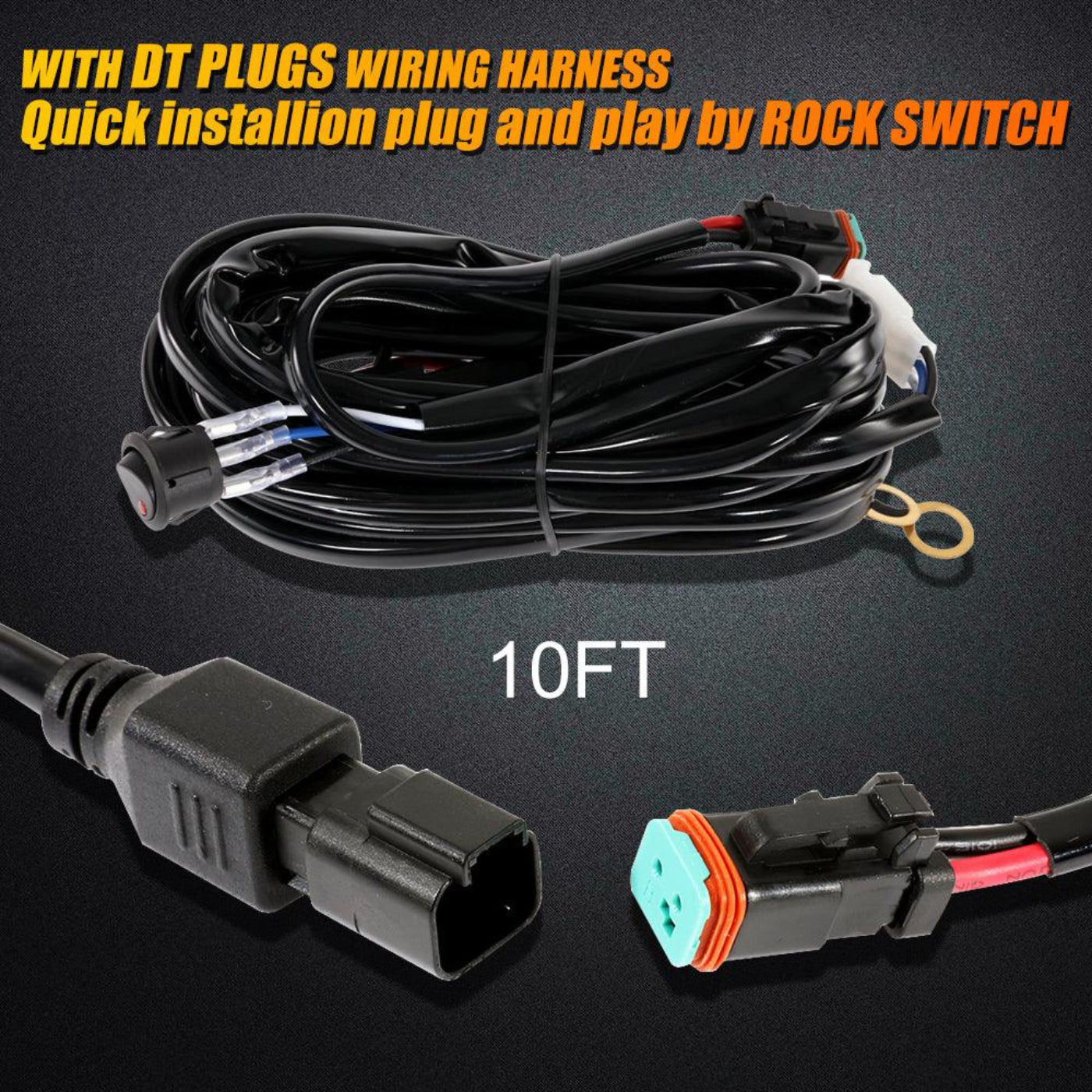

- DT Wiring Harness*1
Guideline for connecting the red cables:
The red cable connects the master switch power cable to the ACC. If you want to light up the LED lamps before the car start-up, please connect the recommended because the higher the power is, the more the power of the battery will be consumed.
Video
https://www.youtube.com/watch?v=BtSBGVcyHlQ
What Our Experts Think
The Auxbeam AR-800 RGB Switch Panel with APP + 22 Inch 5D-PRO LED Light Bar is the ideal lighting control package for those seeking flexibility and powerful illumination. Here's why it stands out:
-
RGB Switch Panel with App Control: The AR-800 RGB switch panel allows easy control of your lights via an app, providing customizable RGB color options to suit your style or function, making it highly versatile.
-
Multiple Modes: Supports toggle, momentary, and pulsed modes, offering full control for different lighting scenarios and driving conditions, whether on-road or off-road.
-
22 Inch 5D-PRO LED Light Bar: The 22-inch LED light bar provides focused, powerful light for off-roading and night driving, enhancing visibility without overwhelming your vehicle’s design.
-
5D Optics Technology: 5D optics ensure superior light output with a more defined beam, enhancing both near and long-distance visibility for safer driving.
-
Durable & Weather-Resistant: The light bar is waterproof, shockproof, and designed to withstand extreme conditions, providing reliable performance for any off-road adventure.
-
Easy Installation: A simple, plug-and-play installation makes this light bar setup hassle-free, providing quick access to improved lighting without complicated modifications.
Q&A
Q: What’s included in the Auxbeam AR-800 RGB switch panel and 22-inch 5D-PRO LED light bar kit?
A: This kit includes the Auxbeam AR-800 RGB switch panel with app control and a 22-inch 5D-PRO LED light bar, featuring Toggle, Momentary, and Pulsed modes for versatile operation.
Q: What is the AR-800 RGB switch panel and how does it work?
A: The AR-800 RGB switch panel allows for Bluetooth app control of your vehicle’s lighting system, featuring customizable RGB lighting. It supports three different modes: Toggle, Momentary, and Pulsed for different light operation styles.
Q: What are the benefits of the 22-inch 5D-PRO LED light bar?
A: The 22-inch 5D-PRO LED light bar provides powerful, high-intensity lighting ideal for off-road driving. It features a wide beam and excellent durability, perfect for enhancing visibility in dark or low-visibility conditions.
Q: How do the Toggle, Momentary, and Pulsed modes work?
A:
-
Toggle Mode: Turns the light on/off with a simple push of the button.
-
Momentary Mode: Activates the light when the button is pressed and held, turning off when released.
-
Pulsed Mode: Provides a flashing or strobe effect, great for signaling or adding a dynamic look to your vehicle.
Q: Can I control the RGB lighting via an app?
A: Yes, the AR-800 RGB switch panel supports Bluetooth app control, allowing you to adjust the RGB lighting colors and settings directly from your smartphone, offering easy customization.
Q: Is this kit suitable for off-road use?
A: Yes, the 22-inch 5D-PRO LED light bar is built for rugged off-road conditions, offering a waterproof and durable design to withstand tough environments. It’s perfect for off-road adventures, providing enhanced visibility in all conditions.
Q: Will this kit fit my vehicle?
A: The 22-inch LED light bar and AR-800 RGB switch panel are universally compatible with most vehicles. Be sure to check your vehicle's specifications and available mounting options for proper installation.
Maintenance Tips
-
Regular Cleaning – Wipe down the switch panel and light bar with a soft, damp cloth to remove dust, dirt, and grime, ensuring smooth operation and maximum light output.
-
Inspect for Moisture – Check for any condensation or moisture inside the switch panel and light bar, resealing if necessary to protect electrical components.
-
Test RGB Functionality – Regularly test the RGB color-changing features via the APP to ensure smooth transitions and full brightness in all colors.
-
Inspect Wiring & Connections – Check the wiring for any wear, fraying, or loose connections, especially around the switch panel and light bar, to avoid any electrical issues.
-
Test Switch Modes – Periodically check the toggle, momentary, and pulsed modes on the switch panel to ensure all functions are working properly.
-
Tighten Mounting Brackets – Ensure the light bar and switch panel are securely mounted to avoid vibrations and misalignment.
-
Check Power Connections – Verify all power connections are secure to maintain a stable power supply to both the light bar and switch panel.
