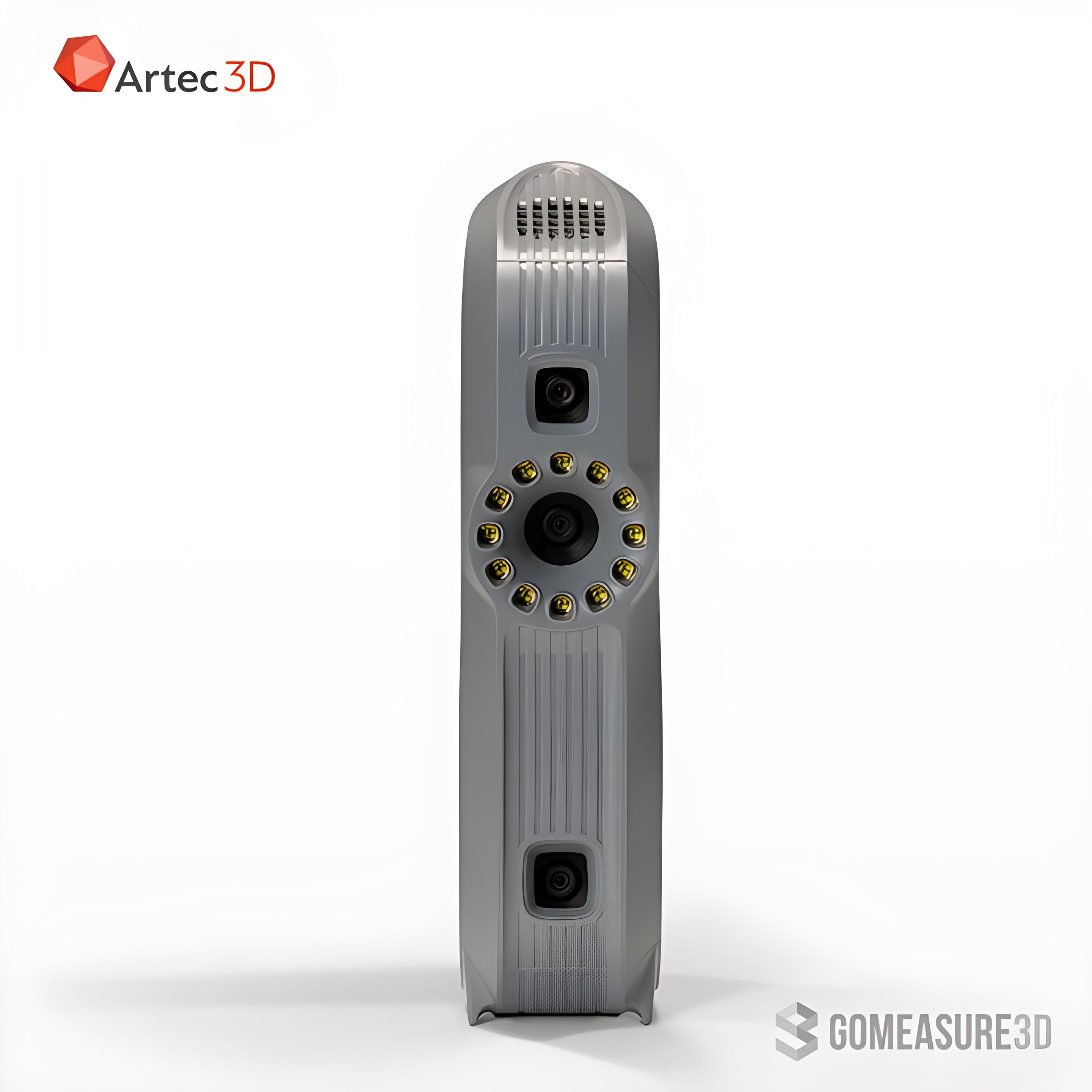

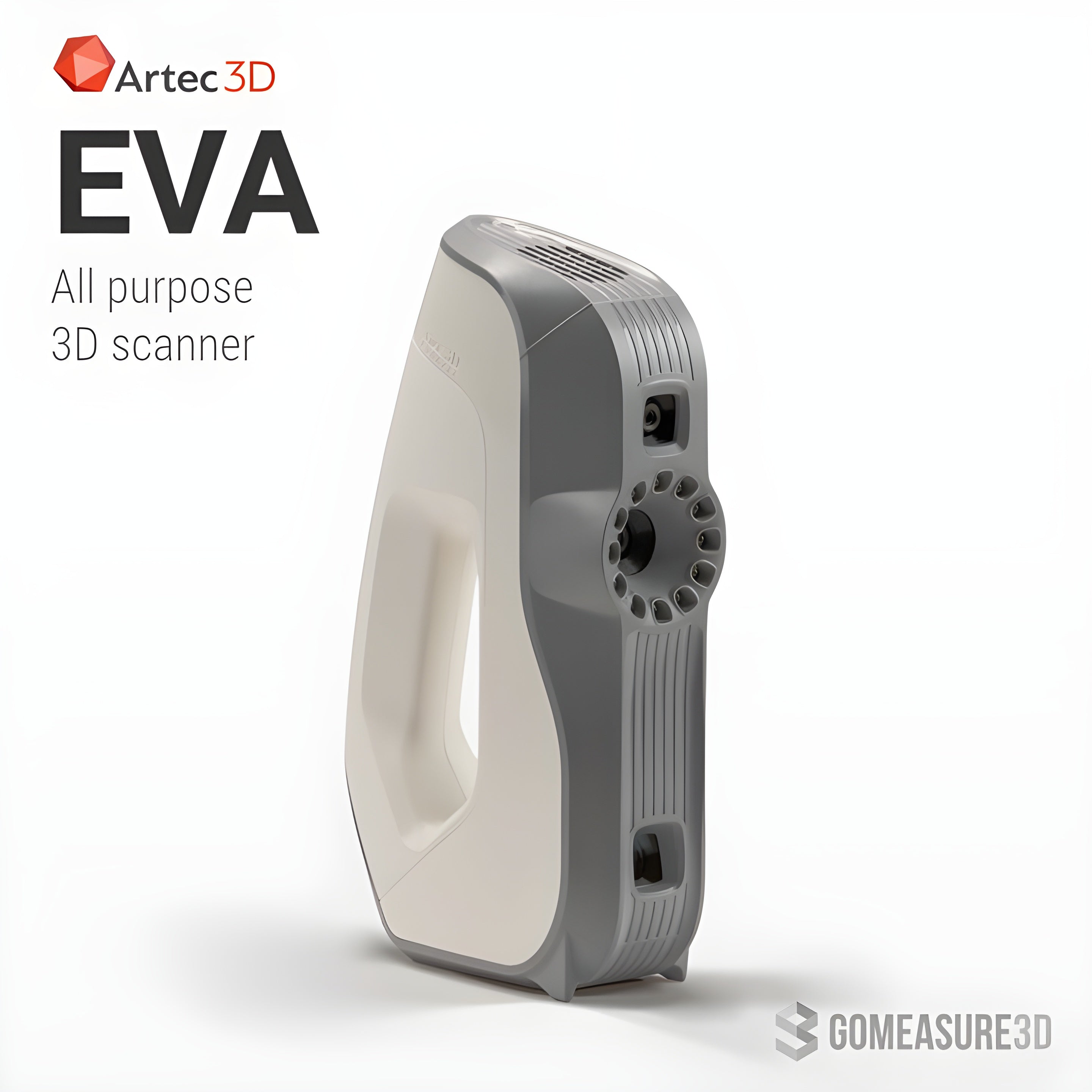

Artec Eva 3D Scanner
All-Purpose Handheld 3D Scann
The Artec Eva is a handheld 3D scanner designed for capturing medium to large-sized objects with high precision and color fidelity. Introduced in 2012, it has become a popular choice for professionals in various fields, including industrial design, quality control, and cultural heritage preservation.If you are looking for a budget-friendly professional 3D scanner, check out the Artec Eva Lite. For more information on the Artec Eva, please visit our main website
Features
- The ideal 3D scanning solution for making quick and accurate 3D models of medium-sized objects
- Make fast, high-quality scans of any object
- No need for targets or calibration
- Hybrid geometry and texture-based capture (ability to capture color of an object)
- AI‑powered HD Mode for 2x greater resolution than standard mode
Brochure

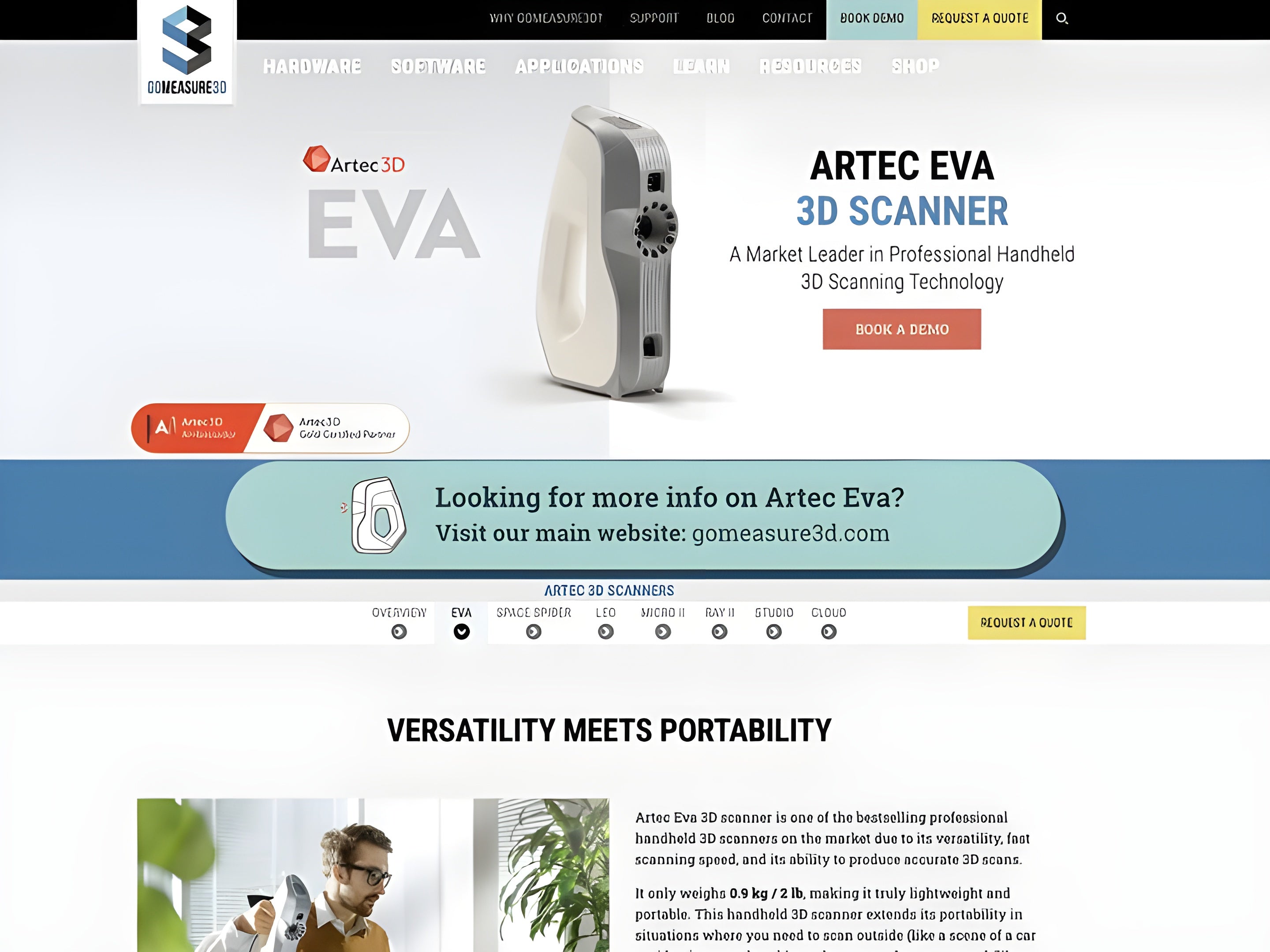

- For more information, please read the Artec Eva brochure.

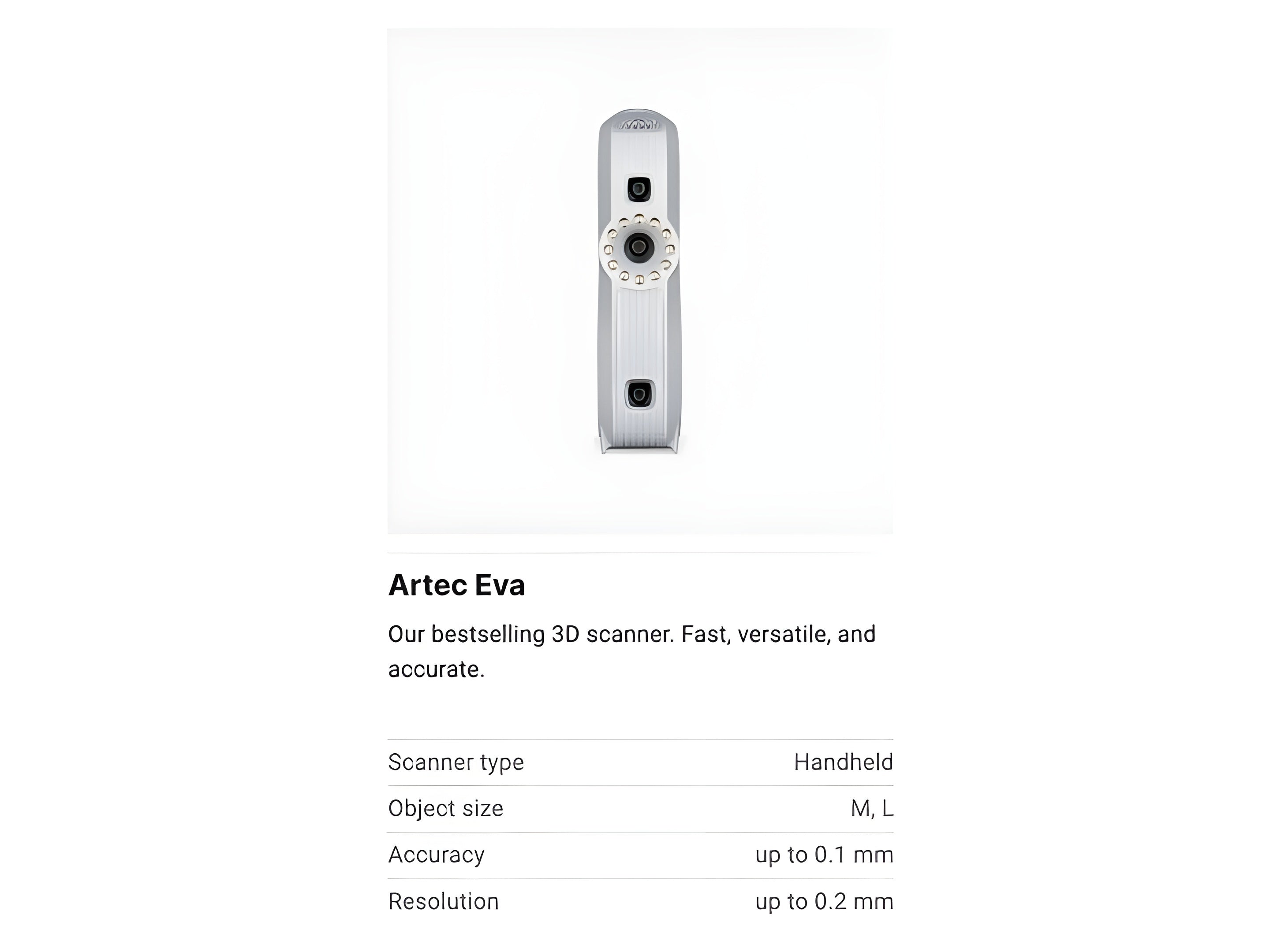

Specifications
| Type |
Handheld 3D Scanner |
| 3D Point Accuracy |
Up to 0.1 mm |
| 3D Resolution |
Up to 0.2 mm |
| 3D Accuracy Over Distance |
0.1 mm + 0.3 mm/m |
| HD Mode |
Yes |
| Hybrid Geometry and Texture Tracking |
Yes (captures color) |
| Data Processing Algorithm |
Geometry and texture-based |
| Data Acquisition Speed |
Up to 4 million points/second |
| Made in |
Luxembourg |
What our Expect Think
-
High-Precision Scanning – Captures accurate, detailed 3D models with up to 0.1mm precision.
-
Versatile & Lightweight – Ideal for a range of applications, from engineering and design to medical and cultural heritage.
-
Fast & Efficient – Offers real-time scanning with instant 3D data processing.
-
Easy to Use – Plug-and-play setup with Artec Studio for seamless integration.
-
Portable & Durable – Compact and designed for on-the-go scanning in various environments.
Q&A
Q: What is the Artec Eva 3D Scanner?
A: The Artec Eva is a high-performance, lightweight 3D scanner that captures detailed and accurate 3D models of objects of various sizes, offering real-time 3D scanning with color and texture detail.
Q: What are the key features of the Artec Eva?
A: The Artec Eva offers fast scanning speed, high resolution, accurate 3D data, and is capable of scanning medium to large objects. It is designed for easy portability and user-friendly operation.
Q: What is the scanning range of the Artec Eva?
A: The Artec Eva has a scanning range of 0.4m to 3m and can capture objects as large as 4m x 4m x 4m in size.
Q: How does the Artec Eva connect to a computer?
A: The Artec Eva connects via a USB 3.0 port, ensuring fast data transfer for smooth scanning and processing.
Q: Is the Artec Eva suitable for beginners?
A: Yes, the Artec Eva is designed to be easy to use, with a user-friendly interface and setup, making it suitable for both professionals and beginners in 3D scanning.
Q: What industries can benefit from the Artec Eva?
A: The Artec Eva is ideal for industries such as engineering, product design, manufacturing, and healthcare, as well as for 3D printing and digital preservation.
Q: Does the Artec Eva come with software?
A: Yes, the Artec Eva comes with Artec Studio software, which allows for real-time scanning, model processing, and advanced 3D data editing.
Maintenance Tips
-
Regular Cleaning: Gently wipe the scanner with a soft, lint-free cloth. Avoid using abrasive materials.
-
Calibrate Before Use: Ensure proper calibration before each scan to maintain accuracy.
-
Protect the Scanner: Store the scanner in a protective case when not in use to prevent damage.
-
Inspect for Damage: Regularly check for signs of wear, especially on the lens and cables.
-
Keep Software Updated: Install the latest updates to ensure optimal performance and new features.
