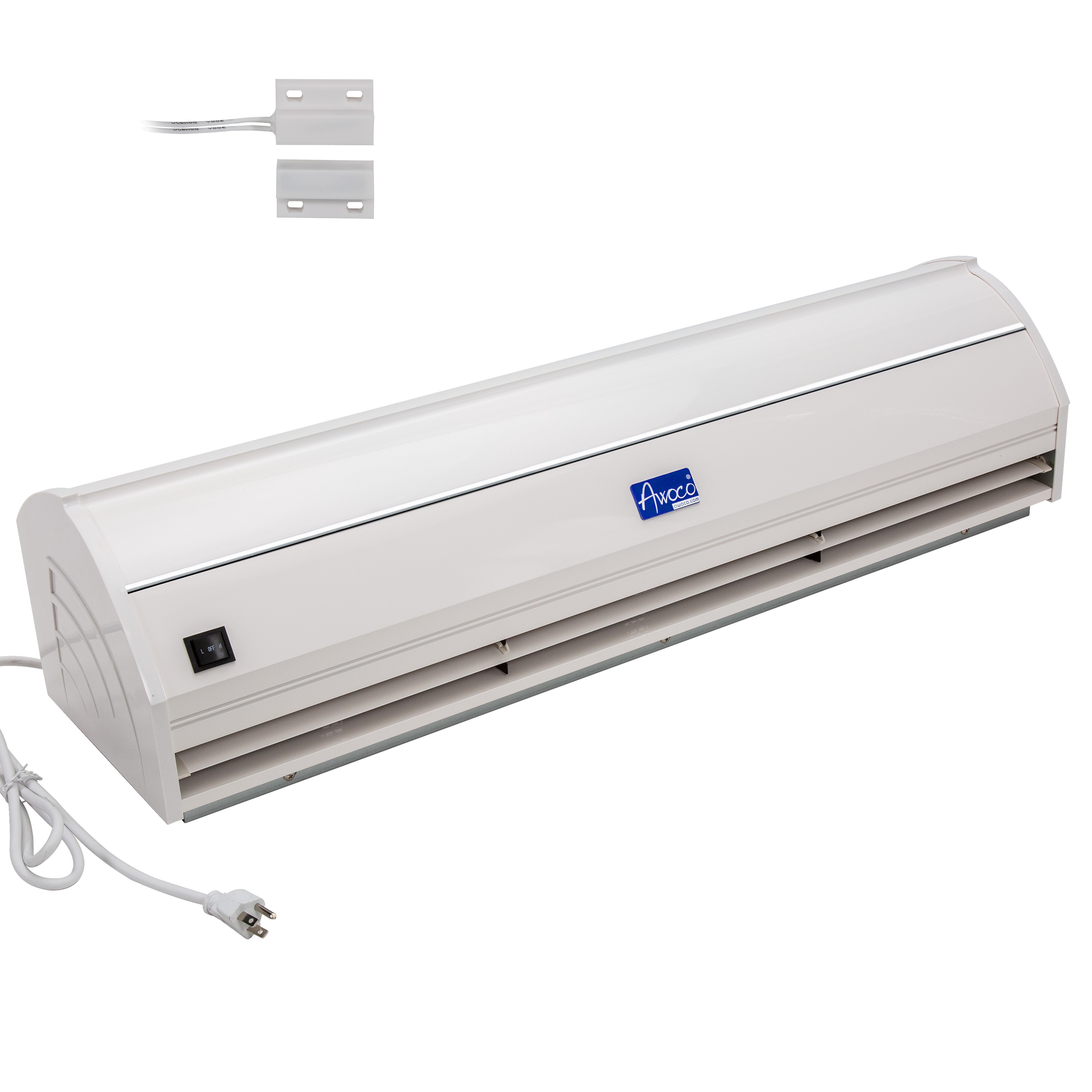

Awoco FM35-ETL Elegant 1 Speed Air Curtains, 120V Unheated and ETL Sanitation Listed - FM3509-ETL

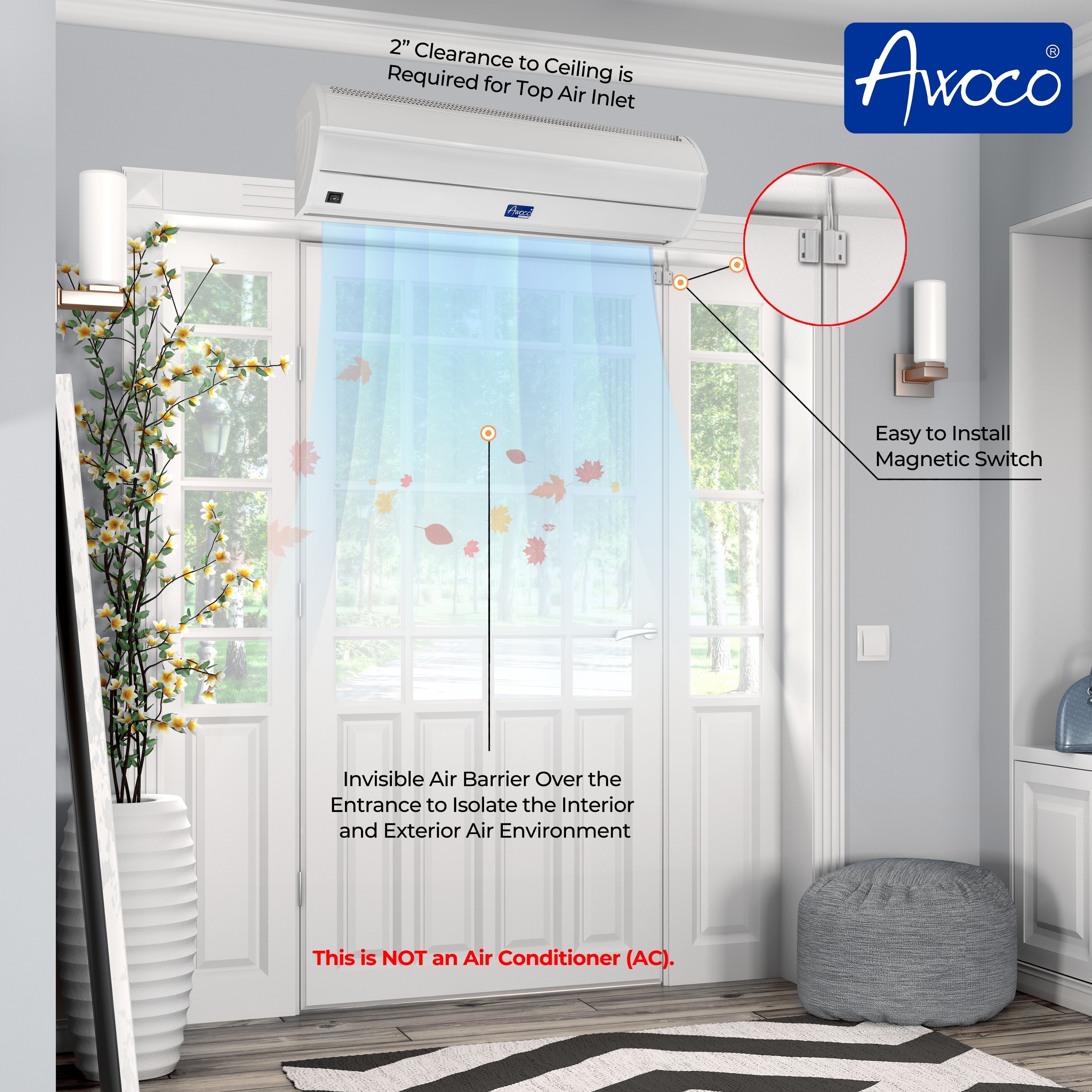

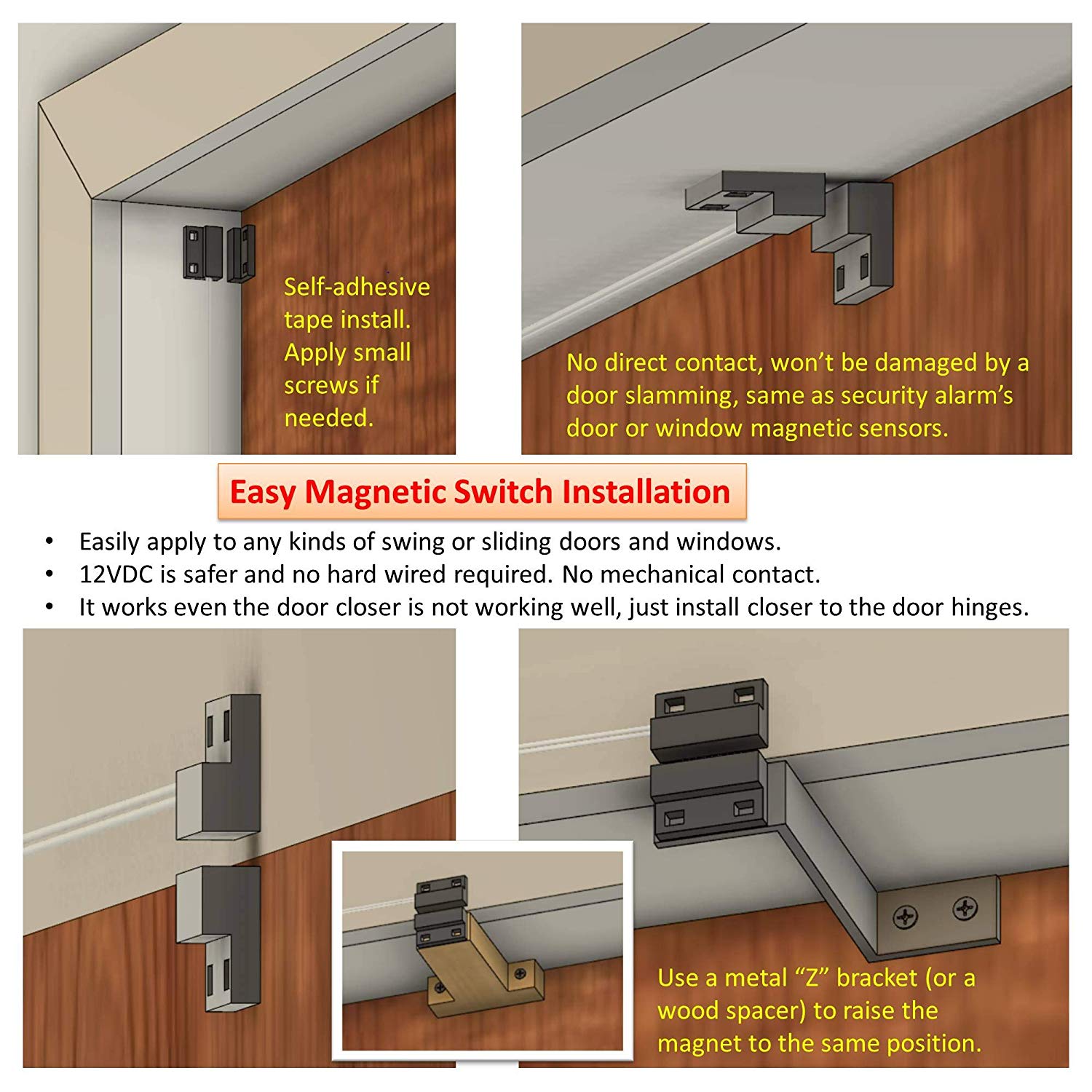

- Magnetic Switch Controlled Circuit US Patented: THIS AIR CURTAIN IS NOT AN AIR CONDITIONER, IT WON’T GENERATE COLD AND HOT AIR. Magnetic switch: this air curtain has an electrical-magnetic circuit control with a magnetic switch. The magnetic door switch installation is much easier than the traditional mechanical micro switch. No hard wired needed on the 12VDC low voltage magnetic switch.

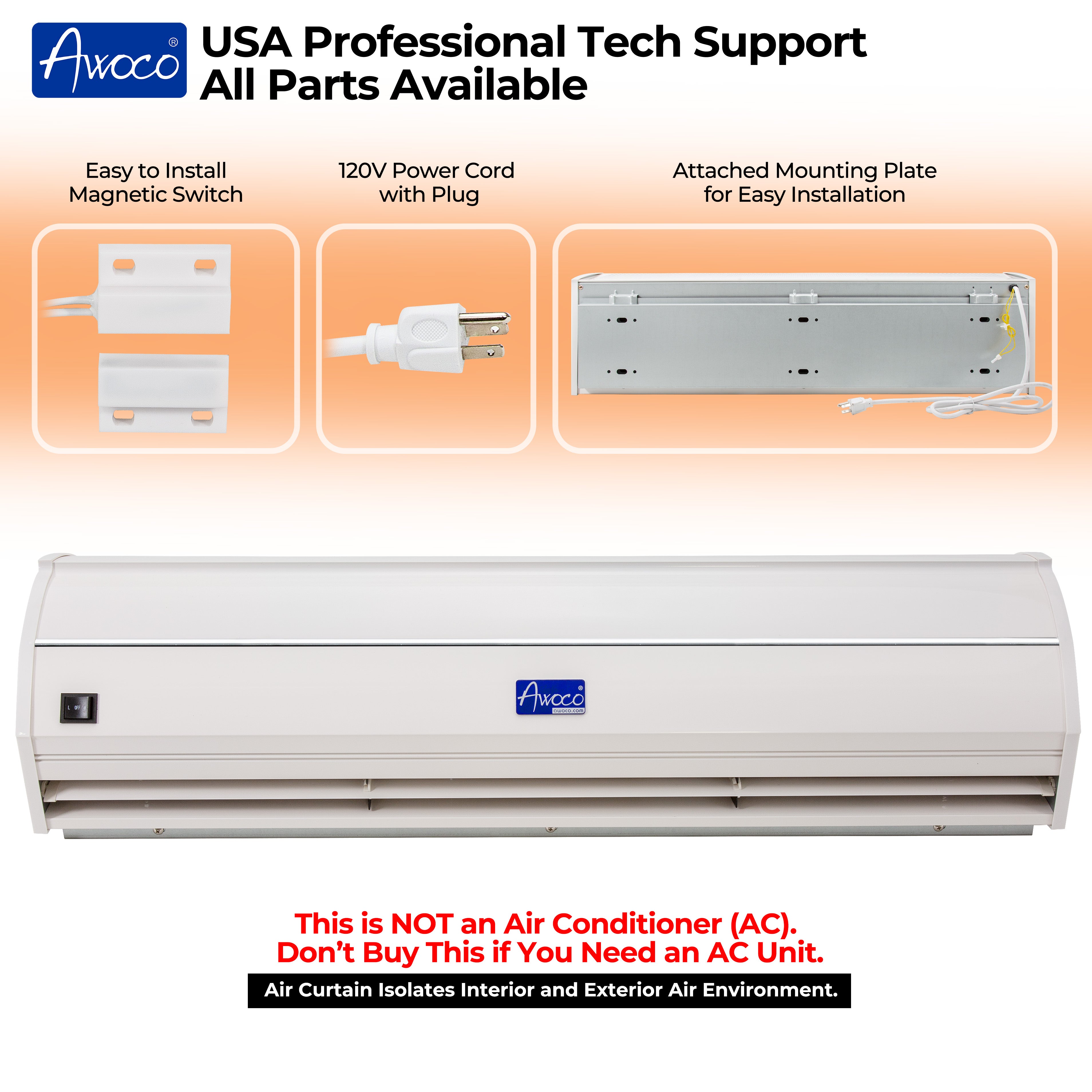

- Easy installation

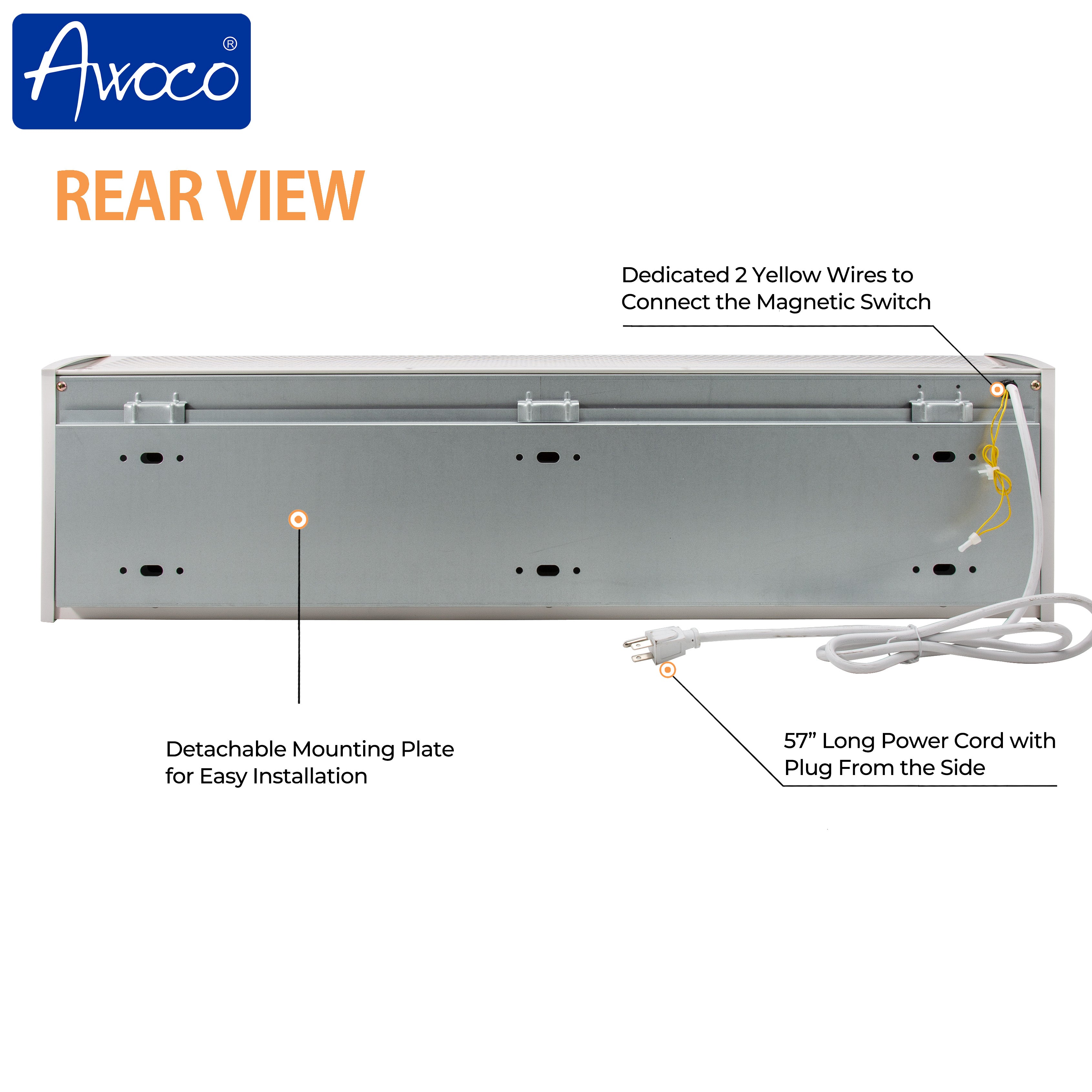

- 1) Mount the detachable mounting plate, then hang the air curtain up.

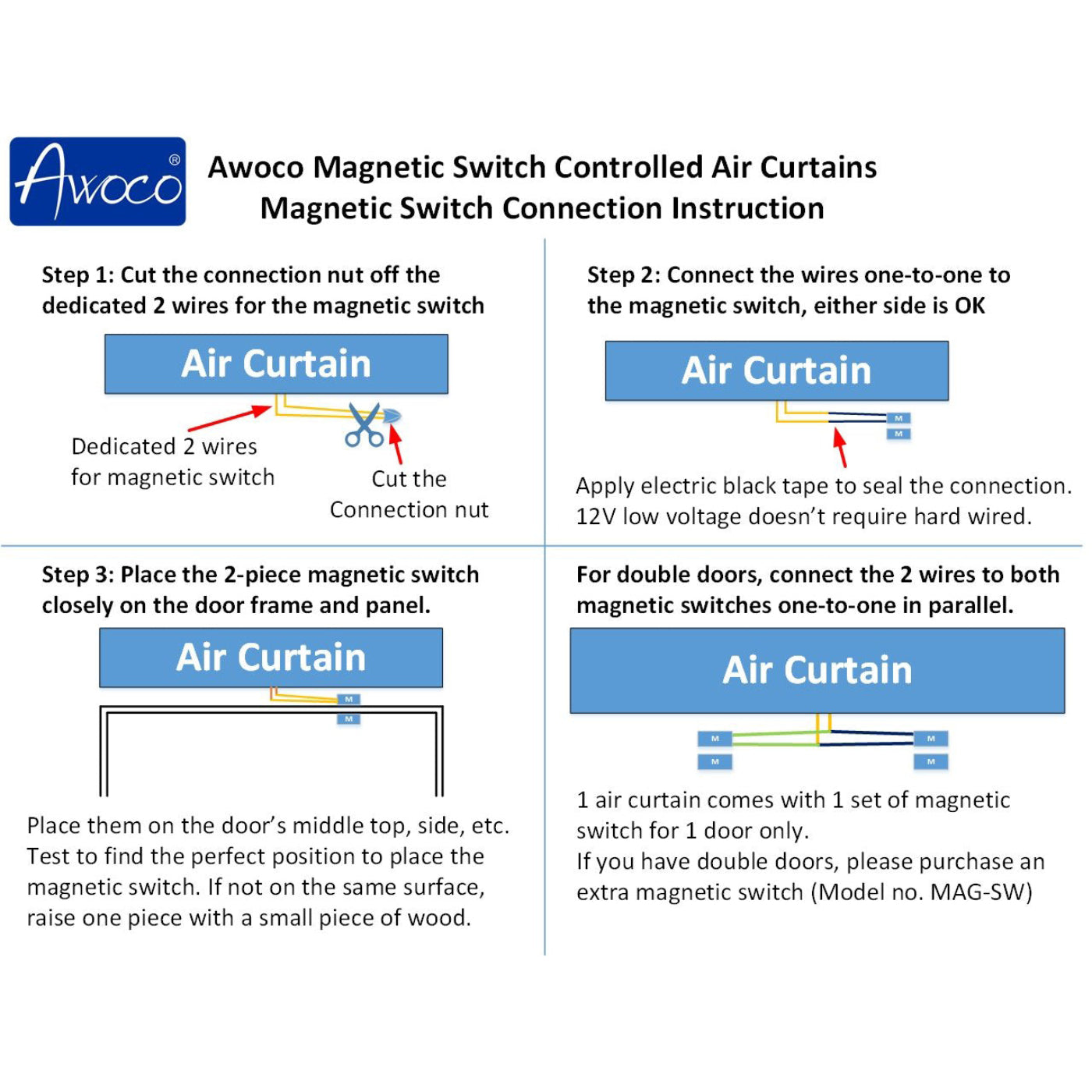

- 2) dedicated 2-wire for the magnetic switch connection. (Other brands might not have this.)
- 3) Detailed installation manual is included.
- ETL Sanitation confirms to NSF Standard 37: ETL Sanitation Listed, 1 speed confirms to NSF STD 37 for food service entranceway to meet Health Department Requirements. 110V-120V 60Hz. Less power consumption than other industrial air curtains.
- Motor: Adopting the technology of German electrical machinery, it runs smoothly with reduced low noise. Optimized electrical machinery, reliable and safe runs for 5,000 consecutive hours. Fan wheels are made of high-tech ABS, powerful wind-force.
Specifications
| Voltage |
120V, 60Hz. |

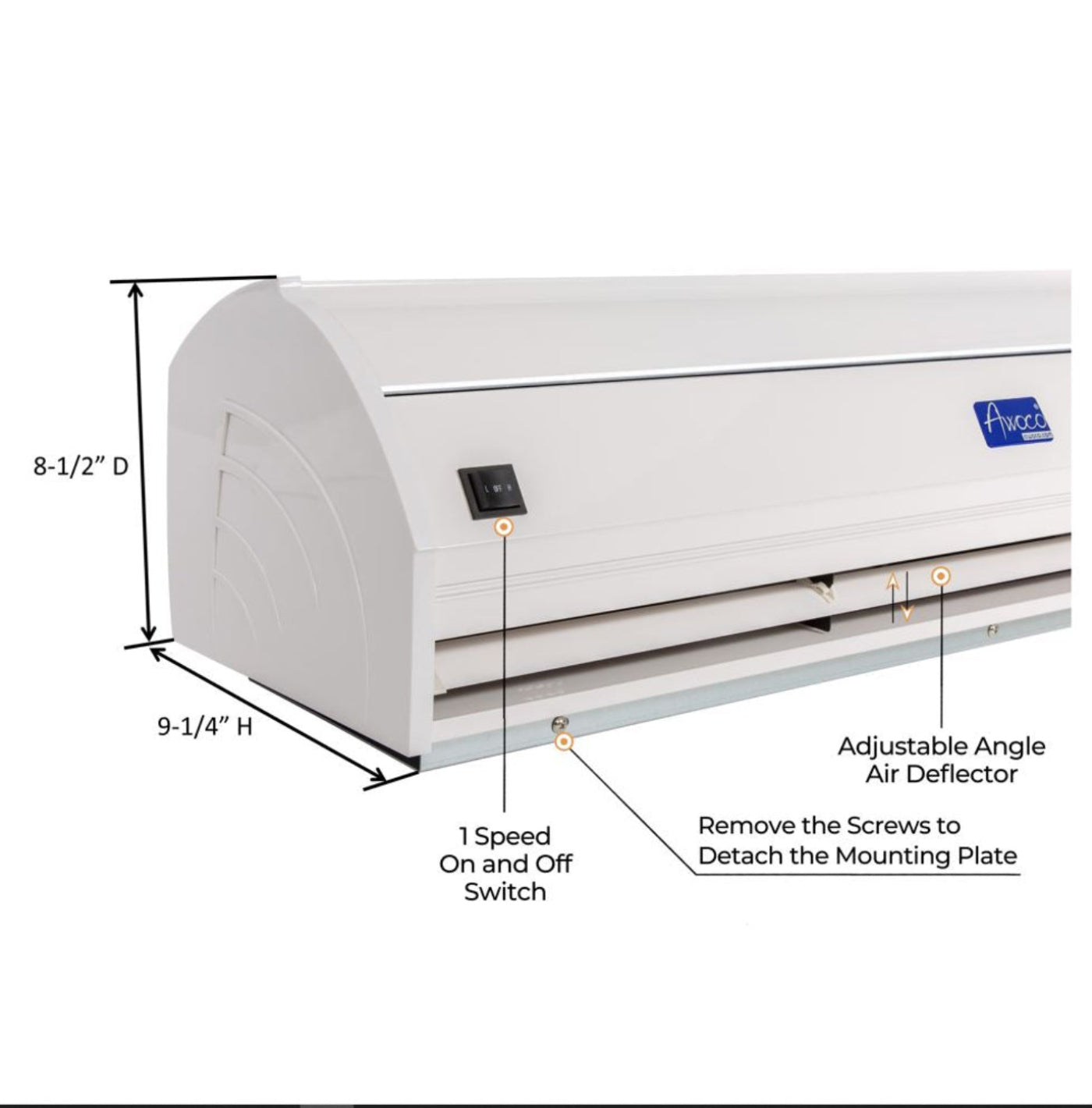

Depth |
8-1/2 in. |
Height |
9-1/4 in. |
| Air Velocity |
3150 FPM (Max.) |
|
|
|
| Model No. |
For
Door Size |
Width |
Power
(W/HP) |
Net Weight
(LB) |
Current
(A) |
Max.
Air Volume
(CFM) |
Max.
Noise Level
(dB) |
| FM3509-ETL |
36" |
35-1/2" |
300/0.4 |
28.7 |
3.13 |
907 |
52 |
| FM3510-ETL |
42" |
42" |
320/0.43 |
30.9 |
3.33 |
989 |
52 |
| FM3512-ETL |
48" |
47-1/4" |
400/0.54 |
34.2 |
4.17 |
1236 |
53 |
| FM3515-ETL |
60" |
59" |
500/0.67 |
44.1 |
5.21 |
1566 |
55 |
What Our Experts Think
-

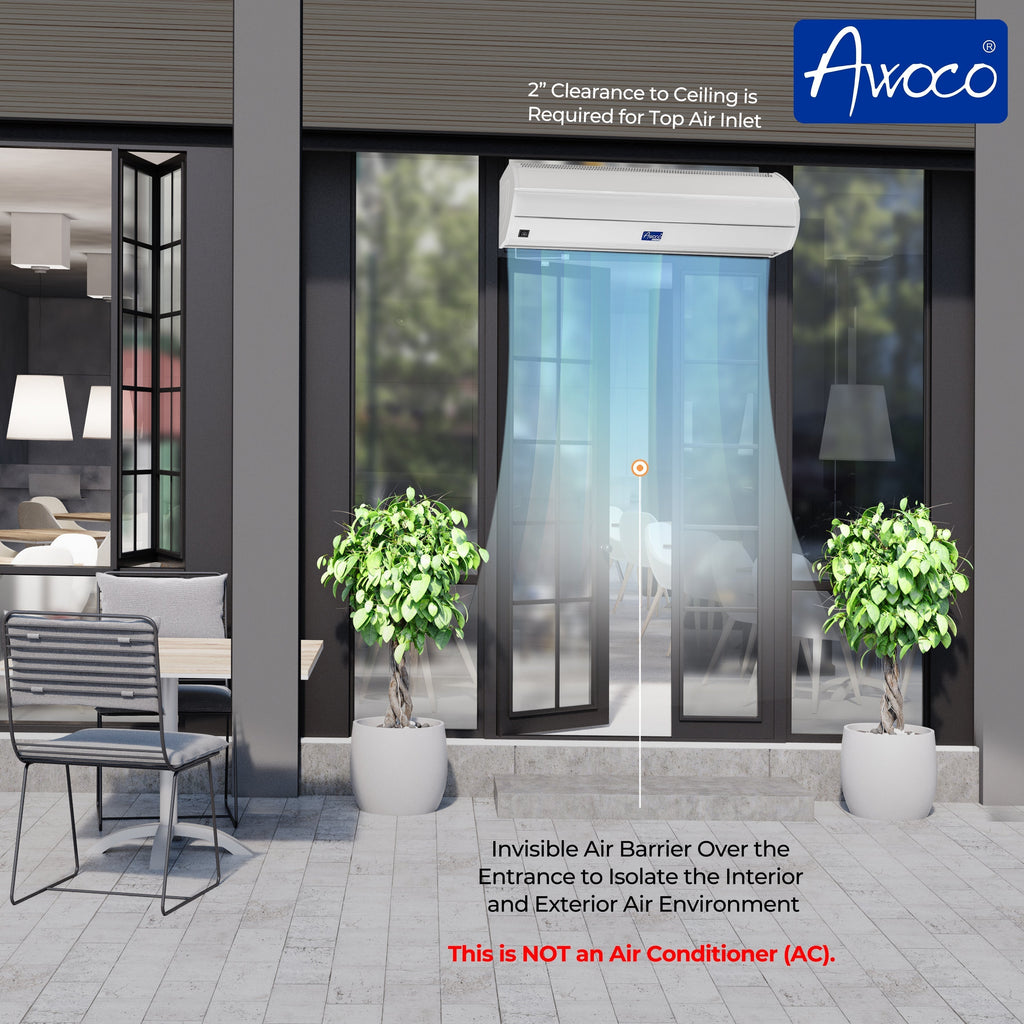

Efficient 1-Speed Airflow: Delivers a strong, consistent barrier against dust, debris, and insects for a clean and comfortable environment.
-
120V Unheated: Ideal for establishments that need an air curtain without additional heat, maintaining optimal indoor temperature.
-
ETL Sanitation Listed: Certified for food service areas, ensuring compliance with health and safety regulations.
-
Sleek Design: Elegant and compact, blending seamlessly into any space while providing maximum airflow efficiency.
Q&A
Q: What is the Awoco FM35-ETL Elegant Air Curtain?
A: A sleek, one-speed, unheated air curtain that provides powerful airflow for maintaining clean, dust-free, and insect-free environments, UL certified and ETL sanitation listed.
Q: What makes it special?
A: It combines elegance and functionality with an efficient one-speed motor, UL certification, and ETL sanitation listing for safety and reliability in commercial applications.
Q: Is this air curtain heated?
A: No, the FM35-ETL is unheated, designed for situations where heating is not required.
Q: What certifications does it have?
A: It is UL certified and ETL sanitation listed, ensuring it meets high standards for safety and sanitation.
Q: Where can it be installed?
A: Perfect for commercial indoor environments such as kitchens, entryways, and service counters to maintain clean air flow.
Maintenance Tips

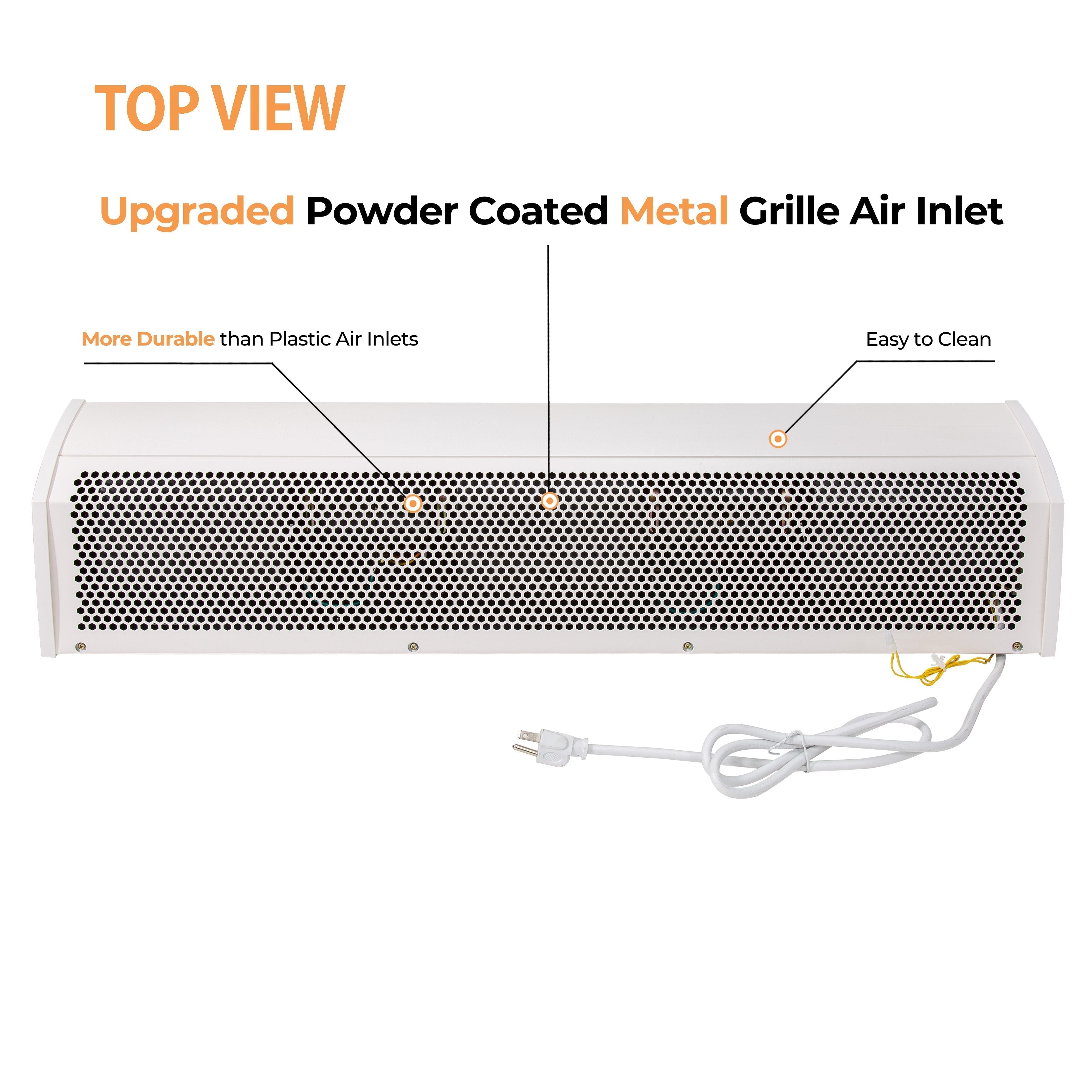

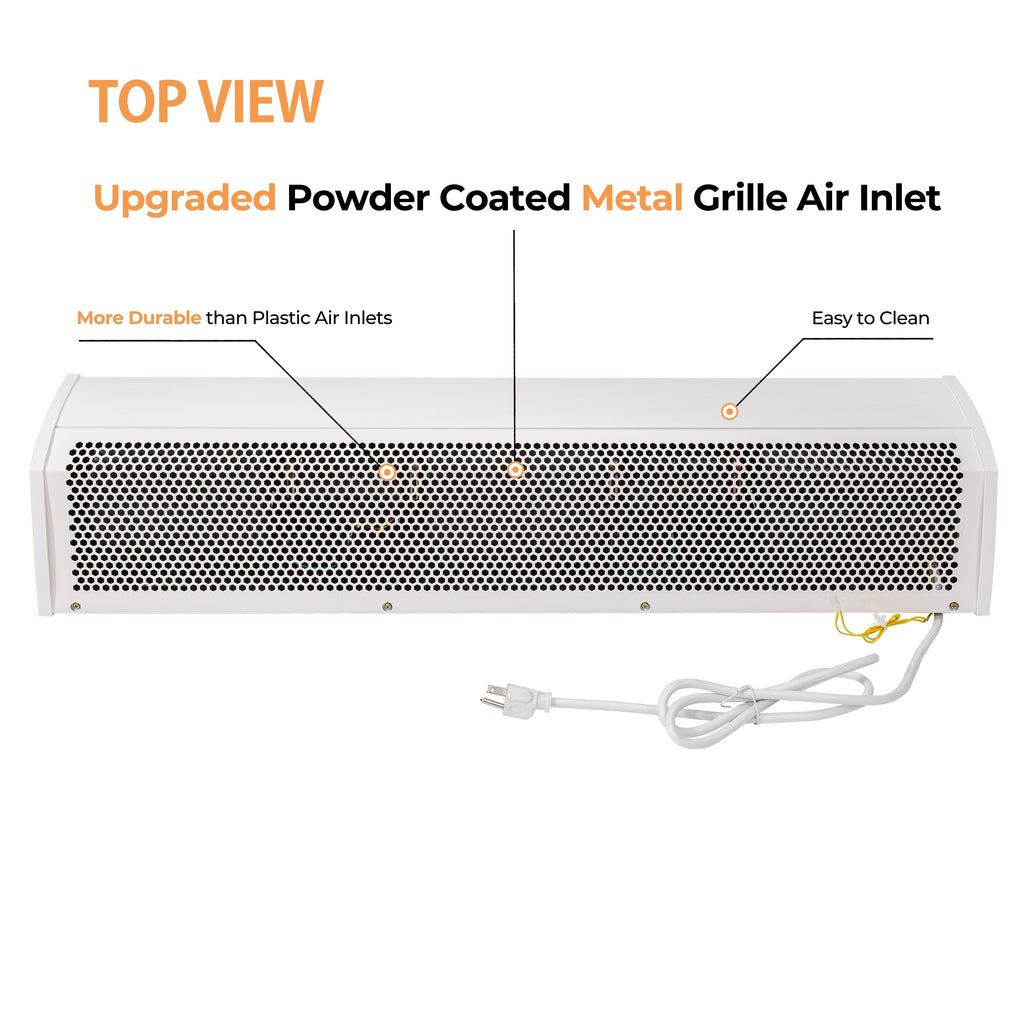

- Clean the air intake and exhaust grills regularly to prevent dust buildup.
- Inspect the fan blades for debris and clean them to maintain proper airflow.
- Ensure that the unit remains free from obstructions for optimal performance.
- Check electrical connections periodically for safety and wear.
- Keep the unit dry and stored in a well-ventilated area when not in use.
