Awoco RH-SP06-RR Super Quiet Split Stainless Steel Range Hood, 4 Speeds, 800CFM, Rectangular Rear Vent with LED Lights - RH-SP06-RR30
-

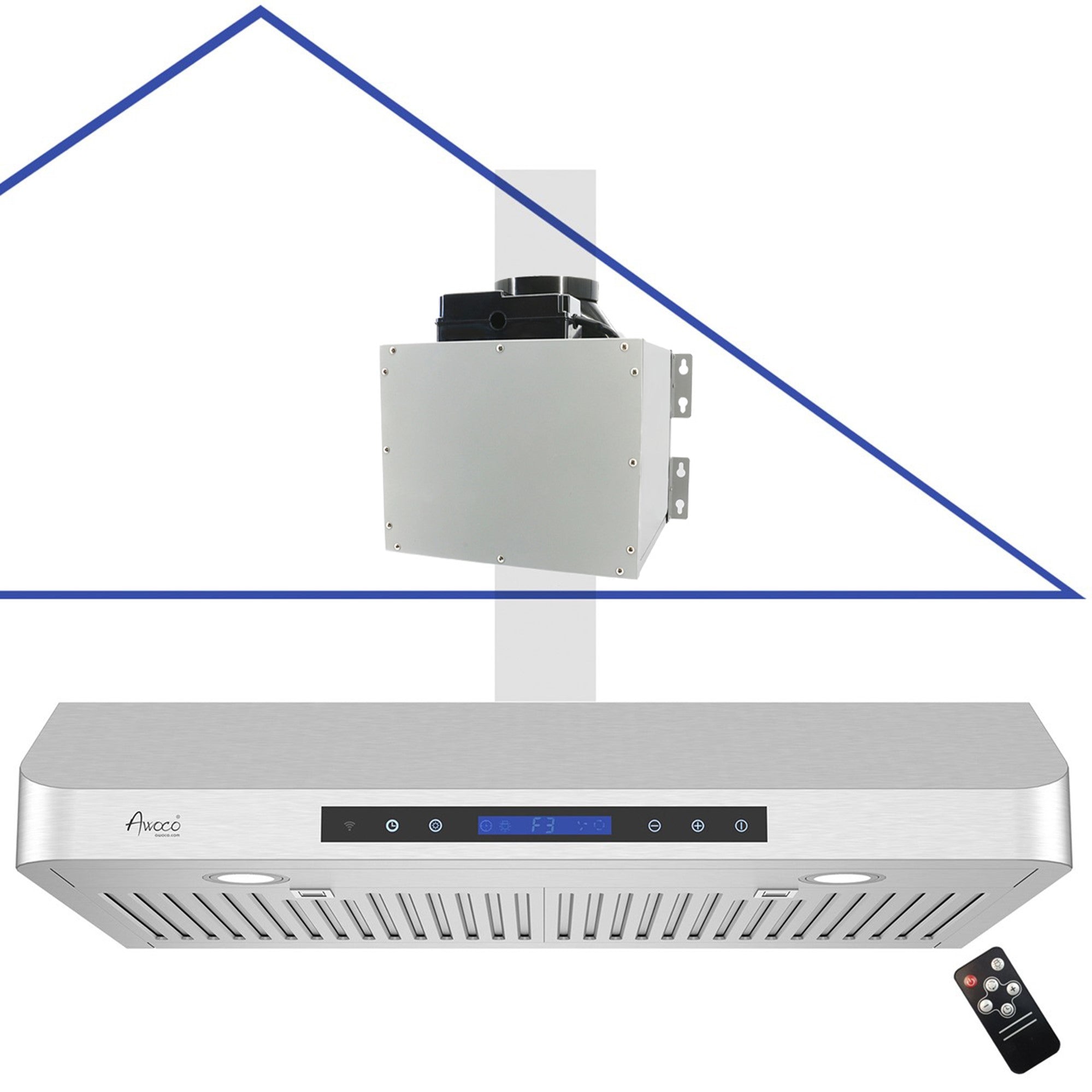

SUPER QUIET INNOVATIVE SPLIT COMPLETE SET: includes Hood unit and Blower unit. This builds a super quiet split range hood system; the Blower unit is mounted in the attic. Dishwasher safe stainless steel baffle filters, the oil is contained in the baffle filters, no oil holders needed. Up to 15 minutes auto shut off to vent the leftover smoke after you are done cooking.
-
UNDER CABINET OR WALL MOUNTED: high quality stainless steel with brush finishing. 6" high, round front corners. Perfectly fit under the 12” deep standard cabinet; provide slick style and powerful performance.
-

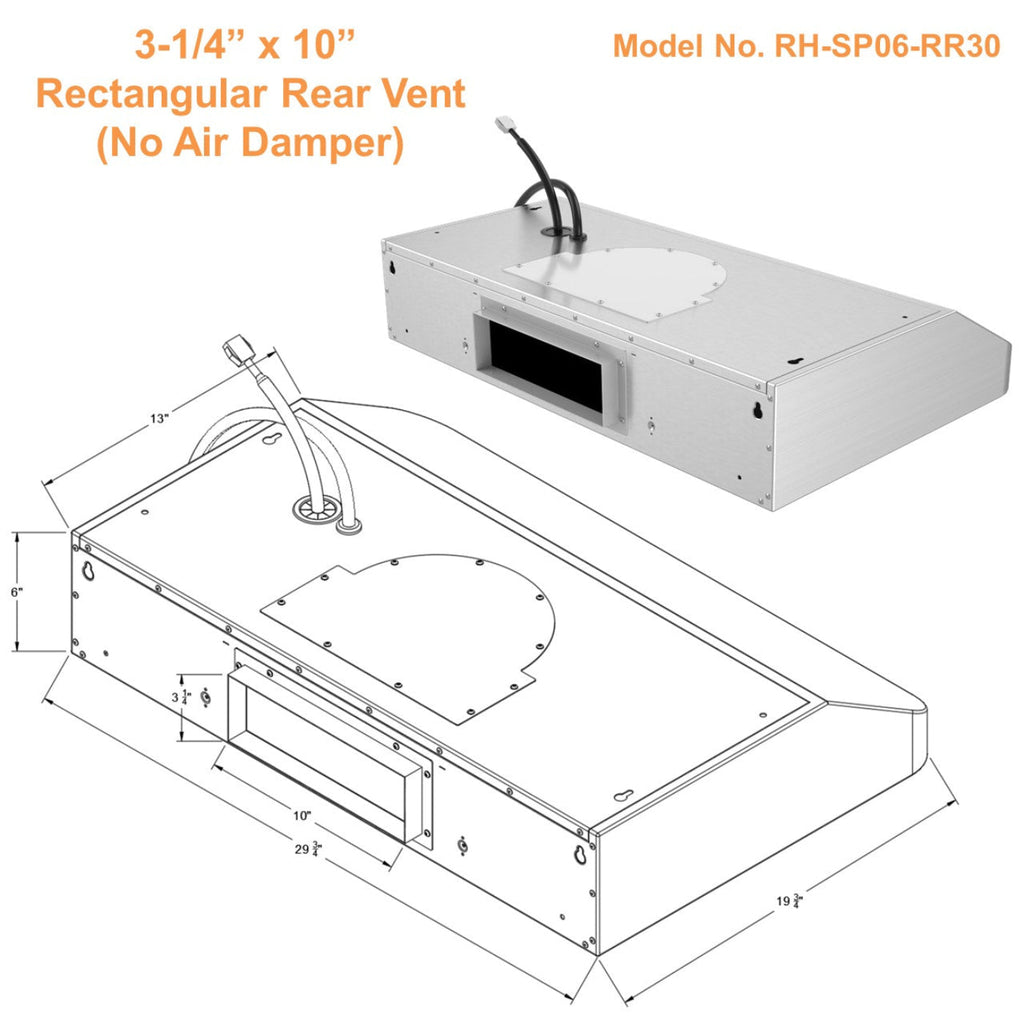

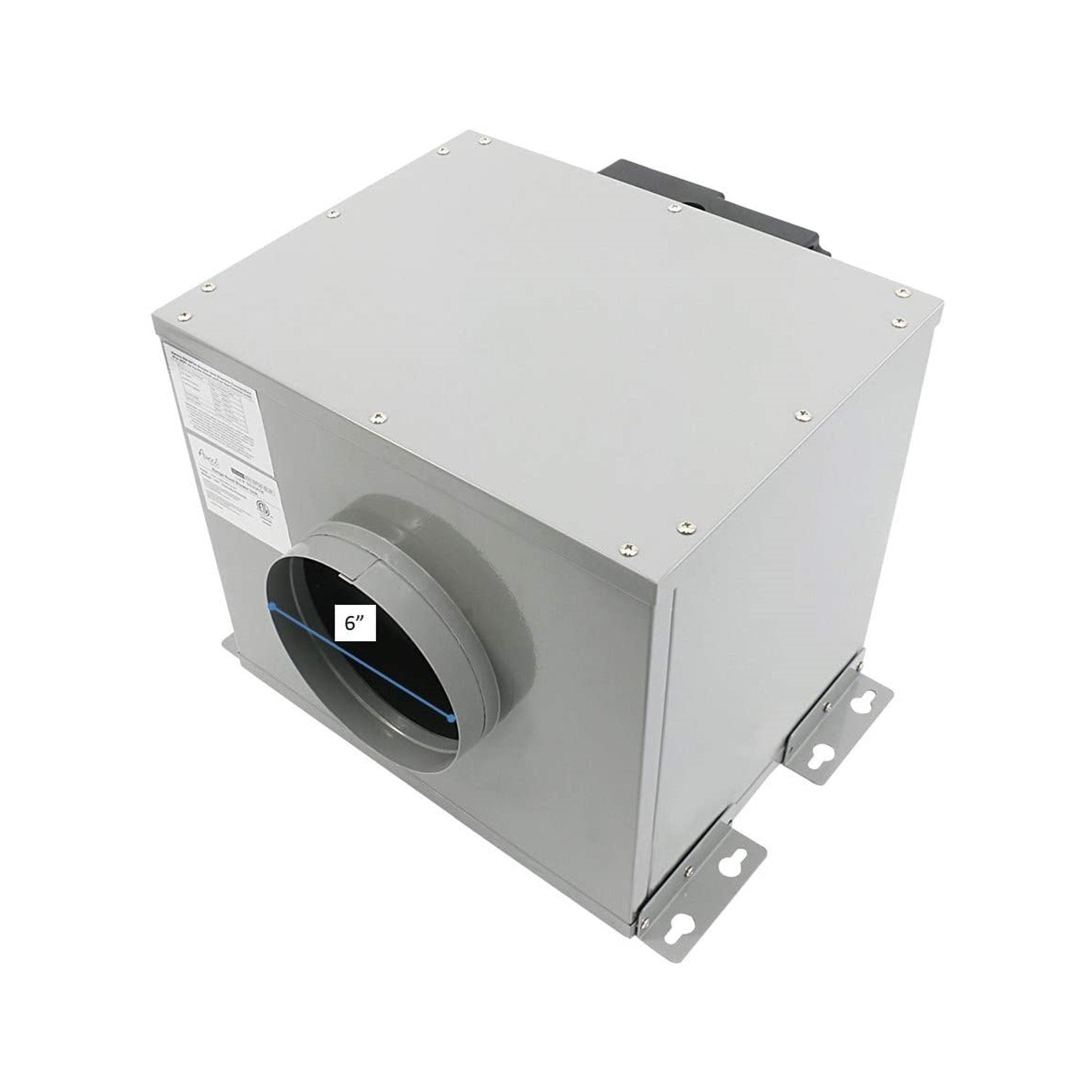

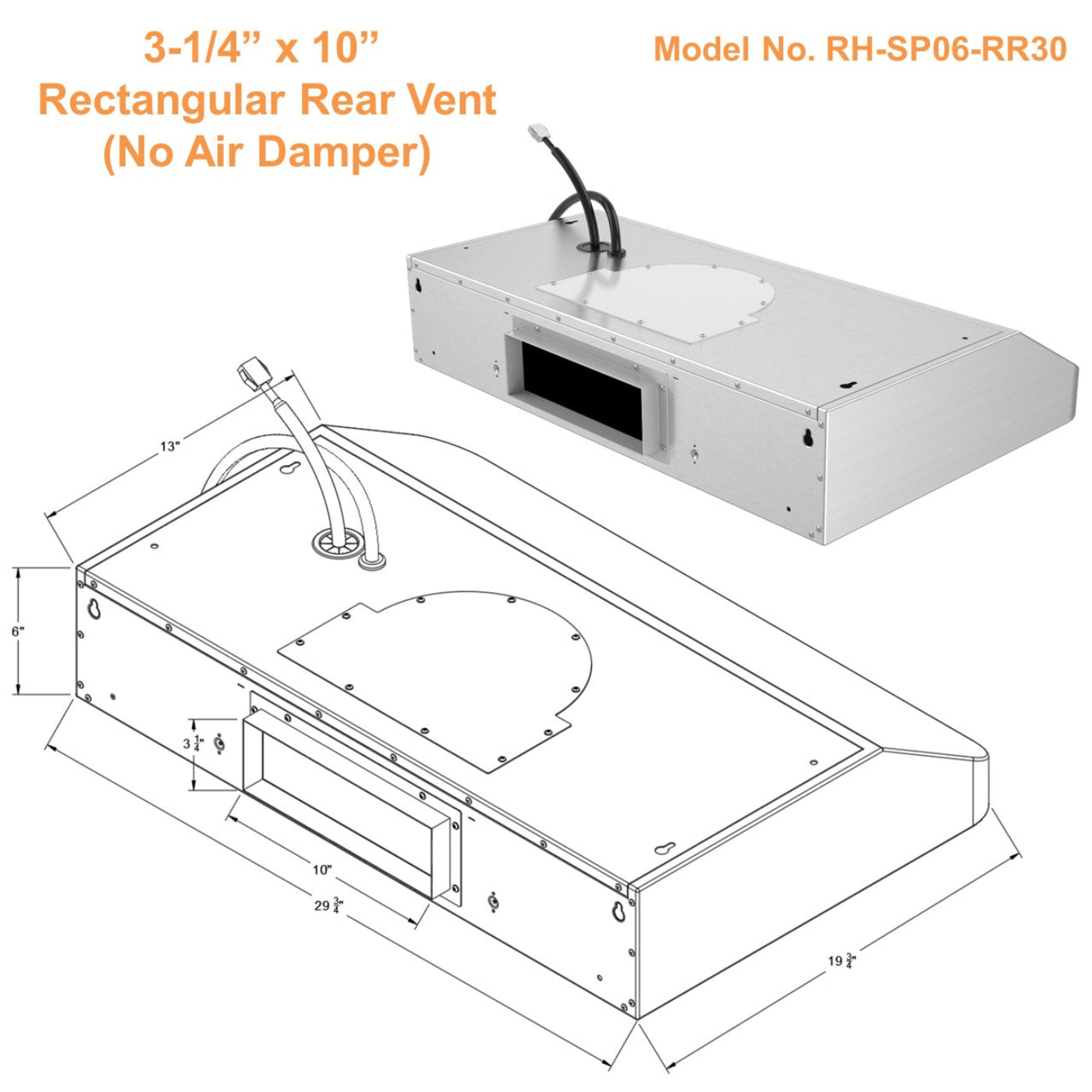

DUCTED VENT OUTSIDE, 3-1/4” x 10" Rectangular Rear Vent: 3-1/4” x 10" rectangular rear exhaust vent on Hood Unit and 6” round vent for Blower Unit. 12 ft connection wire from hood to blower unit.
-

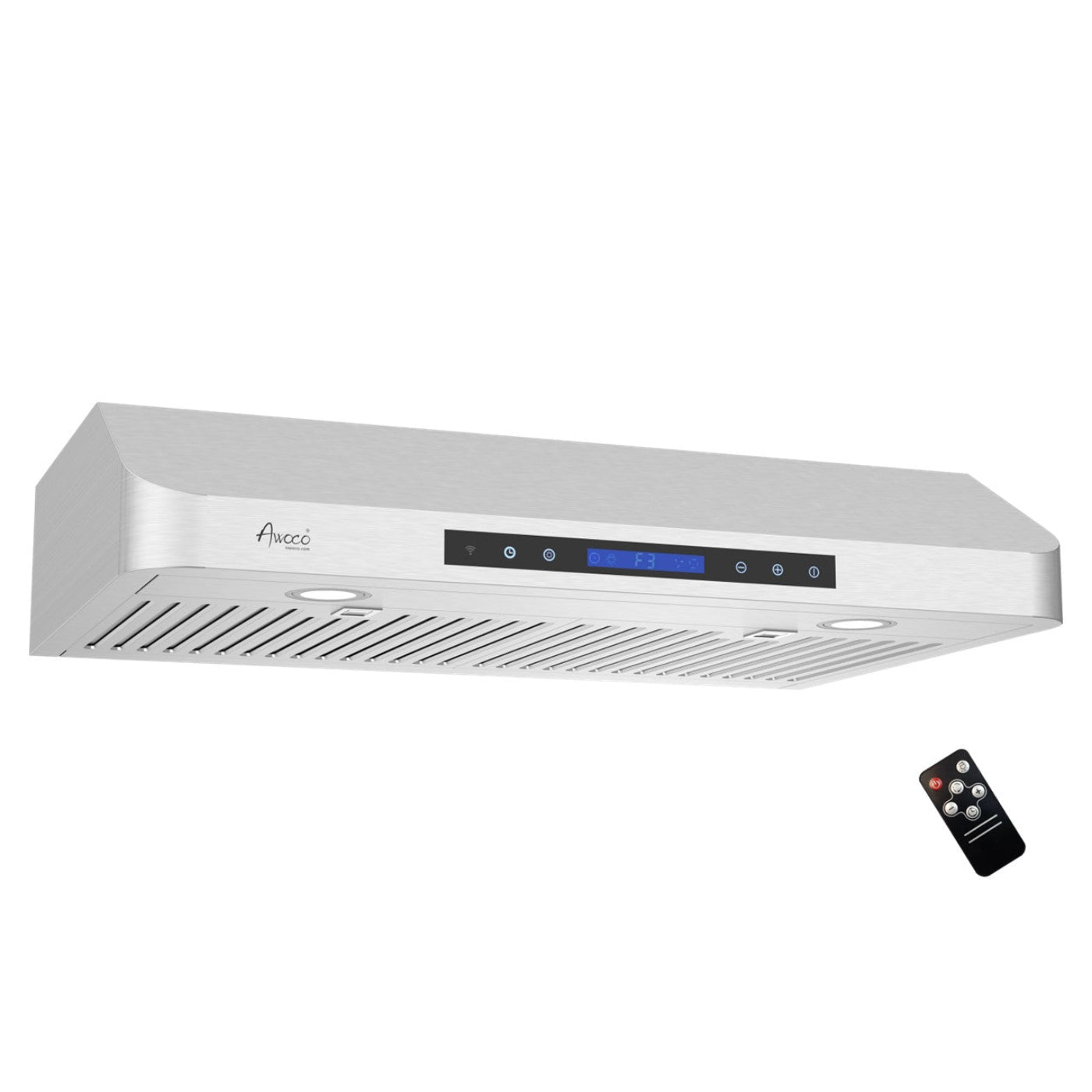

4 SPEEDS POWERFUL OPERATION WITH LED LIGHTS: 4 speeds (Quiet, I, II, III up to 800 CFM), touch panel with remote control. 12 Hr clock displayed at idle. 2 of 3W energy saving cold bright LED lights. 1 motor and 7” wide Centrifugal Squirrel Cage Fan Wheel.
-
Power Rating: 120V/60Hz, 180W Min /275W Max. Power cord with plug is included. Noise level at low: 38 dB, 2.0 sones. Noise level at high: 50 dB, 5.0 sones.
-
1 YEARS LIMITED WARRANTY: Free parts, repair or exchange within 1 year. Awoco high quality product reputation and supreme customer service is a guarantee.
-
30" Hood Dimensions: 29-3/4"W x 19-3/4"D x 6"H. Hood weight: 20 lbs.
-

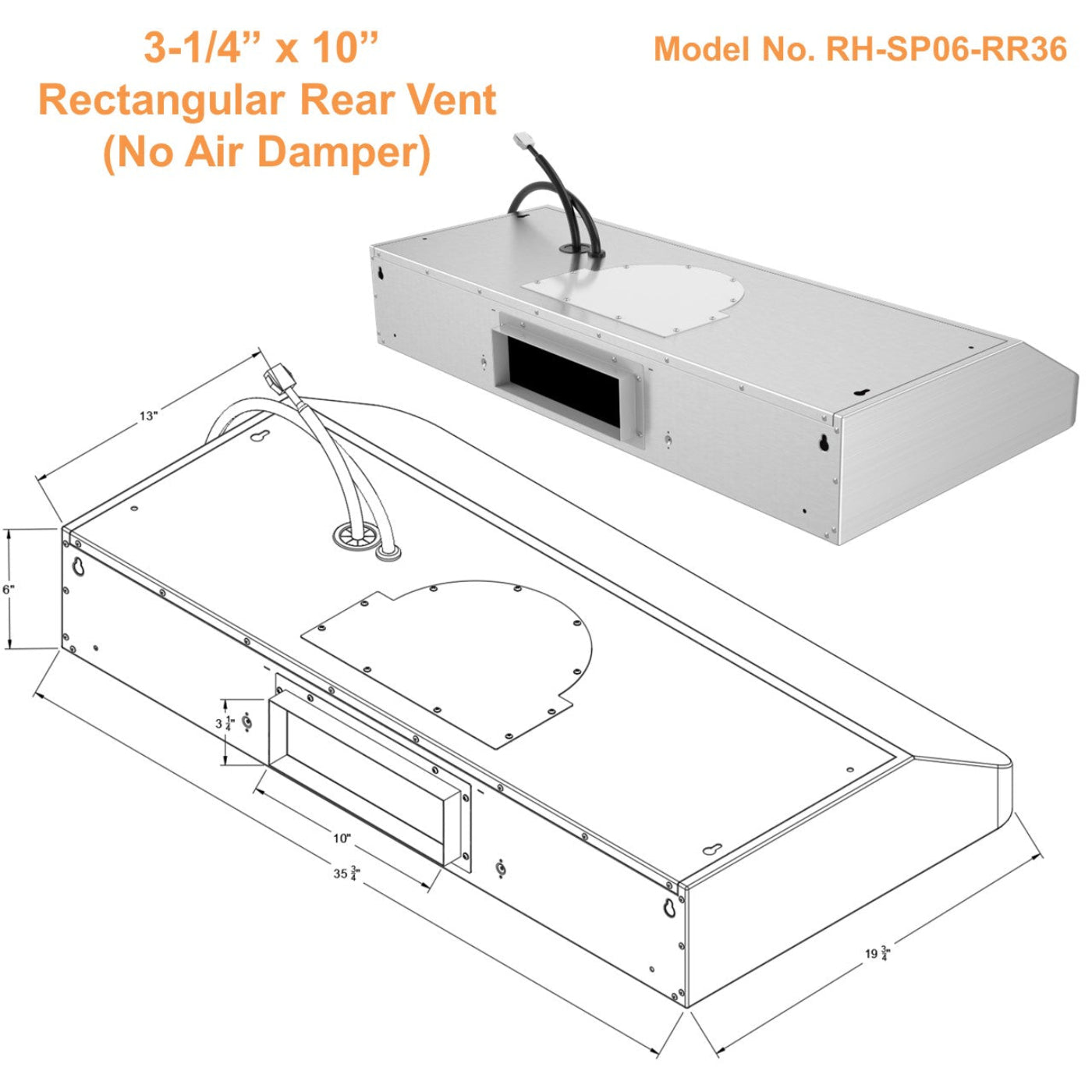

36" Hood Dimensions: 35-3/4"W x 19-3/4"D x 6"H. Hood weight: 23 lbs.
-

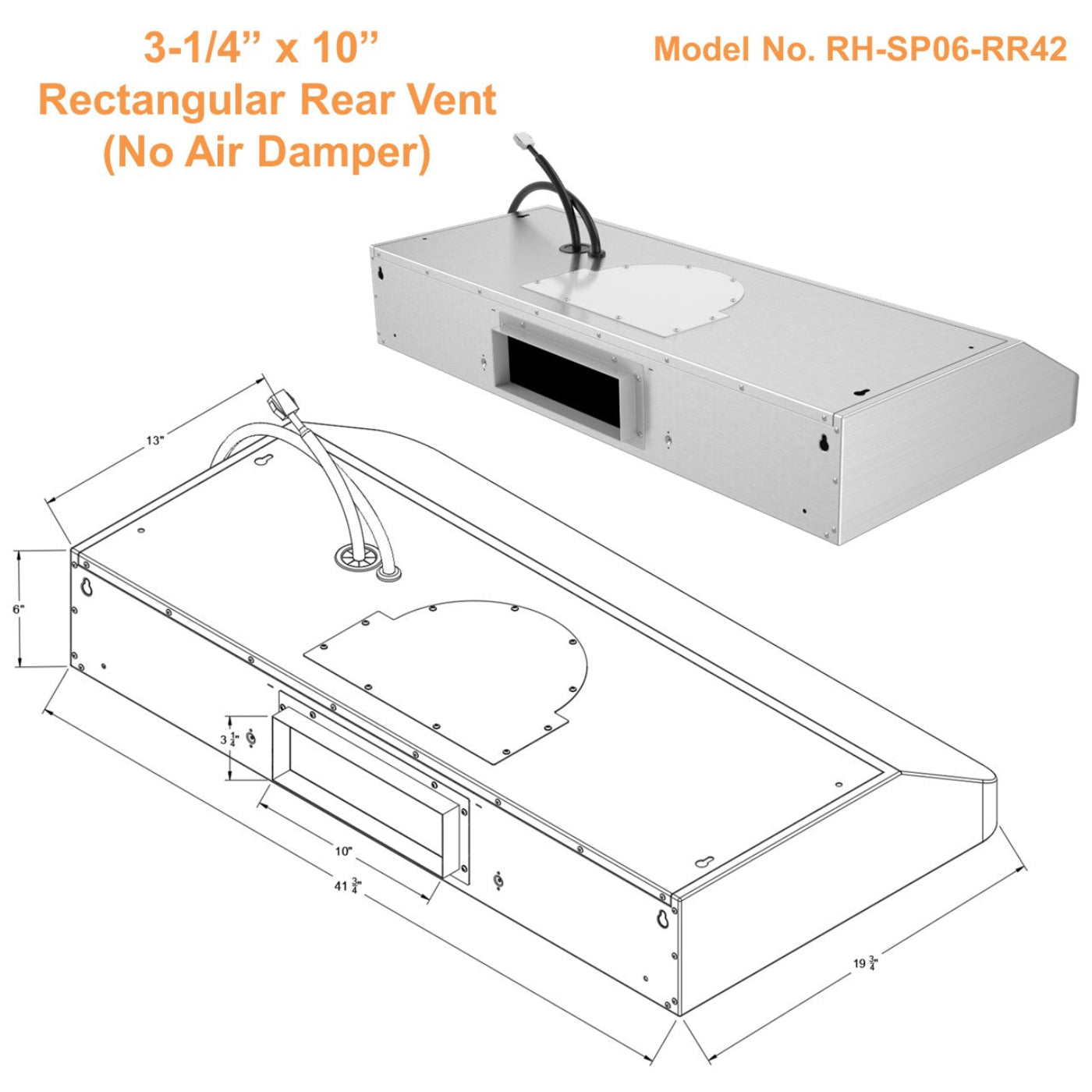

42" Hood Dimensions: 41-3/4"W x 19-3/4"D x 6"H. Hood weight: 30 lbs.
-

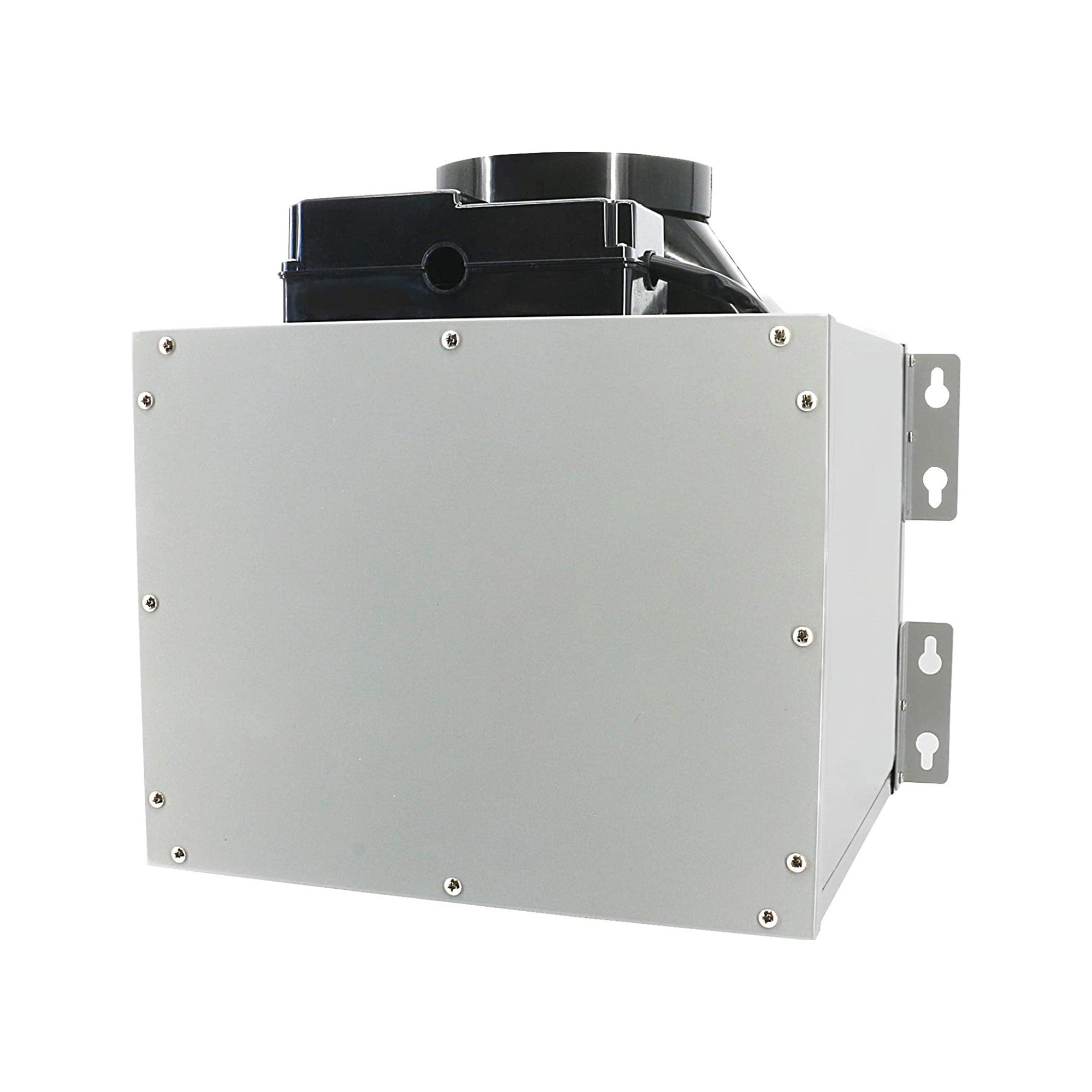

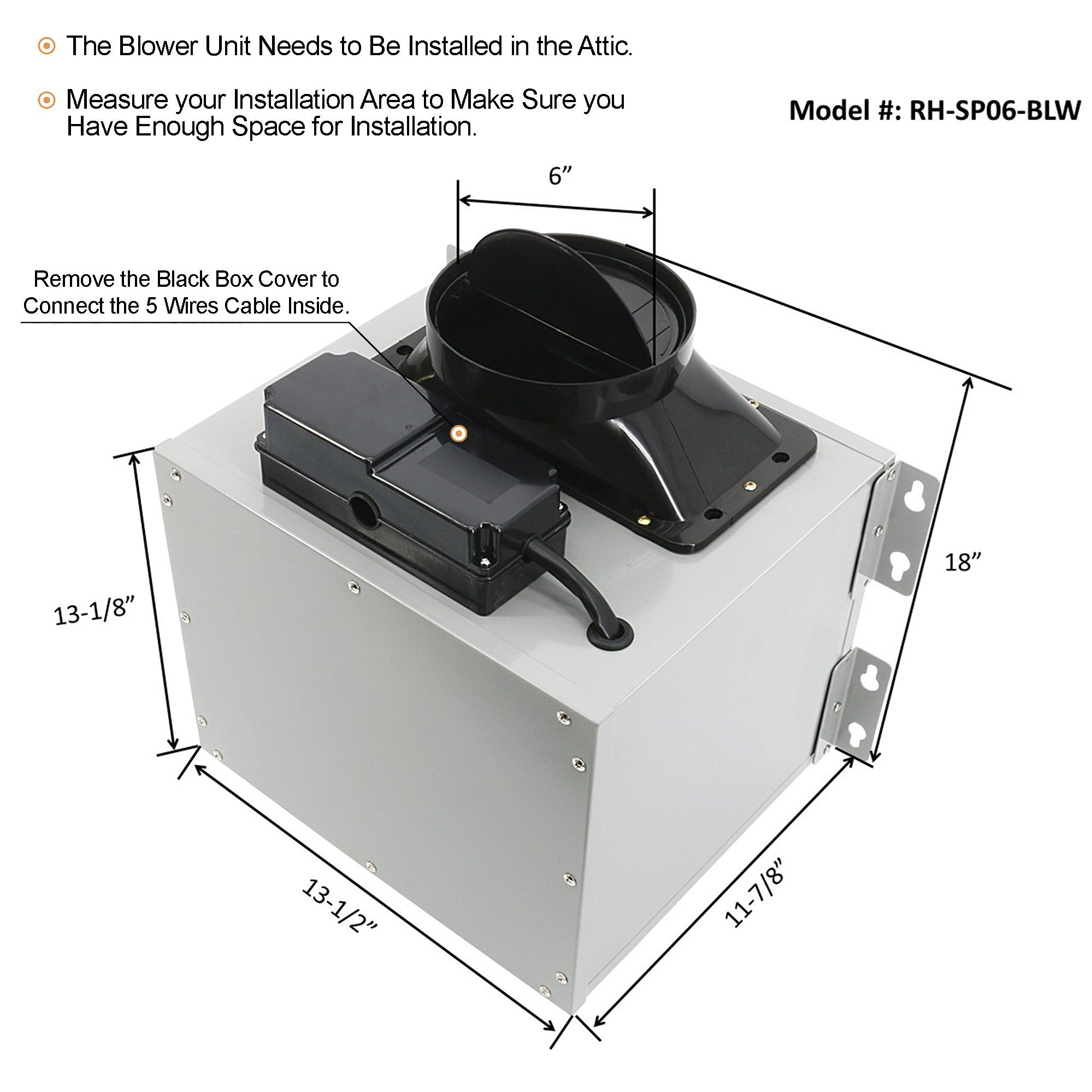

Blower Dimensions: 13-1/2"W x 11-7/8"D x 18"H. Blower weight: 20.4 lbs.
Why Is It Quiet?
Mostly the range hood noise is the sound of air whooshing the steam away. The blower exhausts the air out, sucking the nearby air to one direction. For example, the house fan has bigger noise at higher speed, the sound is from the air collision, not the motor. High speed air collision is the cause of the powerful range hood.
The restaurant exhaust fans are on the roof; therefore, moving the blower to the attic is the solution for residential installments to eliminate the range hood noise. Same as the industrial inline blower, this Blower unit is in between the house exhaust vent and the range hood unit.
Features
-

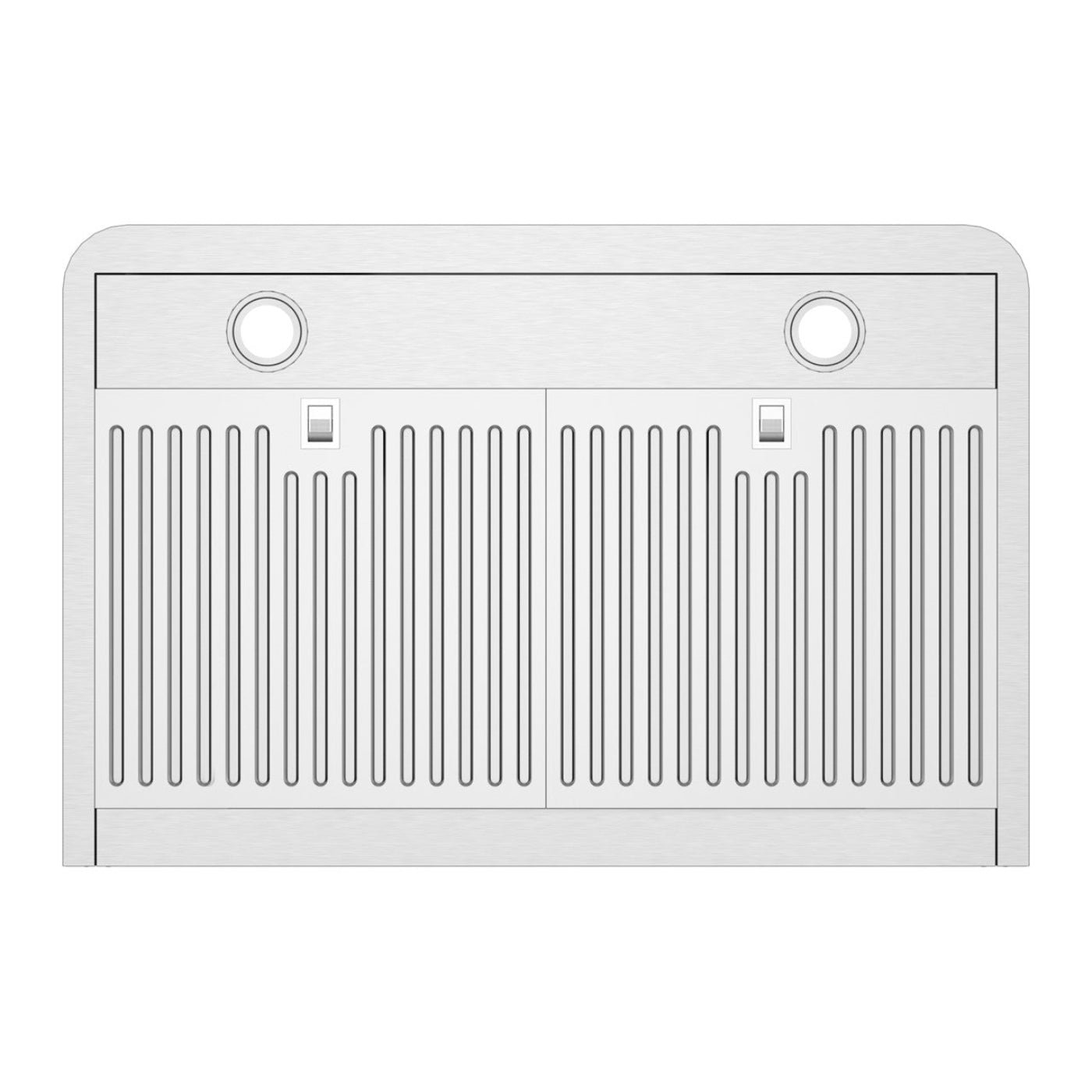

High-Quality Stainless-Steel Baffle Filters: Stainless steel baffle filters are adapted the concept from commercial baffle air filters, the grease is contained inside the filter trays, no oil cup needed.
- Mounting Type: Under Cabinet or Wall Mount for Hood unit; Attic lumber mounted for Blower unit
- Venting Type: 3-1/4” x 10" Rectangular Rear Vent
- Hood Unit: 2 of 3W energy efficient cold bright LED Lights are bright enough to cover the whole cooktop.
- Blower Unit: 1 Motor and 7” Centrifugal Squirrel Cage Fan Wheel
- Power rating: 120V/60Hz, 180W Min /275W Max
- Noise level at low: 38 dB, 2.0 sones. Noise level at high: 50 dB, 5.0 sones.
Product Manual
VIEW / DOWNLOAD
Videos
AWOCO 101 VIDEOS
What Our Experts Think
-
800 CFM Power: Delivers efficient ventilation to clear smoke, steam, and odors, keeping your kitchen fresh.
-
4-Speed Settings: Choose from multiple fan speeds for the ideal airflow depending on your cooking needs.
-
Super Quiet Operation: Engineered to minimize noise while maintaining powerful suction for a more peaceful cooking environment.
-
Rectangular Rear Vent: Designed for rear venting, making it an ideal choice for specific kitchen layouts and installation flexibility.
-
LED Lights: Provides bright, energy-efficient lighting to illuminate your cooking space for better visibility.
Q&A
Q: What is the Awoco RH-SP06-RR Super Quiet Range Hood?
A: A high-performance split stainless steel range hood with 4 speeds, 800 CFM airflow, a rectangular rear vent, and LED lights, designed for quiet and efficient kitchen ventilation.
Q: What makes it special?
A: It offers super-quiet operation with a powerful 800 CFM, 4-speed fan, and energy-efficient LED lighting for a clean and comfortable kitchen environment.
Q: What type of vent does it have?
A: The range hood features a rectangular rear vent for optimal air exhaust.
Q: How many fan speeds does it have?
A: The unit includes 4 adjustable fan speeds to suit various cooking needs.
Q: Does it include lighting?
A: Yes, it comes equipped with LED lights for enhanced visibility while cooking.
Q: Is it easy to install?
A: Yes, the split design makes installation straightforward, especially in kitchens with rear exhaust configurations.
Maintenance Tips
- Clean the stainless steel surface regularly with a soft cloth and mild detergent to avoid scratches.
- Wash the grease filters every 1–3 months using warm, soapy water.
- Ensure the rectangular rear vent is free from obstructions for optimal airflow.
- Wipe down the LED lights to maintain brightness and functionality.
- Inspect the fan motor and blades periodically for debris and clean as needed.
