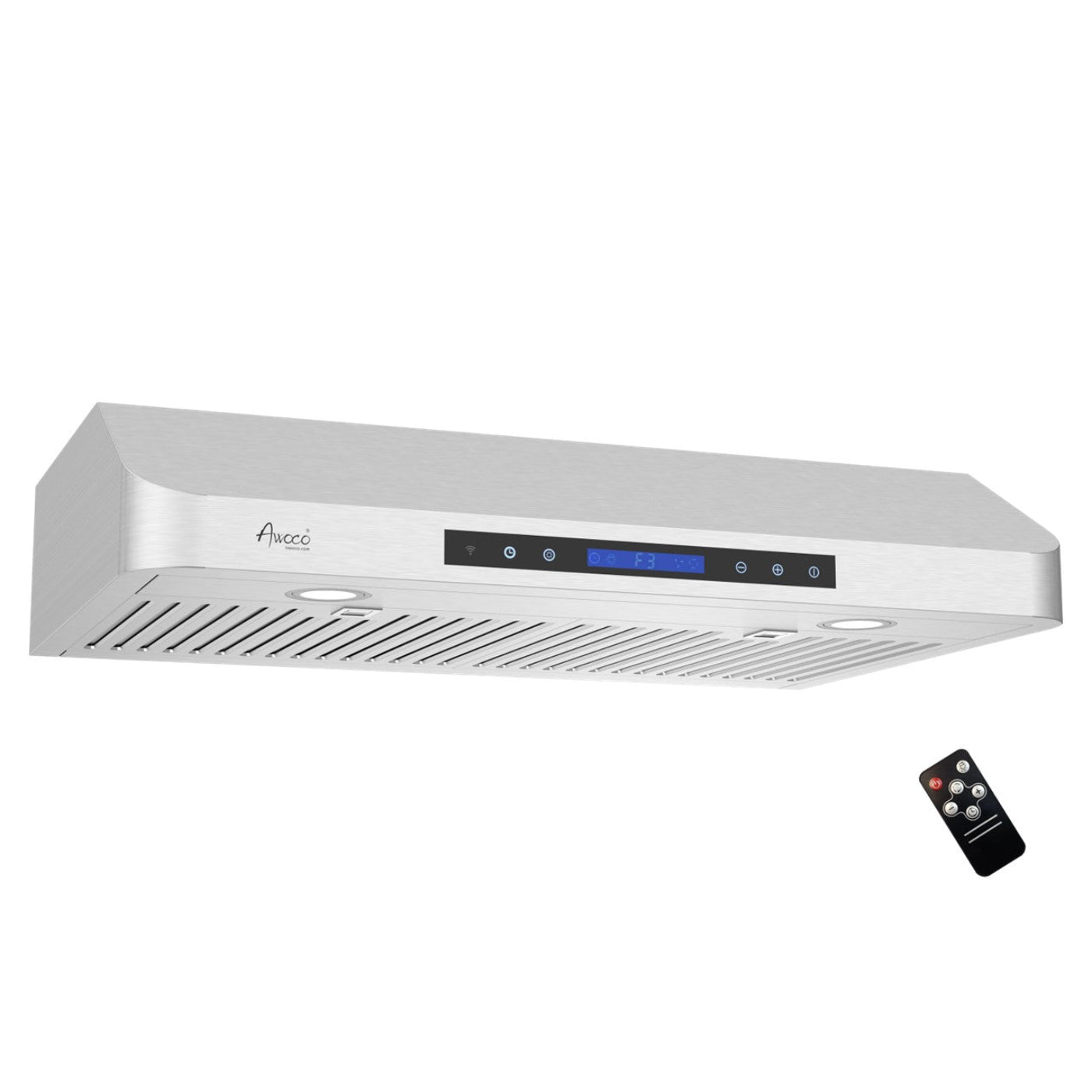

Awoco RH-SP06-T Super Quiet Split Stainless Steel Range Hood, 4 Speeds, 6" Round Top Vent, 800CFM, with LED Lights - RH-SP06-T30
-
SUPER QUIET INNOVATIVE SPLIT COMPLETE SET: includes Hood unit and Blower unit. This builds a super quiet split range hood system; the Blower unit is mounted in the attic. Dishwasher safe stainless steel baffle filters, the oil is contained in the baffle filters, no oil holders needed. Up to 15 minutes auto shut off to vent the leftover smoke after you are done cooking.
-
UNDER CABINET OR WALL MOUNTED: high quality stainless steel with brush finishing. 6" high, round front corners. Perfectly fit under the 12” deep standard cabinet; provide slick style and powerful performance.
-
DUCTED VENT OUTSIDE, 6” ROUND TOP VENT: 6” round top exhaust vent on Hood Unit and 6” round vent for Blower Unit. 12 ft connection wire from hood to blower unit.
-
4 SPEEDS POWERFUL OPERATION WITH LED LIGHTS: 4 speeds (Quiet, I, II, III up to 800 CFM), touch panel with remote control. 12 Hr clock displayed at idle. 2 of 3W energy saving cold bright LED lights. 1 motor and 7” wide Centrifugal Squirrel Cage Fan Wheel.
-
Power Rating: 120V/60Hz, 180W Min /275W Max. Power cord with plug is included. Noise level at low: 38 dB, 2.0 sones. Noise level at high: 50 dB, 5.0 sones.
-
1 YEARS LIMITED WARRANTY: Free parts, repair or exchange within 1 year. Awoco high quality product reputation and supreme customer service is a guarantee.
-

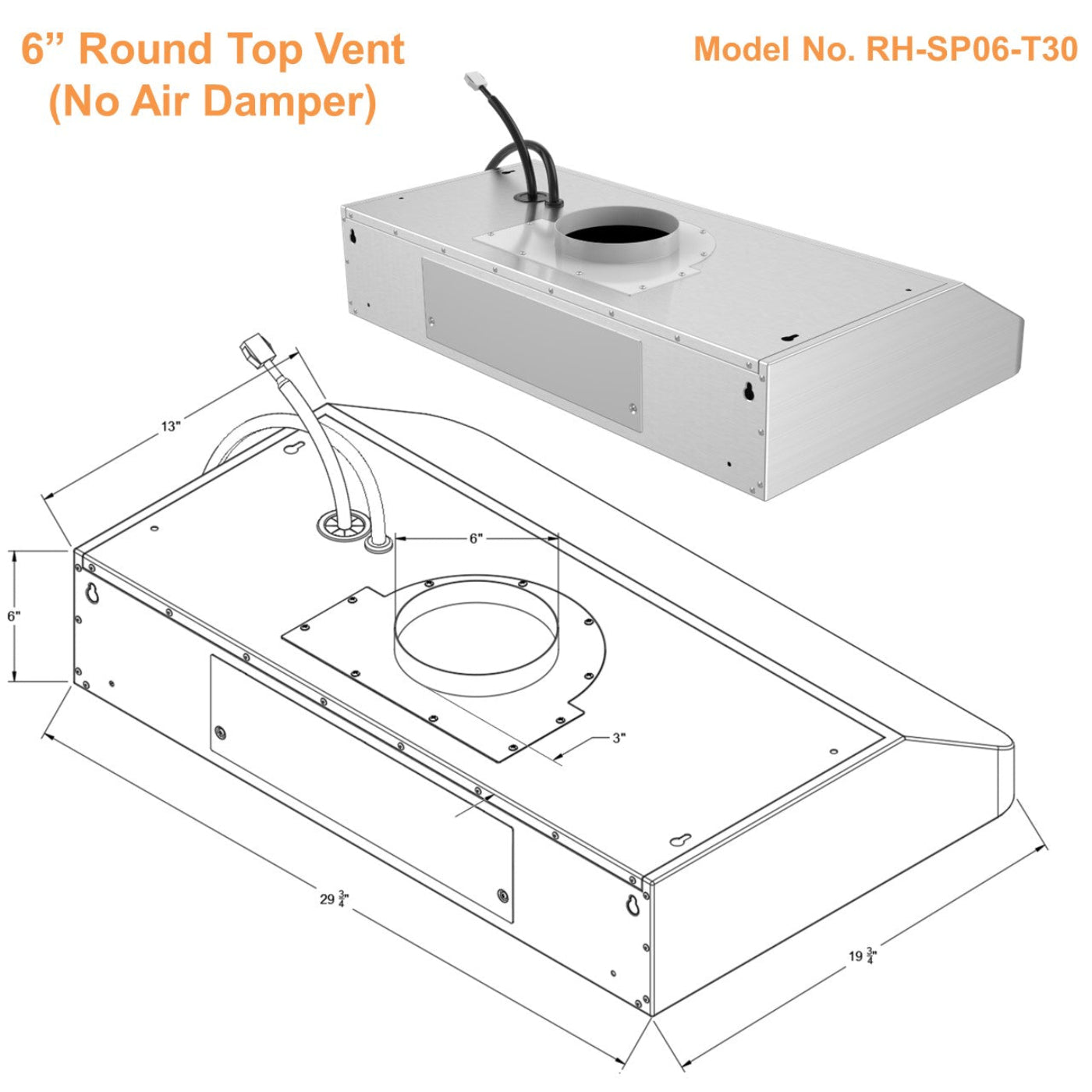

30" Hood Dimensions: 29-3/4"W x 19-3/4"D x 6"H. Hood weight: 20 lbs.
-
36" Hood Dimensions: 35-3/4"W x 19-3/4"D x 6"H. Hood weight: 23 lbs.
-

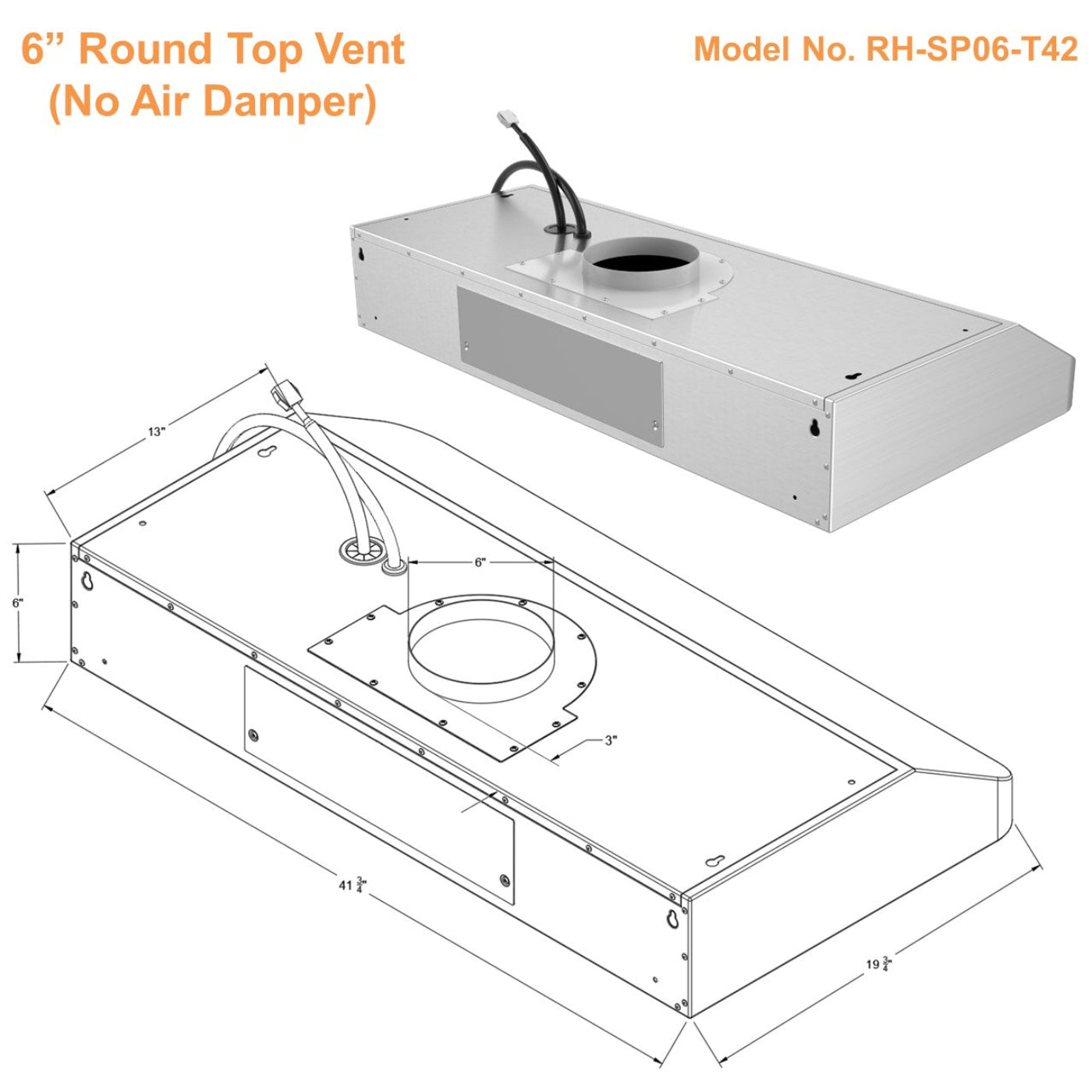

42" Hood Dimensions: 41-3/4"W x 19-3/4"D x 6"H. Hood weight: 30 lbs.
-

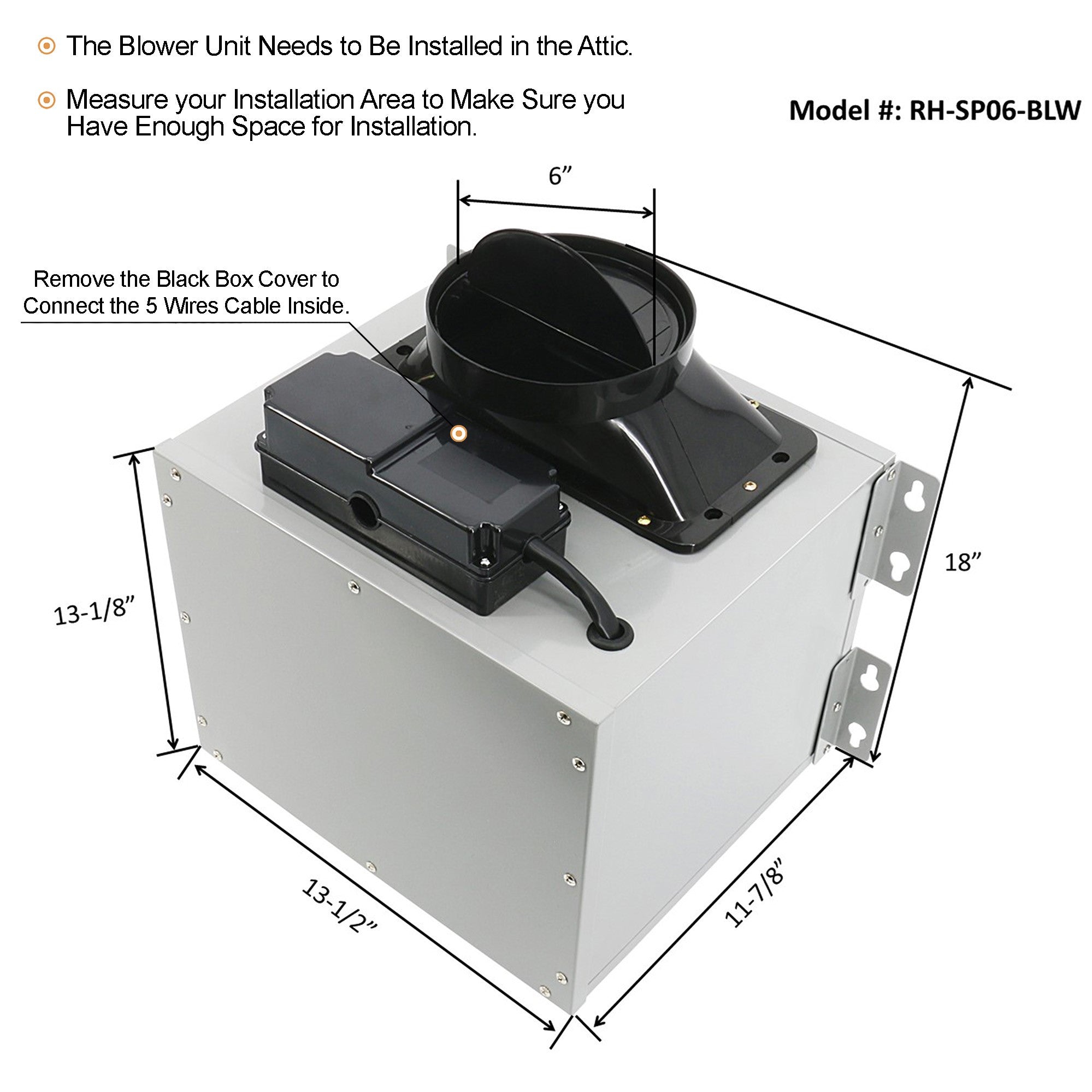

Blower Dimensions: 13-1/2"W x 11-7/8"D x 18"H. Blower weight: 20.4 lbs.
Why Is It Quiet?
Mostly the range hood noise is the sound of air whooshing the steam away. The blower exhausts the air out, sucking the nearby air to one direction. For example, the house fan has bigger noise at higher speed, the sound is from the air collision, not the motor. High speed air collision is the cause of the powerful range hood.

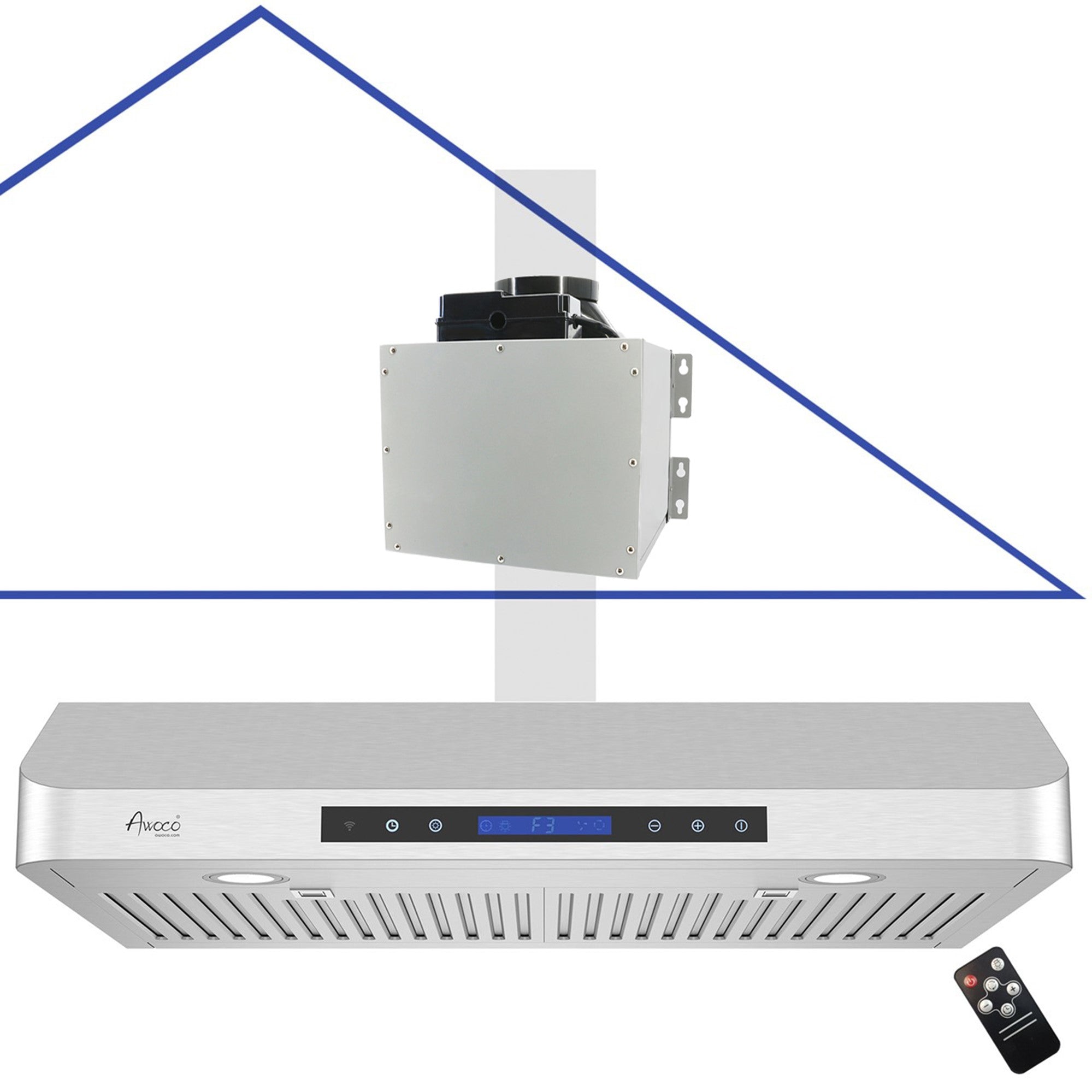

The restaurant exhaust fans are on the roof; therefore, moving the blower to the attic is the solution for residential installments to eliminate the range hood noise. Same as the industrial inline blower, this Blower unit is in between the house exhaust vent and the range hood unit.
Features
- High Quality Brushed Finish Stainless Steel.
-

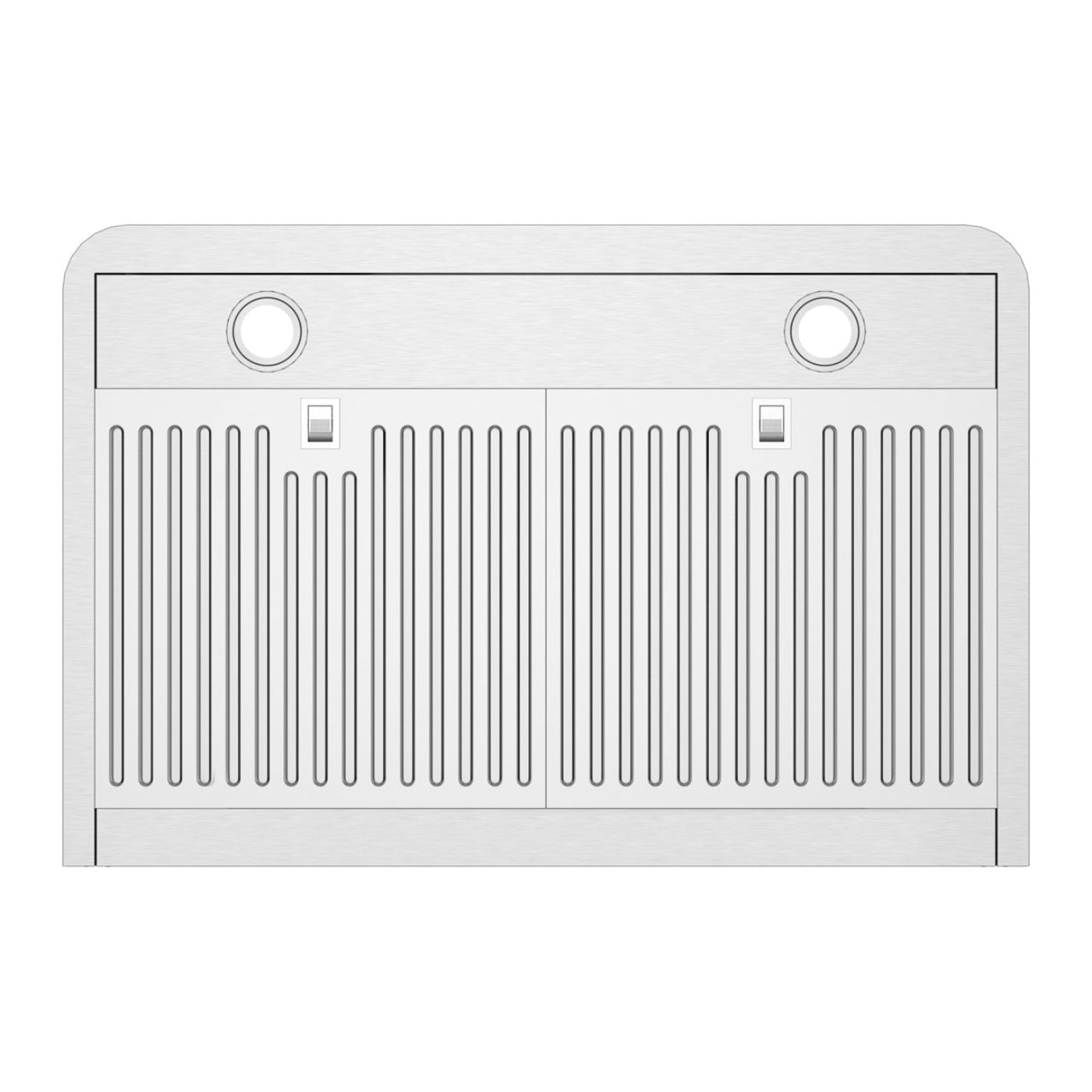

High-Quality Stainless-Steel Baffle Filters: Stainless steel baffle filters are adapted the concept from commercial baffle air filters, the grease is contained inside the filter trays, no oil cup needed.
Specifications
Mounting Type: Under Cabinet or Wall Mount for Hood unit; Attic lumber mounted for Blower unit

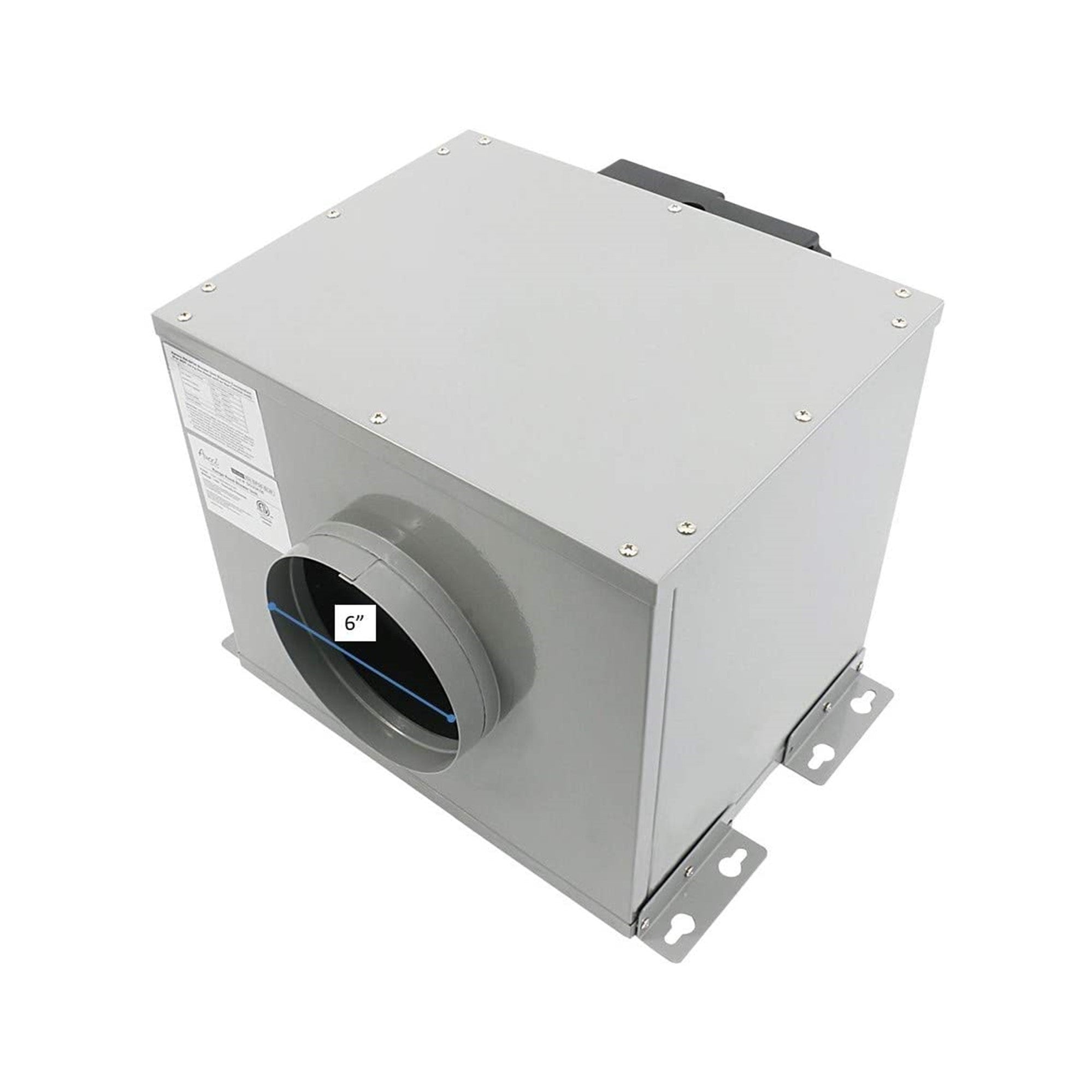

Venting Type: 6” round TOP vent for Hood unit; 6” round vent in and out for Blower unit
Hood Unit: 2 of 3W energy efficient cold bright LED Lights are bright enough to cover the whole cooktop.

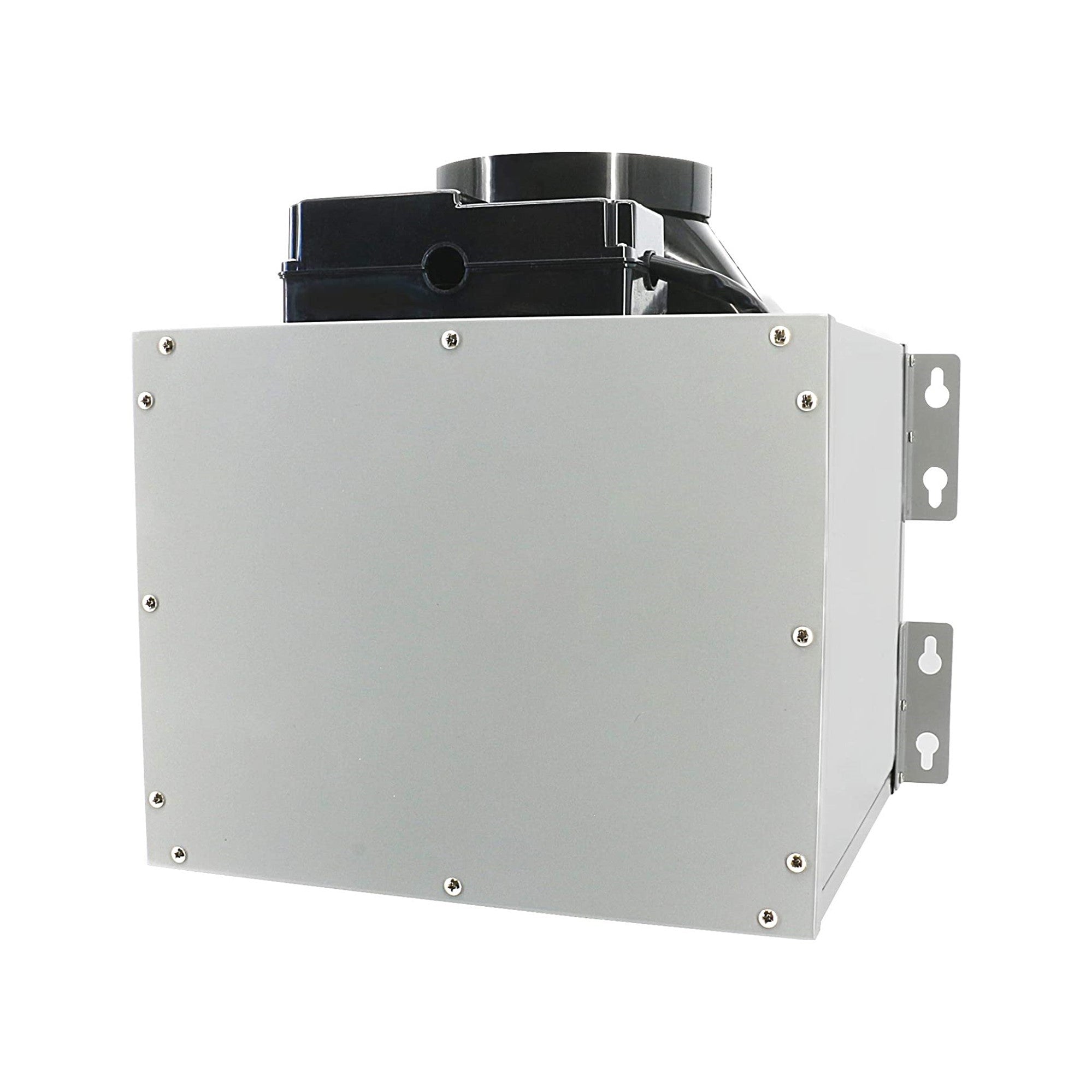

Blower Unit: 1 Motor and 7” Centrifugal Squirrel Cage Fan Wheel
Power rating: 120V/60Hz, 180W Min /275W Max
Noise level at low: 38 dB, 2.0 sones. Noise level at high: 50 dB, 5.0 sones.
What Our Experts Think
Quiet Yet Powerful: With 800 CFM airflow, it effectively ventilates your kitchen while maintaining a quiet environment.
4-Speed Control: Choose from four speeds to match your cooking intensity, from light simmering to heavy frying.
Sleek Stainless Steel Design: The modern stainless steel finish adds style and durability to any kitchen.
Efficient LED Lights: Bright, energy-saving LED lighting enhances visibility for cooking and food prep.
Standard 6" Round Vent: Easily connects to most ventilation systems for a hassle-free installation.
Q&A
Q: What is the Awoco RH-SP06-T Super Quiet Split Stainless Steel Range Hood?
A: A quiet, high-performance range hood with 4 fan speeds, 800 CFM airflow, LED lights, and a 6" round top vent for efficient kitchen ventilation.
Q: What makes it special?
A: Its split motor design ensures quieter operation, while the 800 CFM airflow and LED lights enhance both functionality and kitchen ambiance.
Q: How many speeds does it have?
A: It features 4 adjustable fan speeds for tailored ventilation based on cooking needs.
Q: Is it easy to clean?
A: Yes, it has dishwasher-safe baffle filters for easy maintenance and a stainless steel body that resists grease buildup.
Q: Where can it be installed?
A: Ideal for residential kitchens, especially in homes with heavy cooking or high ventilation requirements.
Maintenance Tips
Clean stainless steel with a soft cloth and mild detergent.
Wash or replace grease filters regularly (every 1–3 months).
Replace charcoal filters every 3–6 months (if applicable).
Ensure the venting system is clear to maintain airflow.
Wipe LED lights with a dry cloth to maintain clarity.
