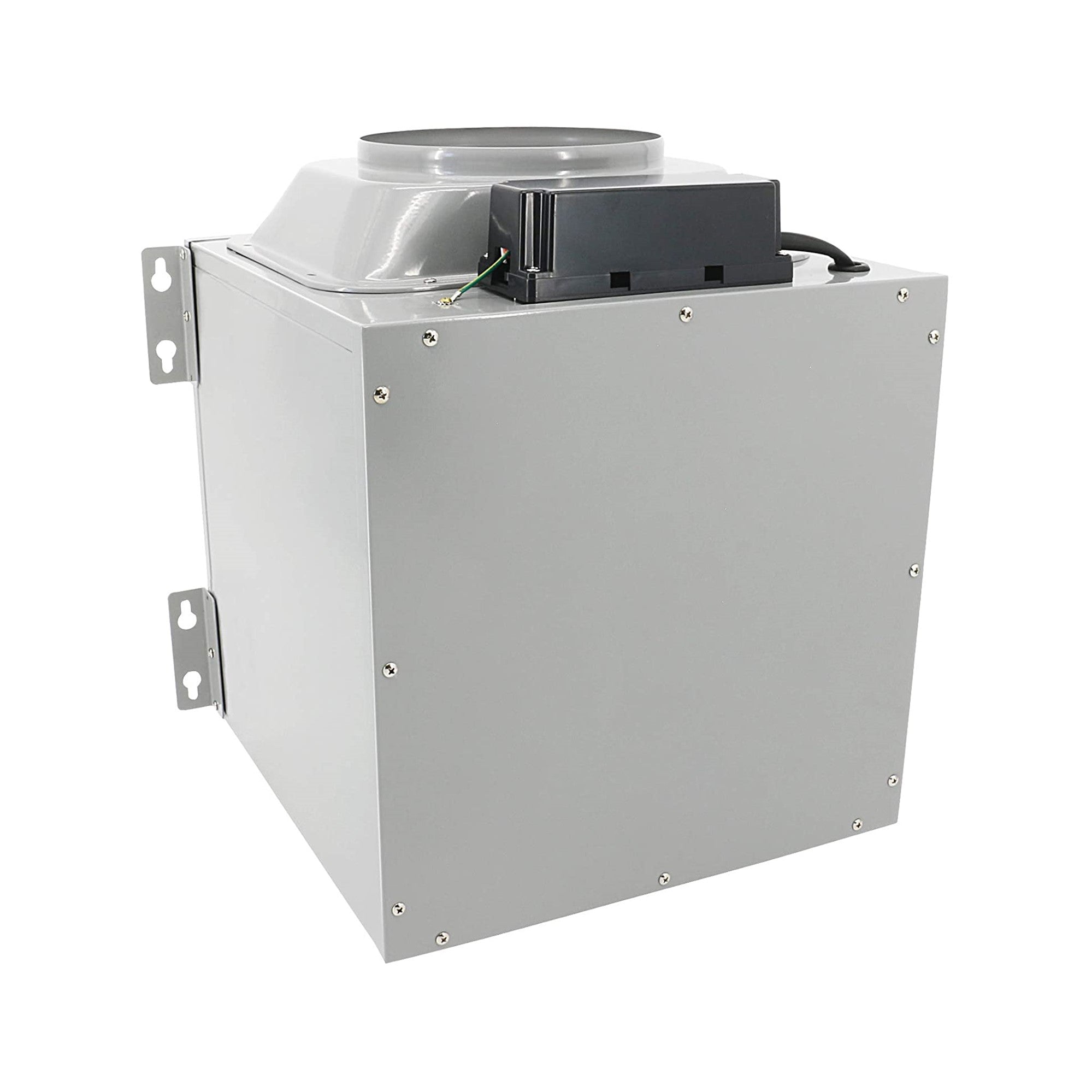

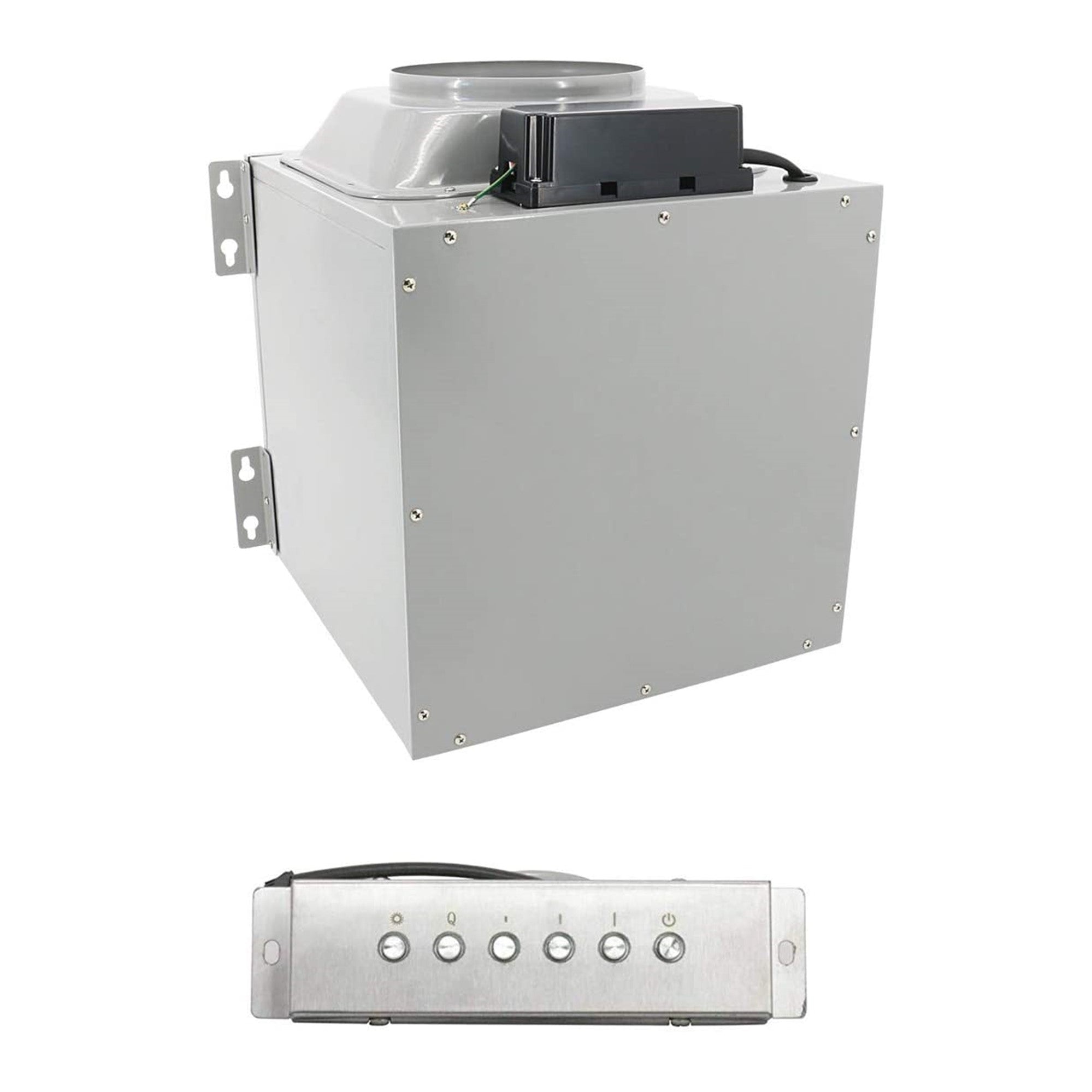

Awoco RH-SP08-BLW Powerful 8" Inline Blower Unit for Split Range Hoods, 4 Speeds, 8” Round Top Vent, 1000CFM - RH-SP08-BLW
- Inline Blower Unit: The Blower unit is mounted in the attic (above ceiling). Use this set up with your existing hood (the blowers inside the existing hood should be removed) or use it for extra air-circulation.

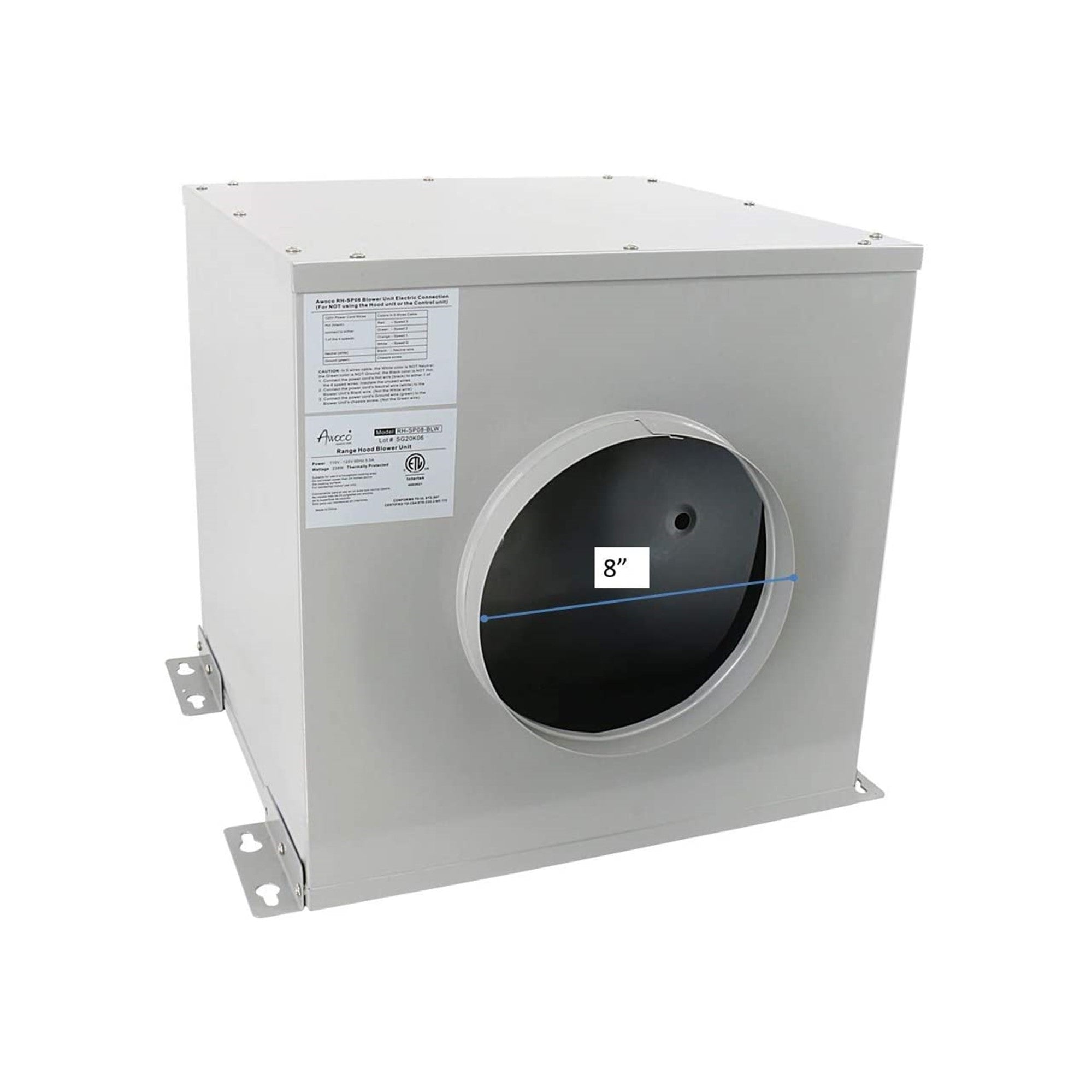

- 8” Round Vent: 8” round top air outlet and bottom air inlet. Again, No hood unit, no control, no air damper, no ducts are included. Use your own hood unit. CAUTION: please check your existing venting duct before purchasing, there are rectangle or round ducts at different sizes.
- Powerful and Quiet 4 Speeds Powerful Operation: 4 speeds (Quiet, I, II, III up to 1000 CFM), choose either one of the 4 speeds for your application. Refer to 5 wires connection instruction, consult with your electric technician before buying. NOTE: this motor speed is NOT changing by Frequency or Voltage! It is NOT compatible with Broan control system. Don't connect to the highest speed and various the speed.
- Installation Steps: Mount the Blower Unit in the attic, connect the 8” flexible round ducts (not provided) to the exhaust vent and the current hood vent. Connect the 120V power cord to the Blower unit.

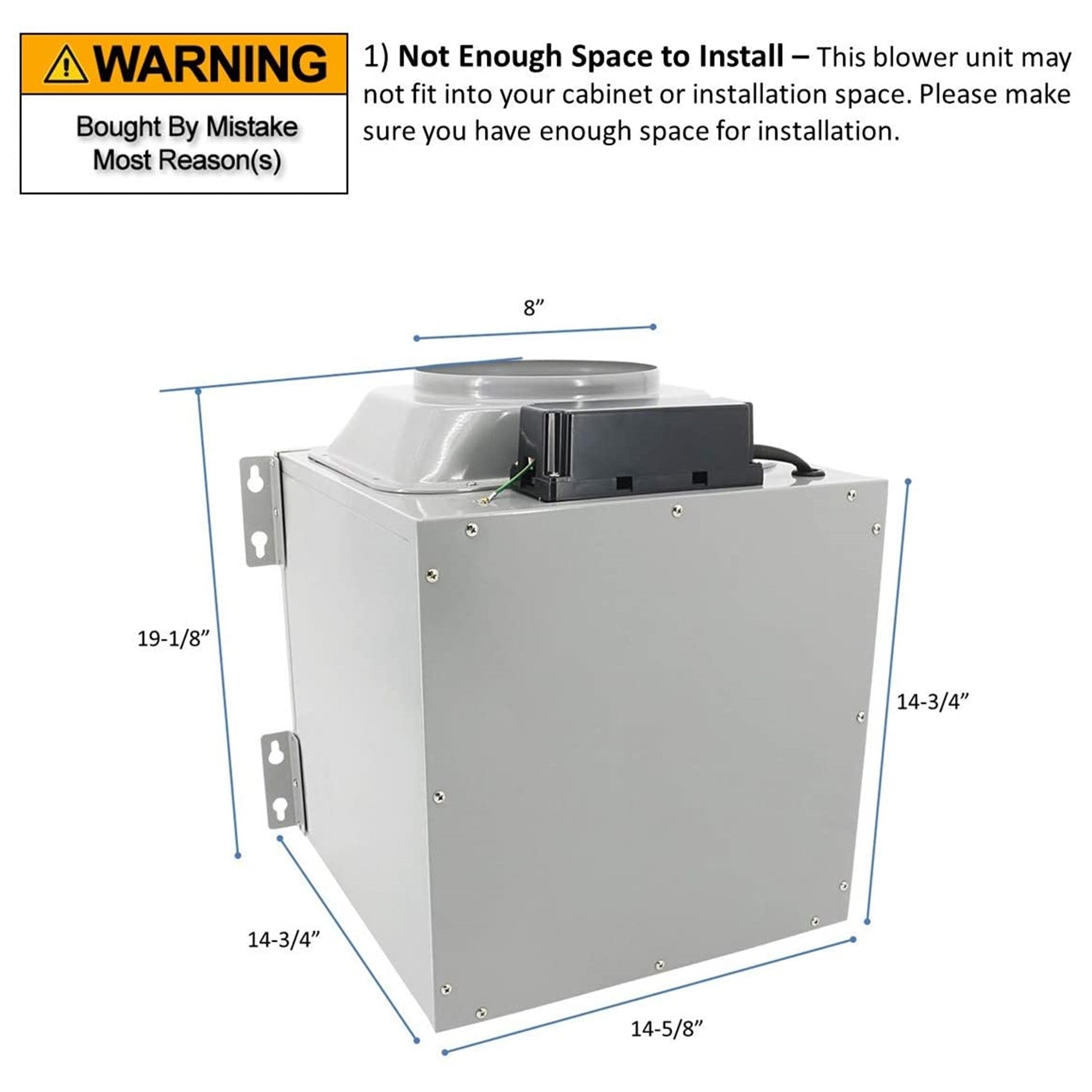

- 1 Year Limited Warranty: ETL Certified. Free parts, repair or exchange within 1 year. Awoco high quality product reputation and supreme customer service is a guarantee. Blower unit overall dimensions: 16-7/8"W (with 2 mounting brackets) x 14-3/4"D x 19-1/8"H. For 30", 36” or 42” kitchen ranges with 8” vent. Model No. RH-SP08-BLW
Why is it Quiet?
Most of the range hood noise is the sound of air whooshing the steam away. The blower exhausts the air out, sucking the nearby air into one direction. For example, the house fan has bigger noise at higher speed, the sound is from the air collision, not the motor. High speed air collision is the cause of the powerful range hood.
The restaurant exhaust fans are on the roof; therefore, moving the blower to the attic is the solution for residential units to eliminate the range hood noises. Same as the industrial inline blower, this Blower unit is in between the house exhaust vent and the range hood unit.
Powerful and Quiet, Still Using Your Own Hood
Keep your own hood unit but improve the exhausting performance and quiet operation. Mount the Blower unit in the attic and keep the kitchen quiet.
Choose any of the 4 speeds

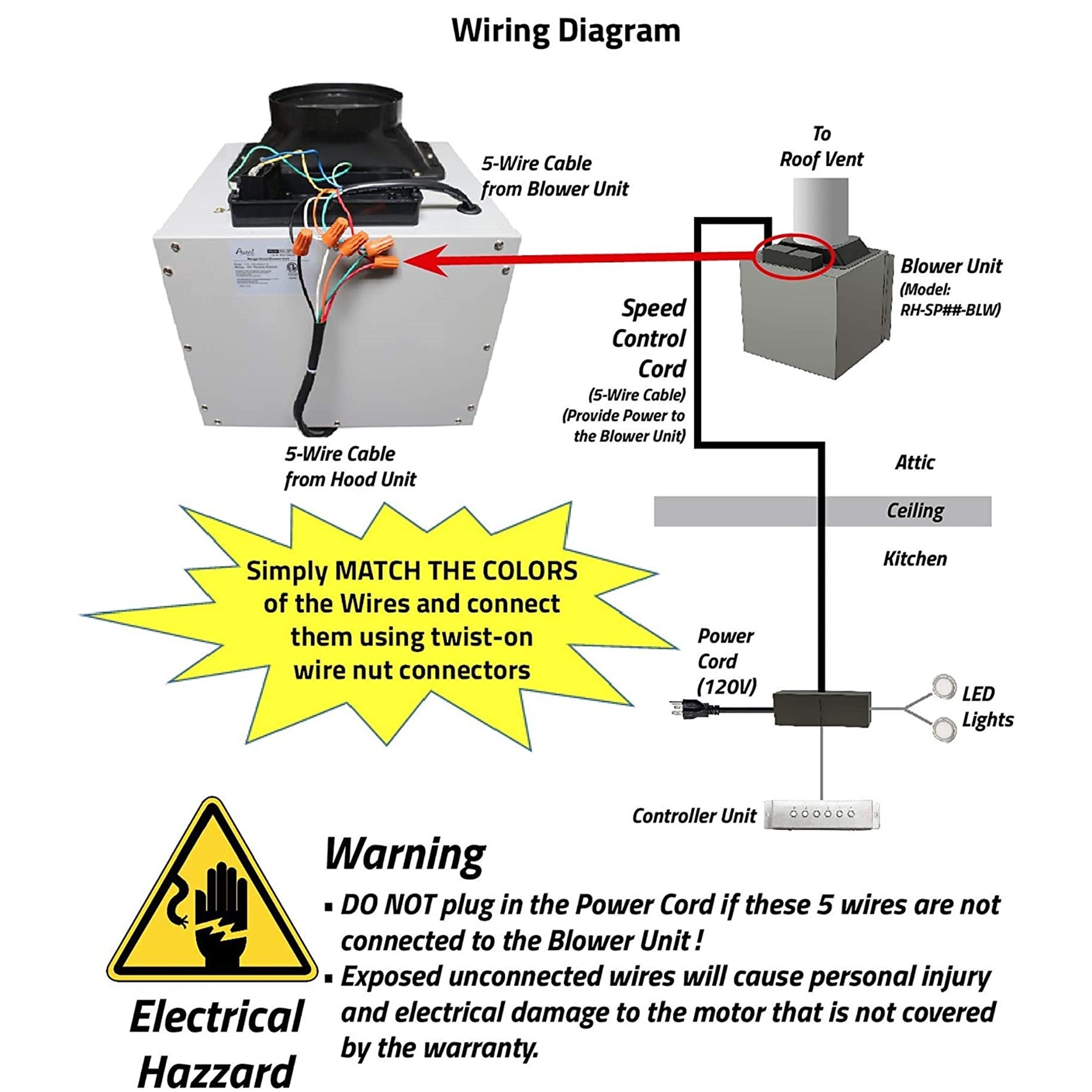

No control unit included. Please consult with your electrical technician before buying. Connect either one of 4 speeds wire to 120V Hot wire, then connect the Black wire to the Neutral wire from the power cord as shown in the 5 wires connection instruction.
Specifications
Venting Type: 8” round vent for air inlet and outlet.
1 Motor and 2 of 5” Centrifugal Squirrel Cage Fan Wheels
Power rating: 120V/60Hz, 135W Min /250W Max, more power than the 6” Blower Unit
Noise level at low: 40 dB, 2.5 sones. Noise level at high: 58 dB, 8.0 sones.
Note: NO air damper on 8” top air outlet
Product Manual
VIEW / DOWNLOAD
Videos
AWOCO 101 VIDEOS
What Our Experts Think
-
1000 CFM Power: Delivers robust ventilation, effectively clearing smoke, steam, and odors for a clean kitchen.
-
4-Speed Control: Customize airflow intensity to match different cooking styles and needs.
-
8" Round Top Vent: Standard and easy installation, ensuring a seamless connection to your range hood for optimal performance.
-
Durable Construction: Built to last with high-quality materials for long-lasting, reliable performance.
-
Quiet Operation: Operates efficiently while keeping noise levels to a minimum, even at maximum speed.
Q&A
Q: What is the Awoco RH-SP08-BLW Inline Blower Unit?
A: A powerful inline blower unit designed for split range hoods, featuring 4 speeds, 1000 CFM airflow, and an 8” round top vent for efficient ventilation.
Q: What makes it special?
A: With 1000 CFM airflow and 4 fan speeds, it provides strong ventilation with quiet operation, ideal for larger kitchens or commercial setups.
Q: What is the vent size?
A: It features an 8” round top vent for optimal airflow.
Q: How many fan speeds does it have?
A: It offers 4 adjustable fan speeds to customize ventilation performance.
Q: Is it easy to install?
A: Yes, it’s designed for easy integration with compatible split range hoods.
Q: Where can it be used?
A: Perfect for use in both residential and commercial kitchens when paired with a compatible range hood for enhanced ventilation.
Maintenance Tips
- Clean the blower unit regularly to prevent buildup of dust and debris.
- Check the 8” round top vent for obstructions to ensure smooth airflow.
- Inspect and replace the blower fan as needed for consistent performance.
- Ensure all electrical connections are secure and free from wear.
- Lubricate the motor if recommended by the manufacturer to maintain quiet operation.
