Awoco RH-SP08-T Super Quiet Split Stainless Steel Under Cabinet Range Hood, 4 Speeds, 8" Round Top Vent, 1000CFM, with LED Lights - RH-SP08-T30
-
SUPER QUIET INNOVATIVE SPLIT COMPLETE SET: includes Hood unit and Blower unit. This builds a super quiet split range hood system; the Blower unit is mounted in the attic. Dishwasher safe stainless steel baffle filters, the oil is contained in the baffle filters, no oil holders needed. Up to 15 minutes auto shut off to vent the leftover smoke after you are done cooking.
-
UNDER CABINET OR WALL MOUNTED: high quality stainless steel with brush finishing. 6" high, round front corners. Perfectly fit under the 12” deep standard cabinet; provide slick style and powerful performance.
-
DUCTED VENT OUTSIDE, 8” ROUND TOP VENT: 8” round top exhaust vent on Hood Unit and 8” round vent for Blower Unit. 12 ft connection wire from hood to blower unit.
-
4 SPEEDS POWERFUL OPERATION WITH LED LIGHTS: 4 speeds (Quiet, I, II, III up to 1000 CFM), touch panel with remote control. 12 Hr clock displayed at idle. 2 of 3W energy saving cold bright LED lights. 1 motor and 2 of 5” wide Centrifugal Squirrel Cage Fan Wheels.
-
Power rating: 120V/60Hz, 180W Min /275W Max. Power cord with plug is included. Noise level at high: 50 dB, 5.0 sones.
-
1 YEARS LIMITED WARRANTY: Free parts, repair or exchange within 1 year. Awoco high quality product reputation and supreme customer service is a guarantee.
-

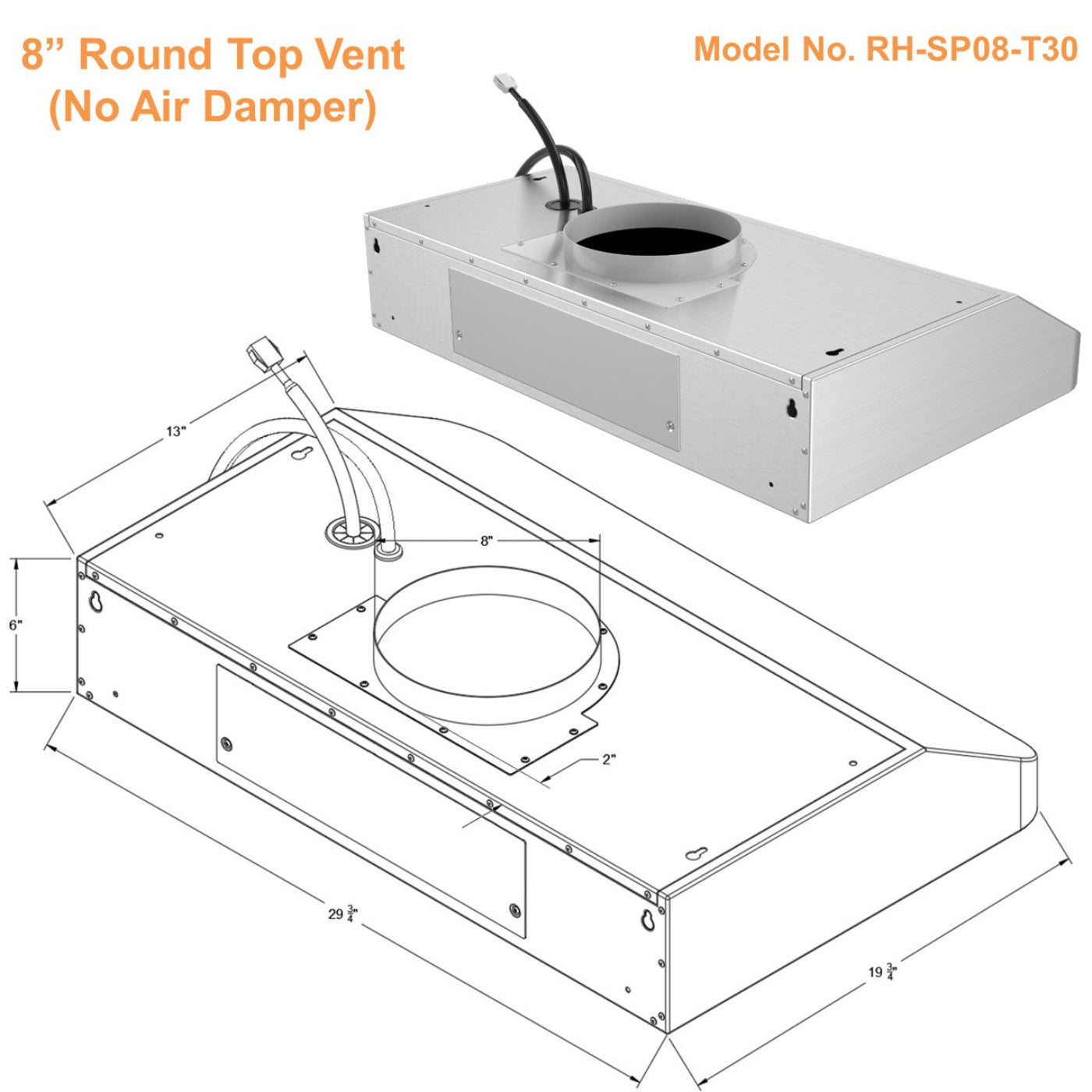

30" Hood Dimensions: 29-3/4"W x 19-3/4"D x 6"H. Hood weight: 17.8 lbs.
-

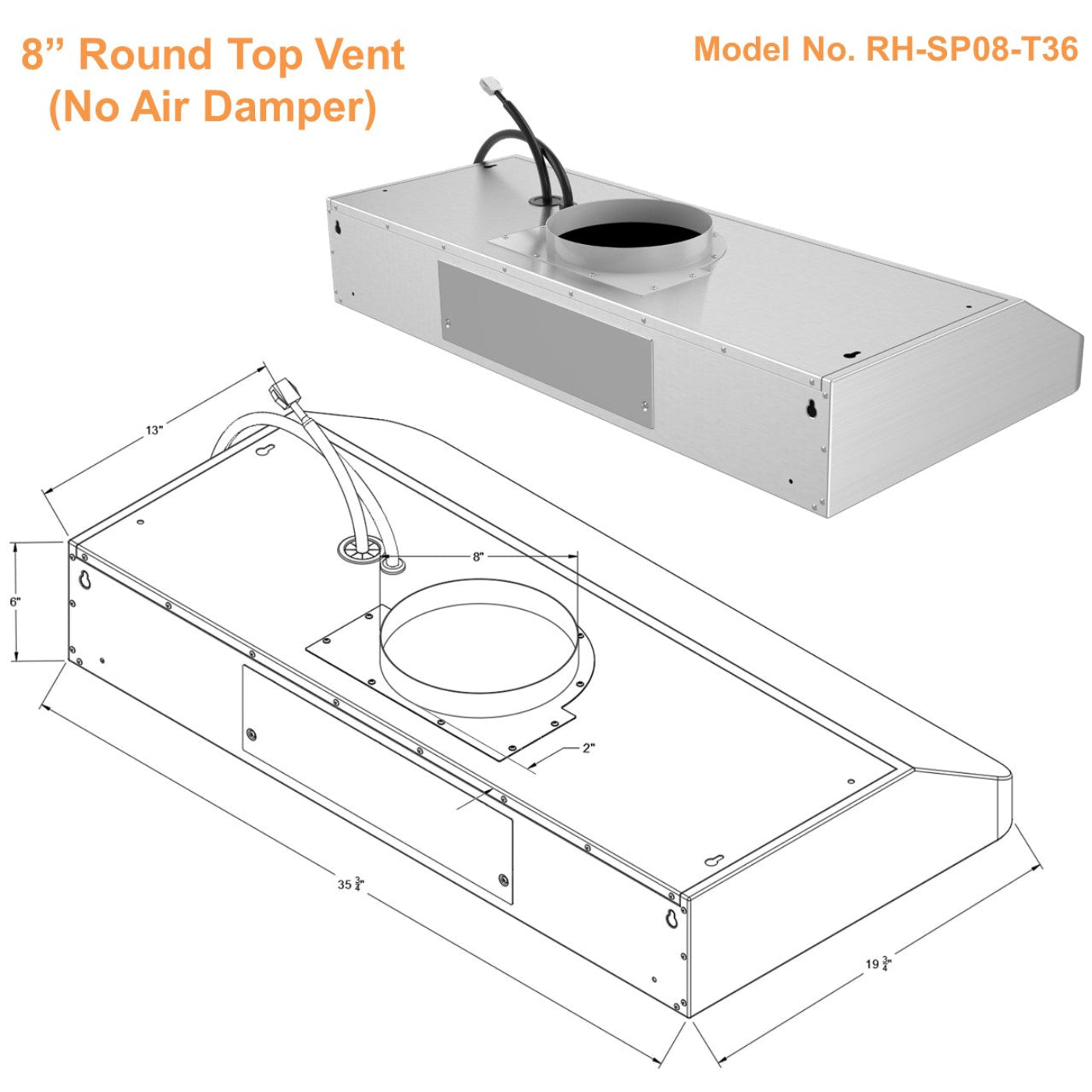

36" Hood Dimensions: 35-3/4"W x 18-3/4"D x 6"H. Hood weight: 20.8 lbs.
-
42" Hood Dimensions: 41-3/4"W x 19-3/4"D x 6"H. Hood weight: 30 lbs.
-

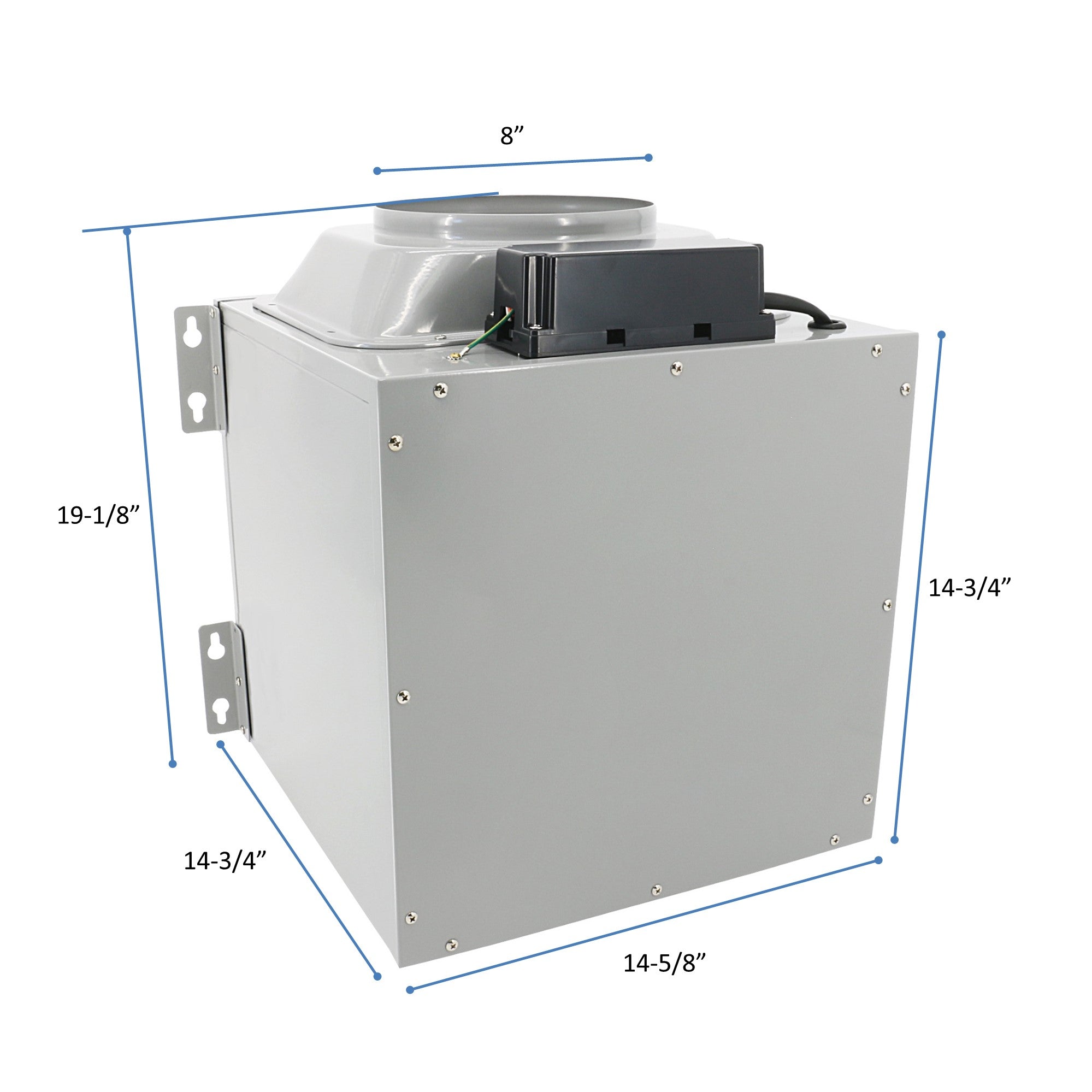

Blower Dimensions: 14-5/8"W x 14-3/4"D x 19-1/8"H. Blower weight: 27.5 lbs.
Why It Is Quiet?
Most of the range hood noise is the sound of air whooshing the steam away. The blower exhausts the air out, sucking the nearby air to one direction. For example, the house fan has bigger noise at higher speed, the sound is from the air collision, not the motor. High speed air collision is the cause of the powerful range hood.

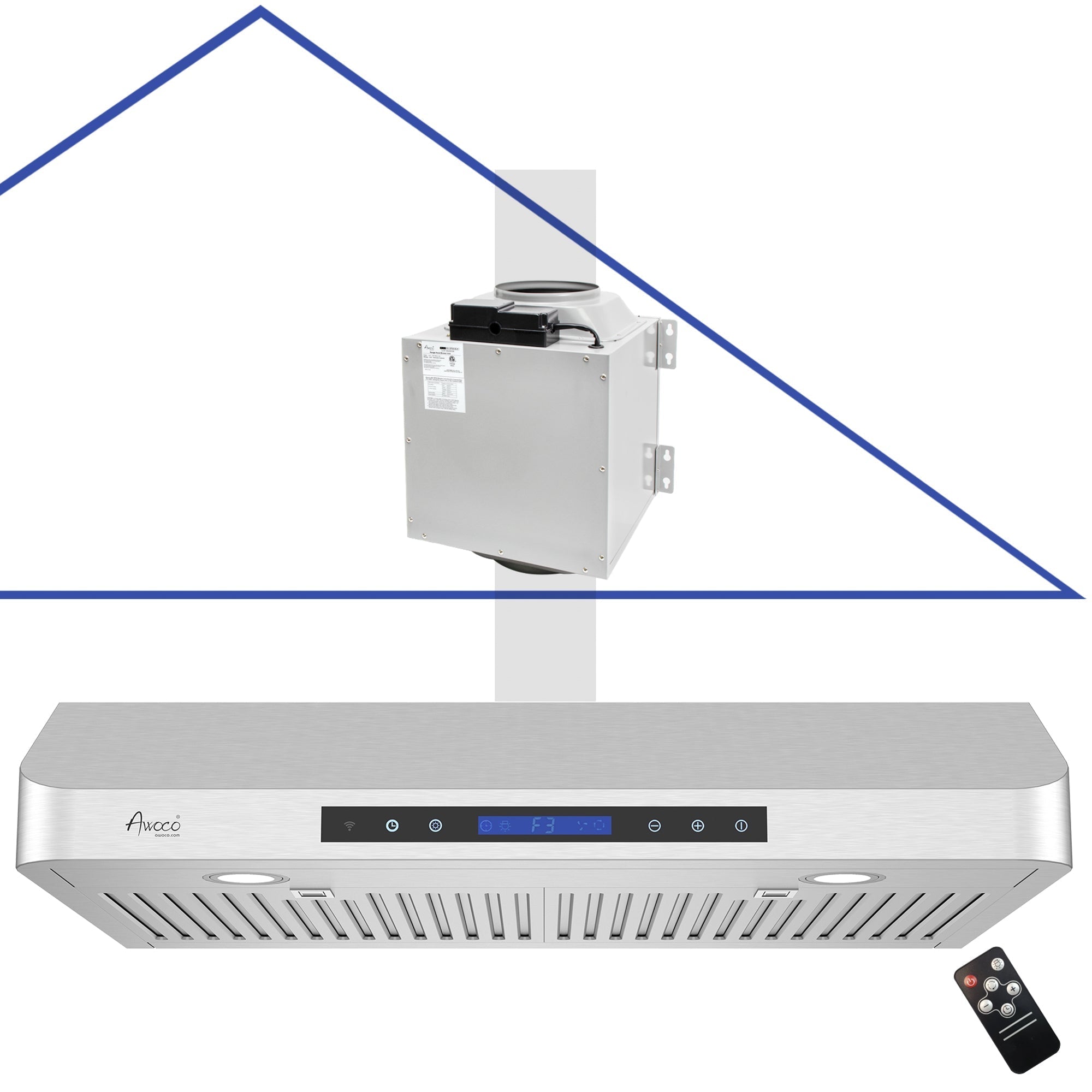

The restaurant exhaust fans are on the roof; therefore, moving the blower to the attic is the solution for residential to eliminate the range hood noise. Same as the industrial inline blower, this Blower unit is in between the house exhaust vent and the range hood unit.
Features
- Stainless steel baffle filters are adapted from the concept of commercial baffle air filters, the grease is contained inside the filter trays, no oil cup needed.
Specifications
- Mounting Type: Under Cabinet or Wall Mount for Hood unit; Attic lumber mounted for Blower unit
- Venting Type: 8” round TOP vent for Hood unit; 8” round vent in and out for Blower unit
- Hood Unit: 2 of 3W energy efficient cold bright LED Lights are bright enough to cover the whole cooktop.
- Blower Unit: 1 Motor and 7” Centrifugal Squirrel Cage Fan Wheel
- Power rating: 120V/60Hz, 180W Min /275W Max
- Noise level at low: 38 dB, 2.0 sones. Noise level at high: 50 dB, 5.0 sones.
Product Manual
VIEW / DOWNLOAD
Videos
AWOCO 101 VIDEOS
What Our Experts Think
-
Powerful 1000 CFM: Delivers high-efficiency ventilation to remove smoke, odors, and grease with ease.
-
Super Quiet Operation: Even at full speed, this range hood operates quietly, ensuring a peaceful cooking environment.
-
4-Speed Settings: Versatile airflow control to match different cooking intensities, from light to heavy-duty.
-
Sleek Stainless Steel Design: Durable, modern finish that complements any kitchen decor.
-
Energy-Efficient LED Lights: Bright illumination for better cooking visibility while saving energy.
-
8" Round Top Vent: Easy installation with standard 8" vent connection for efficient airflow.
Q&A
Q: What is the Awoco RH-SP08-T Super Quiet Split Stainless Steel Under Cabinet Range Hood?
A: A high-performance under-cabinet range hood featuring 4 fan speeds, 1000 CFM airflow, LED lights, and an 8" round top vent for effective kitchen ventilation.
Q: What makes it special?
A: It combines a split motor design for quieter operation with a powerful 1000 CFM airflow, LED lights for added visibility, and easy-to-use controls.
Q: What is the vent size?
A: It uses an 8" round top vent for optimal airflow and efficient venting.
Q: How many fan speeds does it have?
A: It offers 4 adjustable fan speeds for customizable ventilation based on your cooking needs.
Q: Is it easy to clean?
A: Yes, it features dishwasher-safe filters and a durable stainless steel body that resists grease buildup.
Q: Where can it be installed?
A: Ideal for under-cabinet installations in residential kitchens, perfect for high-performance, quiet ventilation.
Maintenance Tips
- Clean stainless steel with a soft cloth and mild detergent to avoid scratches.
- Wash grease filters monthly with warm, soapy water or in the dishwasher.
- Replace the charcoal filter every 3–6 months (if installed).
- Ensure the venting system is clear for optimal airflow.
- Wipe LED lights with a dry cloth to keep them in good condition.
