| Voltage |
115V, 60Hz |
| Phase |
Single Phase |
| Air Dryer CFM |
25 CFM |
| Refrigerant |
R134a |
| Max Working Pressure |
232 PSI / 16bar |
| Max Inlet Temp. Rating |
122°F |
| Max Ambient Temp. Rating |
104°F |
| Non-Cycling |
Yes |
| Auto Drain |
Yes |
| Product Dimensions |
9" x 22" x 22" |
| Shipping Weight |
42 lbs. |
What Our Experts Think

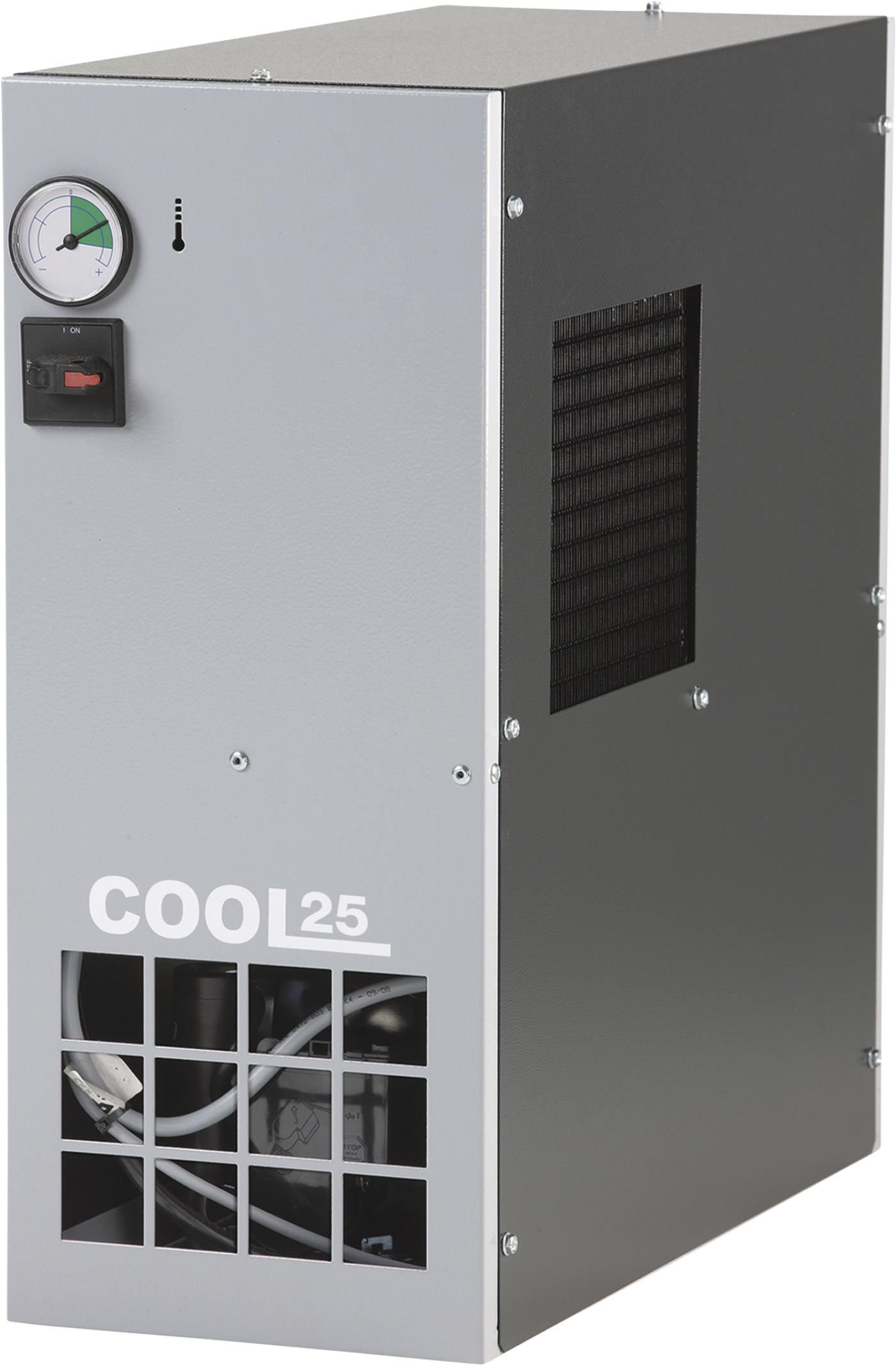

The Belaire Cool25 Refrigerated Air Dryer is a compact and efficient solution for maintaining dry compressed air in low to moderate-demand applications.
-
25 CFM Capacity – Ideal for small air systems and workshops.
-
Non-Cycling Operation – Provides consistent moisture removal and dew point control.
-
115V Power Supply – Simple installation with standard electrical outlets.
-
Prevents Corrosion & Contamination – Enhances the lifespan of air tools and equipment.
Q&A
Q: What are the key features of the Belaire Cool25 Refrigerated Air Dryer?
A: The Belaire Cool25 is a non-cycling refrigerated air dryer with a 25 CFM capacity, 115V power supply, and efficient moisture removal system, ensuring dry and clean compressed air.
Q: What does a refrigerated air dryer do?
A: It removes moisture and condensation from compressed air to prevent rust, corrosion, and damage to pneumatic tools and equipment.
Q: What size air compressors is this compatible with?
A: It is ideal for small air compressors producing up to 25 CFM of air.
Q: Does it have an automatic drain system?
A: Yes, it includes a built-in automatic condensate drain to efficiently remove collected moisture.
Q: Is it a cycling or non-cycling air dryer?
A: It is a non-cycling model, meaning it operates continuously to maintain a consistent dew point.
Q: What power supply is required?
A: It runs on a standard 115V power outlet, making it easy to install in most industrial and workshop settings.
Q: What is the maximum air pressure it can handle?
A: It supports compressed air systems with a maximum pressure of 175 PSI.
Q: What is the dew point rating?
A: The unit typically maintains a dew point of around 39°F (4°C) for effective moisture control.
Q: Is professional installation necessary?
A: While not required, proper piping and setup by a professional can enhance performance and longevity.
Q: Does it come with a warranty?
A: Belaire generally offers a manufacturer’s warranty—check product details for specific coverage.
Maintenance Tips
-
Clean or Replace Air Filters – Maintain proper airflow and efficiency by regularly servicing filters.
-
Inspect the Drain System – Ensure the automatic drain valve is clear and functioning to prevent moisture buildup.
-
Monitor Refrigerant Levels – Low refrigerant affects cooling performance; check periodically.
-
Keep Condenser Coils Clean – Remove dust and debris from coils to optimize heat dissipation.
-
Ensure Proper Ventilation – Position the unit in a well-ventilated area to prevent overheating.
-
Check Electrical Components – Regularly inspect wiring and connections for any wear or loose connections.
-
Prevent Airflow Blockages – Keep intake and exhaust areas free of obstructions for efficient drying.
-
Follow Manufacturer’s Maintenance Schedule – Routine servicing helps extend the unit’s lifespan and maintain performance.
