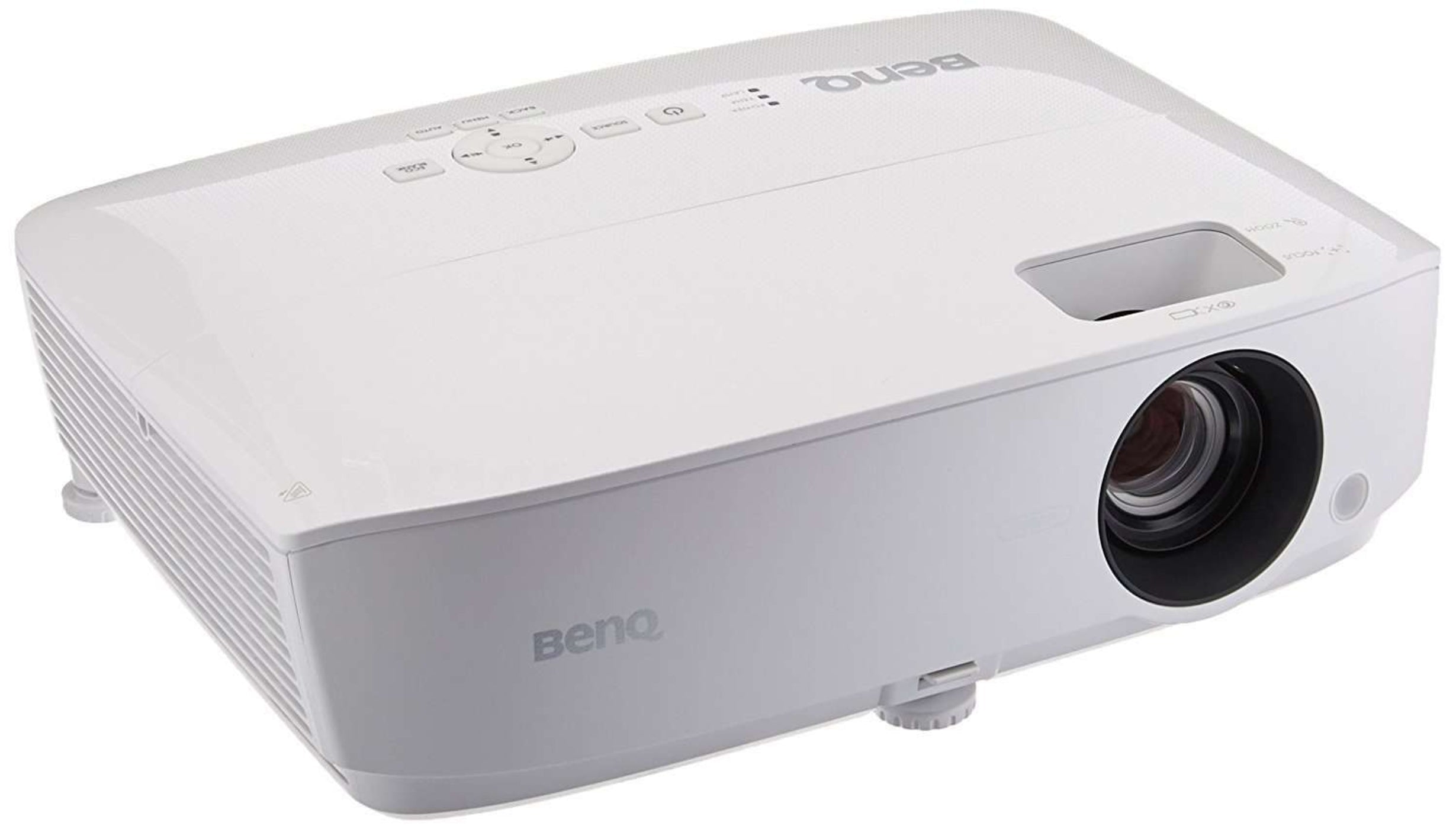

BenQ MH530FHD 1080p 3300 ANSI Projector Manufacturer RFB - MH530FHD
Features
Big, Bright, and Long-Lasting Quality Picture
Made for simple, reliable performance for your home, day in and day out, the BenQ MH530FHD combines bright big-picture quality, intuitive hassle-free operation, and convenient digital connectivity with environmentally conscious power savings and budget-friendly cost.
Brightness & High Contrast
Clearly a Bright Choice
3,300 lumens of high brightness provides comfortable entertainment in well-lit rooms. The high luminance boosts picture quality with vibrant color for pictures and videos as well as crisp text and fine details.
High Native Contrast for Superior Image Quality
Powerful 15,000:1 native contrast enabled for state-of-the-art DLP technology and all-glass 5G optical lens systems deliver ultimate clairty, smooth gradational mid-tone color transitions, and razor-sharp scenes.
Intelligent Functionality for Intuitive Operation
Multiple HDMI and VGA Inputs for Universal Connectivity
Dual HDMI inputs in addition to dual VGA inputs make it easy to connect to your favorite movie, event or game. Multiple, standard inputs make setup less complicated and saves time for your family to get to the fun.
Big Screen Fun
Enjoy on a 100" screen. Short-throw technology and a 1.2 big zoom allows the projector to be positioned in small spaces with hassle free installation.
Vertical Keystone Correction for Perfectly Aligned Images
Contering the trapezoid effect when the projector must be placed off-center, such as simple placement on top of a table, the vertical keystone function adjusts the image for a perfectly squared image. Keystone correction makes it simple to project ideally algined images from a variety of locations.
Designed for Convenient Room-to-Room Portability
A sleek, compact design with a sculptured patterened cabinet resists dirt and fingerprints as the projector is moved from one room to another. The intuitive keypad and remote control layout simplifies picture adjustment to the next room you move the projector to.
Intelligent Eco-Friendly Functionality for Optimized Presentations
Maximum Power Savings with BenQ Exclusive SmartEco™ Technology
An exclusive BenQ innovation, SmartEco Technology perfects DLP's energy saving capabilities, simultaneously delivering uncompromised brightness, exquisite picture quality, optimized lamp life with reduced lamp usage and TCO. SmartEco enables corporations to minimize lamp power consumption and maintenance costs through dynamic power saving features while bringing ultra-vivid viewing experiences into every presentation.
SmartEco Mode
Detecting the input content to determine the amount of brightness required for optimum color and contrast performance, SmartEco Mode reduces lamp power while delivering the finest image quality without compromise.
Eco Blank Mode
Automatically deployed when the projector is turned on for over three minutes without a display source, Eco Blank Mode eliminates unnecessary energy waste and prolongs the life of the projector lamp, saving up to 70% lamp power and blanking the screen.
LampSave Mode
Fewer lamp replacements and maintenance translates into an overall lower cost of ownership. LampSave mode adjusts lamp power dynamically according to content to extend projector lamp life up to 50% compared to normal mode.
BenQ DLP Projectors
Long Lasting Picture Quality with DLP Projection Technology
Digital Light Processing (DLP), awarded 2015 Academy Award of Merit (Oscar statuette), is the leading projection technology used in 90% of the world's digital cinemas and 100% of IMAX theaters. With DLP dominating the worldwide projector market with over 50% share, BenQ is the #1 bestselling DLP manufacturer today.
Entertianment Ready When You Are

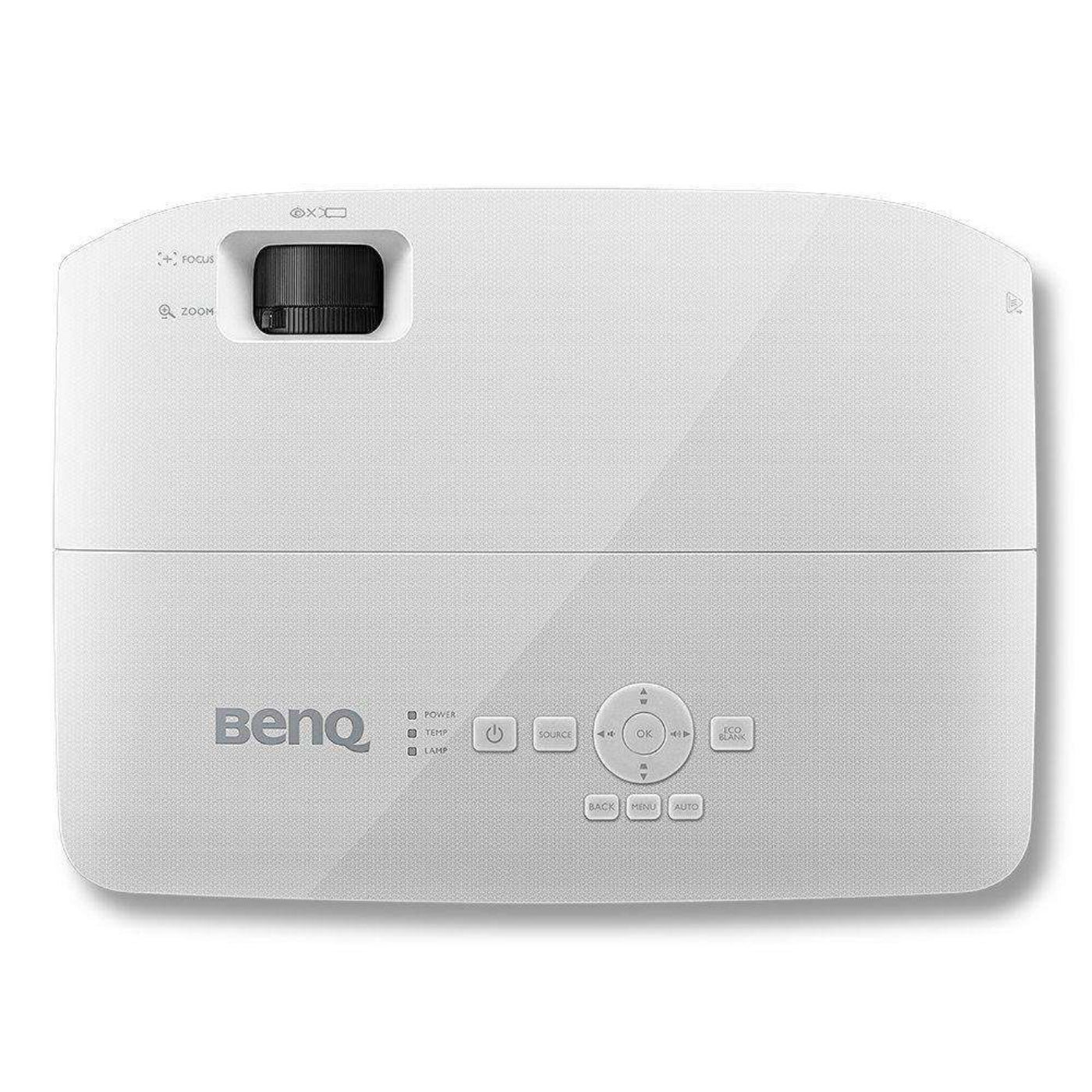

One-Touch Access to Installation Functions
Thoughtfully redesigned, the new remote control includes a dedicated Quick Install button, which instantly accesses installation-friendly functions such as Test Pattern and Keystone directly without selecting nested menus in the On-Screen Display.
Convenient Outer Adjustment Feet
Far superior to projectors with only one adjustment foot, the triple adjustment feet significantly enhance flexibility in a wide variety of meeting rooms, with the additional feet placed in the corners or the projector to facilitate easy movement.
Quick-Access Top Lamp Door for Efficient Replacement
Conveniently placed on the top, an easy-to-open lamp door allows fast lamp access, maintenance, and replacement for uninterrupted productivity whether the projector is placed on a table-top or ceiling mounted in meeting rooms. The quick-access lamp door significantly reduces downtime by eliminating the need to uninstall mounted projectors, making lamp changes a quick and simple process.
Accurate Color
BenQ DLP Projectors produce the most intense realistic colors and vivid images possible. It also combines pioneering BenQ innovations such as interchangeable six-segment color wheels with DLP BrilliantColor™ Technology.
Long Lasting Performance
The incredibly durable micromirrors of the DLP chip and the factory seal DLP engine design means that BenQ DLP projectors stand the test of time without any loss in picture quality. Eliminating dust buildup and heat damage, BenQ projectors shine year after year and look as good as new with a simple lamp change.
Razor-Sharp Images
Critically acclaimed for industry-leading high contrast, BenQ DLP projectors also produce the most crisply defined sharpness for crystal-clear details and legible text by maximizing the fill ratio of individual pixels and employing exclusive BenQ SmartEco Technology.
What is the box
-
BenQ MH530FHD Projector
-
Remote
-
Lens cover
-
Battery
-
Quick start guide
-
User manual CD
Specifications
| Model |
MH530FHD |
| Projection System |
DLP |
| Native Resolution |
1080p (1920 x 1080) |
| Brightness (ANSI Lumens) |
3300 ANSI Lumens |
| Contrast Ratio |
15,000:1 |
| Display Color |
1.07 Billion Colors |
| Lens |
F=2.42-2.62, f=19.0-22.65 mm |
| Aspect Ratio |
Native 16:9 (5 aspect ratios selectable) |
| Throw Ratio |
1.37~1.64 |
| Image Size (Diagonal) |
60"~300" |
| DMD Type |
DC3 |
| Zoom Ratio |
1.2x |
| Lamp Type |
UHP 203W |
| Lamp Life |
- 4500 hours (Normal) |
| - 6000 hours (Eco) |
|
| - 10,000 hours (SmartEco) |
|
| Keystone Correction |
Yes |
| Projection Offset |
Vertical: 107% ± 2.5% (Full image height) |
| Resolution Support |
VGA (640 x 480) to WUXGA_RB (1920 x 1200) *RB = Reduced blanking |
| Horizontal Frequency |
15 - 102KHz |
| Vertical Scan Rate |
23 - 120Hz |

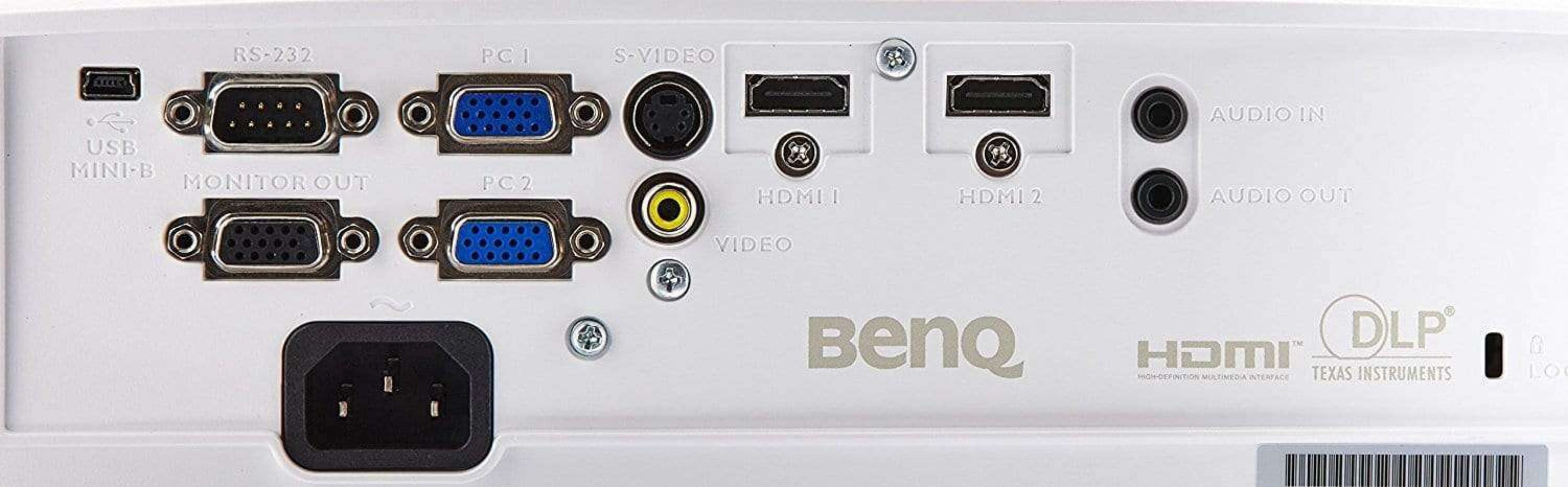

| Interfaces |
- Computer in (D-Sub 15pin) x2 (integrated with component) |
| - HDMI x2 |
|
| - Monitor out x1 |
|
| - Composite Video in (RCA) x1 |
|
| - S-Video in x1 |
|
| - Audio in (Mini Jack) x1 |
|
| - Audio out (Mini Jack) x1 |
|
| - USB (Mini B) x1 |
|
| - RS232 (DB-9pin) x1 |
|
| - IR Receiver x1 (Front) |
|
| Speaker |
2W x 1 |
| Security |
Security bar / Kensington Security Slot |
| Dimensions (W x H x D) |
332.4 x 99 x 214.3 mm (13.09 x 3.9 x 8.44 in) |
| HDTV Compatibility |
480i, 480p, 576i, 567p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| 3D Support and Compatibility |
- Frame Sequential: Up to 60Hz 720p |
| - Frame Packing: Up to 24Hz 1080p |
|
| - Side by Side: Up to 24Hz 1080p |
|
| - Top Bottom: Up to 60Hz 1080p |
|
| Weight |
5.33 lbs (2.42 Kg) |
| Audible Noise (Normal/Economic Mode) |
32 dBA / 29 dBA |
| Power Supply |
AC100 to 240V, 50 to 60 Hz |
| Power Consumption |
- 260W (Max) |
| - 252W (Normal) |
|
| - 211W (Eco) |
|
| - Standby: <0.5W |
|
| On-Screen Display Languages |
28 Languages including English, Spanish, French, Italian, Russian, Japanese, Chinese, and more |
| Standard Accessories |
- Remote Control with Battery (5J.JG706.001) |
| - Power Cord (by region) |
|
| - VGA cable |
|
| Optional Accessories |
- Spare Lamp Kit (5J.JG705.001) |
| - 3D Glasses |
|
| - Ceiling mount |
|
What Our Experts Think
-
Stunning 1080p Resolution: The BenQ MH530FHD delivers full 1080p resolution, offering crisp and detailed visuals, ideal for home theater setups, presentations, and gaming.
-
Bright & Vibrant Images: With 3,300 ANSI lumens, this projector ensures bright and vivid images even in rooms with ambient light, making it perfect for various lighting conditions.
-
Long Lamp Life for Durability: The MH530FHD features an impressive lamp life of up to 15,000 hours, offering extended use without the need for frequent replacements.
-
Flexible Connectivity: With multiple input options, including HDMI and VGA, you can easily connect to a variety of devices, such as laptops, game consoles, and Blu-ray players.
-
Low Maintenance & Quiet: Designed for minimal maintenance, the MH530FHD is easy to operate and runs quietly, ensuring an uninterrupted viewing experience.
-
Versatile Use: Whether for home entertainment or professional settings, this projector’s performance and versatility make it a reliable choice for a range of applications.
Q&A
Q: What is the BenQ MH530FHD 1080p Projector designed for?
A: The BenQ MH530FHD is a 1080p projector designed to deliver bright, high-quality images with 3300 ANSI lumens of brightness. It's ideal for home theaters, classrooms, and conference rooms, offering sharp visuals and vibrant colors.
Q: What are the key features of the BenQ MH530FHD?
A: Key features include 1080p Full HD resolution, 3300 ANSI lumens brightness, a high contrast ratio for crisp details, multiple connectivity options (HDMI, VGA), and long-lasting lamp life. It also features an easy setup with keystone correction.
Q: What does the RFB model mean?
A: The RFB (Refurbished) model refers to a factory-refurbished unit that has been professionally restored to like-new condition, thoroughly tested for performance, and typically offered at a lower price than a new unit.
Q: Is the BenQ MH530FHD easy to install?
A: Yes, the MH530FHD is designed for easy installation with adjustable features like vertical keystone correction and a zoom lens to fine-tune the image placement in your space.
Q: Does the BenQ MH530FHD come with a warranty?
A: Yes, the refurbished BenQ MH530FHD comes with a warranty from the manufacturer, covering any defects or performance issues for a specified period after purchase.
Maintenance Tips
-
Lens Cleaning: Use a soft, microfiber cloth to gently clean the lens. Avoid using paper towels or abrasive materials to prevent scratches.
-
Clean the Air Filter: Check and clean the air filter every 1-3 months to prevent dust buildup. Use a vacuum or soft brush to remove dirt. A dirty filter can lead to overheating.
-
Ensure Proper Ventilation: Place the projector in a well-ventilated area and avoid obstructing the vents. This ensures adequate airflow for cooling and extends the projector's lifespan.
-
Monitor Lamp Usage: Keep track of lamp hours and replace the lamp when it's near the end of its lifespan to avoid reduced brightness or failure.
-
Store Safely: When not in use, store the projector in a dry, dust-free location. If possible, cover it with a protective case or cloth.
-
Inspect Connections: Check power cords, HDMI, and other cables regularly for wear. Ensure all connections are secure before use to avoid signal disruptions.
-
Unplug When Not in Use: Always turn off and unplug the projector after each use to conserve energy and prevent unnecessary wear on the components.
