| Power Management Function |
Power Management Function |
Automatic power off after 20 minutes without a display source |
Automatic power off after 20 minutes without a display source |
| Power Management Function |
|
|
|
| Automatic power off after 20 minutes without a display source |
|
|
|
| Lens Shift |
Lens Shift |
Vertical: +7.5% |
Vertical: +7.5% |
| Lens Shift |
|
|
|
| Vertical: +7.5% |
|
|
|
| Native Resolution |
XGA (1024 x 768) |
XGA (1024 x 768) |
|
| XGA (1024 x 768) |
|
|
|
| Brightness* (ANSI Lumens) |
5000 ANSI Lumens |
|
|
| Contrast Ratio |
5000:1 |
|
|
| Display Color |
1.07 Billion Colors |
|
|
| Lens |
F=2.45~3.07, f=15.78~25.12
|
F=2.45~3.07, f=15.78~25.12 |
|
| F=2.45~3.07, f=15.78~25.12 |
|
|
|
| Aspect Ratio |
Native 4:3 (5 aspect ratio selectable) |
Native 4:3 (5 aspect ratio selectable) |
|
| Native 4:3 (5 aspect ratio selectable) |
|
|
|
| Throw Ratio |
1.41~2.25 |
1.41~2.25 |
|
| 1.41~2.25 |
|
|
|
| Image Size (Diagonal) |
60"~240" |
|
|
| Zoom Ratio |
1.6X |
|
|
| Lamp Type |
370W |
|
|
| Lamp Mode (Normal/ Economic/ SmartEco/ LampSave/ LumenCare)* |
2000/2500 hours |
|
|
| Keystone Adjustment |
2D, Vertical & Horizontal ± 30 degrees |
2D, Vertical & Horizontal ± 30 degrees |
|
| 2D, Vertical & Horizontal ± 30 degrees |
|
|
|
| Projection Offset |
107.5% ±2.5% |
107.5% ±2.5% |
|
| 107.5% ±2.5% |
|
|
|
| Resolution Support |
VGA (640 x 480) to UXGA (1600 x 1200) |
VGA (640 x 480) to UXGA (1600 x 1200) |
|
| VGA (640 x 480) to UXGA (1600 x 1200) |
|
|
|
| Horizontal Frequency |
15 - 102KHz |
|
|
| Vertical Scan Rate |
24Hz~120Hz |
24Hz~120Hz |
|
| 24Hz~120Hz |
|
|
|

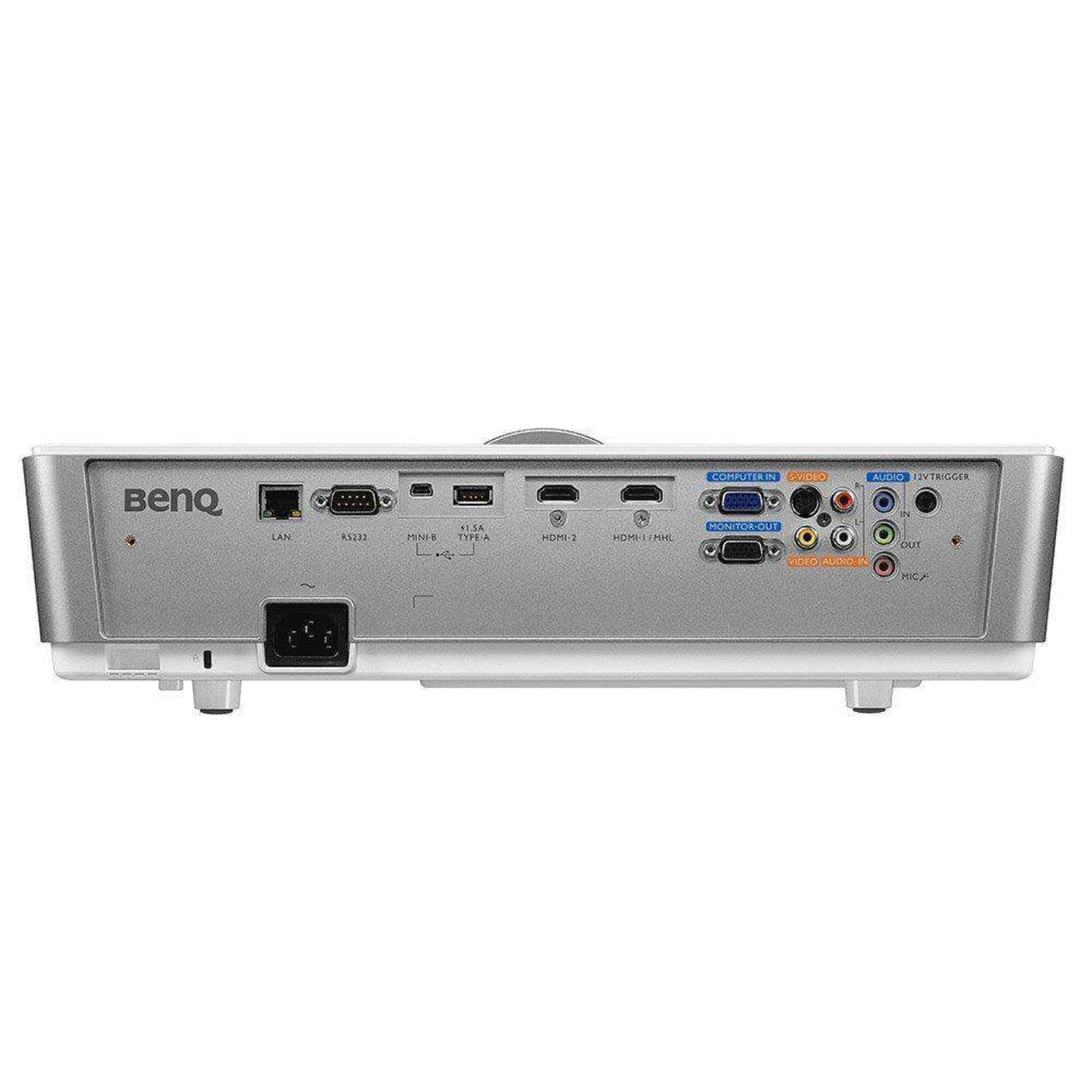

| Interface |
Computer In (D-sub 15pin) x 1 (Share with component) Monitor Out (D-sub 15pin) x 1 Composite Video In (RCA) x 1 S-Video In (Mini DIN 4pin) x 1 HDMI x 2 (one MHL) Audio In (Mini Jack) x 1 Audio L/R in (RCA) x 1 Audio Out (Mini Jack) x 1 Microphone-in (Mini Jack) x 1 20W Stereo Speaker LAN (RJ45) x 1 (LAN Control) USB (Type A) x 1 (1.5A power supply) USB (Type mini B) x 1 (Download) 12V Trigger x 1 RS232 (DB-9pin) x 1 IR Receiver x 2 |
|
|
| Dimensions (W x H x D mm) |
16.18 x 4.66 x 10.53 inches (411.4 x 118.4 x 267.5mm) |
16.18 x 4.66 x 10.53 inches (411.4 x 118.4 x 267.5mm) |
|
| 16.18 x 4.66 x 10.53 inches (411.4 x 118.4 x 267.5mm) |
|
|
|
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
|
| 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
|
|
|
| Video Compatibility |
NTSC, PAL, SECAM |
|
|
| Weight |
4.9 kg (10.8lbs) |
|
|
| Audible Noise (Normal/ Economic Mode) |
36 / 33 dBA (Normal/Economic mode) |
|
|
| Power Supply |
AC100 to 240V, 50 to 60 Hz |
|
|
| Power Consumption |
Typical 490W, Network Standby <6W, Stanby Power <0.5W |
Typical 490W, Network Standby <6W, Stanby Power <0.5W |
|
| Typical 490W, Network Standby <6W, Stanby Power <0.5W |
|
|
|
| On-Screen Display Languages |
Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/Norwegian/ Polish/ Portuguese/Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages) |
|
|
| Accessories (Standard) |
Remote Control w/ Battery Power Cord (by region) User Manual CD Quick Start Guide Lens Cover x 1 Warranty Card (by region) VGA (D-sub 15pin) Cable |
|
|
| Accessories (Optional) |
Spare Lamp Kit P/N: 5J.JDP05.001 Ceilling Mount P/N: 5J.JAM10.001 QCast Dongle P/N: 5J.JCK28.A01 Remote Control RCA022 P/N: 5J.JA606.001 3D Glasses P/N: 5J.J9H25.001 |
|
|
