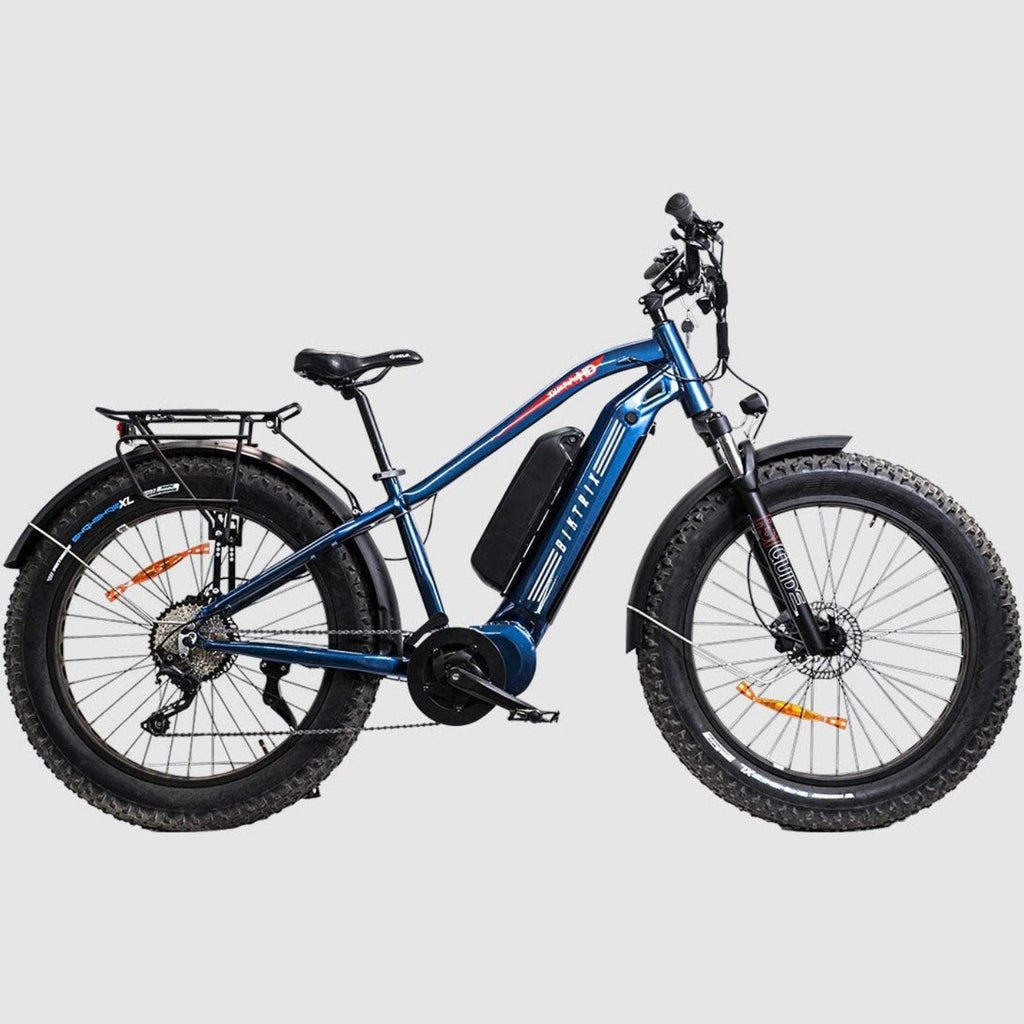

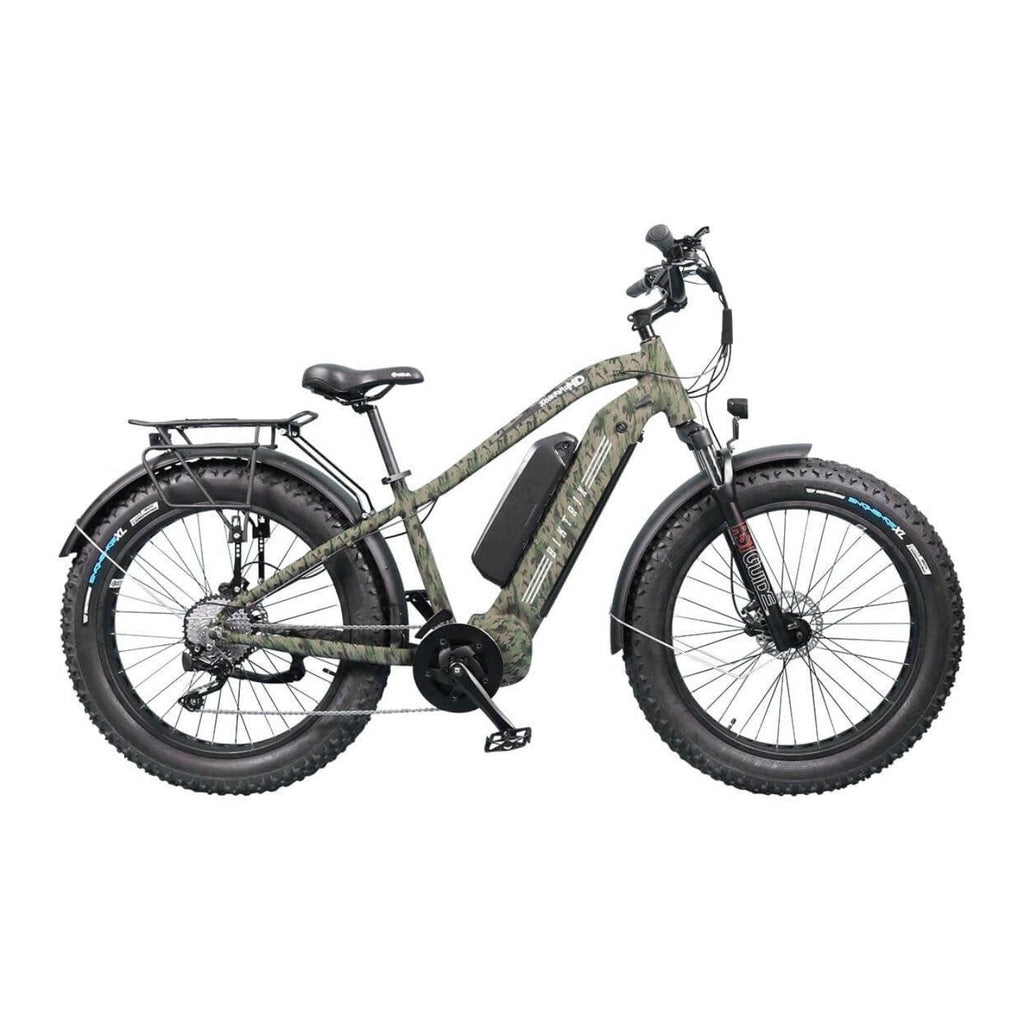

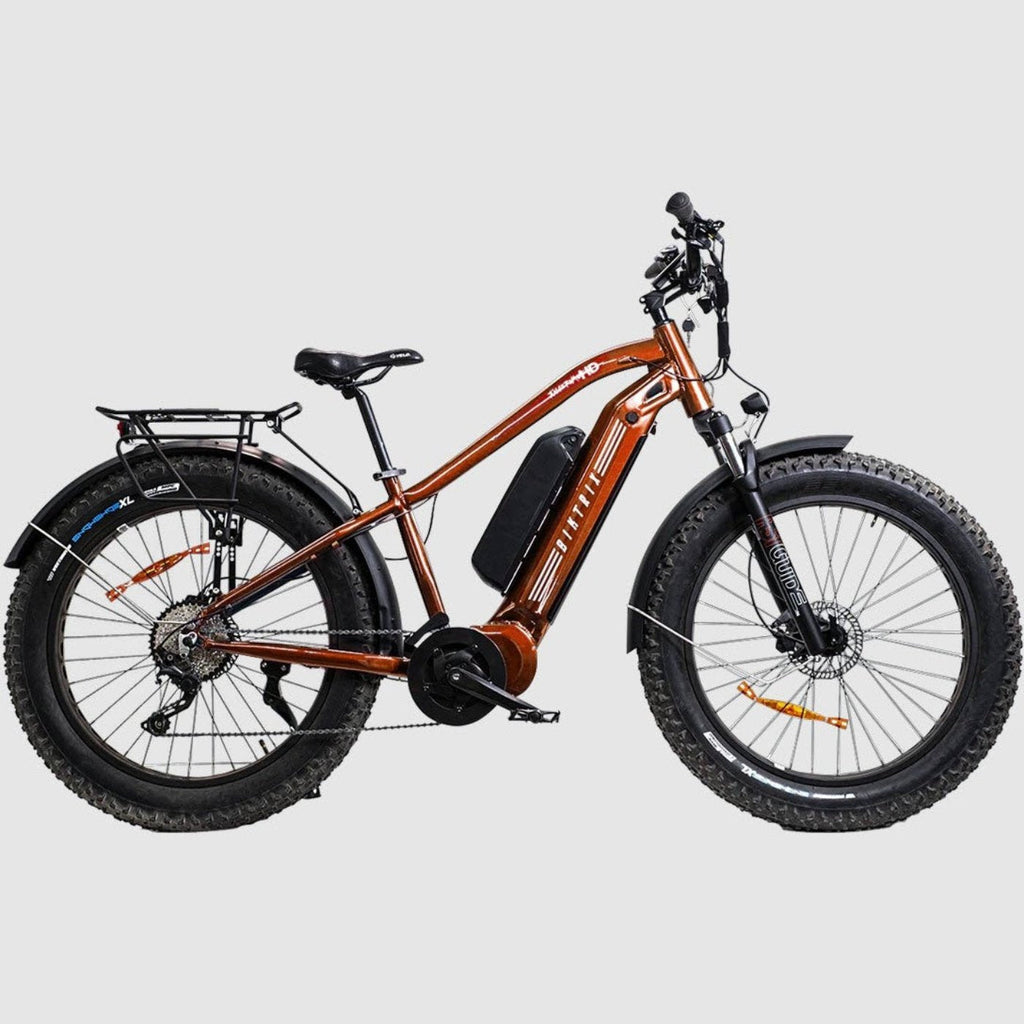

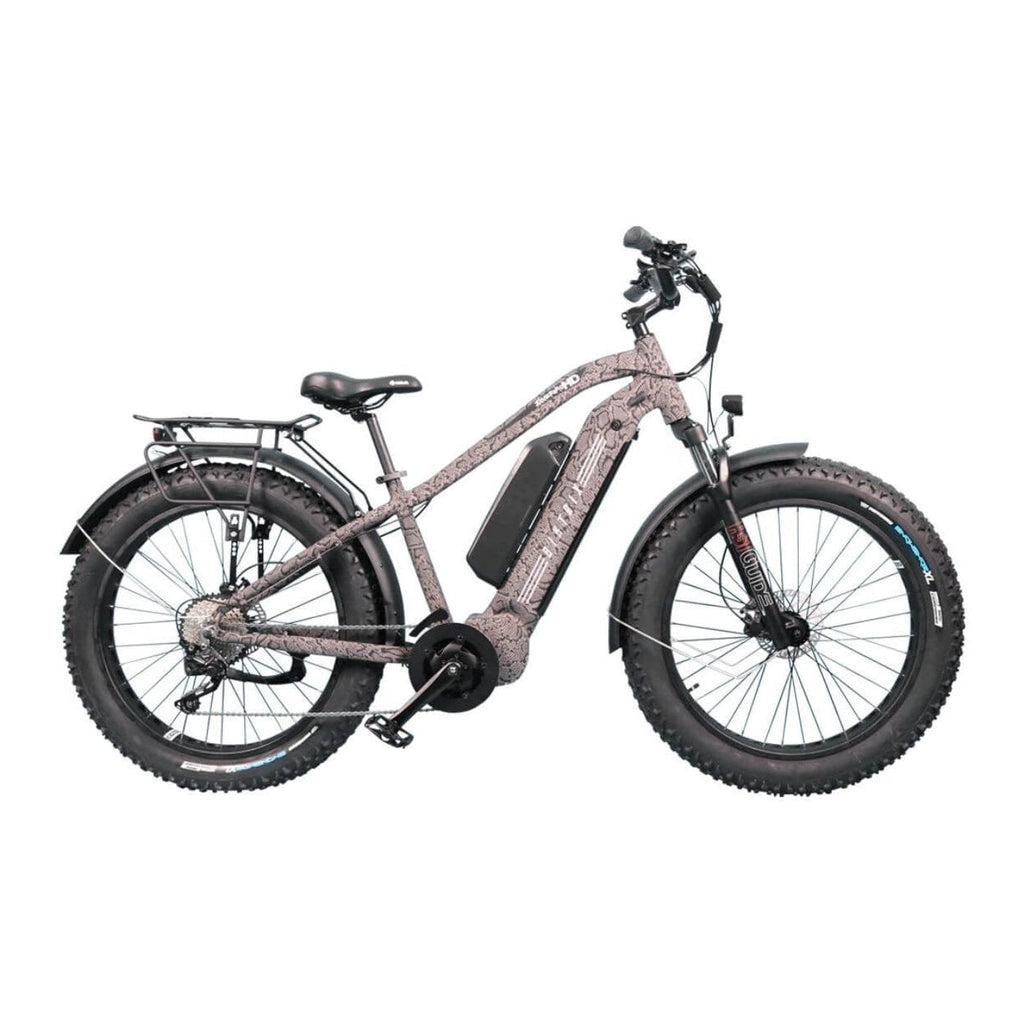

Biktrix 2024 Juggernaut CLASSIC DUO Step-Over 750W Mid-Drive Electric Bike
The Juggernaut Classic Duo Step-Over is back by popular demand. This time round, there are many improvements such as an integrated battery and motor, suspension fork and much more.
Our Juggernaut was the first electric fat bike that has a custom Bafang BBS02B motor built into the frame - more ground clearance than any other BBS powered bikes.
Both the Juggernaut Classic variants come with throttle-on-demand and Cadence/PAS (Pedal Assist Sensor). As you pedal, the motor measures how often you're pedaling and helps you proportionally.
You can boost motor performance by setting assist levels between 1 to 5 levels where level 1 gives you least assist but most range while level 5 gives you maximum assist and least range.
The mid-motor makes this e-bike versatile. The Juggernaut Classic Duo features optional dual batteries that allow you to go as far as you desire - and never worry about range.
~Why buy Juggernaut Duo Step-Over~
-
750W Bafang BBS02 Mid-drive Motor
-
120Nm of torque for easy to moderate hills
-
330lb load capacity
-
On-Demand throttle makes pedaling optional
-
Cadence sensor makes pedal-assist smooth and powerful
- Includes 52V 17.5Ah 910Wh internal battery + charger
Features

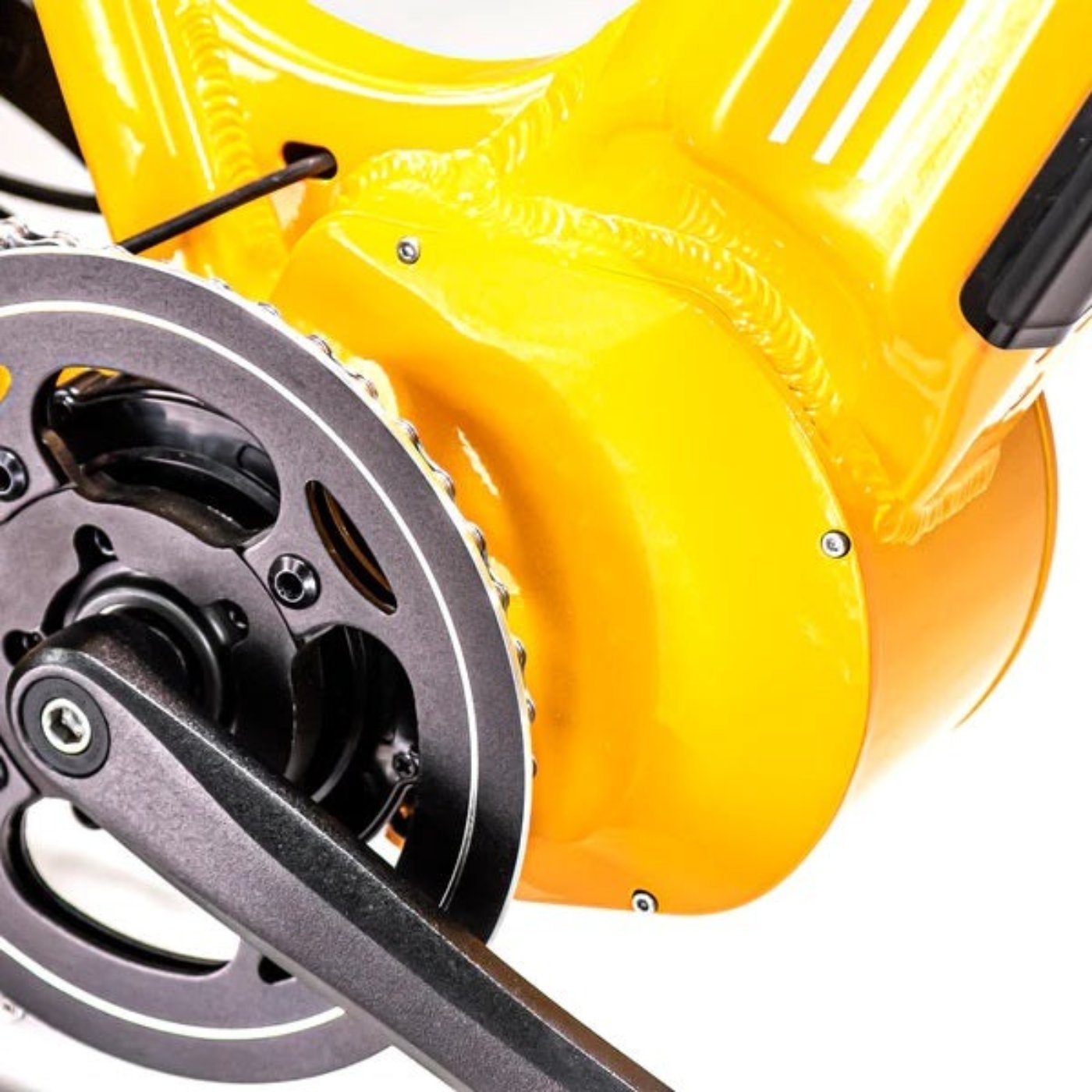

Mid Drive Motor
The Bafang BBS02 mid-drive motor features 750 watts of power and 120Nm of torque. Span cities, climb hills, and explore all the places you want to go with ease.

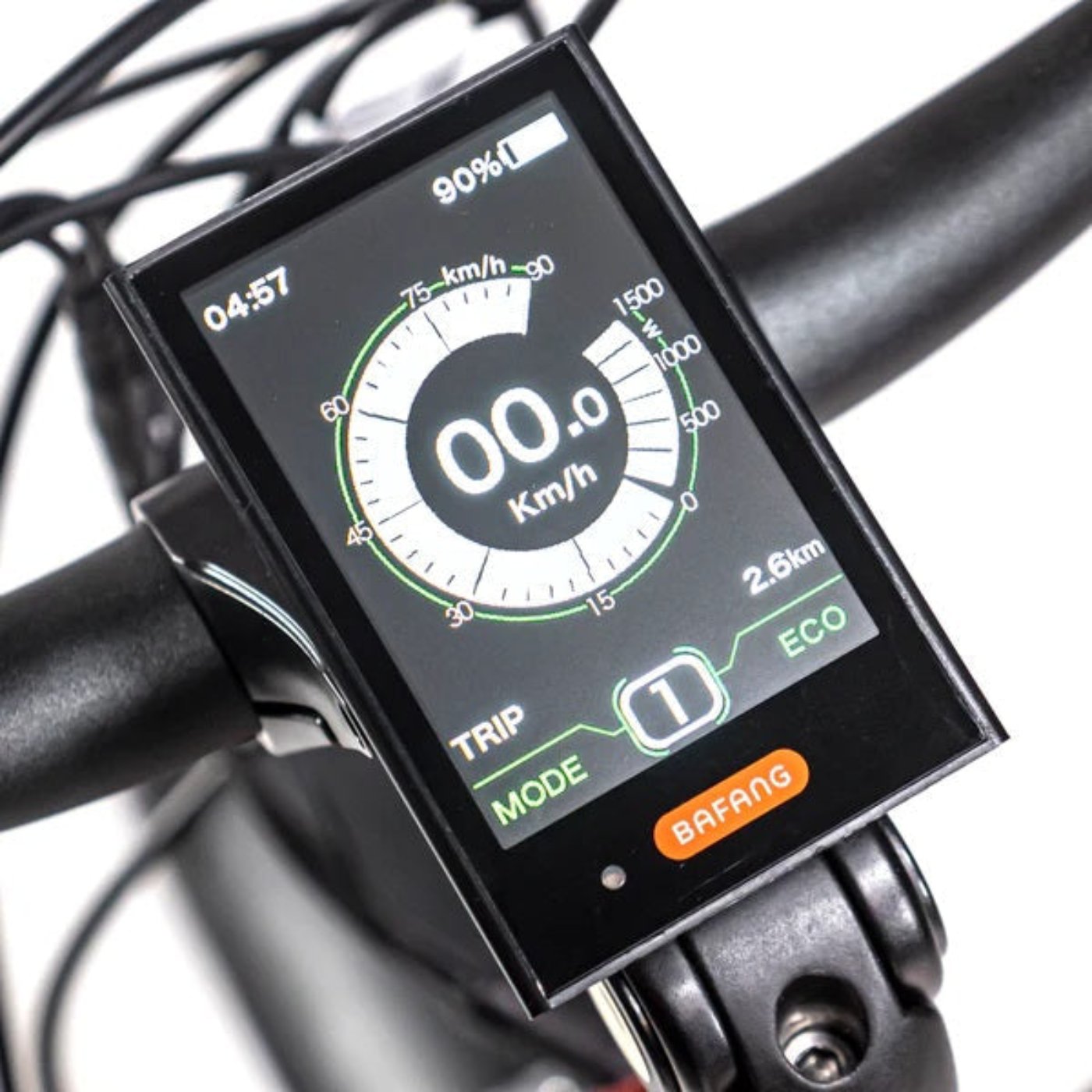

LCD Display
The LCD display shows all kinds of important information about your ride including speed, battery life, range, odometer, pedal assist level and more.

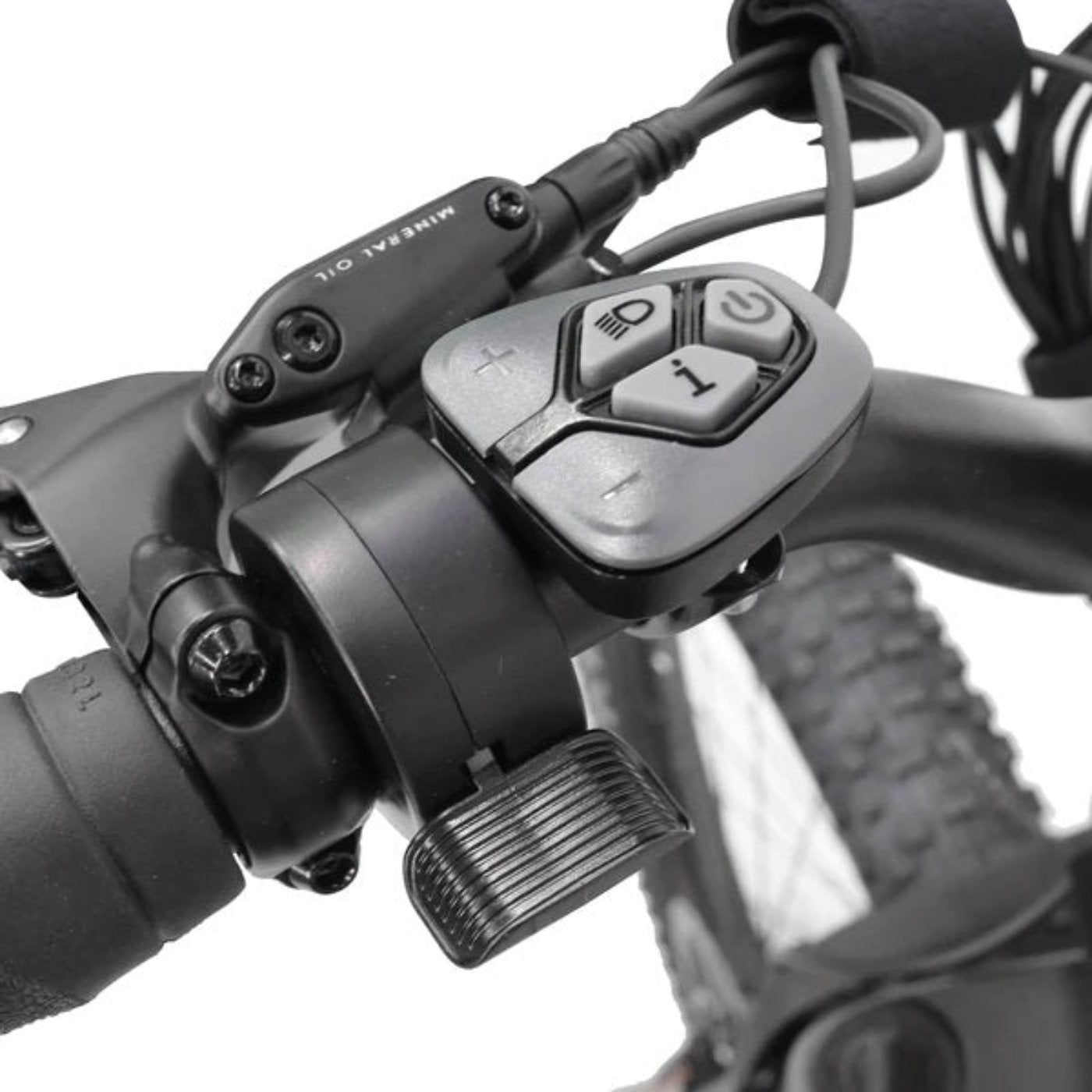

Thumb Throttle & Control Pad
With just a push of the thumb, you can access all of the power the motor has to offer. No need to pedal, just sit back and enjoy the ride.

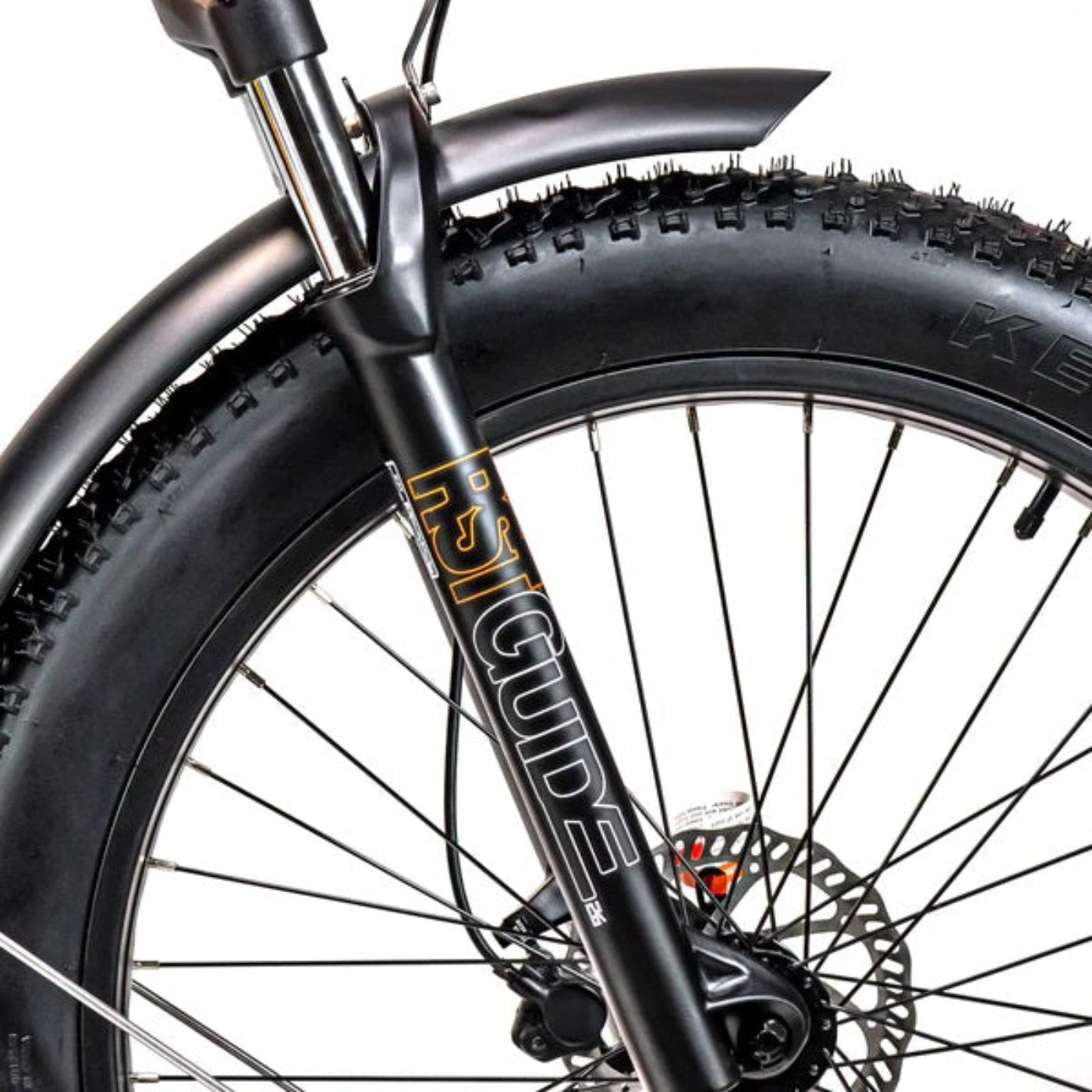

Suspension Fork
The RST Guide fork provides 80mm of travel with pre-load, lockout, and rebound adjustability

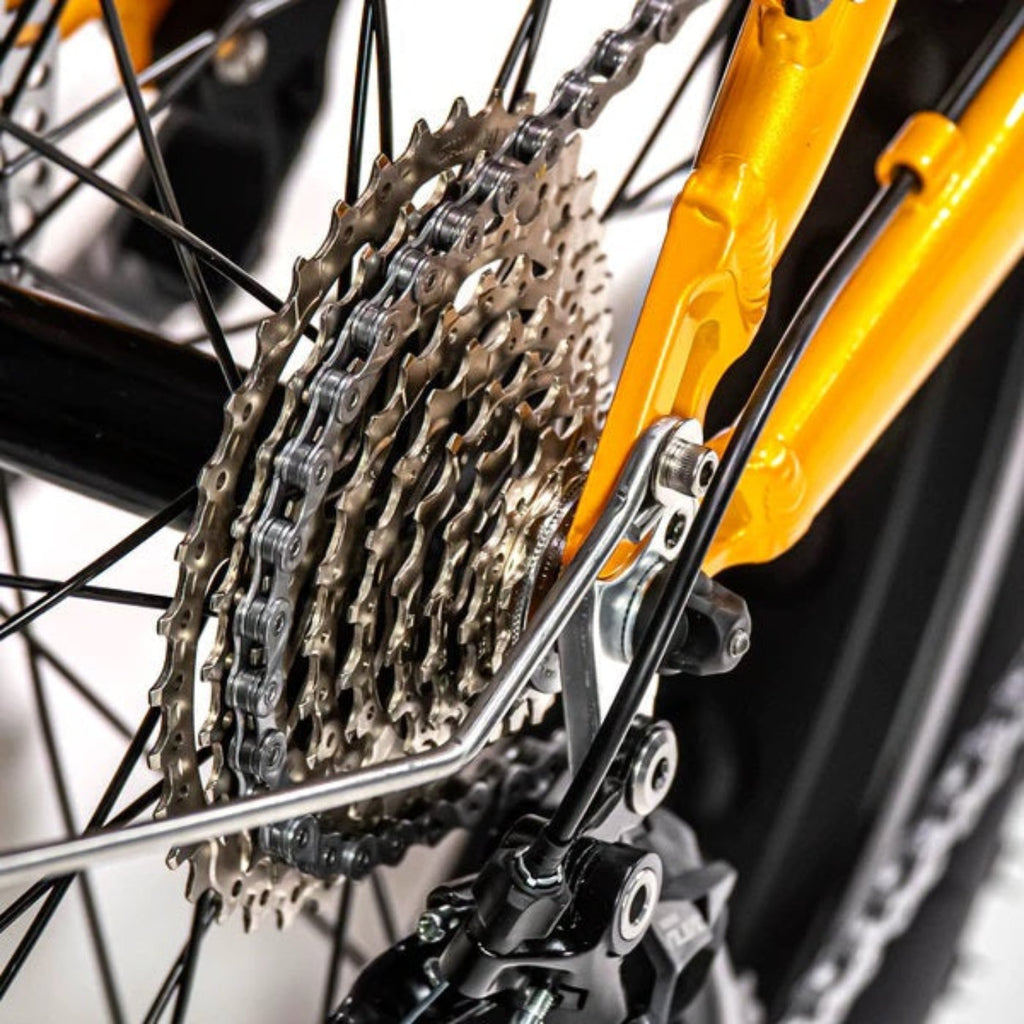

Drivetrain
From climbing hills to holding maximum speed on the flats, the Shimano 9-speed drivetrain has you covered.

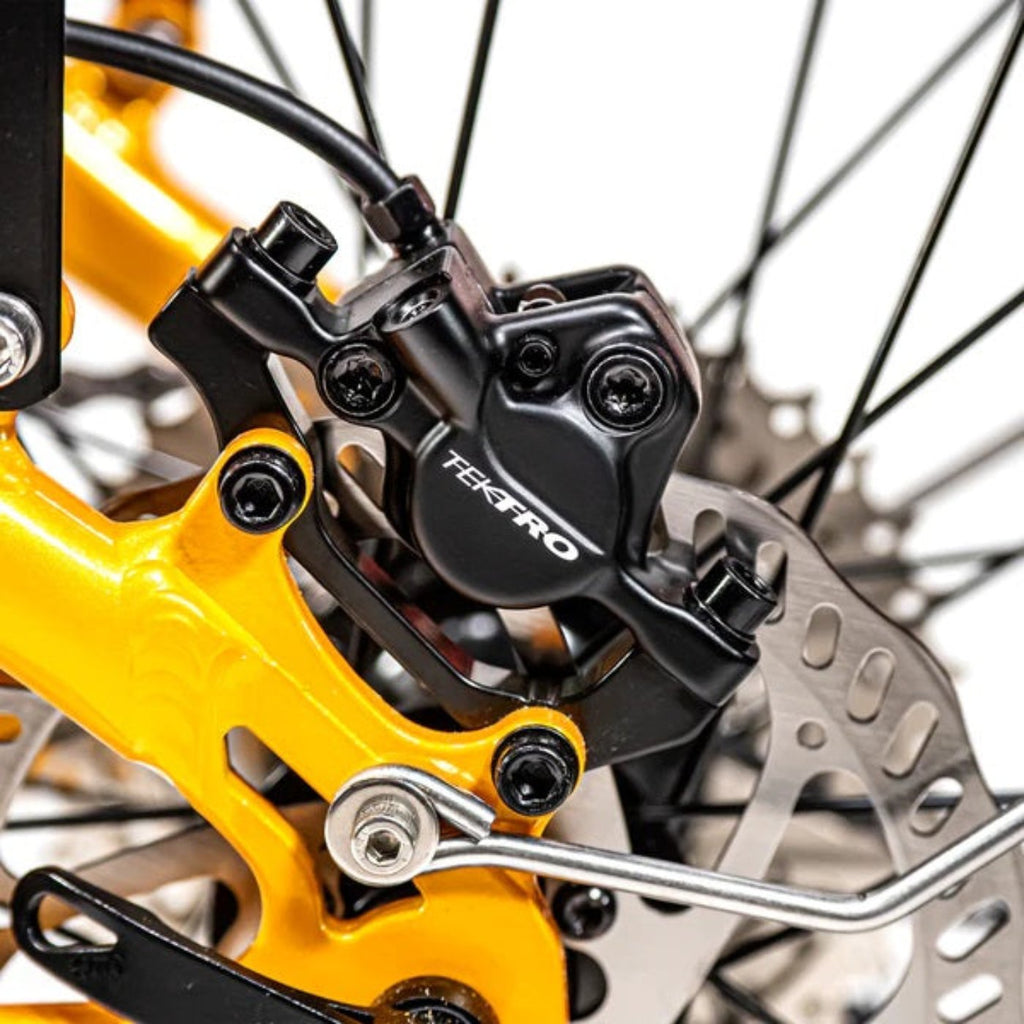

Hydraulic Disc Brakes
When it's so easy to go fast, you need strong stopping power. These hydraulic disc brakes will quickly and reliably bring you to a halt.

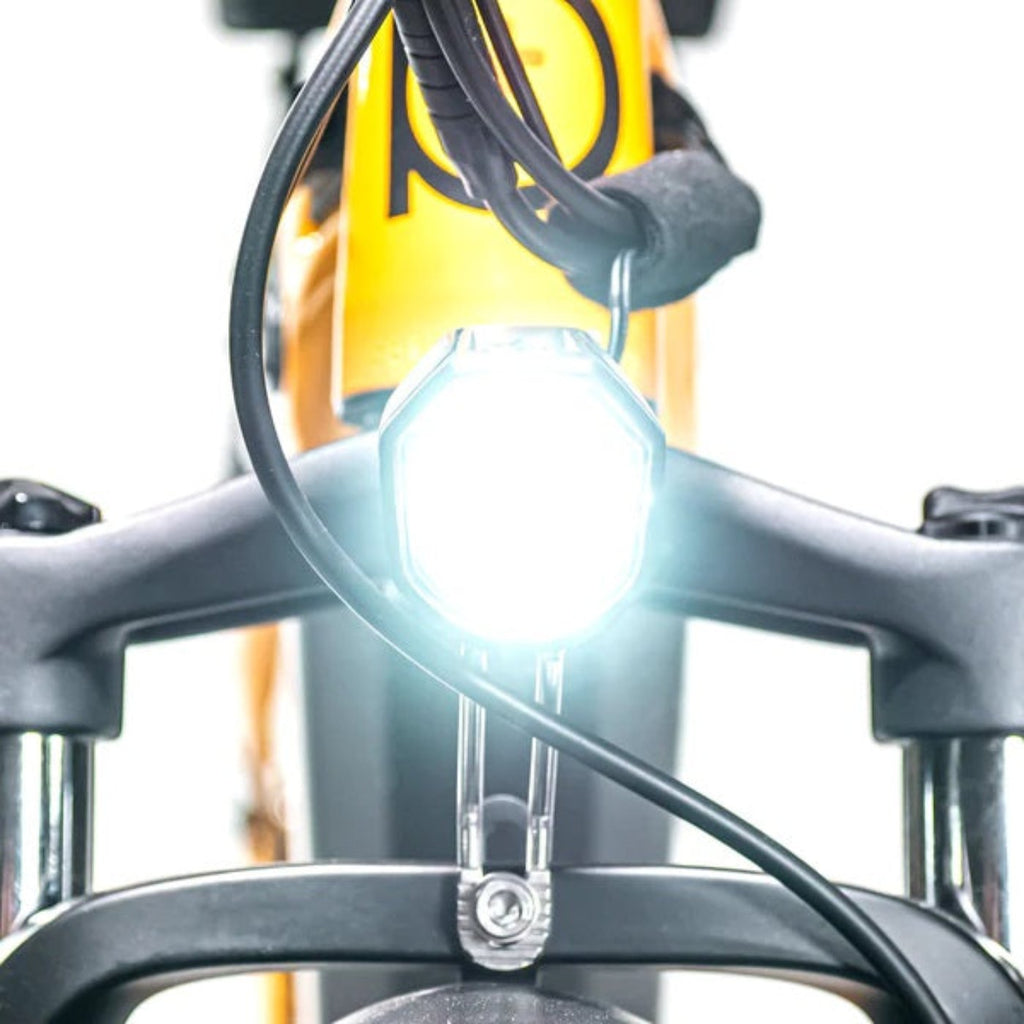

Integrated Front Light
This bright LED light is powered by the bike's battery and can be turned on/off with a button on the handlebar control pad.
Optional Range Extender
Multiple range-extender battery options can expand your eBike's range all the way to 160 km.

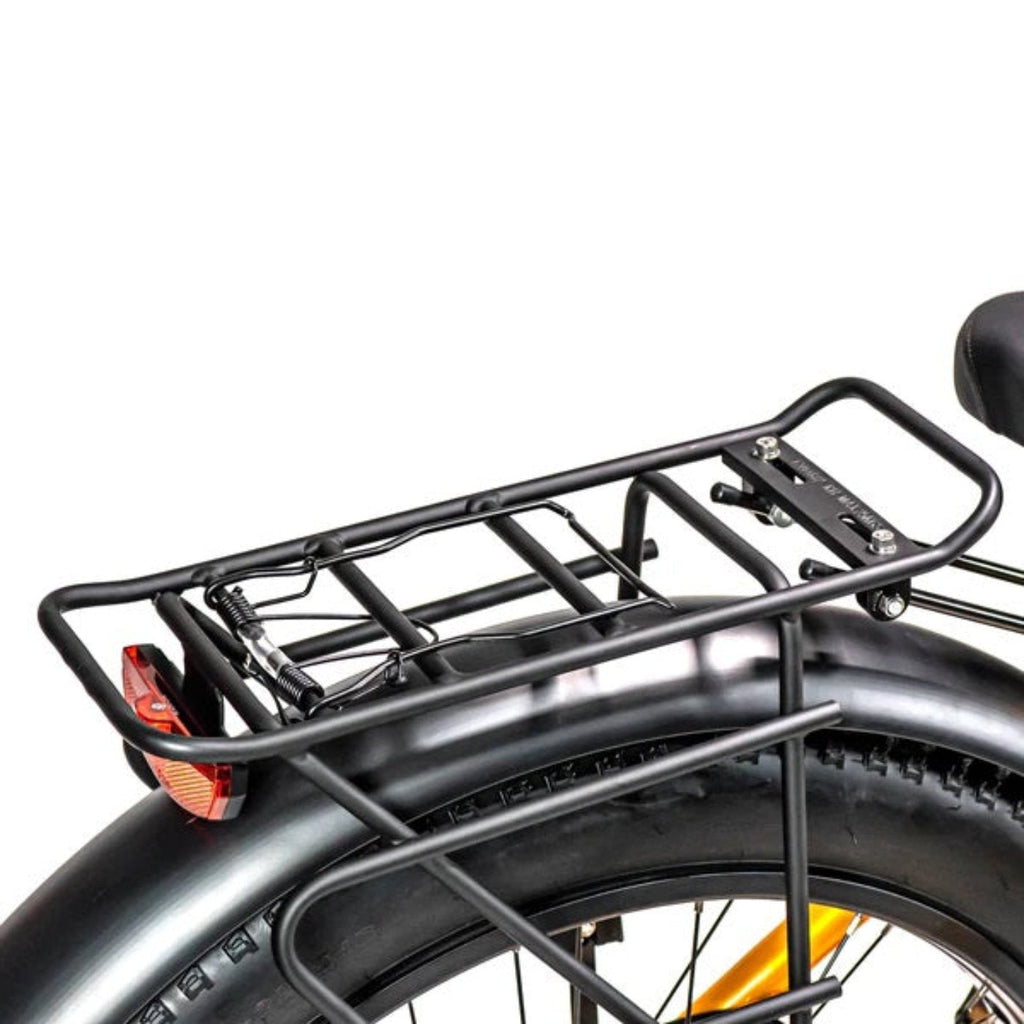

Rack & Fenders
These fenders will keep you and your bike clean. Need to carry some gear? Strap on the rear rack and make your way
Specifications
| CLASSIC DUO |
|
| MOTOR |
750W BAFANG BBS02 MID-DRIVE |
| MAX TORQUE |
120NM |
| FRAME |
6061 ALUMINUM |
| FORK |
RST GUIDE W/LOCKOUT, PRELOAD & 80mm TRAVEL |
| SHIFTER |
SHIMANO ALIVO 9 SPEED TRIGGER SHIFTER |
| DERAILLEUR |
SHIMANO ALIVO 9 SPEED |
| CASSETTE |
12-36T |
| CHAIN |
KMC X9 |
| DISPLAY |
DPC 18
|
| BATTERY |
52V 17AH |
| RANGE EXTENDER |
52V 13AH, 16AH, 17AH |
| RIMS |
BLACK 36H |
| TIRES |
26X4", 27.5X3" |
| BRAKE LEVER |
TEKTRO ADJUSTABLE
|
| BRAKES |
TEKTRO E350 DUAL PISTON W/180mm ROTORS |
| STEM |
PROMAX 90MM |
| HANDLEBAR |
31.8MM CLAMP, 700MM WIDE, 80MM RISE |
| SEAT POST |
27.2MM |
| GRIPS |
SLIDE ON |
| SADDLE |
WIDE SADDLE
|
| SEAT POST CLAMP |
QR |
| LIGHTS |
INTEGRATED HEADLIGHT, TAILLIGHT |
| TAILLIGHT |
BATTERY TAILLIGHT |
| THROTTLE |
THUMB THROTTLE |
| ASSIST LEVELS |
0-5 |
| ASSIST TYPE |
CADENCE |
| 17" STEP-OVER |
19" STEP-OVER |
|
|
| 1 |
Effective Top Tube Length |
620 mm |
24.4 inches |
640 mm |
25.2 inches |
| 2 |
Seat Tube Length (Classic Bike Size) |
420 mm |
16.5 inches |
470 mm |
18.5 inches |
| 3 |
Reach |
420 mm |
16.5 inches |
450 mm |
17.7 inches |
| 4 |
Stack |
700 mm |
27.6 inches |
670 mm |
26.4 inches |
| 5 |
Chainstay Length |
530 mm |
20.9 inches |
530 mm |
20.9 inches |
| 6 |
Standover Height |
660 mm |
26 inches |
710 mm |
28 inches |
| 7 |
Head Angle |
68 ° |
- |
68 ° |
- |
| 8 |
Seat Angle |
71 ° |
- |
71 ° |
- |
| 9 |
Head Tube Length |
190 mm |
7.5 inches |
190 mm |
7.5 inches |
| 10 |
Fork Length |
530 mm |
20.9 inches |
530 mm |
20.9 inches |
| 11 |
Front Center |
750 mm |
29.5 inches |
760 mm |
29.9 inches |
| 12 |
BB (Bottom Bracket) Drop |
65 mm |
2.6 inches |
65 mm |
2.6 inches |
| 13 |
Fork Offset |
35 mm |
1.4 inches |
35 mm |
1.4 inches |
| 14 |
Wheelbase |
1250 mm |
49.2 inches |
1250 mm |
49.2 inches |
| 15 |
Total Length |
1990 mm |
78.3 inches |
2000 mm |
78.7 inches |
| 16 |
Max Seat Height |
930 mm |
36.6 inches |
1010 mm |
39.8 inches |
| 17 |
Min Seat Height |
770 mm |
30.3 inches |
840 mm |
33.1 inches |
| 18 |
Handlebar Height |
1140 mm |
44.9 inches |
1170 mm |
46.1 inches |
| 19 |
Weight (Without Battery) |
32.5 kg |
71.7 lb |
32.5 kg |
71.7 lb |
What Our Experts Think
-
Dual Motor Power: The 2024 Juggernaut Classic Duo Step-Over is equipped with dual 750W mid-drive motors, offering exceptional power and torque for tackling hills, rough terrain, and longer rides.
-
Step-Over Frame: The classic step-over design provides added frame rigidity and stability, ideal for riders who prefer a traditional bike feel while maintaining ease of use.
-
Long Range Battery: Features a high-capacity battery for long-lasting rides, perfect for long commutes or outdoor adventures without worrying about frequent recharging.
-
Full Suspension: With a full suspension system, it ensures a smooth ride by effectively absorbing shocks and bumps, whether on city streets or rugged trails.
-
All-Terrain Performance: Built for versatility, it excels on both paved roads and off-road trails, making it ideal for varied environments and adventures.
-
Durable Build: Crafted with durable materials, the bike provides long-lasting performance and reliability in challenging riding conditions.
-
Premium Components: Includes high-quality components for enhanced comfort, handling, and performance, ensuring an enjoyable and reliable ride every time.
Q&A
Q: What is the Biktrix 2024 Juggernaut Classic Duo Step-Over 750W Mid-Drive Electric Bike?
A: The Biktrix 2024 Juggernaut Classic Duo Step-Over is a high-performance electric bike featuring a 750W mid-drive motor and dual battery setup for extended range. The step-over frame offers a sturdy design and optimal riding experience for both city commuting and off-road adventures.
Q: What are the key features of the Biktrix 2024 Juggernaut Classic Duo Step-Over?
A: Key features include a 750W mid-drive motor for efficient power delivery, dual batteries for long-range capability, step-over frame for a secure and comfortable ride, full suspension for smooth handling on rough terrain, and hydraulic disc brakes for excellent stopping power.
Q: What is the range of the Biktrix 2024 Juggernaut Classic Duo Step-Over?
A: The bike offers a range of up to 60-80 miles per charge, depending on factors like rider weight, terrain, and riding conditions, thanks to the dual battery system.
Q: How fast can the Biktrix 2024 Juggernaut Classic Duo Step-Over go?
A: The bike can reach speeds of up to 28 mph (45 km/h), making it suitable for both recreational and commuting purposes.
Q: Is the Biktrix 2024 Juggernaut Classic Duo Step-Over suitable for off-road riding?
A: Yes, the mid-drive motor and full suspension system make this bike ideal for off-road riding, including trails and rough terrains, providing great control and comfort.
Q: How long does it take to charge the Biktrix 2024 Juggernaut Classic Duo Step-Over battery?
A: The battery typically takes 6-8 hours to fully charge. With dual batteries, you can switch them out to continue riding while one is recharging.
Q: What is the weight of the Biktrix 2024 Juggernaut Classic Duo Step-Over?
A: The bike weighs approximately 70-75 lbs (32-34 kg), offering a solid and stable ride without being too heavy.
Q: Does the Biktrix 2024 Juggernaut Classic Duo Step-Over come with a warranty?
A: Yes, the bike comes with a limited warranty. Please check with the retailer for complete warranty details.
Q: Can I customize the Biktrix 2024 Juggernaut Classic Duo Step-Over with accessories?
A: Yes, the bike is compatible with a variety of accessories such as racks, fenders, and lights to enhance your riding experience.
Q: Is the Biktrix 2024 Juggernaut Classic Duo Step-Over easy to assemble?
A: The bike comes partially assembled with clear instructions for easy final assembly. Professional assembly is recommended for optimal performance and safety.
Maintenance Tips
-
Battery Maintenance: Charge the battery regularly and keep it between 20-80% for maximum lifespan. Avoid overcharging or letting it fully discharge. Store the battery in a cool, dry place at around 50% charge if not used for long periods.
-
Regular Cleaning: Clean the bike with a soft cloth and mild detergent. Avoid getting water on electrical components, the motor, or the battery to prevent damage.
-
Tire Pressure: Check tire pressure often to ensure they are properly inflated. Correct pressure helps maintain performance and reduce strain on the motor.
-
Lubricate the Chain: Lubricate the chain periodically, especially after riding in wet or dirty conditions. Clean the chain before applying new lubricant to avoid dirt buildup.
-
Brake Checks: Regularly inspect brake pads for wear and ensure brakes are functioning properly. Replace worn pads to ensure optimal stopping power.
-
Motor and Wiring Inspection: Check the motor and wiring for loose connections or signs of wear. Tighten or replace parts as necessary to ensure smooth motor operation.
-
Suspension Care: If your bike has suspension, inspect it for proper alignment and smooth movement. Clean and lubricate the suspension components as needed.
-
Crankset and Pedals: Periodically inspect the crankset and pedals for damage or loose parts. Tighten or replace components as needed for efficient pedaling.
-
Proper Storage: When storing the bike for extended periods, store it in a cool, dry place. If not in use for a while, remove the battery and store it separately, ensuring it has around 50% charge.
