17" STEP-OVER |
17" STEP-THRU |
19" STEP-OVER |
19" STEP-THRU |
| 1 |
Effective Top Tube Length |
590 mm |
23.2 inches |
580 mm |
22.8 inches |
590 mm |
23.2 inches |
540 mm |
21.3 inches |
| 2 |
Seat Tube Length (Classic Bike Size) |
420 mm |
16.5 inches |
420 mm |
16.5 inches |
470 mm |
18.5 inches |
460 mm |
18.1 inches |
| 3 |
Reach |
440 mm |
17.3 inches |
580 mm |
22.8 inches |
440 mm |
17.3 inches |
500 mm |
19.7 inches |
| 4 |
Stack |
660 mm |
26 inches |
490 mm |
19.3 inches |
660 mm |
26 inches |
540 mm |
21.3 inches |
| 5 |
Chainstay Length |
500 mm |
19.7 inches |
480 mm |
18.9 inches |
510 mm |
20.1 inches |
520 mm |
20.5 inches |
| 6 |
Standover Height |
690 mm |
27.2 inches |
450 mm |
17.7 inches |
730 mm |
28.7 inches |
430 mm |
16.9 inches |
| 7 |
Head Angle |
70 ° |
- |
68 ° |
- |
70 ° |
- |
68 ° |
- |
| 8 |
Seat Angle |
73 ° |
- |
71 ° |
- |
73 ° |
- |
71 ° |
- |
| 9 |
Head Tube Length |
180 mm |
7.1 inches |
180 mm |
7.1 inches |
180 mm |
7.1 inches |
180 mm |
7.1 inches |
| 10 |
Fork Length |
540 mm |
21.3 inches |
540 mm |
21.3 inches |
540 mm |
21.3 inches |
540 mm |
21.3 inches |
| 11 |
Front Center |
720 mm |
28.3 inches |
710 mm |
28 inches |
730 mm |
28.7 inches |
730 mm |
28.7 inches |
| 12 |
BB (Bottom Bracket) Drop |
60 mm |
2.4 inches |
40 mm |
1.6 inches |
60 mm |
2.4 inches |
50 mm |
2 inches |
| 13 |
Fork Offset |
40 mm |
1.6 inches |
40 mm |
1.6 inches |
40 mm |
1.6 inches |
40 mm |
1.6 inches |
| 14 |
Wheelbase |
1230 mm |
48.4 inches |
1240 mm |
48.8 inches |
1230 mm |
48.4 inches |
1240 mm |
48.8 inches |
| 15 |
Total Length |
2000 mm |
78.7 inches |
1960 mm |
77.2 inches |
2000 mm |
78.7 inches |
2000 mm |
78.7 inches |
| 16 |
Max Seat Height |
1000 mm |
39.4 inches |
1000 mm |
39.4 inches |
1050 mm |
41.3 inches |
1000 mm |
39.4 inches |
| 17 |
Min Seat Height |
830 mm |
32.7 inches |
830 mm |
32.7 inches |
880 mm |
34.6 inches |
880 mm |
34.6 inches |
| 18 |
Handlebar Height |
1120 mm |
44.1 inches |
1160 mm |
45.7 inches |
1140 mm |
44.9 inches |
1100 mm |
43.3 inches |
| 19 |
Weight (Without Battery) |
34 kg |
75 lb |
34 kg |
75 lb |
35 kg |
77.2 lb |
35 kg |
77.2 lb |
What Our Experts Think
-
Dual Motor Power: The 2024 Juggernaut Ultra Duo 3 comes with dual 750W mid-drive motors, offering exceptional power and torque for tackling tough terrain, hills, and off-road conditions.
-
Step-Through Frame: The convenient step-thru frame provides easy mounting and dismounting, perfect for riders seeking a comfortable and accessible riding experience.
-
Impressive Range: With a high-capacity battery, this bike offers extended range, allowing for long-distance rides, whether commuting or exploring off-road paths.
-
Full Suspension System: Equipped with a full suspension for superior shock absorption, it ensures a smooth, comfortable ride on various terrains, from city streets to rugged trails.
-
All-Terrain Performance: Designed to handle diverse environments, it performs exceptionally well both on paved roads and rough off-road conditions.
-
Robust Build: Built with durable materials for long-lasting performance and a stable, reliable ride, even in challenging conditions.
-
High-End Components: The bike incorporates high-quality components, ensuring a premium riding experience with reliable performance and comfort.
Q&A

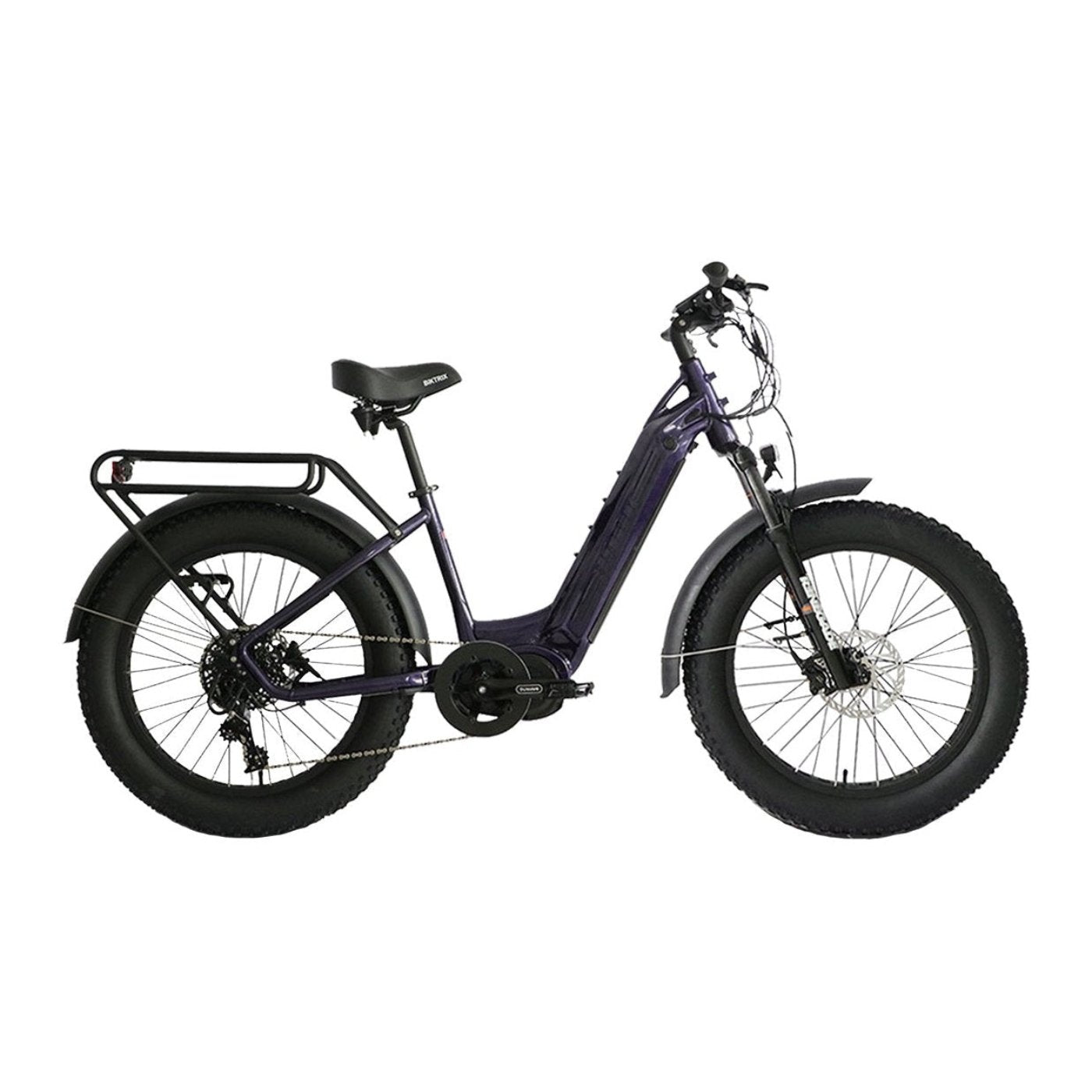

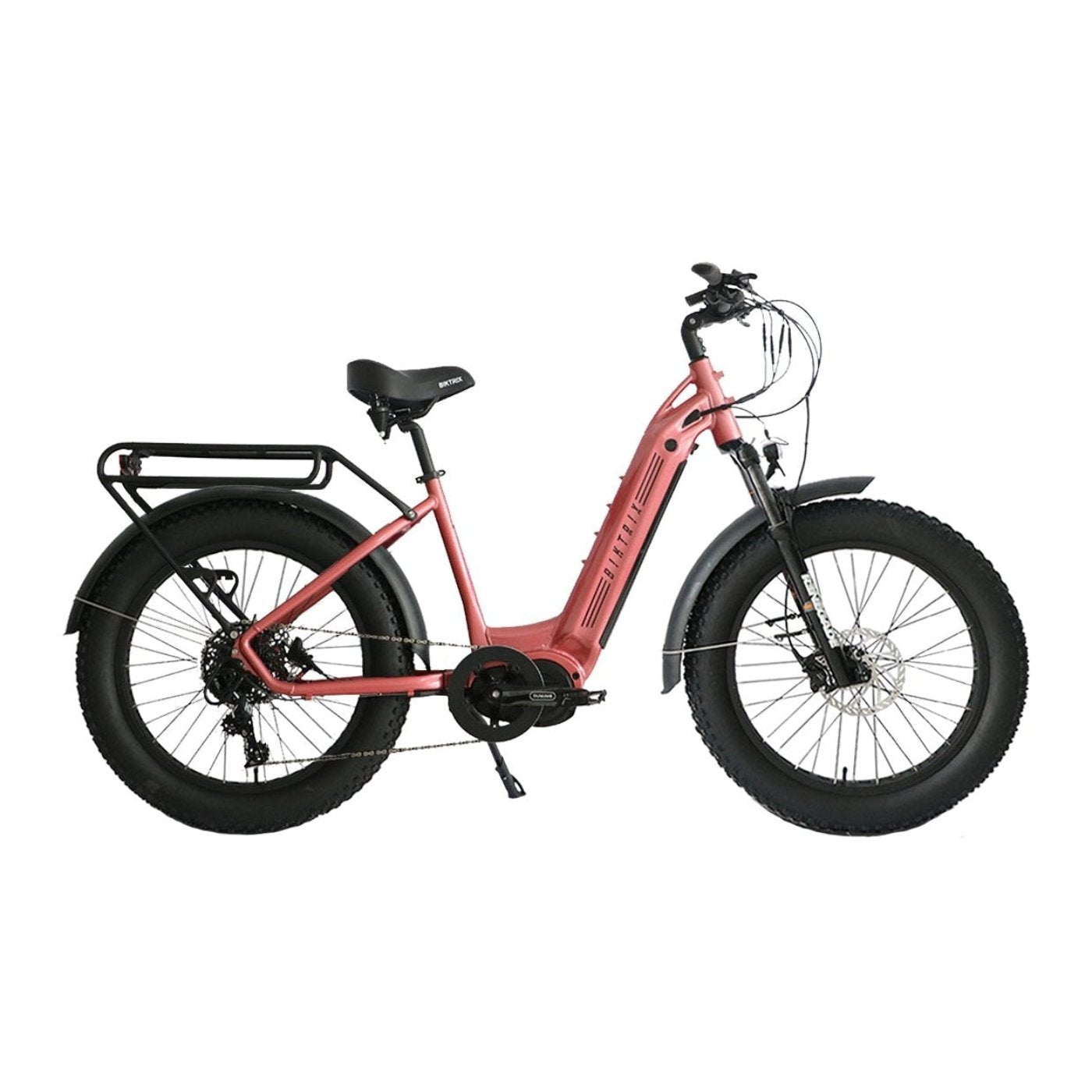

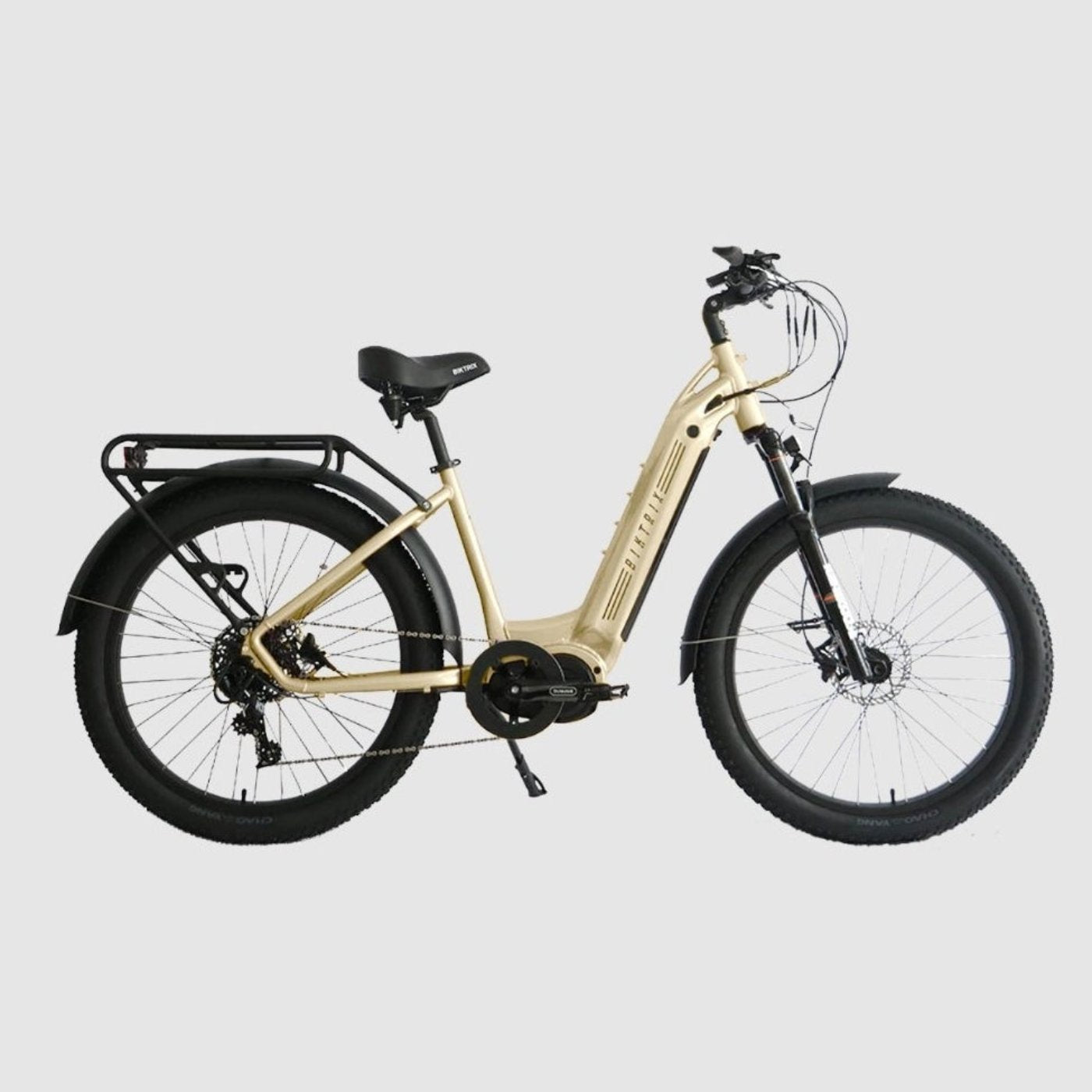

Q: What is the Biktrix 2024 Juggernaut Ultra Duo 3 Step-Thru Mid-Drive Electric Bike?
A: The Biktrix 2024 Juggernaut Ultra Duo 3 is a powerful and versatile mid-drive electric bike with a step-through frame, designed for smooth rides on a variety of terrains. It features a dual battery setup for extended range, a high-performance motor, and a sturdy frame for both urban commuting and off-road adventures.
Q: What are the key features of the Biktrix 2024 Juggernaut Ultra Duo 3?
A: Key features include a mid-drive motor for optimal power efficiency, dual batteries for an extended range, a step-through frame for easy mounting and dismounting, high-quality suspension for comfort, and hydraulic disc brakes for reliable stopping power.
Q: What is the range of the Biktrix 2024 Juggernaut Ultra Duo 3?
A: The bike offers a range of up to 60-80 miles per charge, depending on factors like rider weight, terrain, and riding conditions, thanks to the dual battery system.
Q: How fast can the Biktrix 2024 Juggernaut Ultra Duo 3 go?
A: The bike can reach speeds of up to 28 mph (45 km/h), making it suitable for both city commuting and recreational riding.
Q: Is the Biktrix 2024 Juggernaut Ultra Duo 3 suitable for off-road riding?
A: Yes, the mid-drive motor, full suspension, and durable design make this bike ideal for off-road riding, including trails, gravel paths, and rough terrain.
Q: How long does it take to charge the Biktrix 2024 Juggernaut Ultra Duo 3 battery?
A: The battery typically takes 6-8 hours to fully charge, but with two batteries, you can swap them out for continuous use.
Q: What is the weight of the Biktrix 2024 Juggernaut Ultra Duo 3?
A: The bike weighs around 70-75 lbs (32-34 kg), making it solid yet manageable for riding and handling.
Q: Does the Biktrix 2024 Juggernaut Ultra Duo 3 come with a warranty?
A: Yes, the bike comes with a limited warranty. Please check with the retailer for full warranty details.
Q: Can I customize the Biktrix 2024 Juggernaut Ultra Duo 3 with accessories?
A: Yes, the bike is compatible with various accessories, such as racks, fenders, and lights, to personalize your ride.
Q: Is the Biktrix 2024 Juggernaut Ultra Duo 3 easy to assemble?
A: The bike comes partially assembled with clear instructions for easy final assembly. Professional assembly is recommended for the best performance.
Maintenance Tips
-
Battery Care: Keep the battery charged between 20-80% to maximize its lifespan. Avoid overcharging or letting it discharge completely. If storing for extended periods, store at around 50% charge in a cool, dry place.
-
Regular Cleaning: Clean the bike regularly with a soft cloth and mild detergent. Avoid spraying water directly on the motor, battery, or electrical connections to prevent damage.
-
Tire Pressure: Check tire pressure regularly to ensure it is within the recommended range. Proper inflation improves ride efficiency and protects the motor from excess strain.
-
Lubricate the Chain: Apply chain lubricant periodically, especially after riding in wet or muddy conditions. Clean the chain before reapplying the lubricant to avoid dirt buildup.
-
Brake Maintenance: Inspect brake pads for wear and ensure proper function. Adjust or replace the pads as necessary to maintain effective stopping power.
-
Motor and Wiring Inspection: Regularly check the motor and wiring for loose connections, wear, or damage. Tighten or replace components as needed to ensure the motor operates smoothly.
-
Suspension Care: If your bike includes suspension, check and clean the suspension fork regularly. Apply appropriate lubrication and inspect for wear or damage.
-
Check Crankset and Pedals: Inspect the crankset and pedals for any loose or worn parts. Tighten or replace them as necessary to maintain safe and efficient pedaling.
-
Proper Storage: When not in use for long periods, store the bike in a cool, dry place. If possible, remove the battery and store it separately at around 50% charge.
