BECKHOFF Compact Coupler Between EtherCAT Terminals And Bus Terminals - BK1250

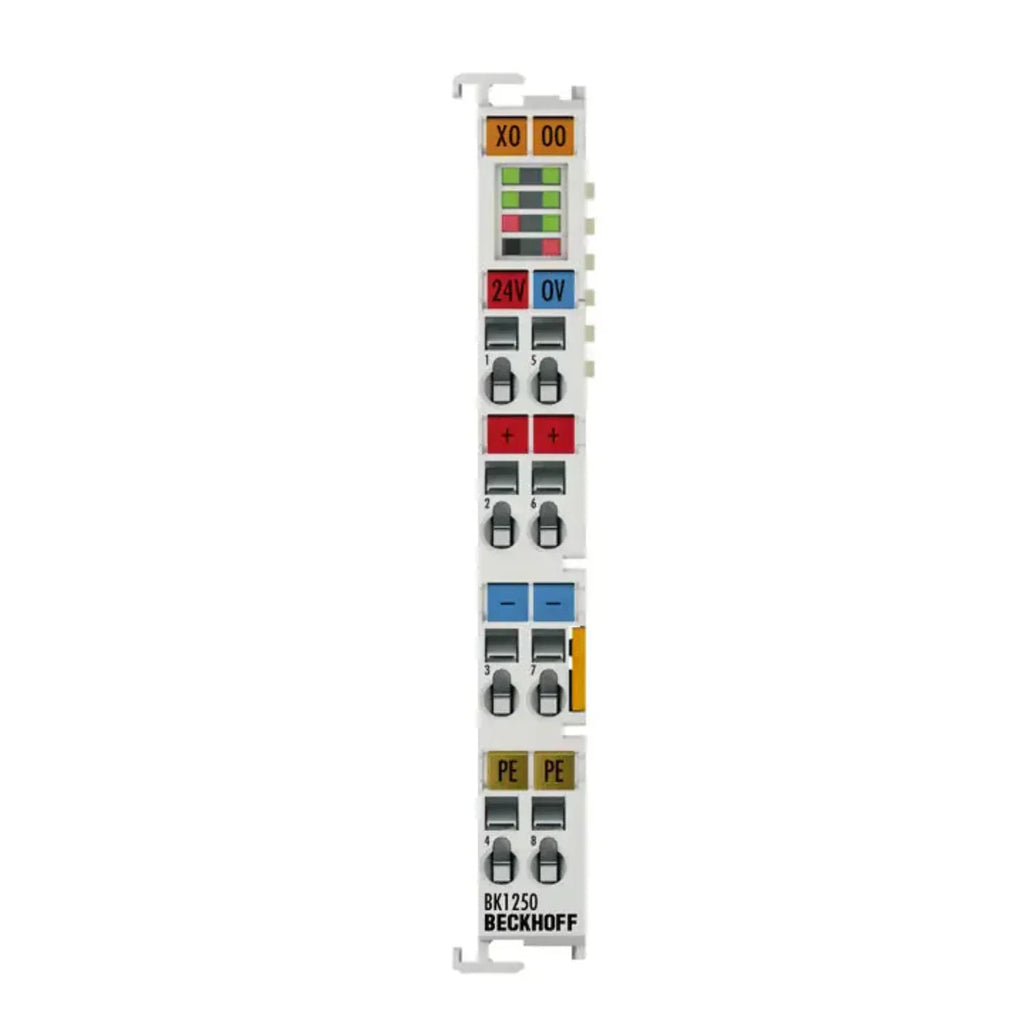

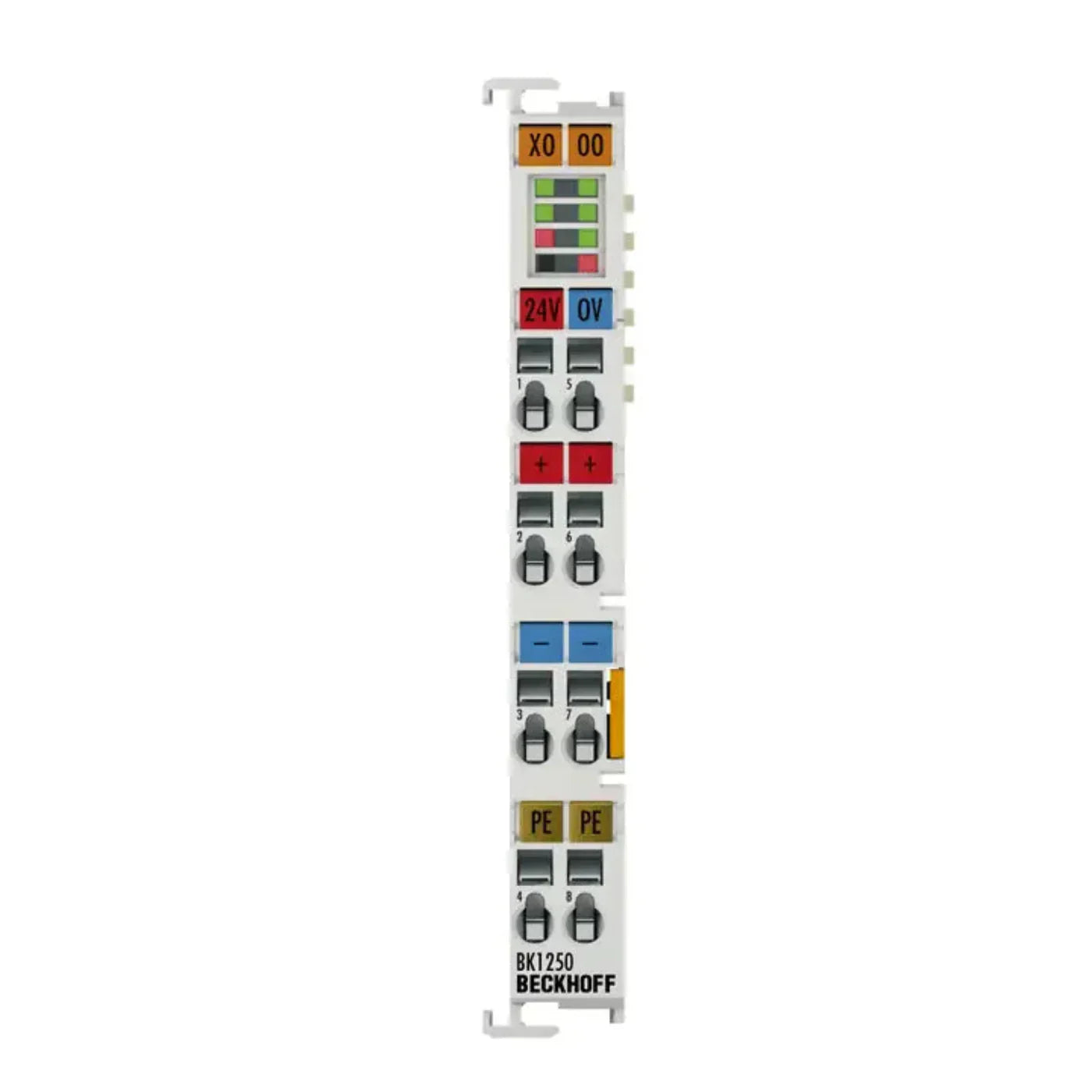

BK1250 is an EK1xxx series EtherCAT coupler manufactured by Beckhoff. This coupler weighs approx. 55 g , and operates with 100 Mbaud data transfer rates and 24 V DC power supply.
Information About BK1250
The BK1250 is a Bus Coupler in a terminal housing for mixed use of EtherCAT Terminals and standard Bus Terminals in a bus station. Up to 64 Bus Terminals and one bus end terminal can be connected to a BK1250. The process image of the EtherCAT system is assigned automatically. Up to 255 Bus Terminals can be connected via the K-Bus extension.
Compact design
mixed use of EtherCAT Terminals and Bus Terminals
The system and field supply, each 24 V DC, is provided directly at the BK1250. The attached Bus Terminals are supplied with the current required for communication from the supplied system voltage. The field supply is forwarded to the individual I/O components via the power contacts with up to 10 A. The Bus Terminals are parameterized via ADS through the KS2000 software. Alternatively, the controller (PLC, IPC) can configure the Bus Terminals via PLC function blocks.
The Beckhoff BK1250 is an EtherCAT Bus Coupler. This model is considered in the construction of control systems where a mix of standard Bus Terminals (KLxxxx) and EtherCAT Terminals (ELxxxx) is desired in a bus station. This coupler is designed in the terminal housing and requires no cables for its deployment. With this device, you will be able to implement cost-effective and compact control solutions without investing any additional hardware resources.
The BK1250 is deployed on a DIN-rail with E-bus terminals on the left and K-bus terminals on the right. It is a simple solution to combine more than 300 standard Bus Terminals (including standard special terminals). It has a large bandwidth and better communication speed than most other EtherCAT terminals. A single BK1250 unit can accommodate 64 x K-Bus Terminals. Using a K-bus extension, even better channel density of up to 255 terminals can also be achieved. Unlike BK1120 and BK1150, the BK1250 has no physical Ethernet port as it utilizes the E-bus contacts to provide bus intra-bus connectivity. This bus coupler is a smart device as it performs all the control and monitoring tasks related to the associated Bus Terminals.
This EtherCAT Bus Coupler requires 24VDC power supply and draws a maximum current of 200 mA and it is designed to be mounted on 35 mm mounting rails as defined by EN 60715. The front panel of the coupler contains all the power supply spring terminals and diagnostic LEDs. In addition to basic diagnostics, dedicated LEDs are also provided to indicate the I/O Run status and I/O Error status of the K-bus. This coupler has a protective earth power contact which can ground up to 125 A short-circuit current to ensure the safety of the system.
Manufacturer information
Beckhoff Automation is a German manufacturer of open automation systems, including industrial PCs, I/O and fieldbus components, drive technology, automation software, and hardware for machine vision. Beckhoff is known for its innovative and reliable automation technology, which is used in a wide range of industries. The company is committed to providing customers with the best possible automation solutions to help them succeed in their businesses.
Specifications
| Manufacturer |
BECKHOFF
|
| Category |
PLCs/Machine Control |
| Subcategory |
PLC Module/Rack |
| Part Number |
BK1250 |
| Data Transfer Rates |
100 Mbaud |
| Maximum Current |
200 mA |
| Power Supply Required |
24 VDC |
| Protective Earth Power Contact |
Equipped |
| Short-Circuit Current |
up to 125 A |
| Mounting |
35 mm mounting rails |
| Operating Temperature Range |
0 to +50 degree centigrade |
| Storage and Transportation Temperature Range |
(-25 to +75) degree centigrade |
| Maximum Installation Elevation |
1000 MSL |
