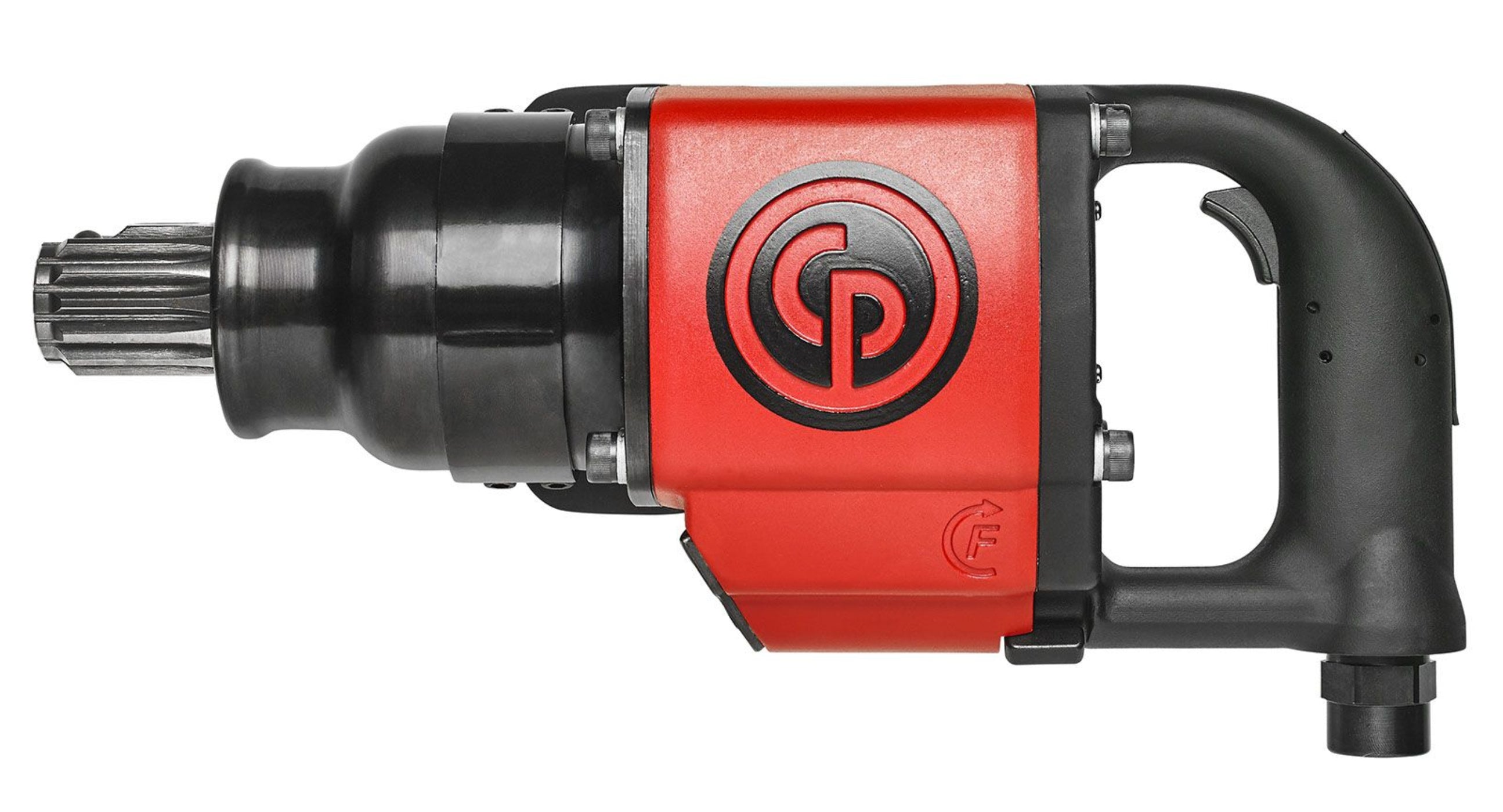

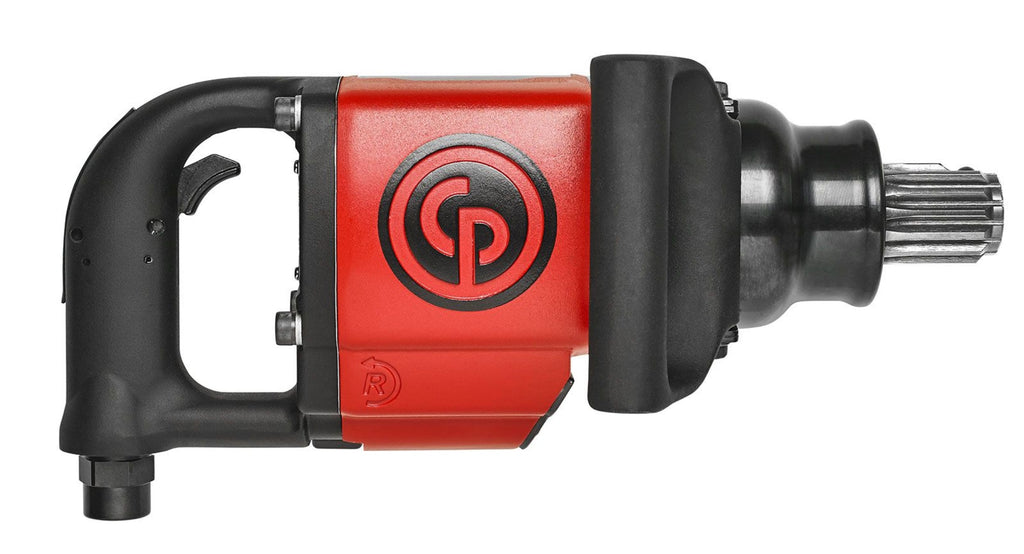

CHICAGO PNEUMATIC #5 Spline D-Handle Pneumatic Impact Wrench - CP0611-D28L
The CP0611 is a robust and efficient 1"/ #5 impact wrench, designed with a 2-jaw clutch mechanism, aluminium body and steel clutch housing. Delivers reverse torque up to 3,790 Nm / 2,800 ft.lb. The CP0611 is built to operate comfortably in the most demanding industrial environments for hard or soft assembly/disassembly applications. The CP0611 Series is available in 4 models: Pistol or straight D-handles with hole or spline socket attachment options.
Specifications
| Dimensions |
51.4 X 15.2 X 24.6 cm |
| Weight |
12.17 kg |
What our Experts Think
-
Built for super‑industrial torque — #5 spline drive maximises contact and avoids torque loss for heavy bolting and big fasteners.
-
Strong break‑away and reverse power — up to ~2,800 ft·lbs (3,790 Nm) of reverse torque for demanding maintenance and production work.
-
Smooth, progressive power delivery thanks to a reliable 2‑jaw clutch mechanism that reduces vibration and improves control.
-
Durable and serviceable design — aluminium body with robust steel clutch housing and compact 3‑part construction.
-
Operator‑focused ergonomics — ergonomic D‑handle with 360° adjustable side grip enhances comfort and control during long shifts.
-
Fast and efficient performance — high free speed (~3,500 RPM) and ~1,020 BPM support swift run‑down in heavy applications.
Q&A
Q: What is the Chicago Pneumatic CP0611‑D28L?
A: The CP0611‑D28L is a #5 spline D‑handle pneumatic impact wrench from Chicago Pneumatic built for heavy‑duty industrial fastening and torque‑intensive applications.
Q: What applications is this impact wrench suited for?
A: It’s designed for industrial maintenance, construction, fabrication, mining, and heavy equipment service where high torque and reliable performance are required.
Q: What power source does it use?
A: It runs on compressed air (pneumatic), suitable for professional and industrial workshop environments.
Q: What drive interface does it use?
A: This model uses a #5 spline drive for compatibility with spline sockets and accessories.
Q: Is it suitable for professional use?
A: Yes. It is engineered for continuous industrial‑grade performance under demanding work conditions.
Maintenance Tips
-
Lubricate the air inlet regularly with pneumatic tool oil.
-
Use clean, dry compressed air to prevent internal moisture damage.
-
Inspect and tighten all fasteners before each use.
-
Clean the exterior after use to remove dust and debris.
-
Store in a dry, cool place to prevent rust and corrosion.
-
Avoid overloading to maintain optimal performance and tool longevity.
