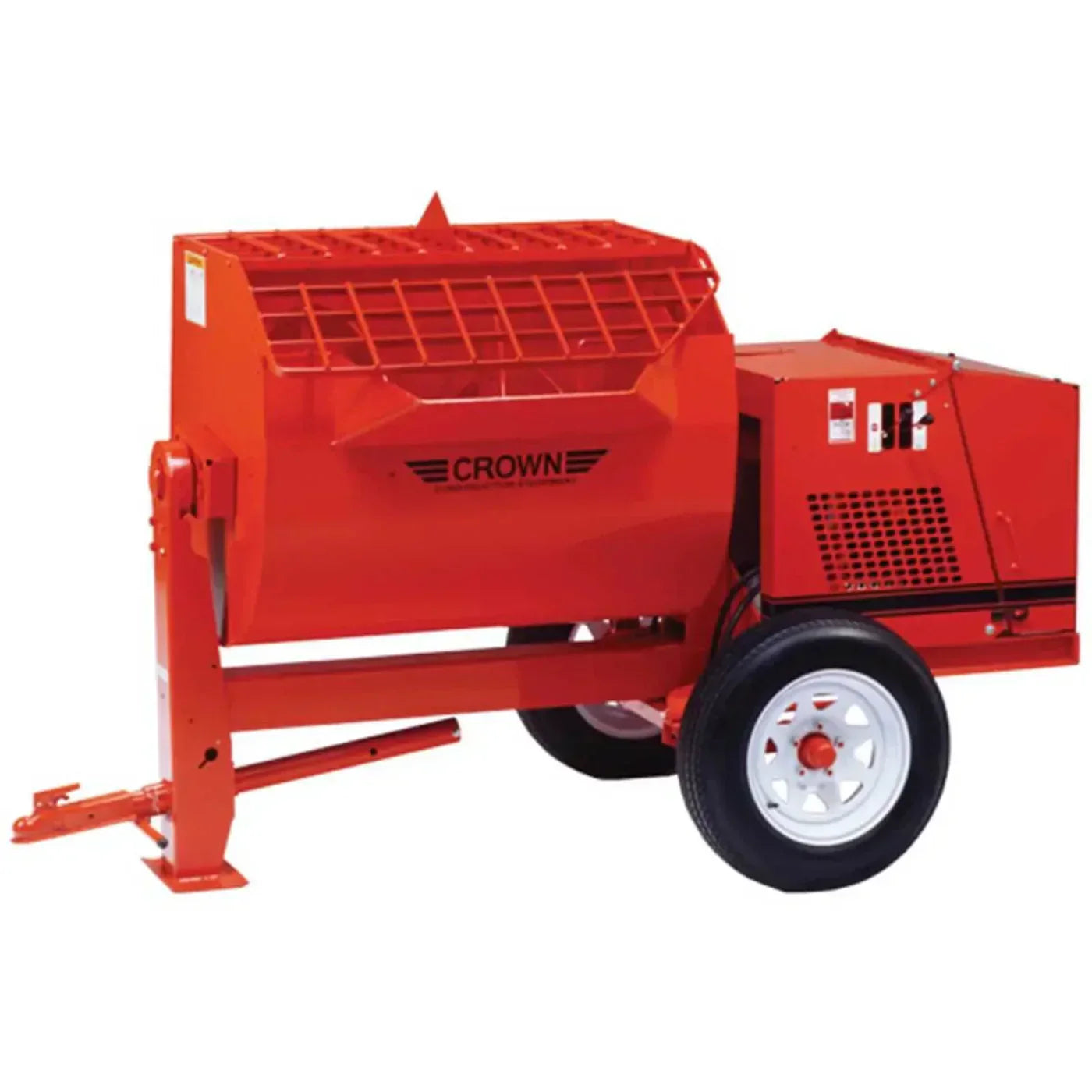

Crown 16SH Hydraulic Towable Mortar Mixer
Features
- Honda GX390 - 11.7 hp gas motor
- 7 gauge steel for longer drum life
- 2" solid steel paddle shaft
- Ductile iron paddle are stronger than welded steel, making this mixer the industry's most durable!
- Crowns exclusive Shear Pin Protection system shields the gear reducer and engine from potential damage should an engaged mixer be impeded by a shovel or other foreign object
- Crown's self-latching drum lock is knee operated, freeing both hands for optional dumping control
- Extra-Large B78x13 tires for smooth towing to your job
- 4 to 5 bags capacity, 16 cubic Ft
- Highway tow able comes with high speed taper roller bearings, and heavy duty axles for years of trouble-free towing
- High Strength Frame newly designed frame provides improved durability and stronger support in the areas where you need it
- The raised frame construction allows for convenient dumping for a wheel-barrow
- Charging Height 58"
- 2 pieces safety grill is stronger, safer and easier to use than a one piece grill and will not damage the drum
- Lifetime Warranty, All Crown mixers feature a lifetime warranty on the drum bearing and seals
- Heavy-duty one-piece cast-iron ring gear for longer life
- Spiral blade mixing standard on 16SH Hydraulic mixers
- Optional lighting kit sold separately here
- Free shipping from Crown warehouse
- Wheels are not installed prior to delivery; Wheel assembly is required on this unit prior to use
What's Included
- Crown 16SH Hydraulic Mortar Mixer
- Includes a 2" Ball Hitch or a Pintle Hitch
- Safety Chains
- Operator's manual
Specification
| Drum Capacity |
16 cu ft |
| Bag Capacity |
4-5 bags (88 lbs. pre-mix) |
| Max RPM |
30 |
| Dimensions |
98 x 53 x 58 in |
| Weight |
1355 lbs |
What Our Experts Think
-
11.7 HP Honda Engine – Provides exceptional power for fast and efficient mixing of large mortar batches.
-
Hydraulic System – Ensures smooth, consistent operation with reduced manual effort, enhancing overall productivity.
-
Heavy-Duty Pintle Drive – Built for reliability and durability, even under challenging conditions.
-
Robust Construction – Designed for long-lasting performance in demanding industrial environments.
-
Ideal for Large-Scale Projects – Perfect for high-volume mixing on large construction, masonry, and industrial job sites.
Q&A
Q: What is the Crown 16SH Hydraulic Mortar Mixer used for?
A: The 16SH is a heavy-duty hydraulic mortar mixer designed for large-scale mixing of mortar, concrete, and other materials, making it ideal for high-volume construction and masonry applications.
Q: What engine powers the 16SH Hydraulic Mortar Mixer?
A: It is powered by a robust 11.7hp Honda engine, ensuring powerful and efficient mixing even for the toughest materials.
Q: What makes the 16SH unique?
A: Its hydraulic system offers superior material handling, while the powerful Honda engine ensures maximum performance for demanding job site conditions.
Q: Is the 16SH easy to operate?
A: Yes, the 16SH is equipped with intuitive hydraulic controls and a user-friendly pintle design, making it simple to operate even for large batches.
Q: Who benefits from using the 16SH?
A: Contractors, construction teams, and masonry professionals who need a reliable, high-capacity mixer for heavy-duty mixing and efficient material handling on large job sites.
Maintenance Tips
-
Clean After Each Use – Clean the drum, mixing blades, and hydraulic system to prevent mortar buildup and corrosion.
-
Check Hydraulic Fluid – Inspect and maintain the hydraulic fluid levels regularly, replacing fluid as needed to ensure optimal performance.
-
Lubricate Hydraulic Components – Lubricate the hydraulic system, including hoses and fittings, to ensure smooth operation and prevent wear.
-
Inspect the Honda Engine – Check the engine oil, air filter, and spark plug regularly, replacing or cleaning parts as necessary.
-
Inspect & Tighten Bolts – Ensure all nuts, bolts, and fasteners are secure to avoid vibrations and prevent damage during operation.
-
Monitor the Mixing Blades – Regularly inspect the blades for signs of wear or damage and replace them when necessary to maintain mixing efficiency.
-
Examine Tires & Axles – Ensure the tires are properly inflated and inspect axles for wear or damage to ensure safe towing.
