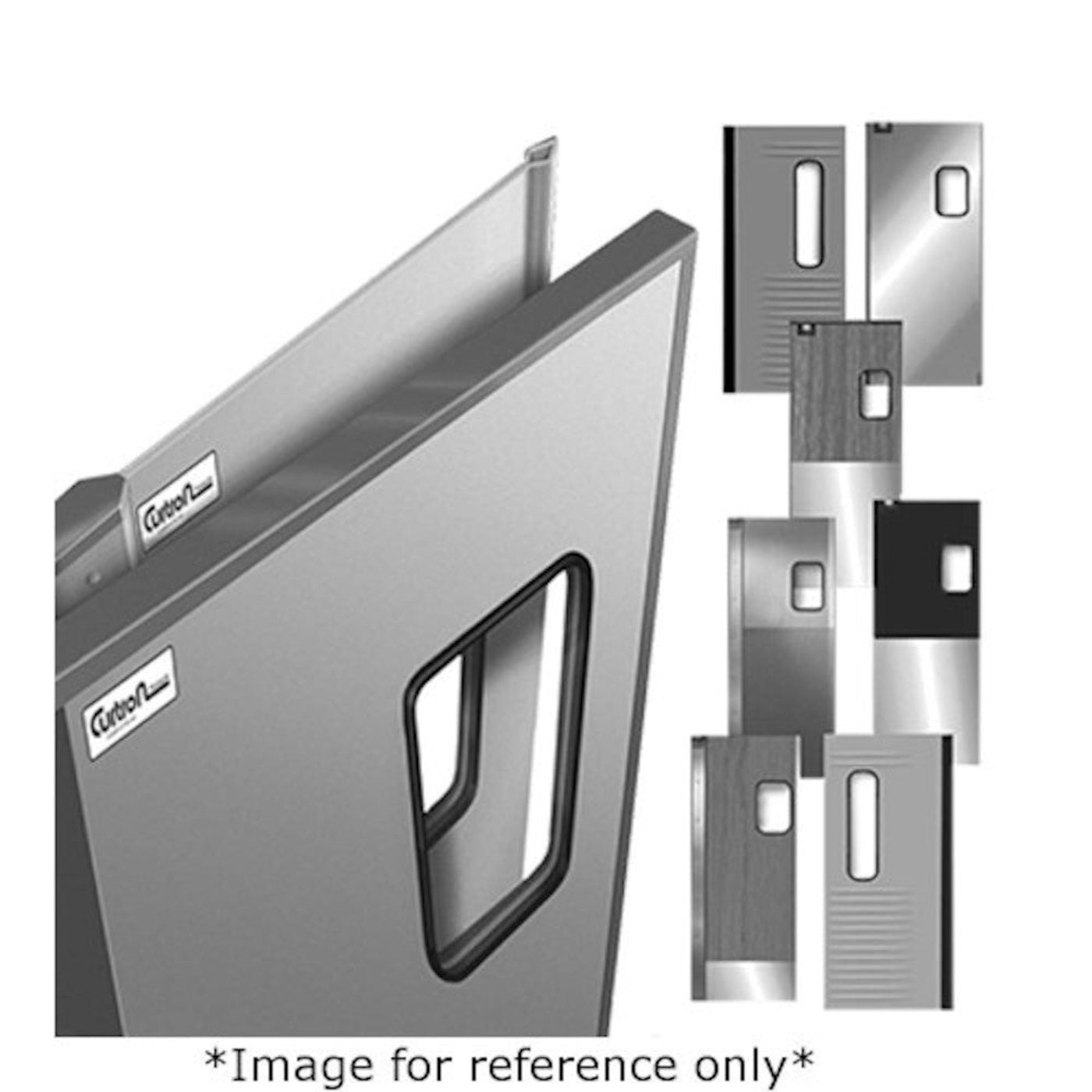

Curtron SPD-30-L-GK-DBL-4896 48" x 96" Service-Pro Series 30 Double Swing Door - CUSPD30LGKDBL4896
Durable and easy to use, the Curtron SPD-30-L-GK-DBL-4896 is a Service-Pro Series 30 Swing Door. It is made of .032" tempered aluminum and has a laminate finish. The Swing Door has an 0.750" exterior grade solid wood core and a full perimeter gasket. It comes with an 18" stainless steel kickplate, Save-T hinge assembly, and bottom pin. The SPD-30-L-GK-DBL-4896 has two 24" x 96" door panels and two 9" x 14" windows.
Features
- (2) 24" x 96" door panels
- .032" tempered aluminum with laminate finish exterior and full perimeter gasket
- 0.750" exterior grade solid wood core
- (2) 9" x 14" clear windows
- 18" stainless steel kickplate
- Save-T hinge assembly and bottom pin
Specifications
- Model: SPD-30-L-GK-DBL-4896
- Dimensions: 96" H x 48" W
- Approximate Weight: 180 lbs.
What our Experts Think
-
Smart Fit (48″ × 96″) — Full-height opening with moderate width, ideal for carts and personnel in service areas.
-
Durable Core Construction — 0.750″ exterior-grade solid wood core ensures stability and impact resistance.
-
Laminate Finish Advantage — Laminate-wrapped aluminum exterior offers a clean look and strong durability for commercial use.
-
Visibility & Flow — Standard 9″ × 14″ windows provide sightlines, and the double-swing design supports smooth two-way traffic.
-
Traffic-Friendly & Hygienic — Perfect for busy environments with frequent staff or cart movement; materials are easy to clean and maintain.
Q&A
Q: What are the dimensions of this door?
A: The SPD‑30‑L‑GK‑DBL‑4896 fits an opening 48″ wide × 96″ high.
Q: What does the model designation “SPD‑30‑L‑GK‑DBL‑4896” mean?
A: “SPD‑30” = Service‑Pro Series 30, “L” = laminate finish, “GK” = full‑perimeter gasket, “DBL” = double swing (two panels), “4896” = 48″ width × 96″ height.
Q: How many panels does this door have and what are their sizes?
A: It has two swing panels, each approximately 24″ wide × 96″ high.
Q: What are the construction materials?
A:
-
Exterior: Laminate over .032″ aluminum
-
Core: 0.75″ exterior‑grade wood composite
-
Gasket: Full‑perimeter for sealing
-
Windows: Each panel includes a 9″ × 14″ viewing window
Q: Where is this door typically used?
A: Ideal for commercial kitchens, service corridors, and other high‑traffic areas where a durable laminate surface is preferred.
Q: What should be checked before installation?
A: Confirm that the rough opening is 48″ × 96″, ensure adequate swing clearance, and verify that the structure can support a laminate double-swing door with full-perimeter gasket.
Q: Does the door include a frame?
A: No, the frame is typically provided separately.
Q: Is the door fire-rated?
A: No, this model is not fire-rated.
Q: Are kickplates or impact plates included?
A: No, these are not included unless specified.
Q: What maintenance is recommended?
A: Clean the laminate exterior regularly, inspect hinges and gasket for wear, and keep windows clear.
Maintenance Tips
-
Clean panels regularly: Wipe vinyl and laminate surfaces with mild soap and warm water to remove dirt and grease.
-
Inspect hardware monthly: Check hinges, bolts, and mounting plates; tighten or adjust as needed.
-
Lubricate moving parts: Apply light silicone spray or oil to hinge pins and pivots every 3–6 months.
-
Check alignment & seals: Ensure doors close evenly for safety, energy efficiency, and hygiene.
-
Avoid harsh cleaners: Use non-abrasive solutions to preserve the finish and extend lifespan.
