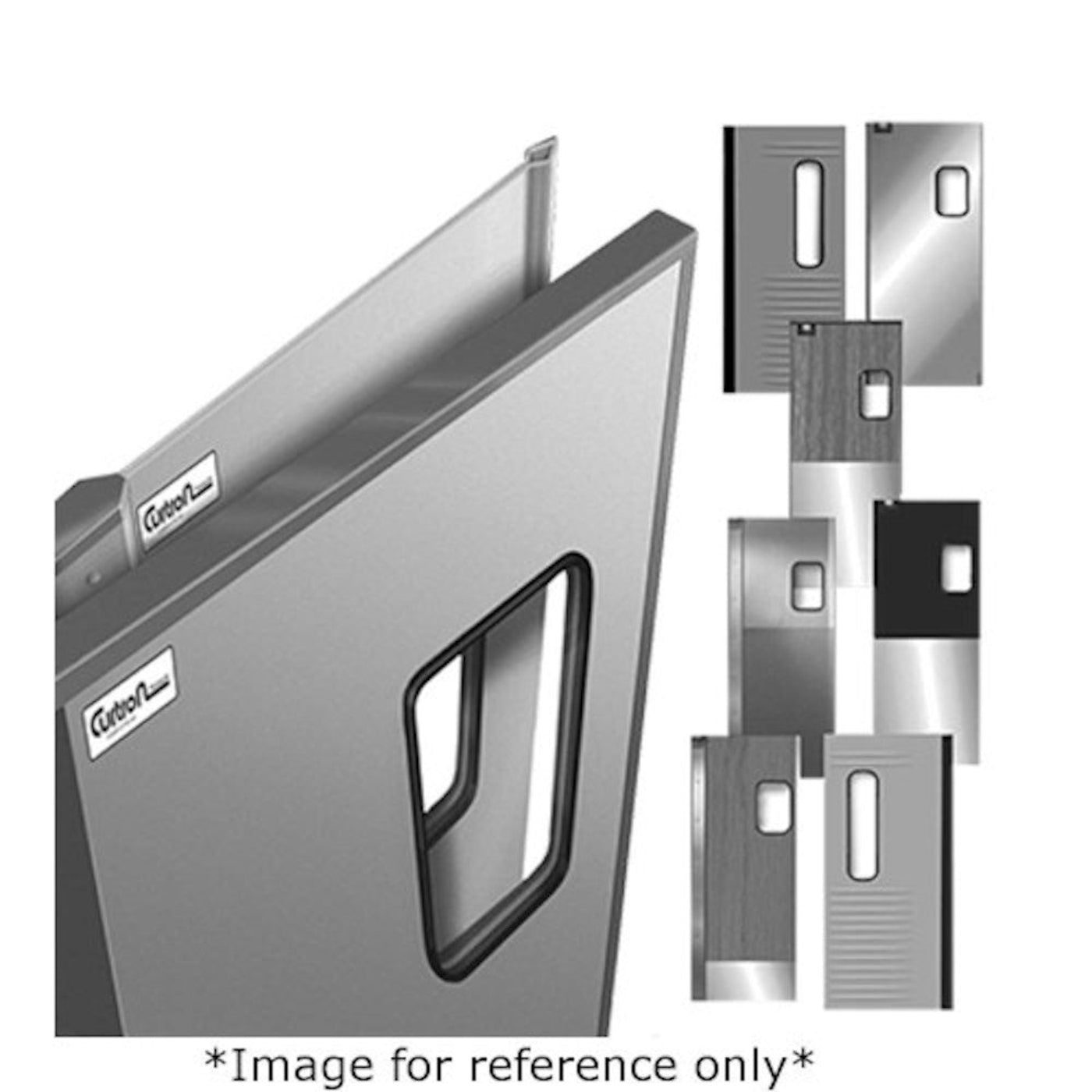

Curtron SPD-30-L-GK-DBL-9696 96" x 96" Service-Pro Series 30 Double Swing Door - CUSPD30LGKDBL9696
Durable and easy to use, the Curtron SPD-30-L-GK-DBL-9696 is a Service-Pro Series 30 Swing Door. It is made of .032" tempered aluminum and has a laminate finish. The Swing Door has an 0.750" exterior grade solid wood core and a full perimeter gasket. It comes with an 18" stainless steel kickplate, Save-T hinge assembly, and bottom pin. The SPD-30-L-GK-DBL-9696 has two 48" x 96" door panels and two 9" x 14" windows.
Features
- (2) 48" x 96" door panels
- .032" tempered aluminum with laminate finish exterior and full perimeter gasket
- 0.750" exterior grade solid wood core
- (2) 9" x 14" clear windows
- 18" stainless steel kickplate
- Save-T hinge assembly and bottom pin
Specifications
- Model: SPD-30-L-GK-DBL-9696
- Dimensions: 96" H x 96" W
- Approximate Weight: 359 lbs.
What our Experts Think
-
Extra-Wide Clearance (96″ × 96″) — Dual 48″ panels provide exceptionally broad access, ideal for oversized carts, mobile racks, or high-volume traffic zones.
-
Robust Construction — 0.750″ exterior-grade wood core with durable laminate or aluminum exterior ensures heavy-duty performance.
-
Safety & Visibility — Each panel includes a 9″ × 14″ window to enhance sightlines and reduce collision risk.
-
Gasketed Seal & Performance — Full-perimeter gasketing helps control airflow, reduce noise, and separate zones in food-service, cold rooms, or industrial settings.
-
Designed for Efficiency — Double-swing panels support smooth two-way movement of personnel and equipment, avoiding bottlenecks in busy environments.
Q&A
Q: What are the dimensions of this door?
A: The SPD‑30‑L‑GK‑DBL‑9696 fits an opening 96″ wide × 96″ high.
Q: What does the model code “L‑GK‑DBL‑9696” mean?
A: “L” = laminate finish exterior, “GK” = full‑perimeter gasket, “DBL” = double swing (two panels), “9696” = 96″ width × 96″ height.
Q: How many panels does this door have and what are their sizes?
A: Two swing panels, each approximately 48″ wide × 96″ high.
Q: What are the construction and core materials?
A:
-
Exterior: Laminate over reinforced substrate
-
Core: 0.75″ exterior‑grade composite wood
-
Windows: Each panel has a 9″ × 14″ viewing window
-
Gasket: Full‑perimeter sealing gasket
Q: Where is this door typically used?
A: Suitable for high-traffic commercial kitchens, service corridors, retail backrooms, and warehouse entrances where two-way swing access and durability are needed.
Q: What should be checked before installation?
A: Confirm the rough opening is 96″ × 96″, ensure adequate swing clearance for both panels, and verify the frame can support a laminate double-swing door with full-perimeter gasket.
Q: Does the door include a frame?
A: No, the frame is typically provided separately.
Q: Is the door fire-rated?
A: No, this model is not fire-rated.
Q: Are kickplates or impact plates included?
A: No, these are not included unless specified.
Q: What maintenance is recommended?
A: Clean the laminate exterior regularly, inspect hinges and gasket for wear, and keep windows clear.
Maintenance Tips
-
Clean panels and gaskets regularly: Wipe vinyl and laminate surfaces with mild soap and warm water. Avoid harsh chemicals or abrasives.
-
Inspect hardware: Check hinges, bolts, and mounting plates every 3–6 months; tighten or adjust as needed.
-
Lubricate moving parts: Apply light silicone spray or grease to hinge cams, pivot pins, and bottom pins every 3–6 months for smooth, quiet swing action.
-
Check alignment & seals: Ensure door panels close evenly and gaskets maintain a tight seal for safety and energy efficiency.
-
Protect finishes: Use non-abrasive cloths and cleaners to maintain laminate and vinyl surfaces.
