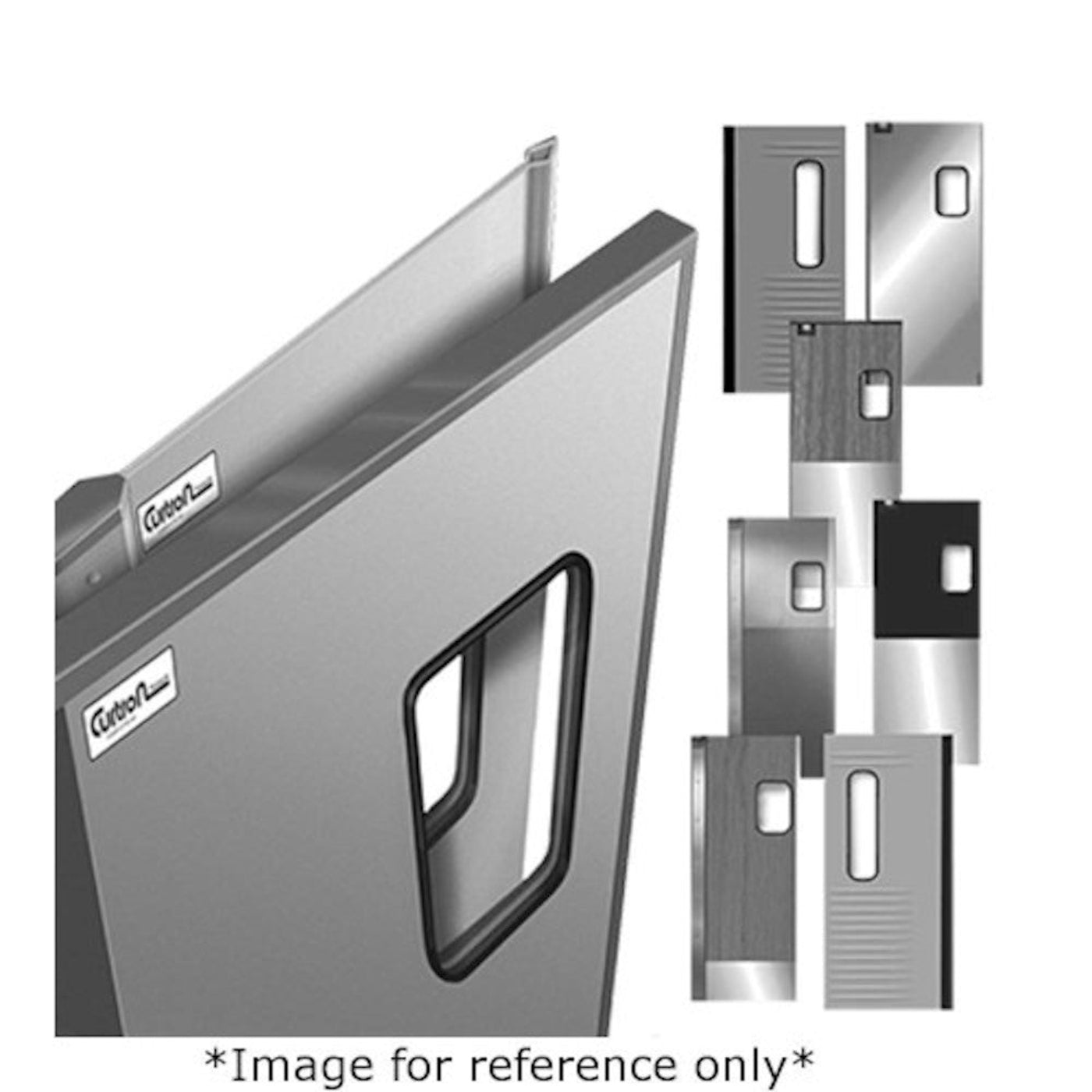

Curtron SPD-30-SS-GK-DBL-7884 78" x 84" Service-Pro Series 30 Double Swing Door - CUSPD30SSGKDBL7884
The Curtron SPD-30-SS-GK-DBL-7884 Swing Door is ideal for separating dining areas from kitchen areas. It reduces noise and, thereby, increases customer satisfaction. It has a durable 18 gauge stainless steel exterior and 0.750" exterior grade wood core. It has a full perimeter gasket. The SPD-30-SS-GK-DBL-7884 Swing Door has two 39" x 84" door panels and two 9" x 14" clear windows. It includes a hinged assembly and bottom pin.
Features
- (2) 39" wide x 84" high door panels
- 18 gauge stainless steel exterior
- Full perimeter gasket
- 0.750" exterior grade wood core
- (2) 9" x 14" clear windows
- No kickplate / impact plate
- Hinged assembly and bottom pin
Specifications
- Model: SPD-30-SS-GK-DBL-7884
- Dimensions: 84" H x 78" W
- Approximate Weight: 255 lbs.
What our Experts Think
-
Ideal Access Size (78″ × 84″) — Provides generous clearance for two-way cart and personnel traffic in busy service areas.
-
Heavy-Duty Construction — Series 30 design with 18‑gauge stainless-steel exterior and 0.750″ wood core ensures durability in high-traffic environments.
-
Effective Sealing & Temperature Control — Full-perimeter gasket helps contain sound, control airflow, and maintain separation between service zones.
-
Visibility and Safety — Each panel includes a 9″ × 14″ window, improving sightlines and reducing collision risk.
-
Workflow Efficiency — Double-swing design supports smooth movement in both directions, enhancing productivity in kitchens, warehouses, and service corridors.
Q&A
Q: What size is this door?
A: The SPD-30-SS-GK-DBL-7884 fits an opening 78" wide × 84" high.
Q: What does the designation “SS-GK-DBL-7884” mean?
A: “SS” — stainless steel exterior, “GK” — full-perimeter gasket, “DBL” — double-panel swing, “7884” — 78" width × 84" height.
Q: What construction materials are used?
A:
-
Exterior: 18-gauge stainless steel
-
Core: 0.75" exterior-grade wood composite
-
Windows: Two panels, each with a 9" × 14" viewing window
Q: What is the panel configuration?
A: The door has two swing panels, each approximately 39" wide × 84" high.
Q: Where is this door typically used?
A: Ideal for commercial kitchens, food-service corridors, or other high-traffic industrial or institutional areas.
Q: What should be checked before installation?
A: Ensure the rough opening is 78" × 84", confirm swing clearance for both panels, and verify the frame and structure can support the stainless steel double-swing door.
Q: Does the door include a frame?
A: No, frames are typically ordered separately or provided on-site.
Q: Is the door fire-rated?
A: No, this model is not fire-rated and is not suitable for fire-rated assemblies.
Q: Are kickplates or impact plates included?
A: No, these are not included unless specified.
Q: What maintenance is recommended?
A: Clean the stainless steel exterior regularly, inspect hinges and gasket for wear, and ensure windows remain clear and intact.
Maintenance Tips
-
Regular cleaning: Wipe stainless steel and vinyl panels with mild soap and warm water to remove dirt and grease.
-
Monthly hardware inspection: Check hinges, bolts, and mounting plates; tighten or adjust as needed.
-
Lubricate moving parts: Apply silicone spray or light oil to hinge pins and pivots every 3–6 months.
-
Check alignment & seals: Ensure doors close evenly for safety, energy efficiency, and hygiene.
-
Avoid harsh chemicals: Use non-abrasive cleaners to protect stainless steel and vinyl surfaces.
