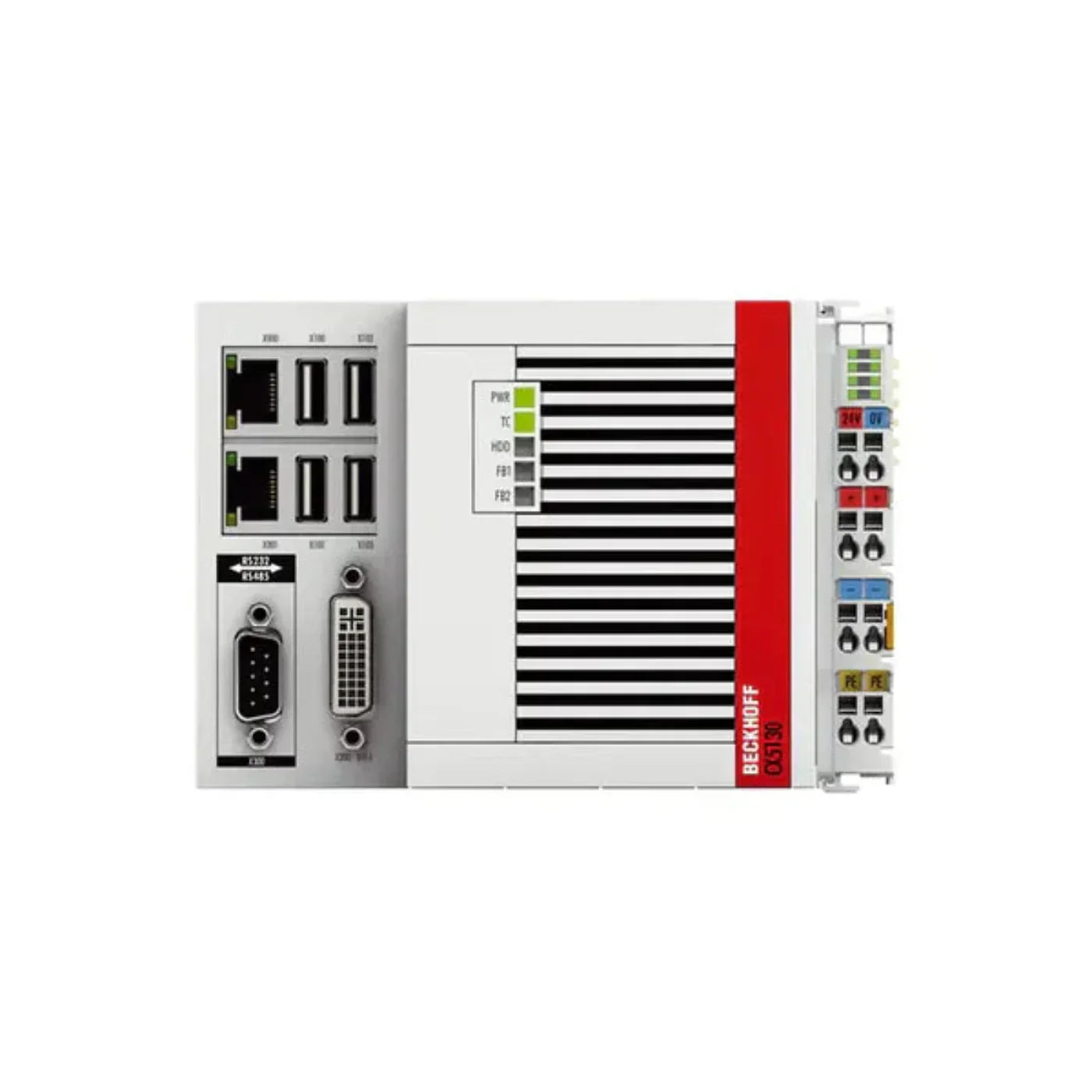

Beckhoff CPU Module - CX5130-0155-000001294
The CX5130-0155-000001294 Beckhoff CPU Module is a CPU module designed for industrial automation applications. It operates with Microsoft Windows 10 IoT Enterprise 2016 LTSB, 64-bit edition, facilitating compatibility with a range of software applications and industrial protocols.
Equipped with TwinCAT 3 runtime (XAR), the module enables real-time control and monitoring of industrial processes. However, it does not include any licenses, necessitating separate procurement for licensing requirements.
This CPU module serves as a central processing unit in industrial control systems, providing computational power and data processing capabilities essential for automation tasks. Its compatibility with Windows 10 IoT Enterprise ensures seamless integration with existing software infrastructure while offering robust performance in industrial environments.
Specifications
| Processor |
Intel Atom E3827, 1.75 GHz |
| Number of Cores |
2 |
| Flash Memory |
Slot for CFast card and microSD card, cards not included |
| Main Memory |
4 GB DDR3 RAM (not expandable) |
| Persistent Memory |
Integrated 1-second UPS (1 MB on CFast card) |
| Interfaces |
2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-I, 4 x USB 2.0, 1 x optional interface |
| Diagnostics LED |
1 x power, 1 x TC status, 1 x flash access, 2 x bus status |
| Clock |
Internal battery-backed clock for time and date (battery exchangeable) |
| Operating System |
Windows Embedded Compact 7, Windows Embedded Standard 7 P, Windows 10 IoT Enterprise 2016 LTSB, Windows 10 IoT Enterprise 2019 LTSC, Windows 10 IoT Enterprise 2021 LTSC, TwinCAT/BSD |
| Control Software |
TwinCAT 2 runtime, TwinCAT 3 runtime (XAR) |
| I/O Connection |
E-bus or K-bus, automatic recognition |
| Power Supply |
24 V DC (-15%/+20%) |
| Current Supply E-bus/K-bus |
2 A |
| Max. Power Consumption |
14 W |
| Max. Power Consumption (with Loading UPS) |
20 W |
| Dimensions (W x H x D) |
142 mm x 100 mm x 92 mm |
| Weight |
Approx. 1095 g |
| Relative Humidity |
95%, no condensation |
| Operating/Storage Temperature |
-25…+60°C/-40…+85°C |
| EMC Immunity/Emission |
Conforms to EN 61000-6-2/EN 61000-6-4 |
| Vibration/Shock Resistance |
Conforms to EN 60068-2-6/EN 60068-2-27 |
| Protection Rating |
IP20 |
| Approvals/Markings |
CE, UL, DNV GL, with CX2900-0107 ordering option: ATEX, IECEx, cFMus |
Information About CX5130-0155-000001294
The CX5130-0155-000001294 Beckhoff CPU Module represents a computing unit designed for industrial automation applications. It operates with Microsoft Windows 10 IoT Enterprise 2016 LTSB, a 64-bit operating system specifically tailored for embedded systems and IoT devices.
This CPU module features the TwinCAT 3 runtime (XAR), providing real-time control and automation capabilities essential for industrial processes. However, it does not include any licenses by default, necessitating separate procurement for licensing requirements.
The Beckhoff CPU Module serves as a central processing unit in industrial control systems, offering computational power and data processing capabilities required for automation tasks. Its compatibility with Windows 10 IoT Enterprise ensures seamless integration with existing software infrastructure while offering robust performance in industrial environments.
The 64-bit architecture enhances system performance and enables support for memory-intensive applications commonly found in industrial automation environments. This ensures efficient execution of control algorithms and processing of sensor data, contributing to the overall efficiency and reliability of industrial systems.
The TwinCAT 3 runtime (XAR) provides a comprehensive software platform for developing and deploying control applications in real-time environments. It offers support for programming languages such as Structured Text (ST), Function Block Diagram (FBD), and Sequential Function Chart (SFC), facilitating flexible and scalable application development.
With its compact form factor and DIN rail mounting compatibility, the Beckhoff CPU Module is suitable for deployment in space-constrained industrial environments. Its rugged design and industrial-grade components ensure reliable operation even in harsh industrial conditions.
The CPU module operates with a 24 V DC power supply, making it compatible with standard industrial power systems. This allows for seamless integration into existing automation infrastructures without the need for additional power adapters or converters.
