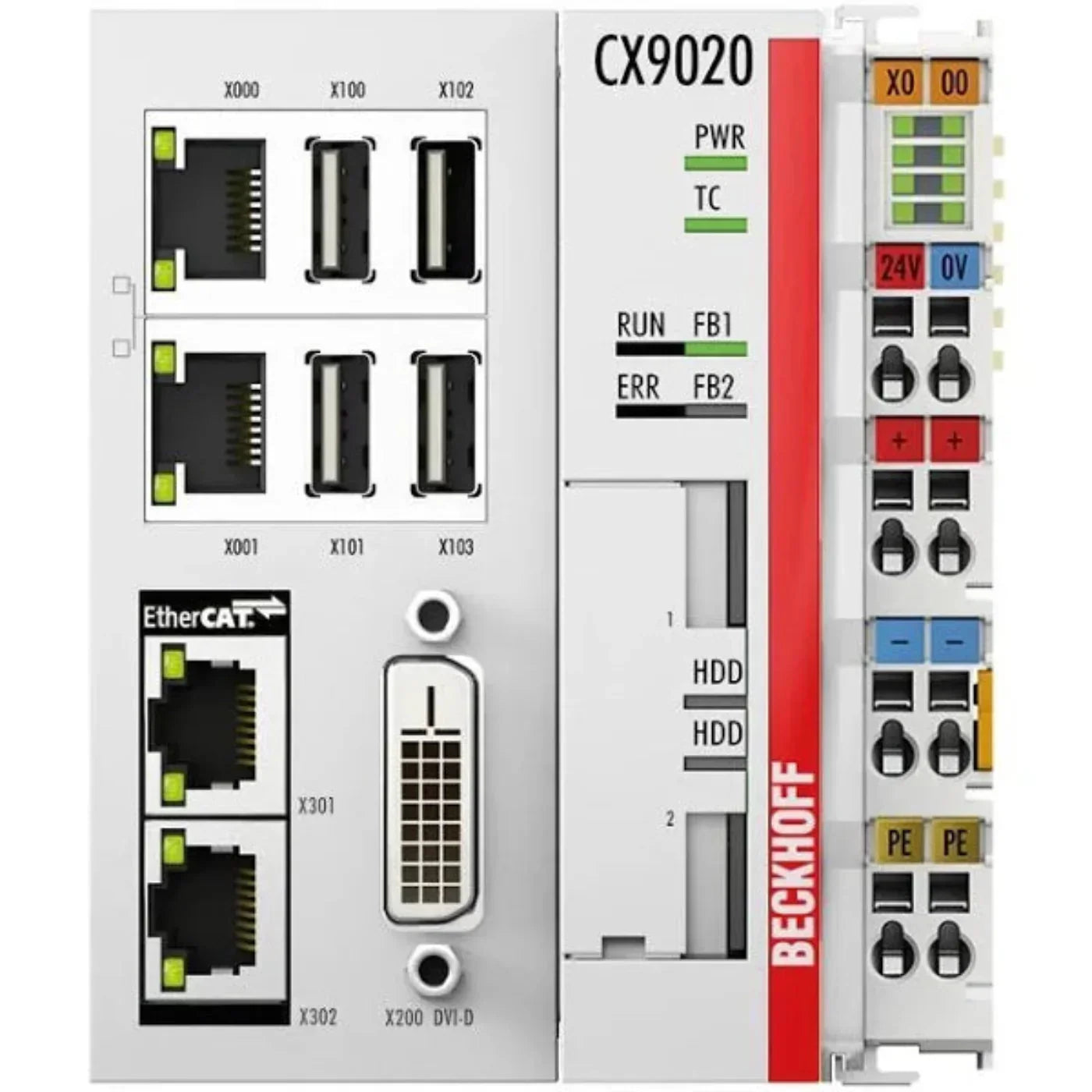

Beckhoff Basic CPU Module - CX9020-0115
The Beckhoff CX9020-0115 is a BASIC CPU MODULE designed with an ARM Cortex™-A8 processor clocked at 1 GHz and featuring a single core. It comes equipped with 2 slots for microSD cards with 512 MB included, expandable flash memory, and 1 GB DDR3 RAM, which is non-expandable. The module also integrates 128 kB NOVRAM for persistent memory storage.
In terms of connectivity, it offers 2 RJ45 10/100 Mbit/s interfaces with an internal switch, 1 DVI-D port, 4 USB 2.0 ports, and an optional interface. Diagnostic LEDs include indicators for power, TC status, flash access, and bus status.
The module operates using a battery-backed clock for time and date, with the option for battery replacement. It runs on the Windows Embedded Compact 7 operating system in English and supports TwinCAT 2 runtime and TwinCAT 3 runtime (XAR) control software.
Specifications
| Condition |
New / Never Used Surplus |
| Part # |
CX9020-0115 |
| Manufacturer |
BECKHOFF |
| Category |
Controls & Indicators |
| Subcategory |
CPU/Control Board |
| Processor |
ARM Cortex -A8, 1 GHz |
| Number of cores |
1 |
| Flash memory |
2 x slot for microSD card, 512 MB included (expandable) |
| Main memory |
1 GB DDR3 RAM (not expandable) |
| Persistent memory |
128 kB NOVRAM integrated |
| Interfaces |
2 x RJ45 10/100 Mbit/s (internal switch), 1 x DVI-D, 4 x USB 2.0, 1 x optional interface |
| Diagnostics LED |
1 x power, 1 x TC status, 2 x flash access, 2 x bus status |
| Clock |
Internal battery-backed clock for time and date (battery exchangeable) |
| Operating system |
Windows Embedded Compact 7, English |
| Control software |
TwinCAT 2 runtime |
| I/O connection |
E-bus or K-bus, automatic recognition |
| Power supply |
24 V DC (-15 %/+20 %) |
| Current supply E-bus/K-bus |
2 A |
| Max. power consumption |
5 W |
| Max. power consumption (with loading UPS) |
9 W |
| Dimensions (W x H x D) |
84 mm x 100 mm x 91 mm |
| Weight |
Approx. 590 g |
| Relative humidity |
95%, no condensation |
| Operating/storage temperature |
-25…+60 °C/-40…+85 °C |
| EMC immunity/emission |
Conforms to EN 61000-6-2/EN 61000-6-4 |
| Vibration/shock resistance |
Conforms to EN 60068-2-6/EN 60068-2-27 |
| Protection rating |
IP20 |
| Approvals/markings |
CE, UL, DNV GL, with CX2900-0107 ordering option: ATEX, IECEx, cFMus |
Information About CX9020-0115
The CX9020-0115 by Beckhoff is a basic CPU module designed for industrial automation applications. It features a robust architecture and runs on the Microsoft Windows Embedded Compact 7 operating system, providing a stable and familiar environment for control and monitoring tasks. The module supports TwinCAT 3 runtime (XAR), enabling efficient programming and execution of real-time control applications.
Key specifications of the CX9020-0115 include a single-core ARM Cortex™-A8 processor clocked at 1 GHz, delivering reliable performance for demanding industrial tasks. It comes equipped with 512 MB of flash memory, expandable via two microSD card slots, and 1 GB of DDR3 RAM for efficient data processing.
The CX9020-0115 incorporates 128 kB of NOVRAM for persistent memory storage, ensuring data integrity during power cycles or system resets. It features a comprehensive set of interfaces, including two RJ45 ports for 10/100 Mbit/s Ethernet connectivity, a DVI-D port, and four USB 2.0 ports for peripheral device connectivity. Additionally, it offers an optional interface for expanded functionality.
The module is equipped with diagnostics LEDs for power status, TwinCAT status, flash access, and bus status, providing visual feedback for system monitoring and troubleshooting. It also includes an internal battery-backed clock for accurate time and date management, with a user-replaceable battery for seamless operation.
