EDWARDS 241 Punch Assembly For 40, 50, 55, 7 60 Ton Ironworkers - ED9-AC1055

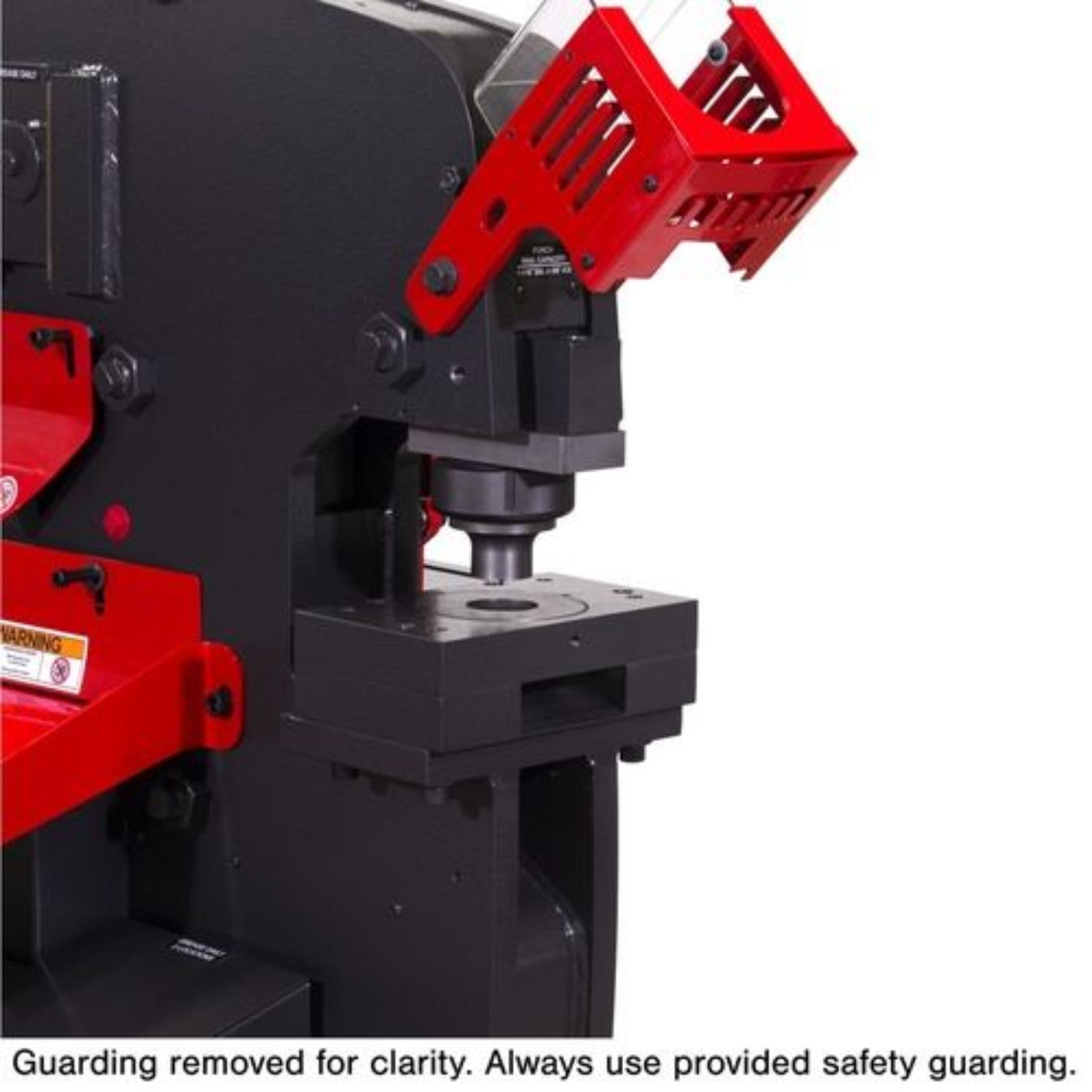

The 241 Punch Assembly accommodates punch & die sets in various shapes and sizes from 1" up to 4". Punch large holes and slots in anything from sheet metal to steel plate.
Features
- Punch large holes and slots in anything from heavy sheet metal to steel beams.
- Replaces the installed Punch Assembly on the 40, 50 , 55, & 60 Ironworkers.
- Requires 241 Punch & Die sets (contact Edwards for pricing and availability).
- 241 punch assembly accommodates punch and die sets in various shapes and sizes from 1" up to 4".
What our Experts Think
-
Heavy‑Duty 241 Punch Assembly — upgrades your ironworker to handle large punches and slots in heavy materials with capacities from 1″ up to 4″ with the correct punch & die sets.
-
Designed for Edwards 40‑60 Ton Ironworkers — directly replaces the standard punch assembly on these models for broader capability.
-
Boosts Fabrication Flexibility — ideal for punching large holes and slots in sheet metal, plate, and structural steel for fabrication or structural applications.
-
Industrial‑Grade Construction — robust assembly built to withstand heavy use in fabrication shops and industrial environments.
-
Requires Compatible Punch & Die Sets — flexible tooling options let you tailor performance to your material and hole size needs.
-
Easy Upgrade Path — straightforward replacement of the installed assembly delivers expanded punching capacity without added equipment.
-
Optimizes Productivity — expanding the punch range helps reduce secondary operations and speeds throughput when handling larger workpieces.
Q&A
Q1: What is the Edwards 241 Punch Assembly (ED9‑AC1055)?
A: A heavy‑duty punch attachment that replaces the standard punch station on 40, 50, 55, and 60 ton Edwards ironworkers to deliver larger hole‑making capability.
Q2: What jobs is it designed for?
A: It lets you punch large holes and slots in heavy sheet steel, structural plate, and beams — ideal for fabrication, structural work, and production punching.
Q3: What capacities does it support?
A: The 241 Punch Assembly accepts punch & die sets from 1″ up to 4″ in size, allowing versatile hole sizes and shapes.
Q4: Which ironworker models is it compatible with?
A: It replaces the installed punch assembly on 40 ton, 50 ton, 55 ton, and 60 ton Edwards ironworkers.
Q5: Does this include the punch & die tooling?
A: No — it requires separate 241 punch & die sets that must be ordered from Edwards or a compatible supplier.
Q6: How heavy and sizable is the assembly?
A: The unit weighs about 62 lbs with compact dimensions (~13″ × 16″ × 13″).
Q7: Why upgrade to the 241 Punch Assembly?
A: It expands your punching capability to larger holes and slots than standard punch stations, boosting productivity for heavy fabrication tasks.
Q8: Is it rugged enough for industrial use?
A: Yes — built for heavy fabrication environments with robust construction and precision alignment.
Q9: What materials can it punch?
A: Designed for a range of metals including steel, structural plate, and sheet metal up to large sizes depending on die selection.
Q10: How does this accessory improve workflow?
A: By enabling larger, cleaner holes and slots without secondary tools, it reduces setup time and increases output in punch‑intensive workflows.
Maintenance Tips
-
Clean After Use: Remove metal chips and debris frequently from the punch and die area to prevent buildup and maintain clean punching operations.
-
Lubricate Tooling: Apply light machine oil to the punch stem and die surfaces to reduce friction and extend tool life.
-
Inspect Wear & Damage: Regularly check punch tips and die seats for dullness, cracking, or deformation; replace worn tooling promptly for accurate hole and slot punching.
-
Check Alignment: After tooling changes or heavy use, verify that the punch is centered in the die to ensure precise cuts and reduce stress on the assembly.
-
Tighten Fasteners: Ensure all bolts and mounting hardware are secure to prevent movement or misalignment during punching.
-
Prevent Corrosion: Store the assembly in a dry environment and apply rust inhibitor on exposed surfaces to preserve durability.
-
Follow Capacity Guidelines: Only use recommended 241 punch & die sets (1"–4" capacity) and avoid overload to prevent premature wear
