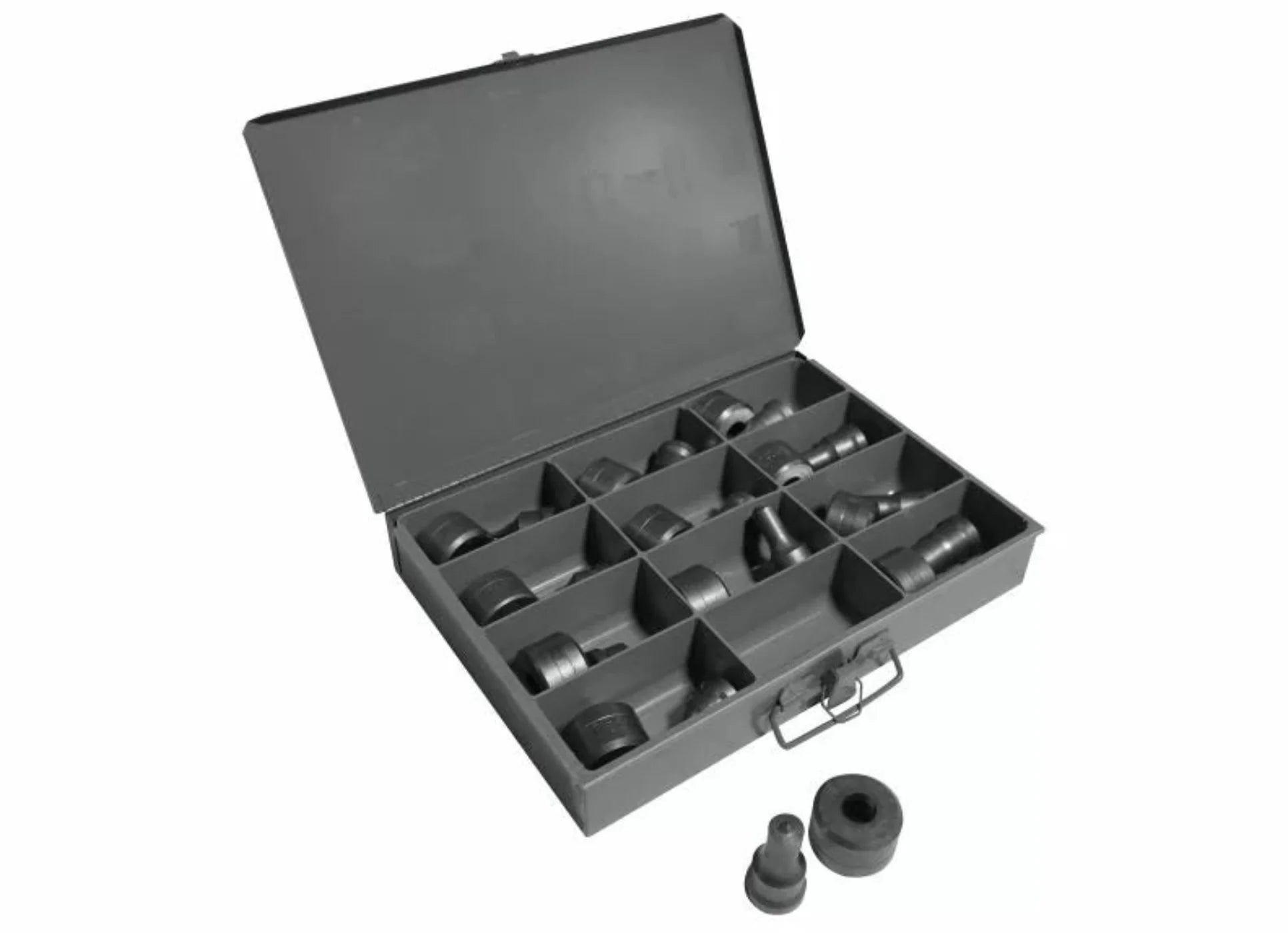

EDWARDS 12 PC. Standard Round Punch & Die Set w/ Storage Case - ED9-PD1220
- 12 Piece Set.
- Storage Case Provided.
What our Experts Think
-
Complete 12‑Piece Round Punch & Die Set — includes the most commonly used round sizes from 1/8″ through 1″, making it a versatile hole‑making toolkit for ironworkers and hydraulic presses.
-
Precision Hardened Tool Steel — punches and dies are made for clean, burr‑free holes and long service life under repeated use.
-
Convenient Storage Case Included — keeps all 12 matched sets organized, protected, and easy to access, reducing setup time and lost tooling.
-
Broad Punching Capability — ideal for structural steel, sheet metal, angle, and flat bar punching tasks with standard hole diameters.
-
Standard Pedestal Die Table Compatible — fits most pedestal punch stations on ironworkers and hydraulic punching setups.
-
Boosts Shop Productivity — having essential sizes on hand reduces downtime from frequent die changes or secondary drilling.
Q&A
Q1: What is the ED9‑PD1220?
A: A complete 12‑piece standard round punch & die set with a storage case, engineered to produce common hole sizes for metal fabrication and ironworker punch stations.
Q2: What sizes are included?
A: Includes punches & dies for these round hole sizes: 1/8″, 1/4″, 3/8″, 7/16″, 1/2″, 9/16″, 5/8″, 11/16″, 3/4″, 13/16″, 7/8″, and 1″ — covering most standard fabrication needs.
Q3: What machines is it compatible with?
A: Designed for use with Edwards ironworkers equipped with a standard pedestal die table; works with most models in that configuration.
Q4: What material types can it punch?
A: Suitable for steel, structural plate, sheet metal, and similar metals when the punch diameter equals or exceeds material thickness.
Q5: Why is the storage case beneficial?
A: The included durable storage case keeps all punches and dies organized, protected, and easy to access — reducing setup time.
Q6: How durable are the tools?
A: Made from hardened tool steel for extended life and reliable performance in workshop use.
Q7: What jobs is this set ideal for?
A: Perfect for precision round hole punching in fabrication, structural work, maintenance, and assembly tasks.
Q8: How heavy is the set?
A: The complete kit weighs around 18 lbs, making it portable and workshop‑ready.
Q9: Can it reduce tooling costs?
A: Yes — bundling common sizes in one set helps cut down separate tooling purchases and speeds job setup.
Q10: What’s the main benefit of this set?
A: Provides a versatile base of standard hole sizes for everyday metal punching needs — perfect for shops that want organized, ready‑to‑use tooling in one package
Maintenance Tips
-
Clean After Every Use: Wipe punches and dies to remove metal shavings and debris — prevents buildup and ensures clean cuts.
-
Light Lubrication: Apply a thin coat of light machine oil to punch and die surfaces to reduce friction and protect against rust.
-
Inspect for Wear & Damage: Regularly check for dull edges, chips, or deformation; replace or re‑sharpen worn tools to maintain hole quality.
-
Organized Storage: Return each punch and die to its labeled spot in the storage case to avoid damage and loss.
-
Match Tool & Material: Ensure the punch diameter and material thickness are compatible to avoid undue stress and premature wear.
-
Check Alignment in Machine: When installed in your ironworker or press, verify that the punch and die are aligned for centered, accurate holes.
