EDWARDS 12 PC. Oblong Punch & Die Set w/ Storage Case - ED9-PD1280
- 12 Piece Set.
- Storage Case Provided.
What our Experts Think
-

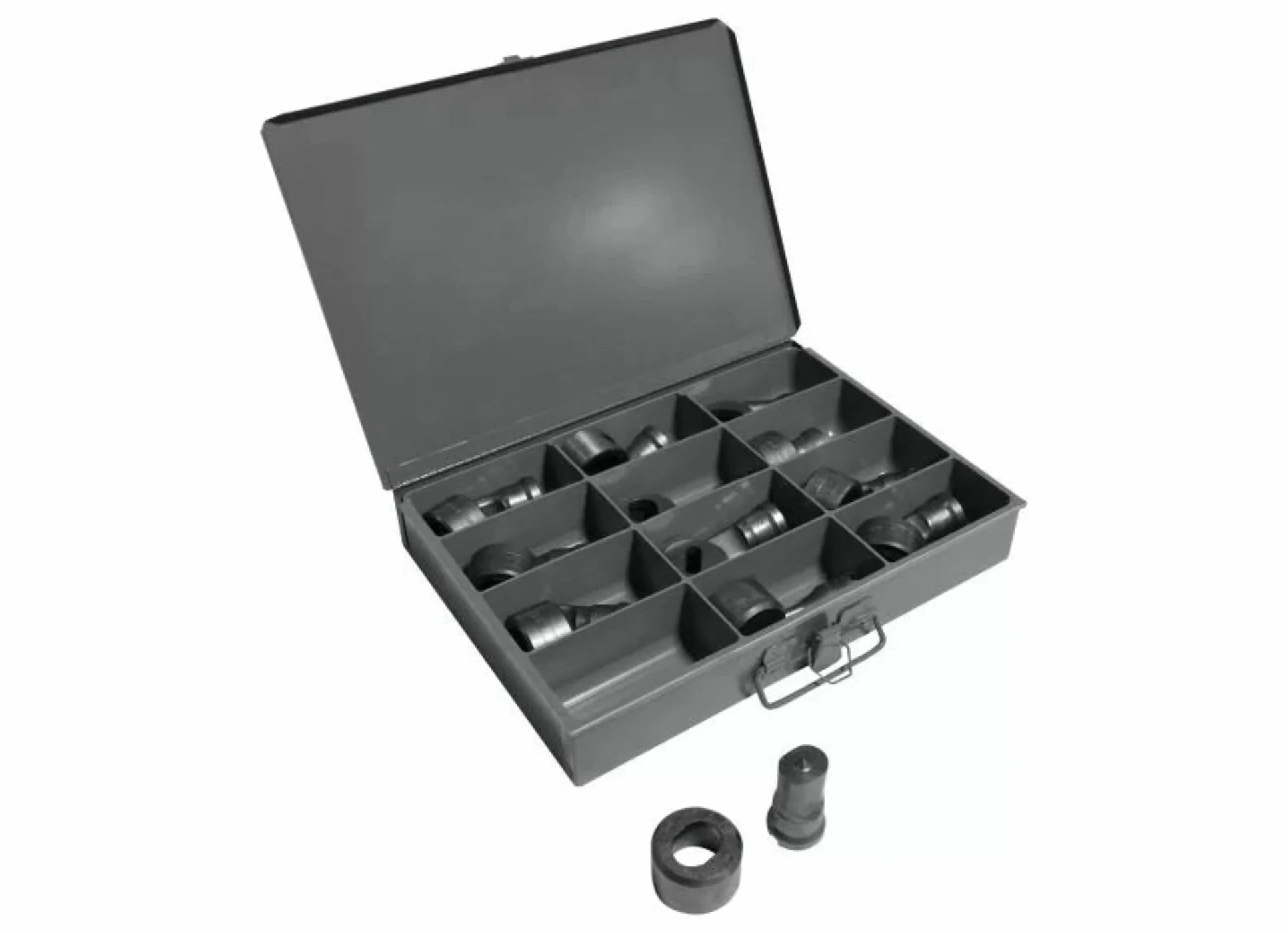

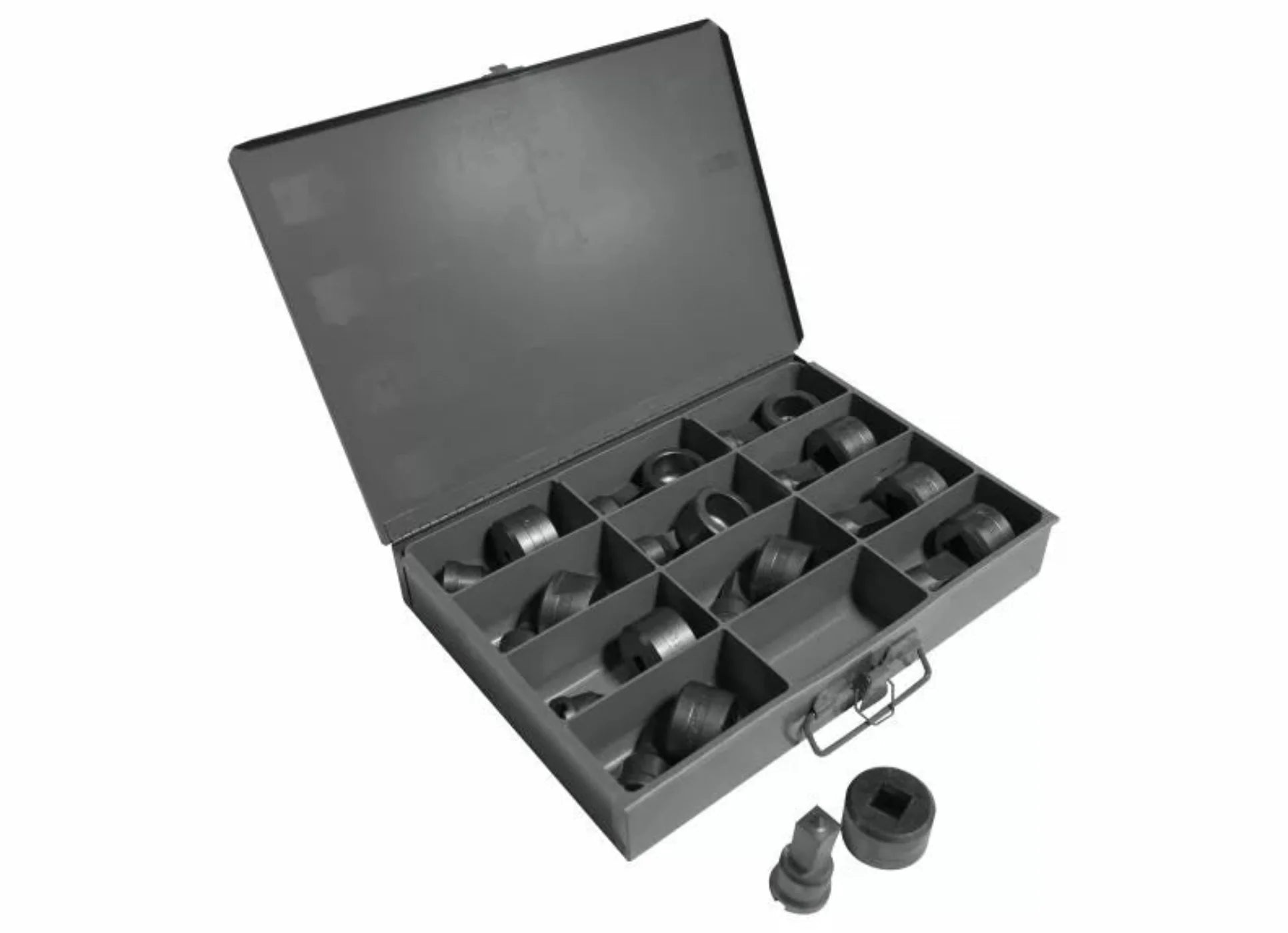

Comprehensive 12‑Piece Oblong Punch & Die Set — includes the most commonly used oblong punch & die pairs for fabrication tasks, all in one organized kit.
-
Wide Range of Sizes — covers popular oblong hole formats like 1/4″×1″ up to ~13/16″×1‑1/16″, giving flexibility for bolts and slots.
-
Precision Machined Tool Steel — hardened punches and dies deliver clean, accurate cuts and stand up to frequent use in shop environments.
-
Convenient Storage Case — protects tooling and keeps components organized for quicker setup and reduced downtime.
-
Pedestal Die Table Compatibility — built to work with standard ironworker die stations, expanding your ironworker’s functionality.
-
Ideal for Structural & Fabrication Work — excellent choice for punching slots and elongated holes in metal fabrication, structural steel, and industrial projects.
Q&A
Q1: What is the ED9‑PD1280 Oblong Punch & Die Set?
A: A 12‑piece oblong punch and die kit with a durable storage case, designed to create precision slot‑shaped holes in metal using Edwards ironworkers with a pedestal die table.
Q2: What sizes are included?
A: The set contains 12 commonly used oblong punch & die pairs for sizes such as 1/4″×1″, 3/8″×3/4″, 3/8″×1″, 7/16″×3/4″, 7/16″×1″, 1/2″×3/4″, 1/2″×1″, 9/16″×1″, 5/8″×1″, 3/4″×1″, 13/16″×1″, and 13/16″×1‑1/16″ oblong holes.
Q3: What applications is this set ideal for?
A: Perfect for punching slots and oblong holes for bolt slots, structural connections, brackets, and custom metalwork in fabrication shops.
Q4: What materials can it handle?
A: Made of durable tool steel, it’s suitable for steel, structural plate, sheet metal, and other metals — ensuring clean, precise oblong holes.
Q5: Is a storage case included?
A: Yes — a convenient storage case keeps all punches and dies organized, protected, and easy to access.
Q6: What machines is it compatible with?
A: Works with Edwards ironworkers that use a standard pedestal die table for punching operations.
Q7: Does punch diameter affect material thickness?
A: Yes — ensure the punch diameter meets or exceeds material thickness for proper punching performance.
Q8: How heavy is the set?
A: The complete set weighs approximately 18 lbs, making it portable and shop‑ready.
Q9: What is the primary benefit of this set?
A: Combines multiple commonly used oblong punch sizes in one organized kit, reducing tooling changeovers and increasing productivity.
Q10: Who benefits most from this product?
A: Metal fabricators, structural steel shops, and industrial tooling operators needing versatile and durable oblong hole punching capability.
Maintenance Tips
-
Clean After Each Use: Wipe punches and dies to remove metal shavings and debris to maintain smooth punching and prevent wear.
-
Light Lubrication: Apply a thin coat of light machine oil before and after use to protect surfaces and reduce friction.
-
Inspect for Wear/Damage: Regularly check for dull edges, chips, or deformation; replace or re‑sharpen worn tools for precise, clean oblong holes.
-
Proper Storage: Return punches and dies to their labeled slots in the storage case to avoid loss, damage, and corrosion.
-
Match Punch & Material: Ensure punch diameter meets or exceeds material thickness to avoid excess stress and premature wear.
-
Sharpen as Needed: Maintain sharp edges periodically to ensure consistent performance and reduce load on punch presses.
