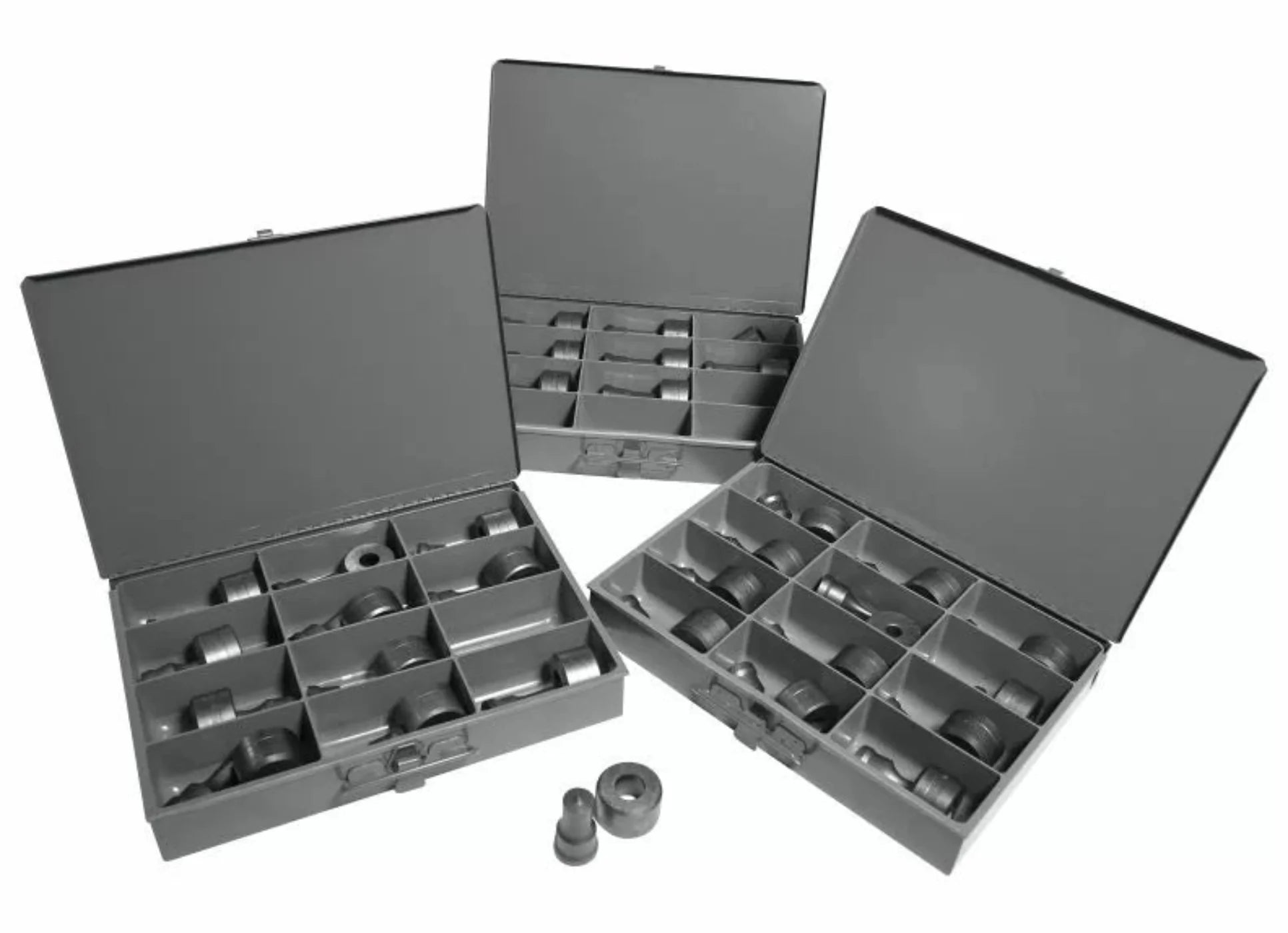

EDWARDS 32 PC. Round Punch & Die Set w/ Storage Cases - ED9-PD3200
- 32 Piece Set.
- 3 Storage Cases Provided.
What our Experts Think
-
Comprehensive 32‑Piece Punch & Die Set — includes a wide range of round punch sizes from 1/8″ up to 1‑1/8″, covering the most commonly needed hole diameters for fabrication tasks.
-
Precision Tool Steel Construction — punches and dies made from hardened steel deliver clean, consistent holes and long service life.
-
Three Durable Storage Cases — keeps all 32 punches and dies organized and protected, reducing setup time and tool loss.
-
Compatible with Standard Pedestal Die Tables — works seamlessly with most ironworker punch stations to expand your machine’s capability.
-
Boosts Shop Productivity — having a complete set on hand reduces downtime from tool changes and avoids the need for secondary drilling operations.
-
Ideal for Fabrication & Industrial Work — excellent choice for punching holes in structural steel, plate, and sheet metal across varied applications.
Q&A
Q1: What is the ED9‑PD3200 Round Punch & Die Set?
A: A complete 32‑piece round punch and die set with three storage cases designed for precise, versatile hole punching in metal fabrication using Edwards ironworkers.
Q2: What sizes are included?
A: It covers round hole diameters from 1/8″ up to 1‑1/8″, including intermediate sizes (e.g., 5/32″, 3/8″, 1/2″, 3/4″, 1″), giving broad coverage for common bolt and hole requirements.
Q3: What machines is this set compatible with?
A: Designed for use with Edwards ironworkers using a standard pedestal die table, expanding punching flexibility on most models.
Q4: What material are the punches and dies made from?
A: They’re made from durable tool steel, ensuring long life and reliable performance in heavy‑duty metalworking environments.
Q5: Why are storage cases included?
A: The three rugged storage cases keep tools organized, protected, and easy to access — reducing downtime and tool mix‑ups.
Q6: What kinds of holes can it produce?
A: Produces clean, precision round holes for structural, fabrication, and assembly tasks — ideal for bolt holes and other standard punch operations.
Q7: Does material thickness matter?
A: Yes — for safe, effective punching, the punch diameter must meet or exceed material thickness.
Q8: How heavy is the set?
A: The complete kit weighs about 42 lbs, making it robust yet manageable for workshop use.
Q9: What industries benefit most from this set?
A: Metal fabrication shops, structural steel manufacturers, automotive and industrial maintenance operations needing a broad hole‑making capability.
Q10: What’s the main advantage of this 32‑piece kit?
A: It provides a comprehensive range of sizes in one organized package, cutting down the need for multiple individual sets and improving job efficiency.
Maintenance Tips
-
Clean After Each Use: Wipe punches and dies to remove metal shavings and debris — this prevents buildup and ensures cleaner, more accurate punching.
-
Light Lubrication: Apply a thin coat of light machine oil to all punch and die surfaces to reduce friction and protect against rust.
-
Inspect for Wear & Damage: Check for dull edges, chips, or deformation; replace or re‑sharpen worn punches and dies to maintain precision.
-
Proper Storage: Return each punch and die to its designated slot in the included storage cases to avoid damage, loss, and contamination.
-
Match Tool to Material: Ensure punch diameter meets or exceeds material thickness to avoid undue stress and premature wear.
-
Check Alignment After Change: When installing into your ironworker, verify that the punch and die align properly in the punch station to keep holes centered.
