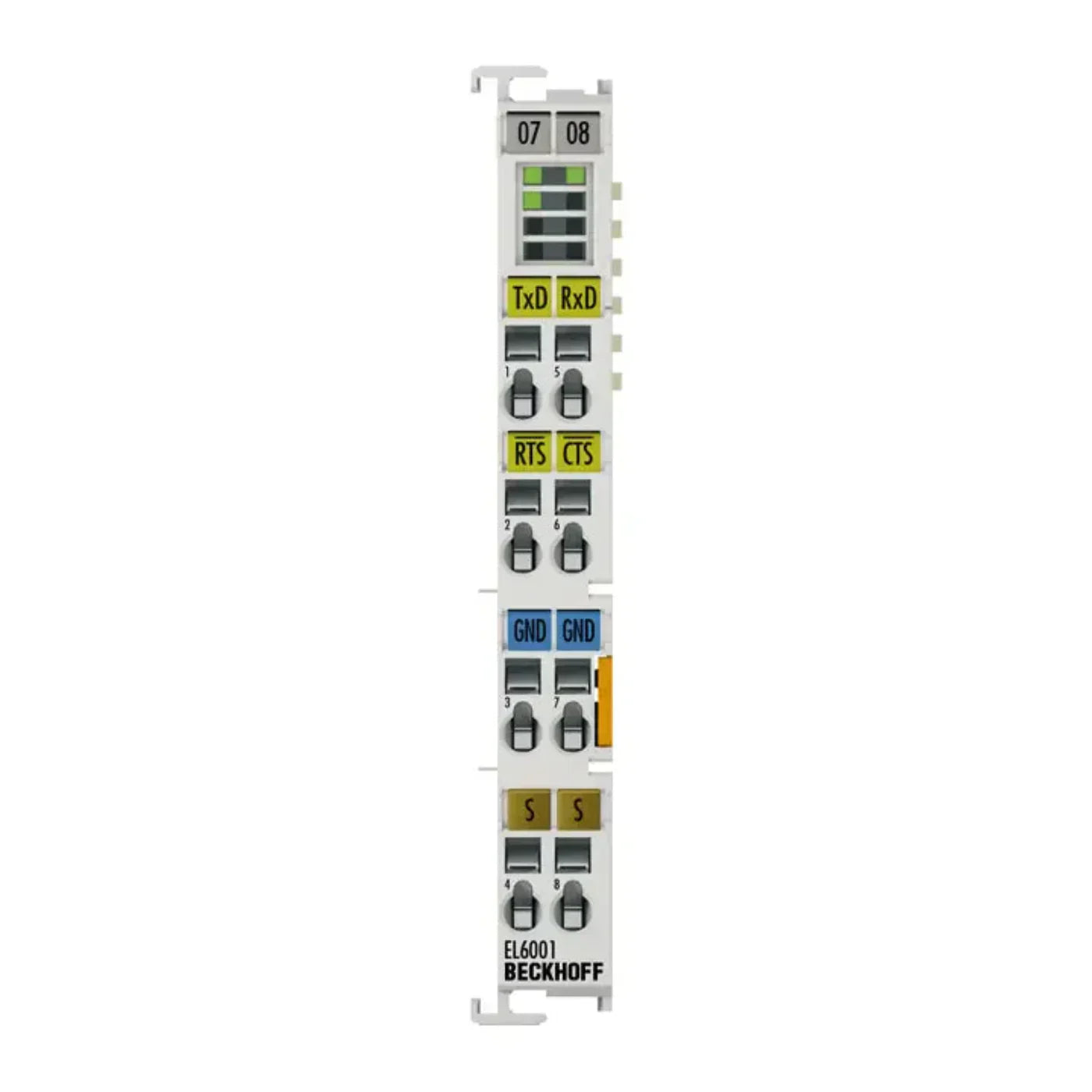

Beckhoff | Terminal - EL6001
The EL6001 is an EtherCAT Terminal featuring a 1-channel communication interface designed for serial communication using the RS232 standard. This interface facilitates the connection of devices compatible with RS232 standards, adhering to CCITT V.28/DIN 66 259-1 protocols.
Connected devices interface with the automation system via the EL6001 EtherCAT Terminal, utilizing the coupler for communication. The active communication channel operates independently of the higher-level bus system, ensuring full duplex mode communication at speeds of up to 115.2 kbaud.
Specifications
| Part # |
EL6001 |
| Manufacturer |
BECKHOFF |
| Category |
PLCs/Machine Control |
| Subcategory |
PLC Module/Rack |
| Connection technology |
Terminal contact |
| Data transfer channels |
2 (1/1), TxD and RxD, full duplex |
| Data transfer rates |
2400…115,200 baud; default: 9600 baud, 8 data bits, no parity and one stop bit |
| Bit distortion |
< 3 % |
| Interfaces |
1 x RS232 |
| Cable length |
Max. 15 m |
| Power supply |
Via the E-bus |
| Electrical isolation |
500 V (E-bus/signal voltage) |
| Data buffer |
864 bytes receive buffer, 128 bytes transmit buffer |
| Configuration |
No address setting, configuration via the controller |
| Current consumption E-bus |
Typ. 120 mA |
| Weight |
Approx. 55 g |
| Operating/storage temperature |
-25…+60 °C / -40…+85 °C |
| Relative humidity |
95%, no condensation |
| Vibration/shock resistance |
Conforms to EN 60068-2-6 / EN 60068-2-27 |
| EMC immunity/emission |
Conforms to EN 61000-6-2 / EN 61000-6-4 |
| Protect. rating/installation pos. |
IP20/variable |
Information About EL6001
The EL6001 is an EtherCAT Terminal featuring a 1-channel communication interface designed specifically for serial communication using the RS232 standard. This interface facilitates the connection of devices equipped with RS232 interfaces and operates in accordance with the CCITT V.28/DIN 66 259-1 standards.
Devices connected to the EL6001 EtherCAT Terminal communicate with the automation device through the coupler. The active communication channel functions independently of the higher-level bus system, operating in full duplex mode at speeds of up to 115.2 kbaud. This ensures efficient and simultaneous transmission and reception of data.
An essential feature of the RS232 interface is its provision of high immunity to interference. This is achieved through electrically isolated signals, enhancing the reliability and stability of communication in industrial environments. It prevents disruptions caused by external electromagnetic interference, ensuring consistent and accurate data transfer between connected devices and the automation system.
The EL6001 EtherCAT Terminal serves as a reliable and versatile solution for facilitating serial communication in industrial automation applications. Its compatibility with RS232 devices and adherence to communication standards ensure seamless integration into existing systems. With its robust communication capabilities and immunity to interference, the EL6001 contributes to the efficiency and reliability of industrial automation processes, making it a valuable component in control systems and machinery.
