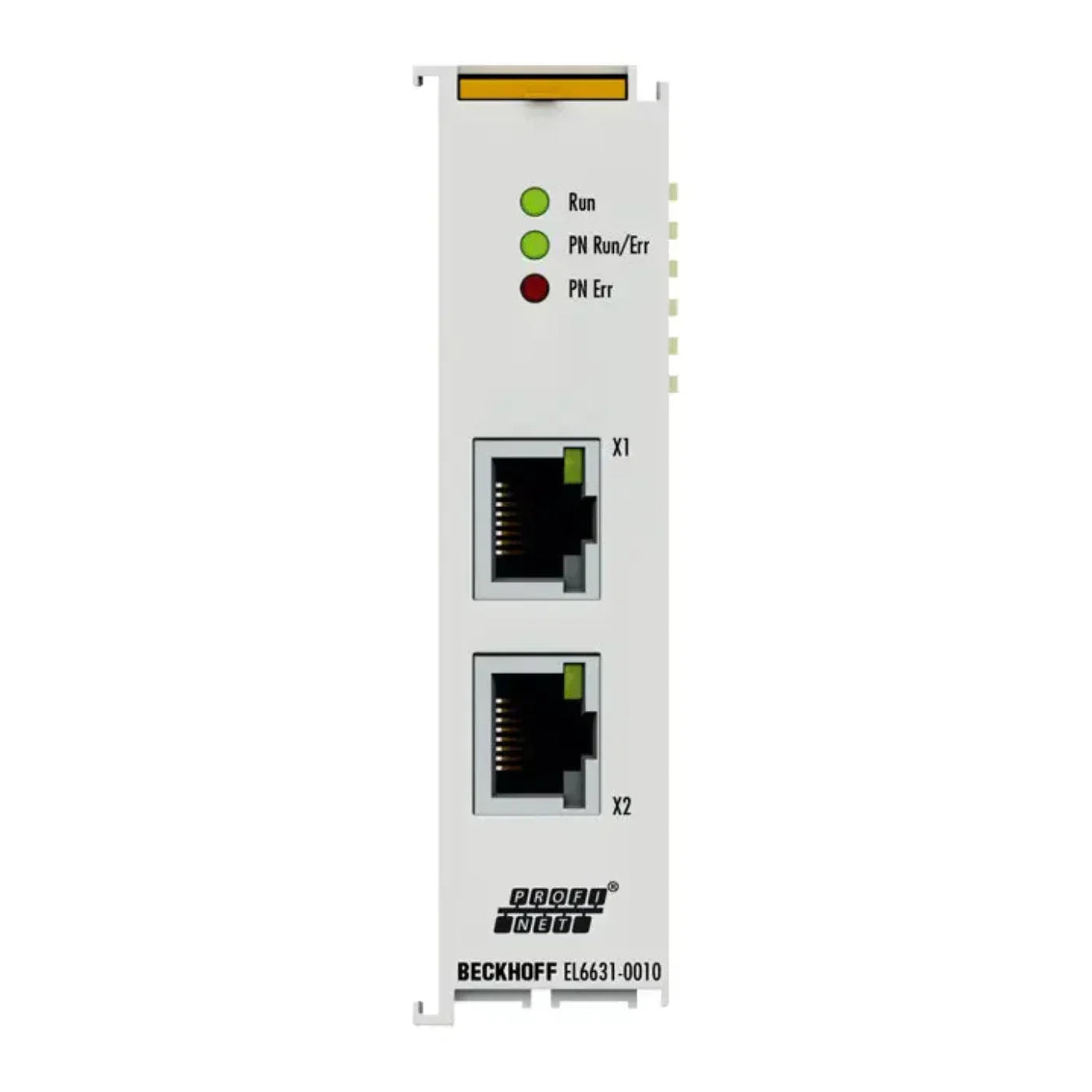

Beckhoff | Terminal - EL6631-0010
EL6631-0010 is an EtherCAT Terminal featuring a 2-port communication interface designed for PROFINET RT device integration. Functioning as a master controller terminal, the EL6631 supports comprehensive real-time (RT) functionality along with robust diagnostic capabilities, adhering to Conformance Class B standards. It facilitates projection of up to 15 PROFINET RT devices. Conversely, EL6631-0010 serves as a slave terminal, enabling seamless data exchange between EtherCAT and PROFINET RT. As a component within the EtherCAT strand, accommodating up to 65,535 devices, EL6631-0010 is equipped with a 3-port switch, two of which are externally accessible via RJ45 sockets, fostering a simplified line topology configuration for I/O stations. The maximum distance between two devices is capped at 100 meters.
Specifications
| Part # |
EL6631-0010 |
| Manufacturer |
BECKHOFF |
| Category |
PLCs/Machine Control |
| Subcategory |
PLC Programming Terminal |
| Technology |
PROFINET RT |
| Number of ports/channels |
2 (switched) |
| Ethernet interface |
100BASE-TX Ethernet with 2 x RJ45 |
| Fieldbus |
PROFINET RT device |
| Max. process data size |
1 kbyte input/1 kbyte output data |
| Cable length |
up to 100 m twisted pair |
| Hardware diagnostics |
status LEDs |
| Power supply |
via the E-bus |
| Electrical isolation |
500 V (E-bus/Ethernet) |
| Protocol |
RT |
| Configuration |
via EtherCAT master |
| Current consumption E-bus |
typ. 400 mA |
| Special features |
LLDP, SNMP, Conformance Class B, max. 15 RT devices, min. 1 ms RT cycle |
| Weight |
approx. 75 g |
| Operating/storage temperature |
0…+55 °C/-25…+85 °C |
| Relative humidity |
95%, no condensation |
| Vibration/shock resistance |
conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission |
conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. |
IP20/see documentation |
Information About EL6631-0010
The EL6631-0010 is an EtherCAT Terminal designed for 2-port communication interface integration with PROFINET RT devices. Serving as a PROFINET RT controller (master) terminal, the EL6631 supports comprehensive real-time functionality (RT) and offers extensive diagnostic capabilities. It adheres to Conformance Class B standards, ensuring compatibility with all associated services. The terminal allows projection of up to 15 PROFINET RT devices, facilitating a scalable and efficient network configuration.
In its role as a PROFINET RT device (slave) terminal, the EL6631-0010 facilitates the straightforward exchange of data between EtherCAT and PROFINET RT. Positioned within the EtherCAT strand, accommodating up to 65,535 devices, the EL6631-0010 features a 3-port switch. Notably, two of these ports are externally accessible through RJ45 sockets, enabling the creation of I/O stations structured in a line topology. This configuration optimizes wiring procedures, contributing to a streamlined and efficient network setup.
Furthermore, the EL6631-0010 boasts a maximum communication distance of 100 meters between two devices, ensuring flexibility in deployment scenarios. The terminal's design incorporates a 3-port switch, enhancing its versatility in network configurations. The utilization of RJ45 sockets for external port access further simplifies connectivity, contributing to a seamless integration process.
In terms of power and electrical considerations, the EL6631-0010 draws its power supply via the E-bus, minimizing external dependencies. Electrical isolation is maintained at 500 V (E-bus/Ethernet), adhering to established safety standards. The terminal operates within a temperature range of 0 to +55 °C for regular usage, with a broader range of -25 to +85 °C for storage. Relative humidity is specified at 95%, with a precaution against condensation.
