Beckhoff | Terminal - EL6731

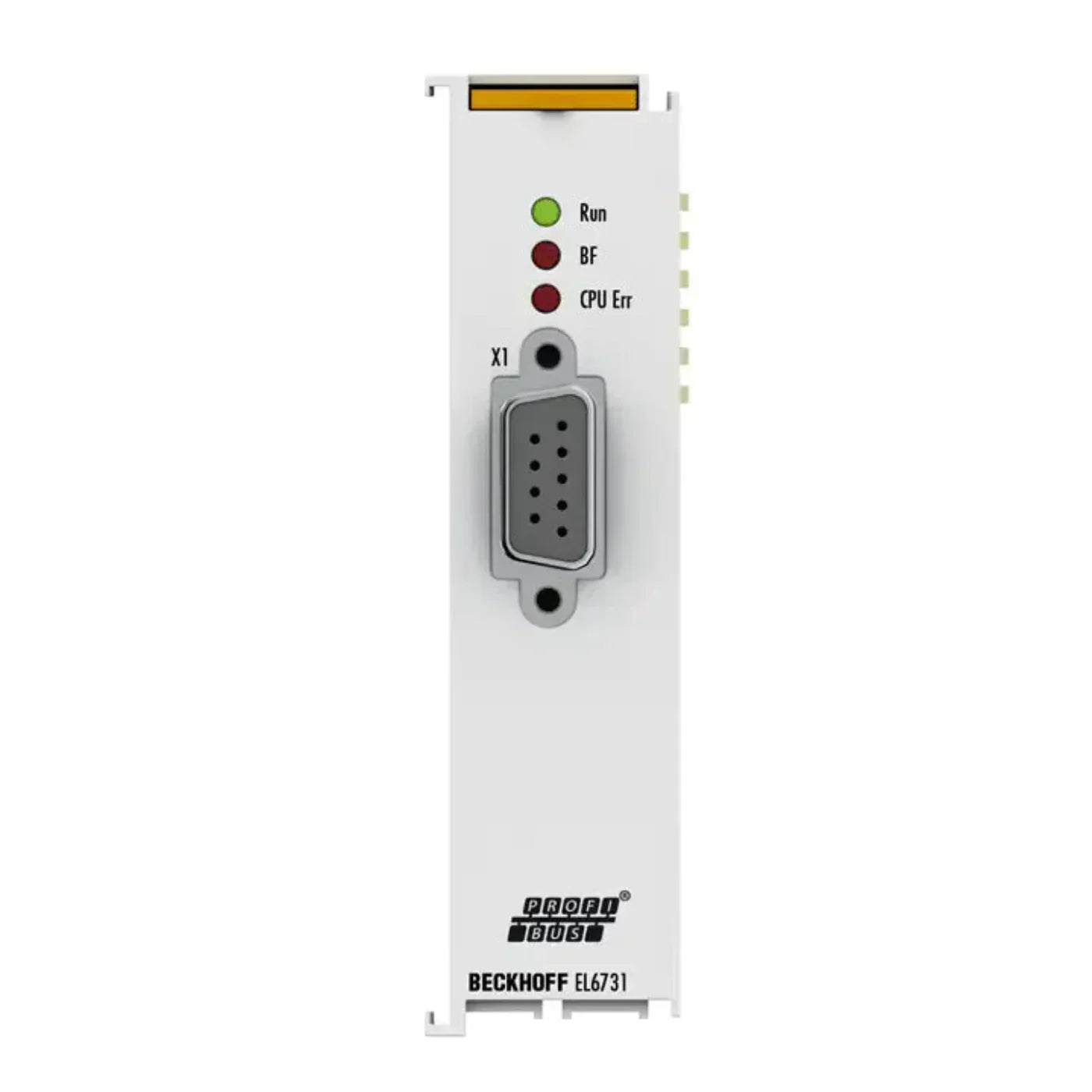

The EL6731 is an EtherCAT Terminal featuring a 1-channel communication interface designed for PROFIBUS master/slave operations. It facilitates the integration of various PROFIBUS devices within an EtherCAT Terminal network, supporting the complete range of PROFIBUS protocol features. Equipped with an in-house developed PROFIBUS chip, this terminal incorporates the latest advancements in PROFIBUS technology, including high-precision isochronous mode for axis control and expanded diagnostic capabilities.
The EL6731 serves as an alternative to the FC3101 PROFIBUS PCI card for connecting to PROFIBUS networks, offering a more compact implementation without the need for PCI slots in the Industrial PC. This makes it a space-saving solution while maintaining robust connectivity and performance within PROFIBUS networks.
Specifications
| Part # |
EL6731 |
| Manufacturer |
BECKHOFF |
| Category |
PLCs/Machine Control |
| Subcategory |
PC Board PLC/Add-On Board 1 CHANNEL |
| Baud Rate |
9.6 KBAUD to 12 MBAUD |
| Interface |
1 x D-SUB Socket, 9-Pin |
| Galvanic Isolation |
Galvanically Decoupled |
| Status LEDs |
Included |
| Maximum Current |
200 mA |
Information About EL6731
The EL6731 EtherCAT Terminal serves as a 1-channel communication interface designed for PROFIBUS master/slave operations. It facilitates seamless integration of various PROFIBUS devices within an EtherCAT Terminal network, leveraging the capabilities of the PROFIBUS protocol in its entirety. Equipped with an in-house developed PROFIBUS chip, the terminal embodies the latest advancements in PROFIBUS technology, incorporating features such as high-precision isochronous mode for axis control and expanded diagnostic options.
Key features of the EL6731 include the ability to achieve cycle times as low as 200 µs, supporting various PROFIBUS standards including PROFIBUS DP, PROFIBUS DP-V1, and PROFIBUS DP-V2. It operates as both a master and a slave, with communication speeds reaching up to 12 Mbit/s. The terminal offers powerful parameter and diagnostics interfaces, enabling comprehensive monitoring and management of connected devices.
Configurable error management for each bus user enhances system reliability and performance, while the terminal's capability to read bus configurations and automatically assign "GSD" files streamlines setup processes. Comparable to the FC3101 PROFIBUS PCI card, the EL6731 provides connectivity to PROFIBUS networks. However, it offers a more space-saving implementation by eliminating the need for PCI slots in the Industrial PC.
Manufacturer information
Beckhoff Automation is a German manufacturer of open automation systems, including industrial PCs, I/O and fieldbus components, drive technology, automation software, and hardware for machine vision. Beckhoff is known for its innovative and reliable automation technology, which is used in a wide range of industries. The company is committed to providing customers with the best possible automation solutions to help them succeed in their businesse
