Empire Tahoe Deluxe 48" Direct Vent Gas Fireplace - DVD48FP30N
The Tahoe Deluxe is available in (4) Sizes:

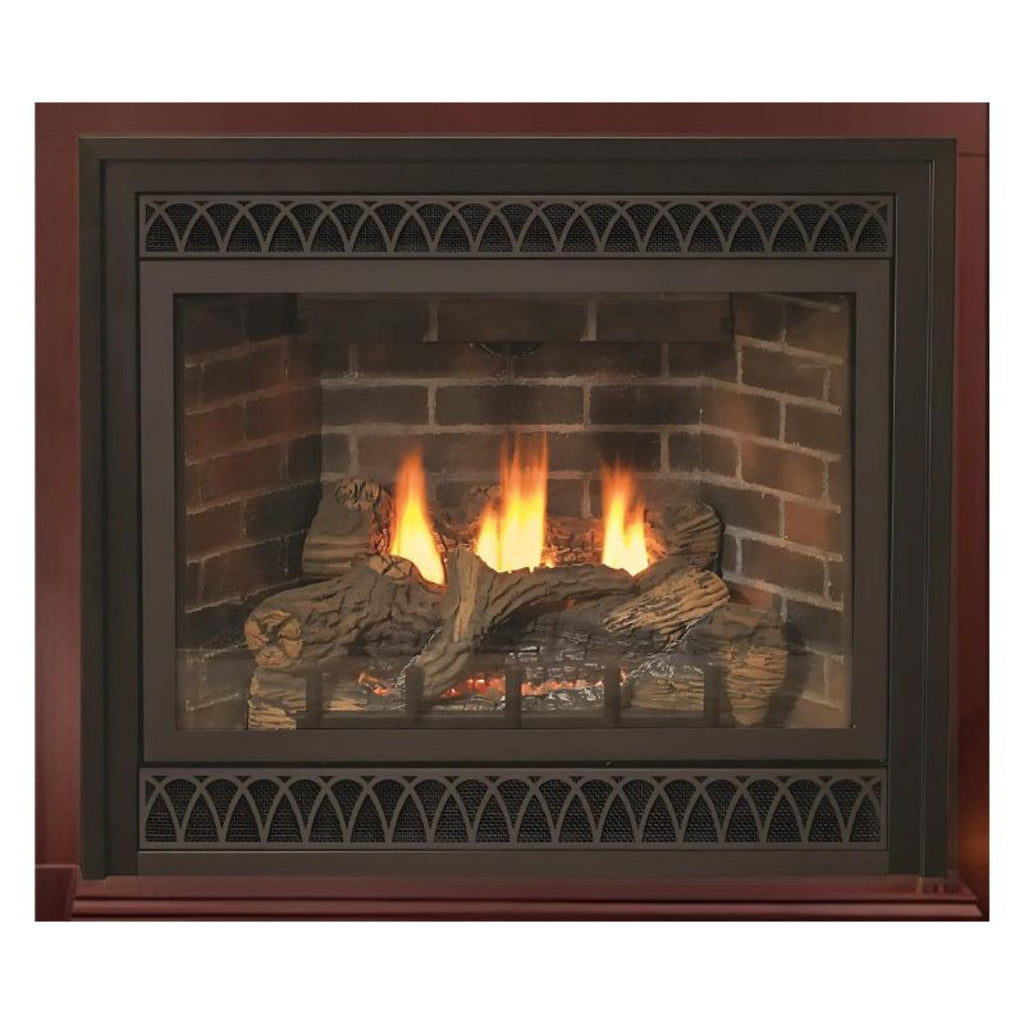

Deluxe models feature a Contour tube-style burner, designed to complement the hand-painted ceramic fiber log set, and produce a natural dancing flame.
Choose a conventional Deluxe Tahoe model – with louvers and available trim kits. The Deluxe model features large heat resistant, tempered glass windows that provide an unobstructed view to the log set. Optional liner offerings available are Aged Brick, Herringbone, Stacked Limestone, and Black Reflective.

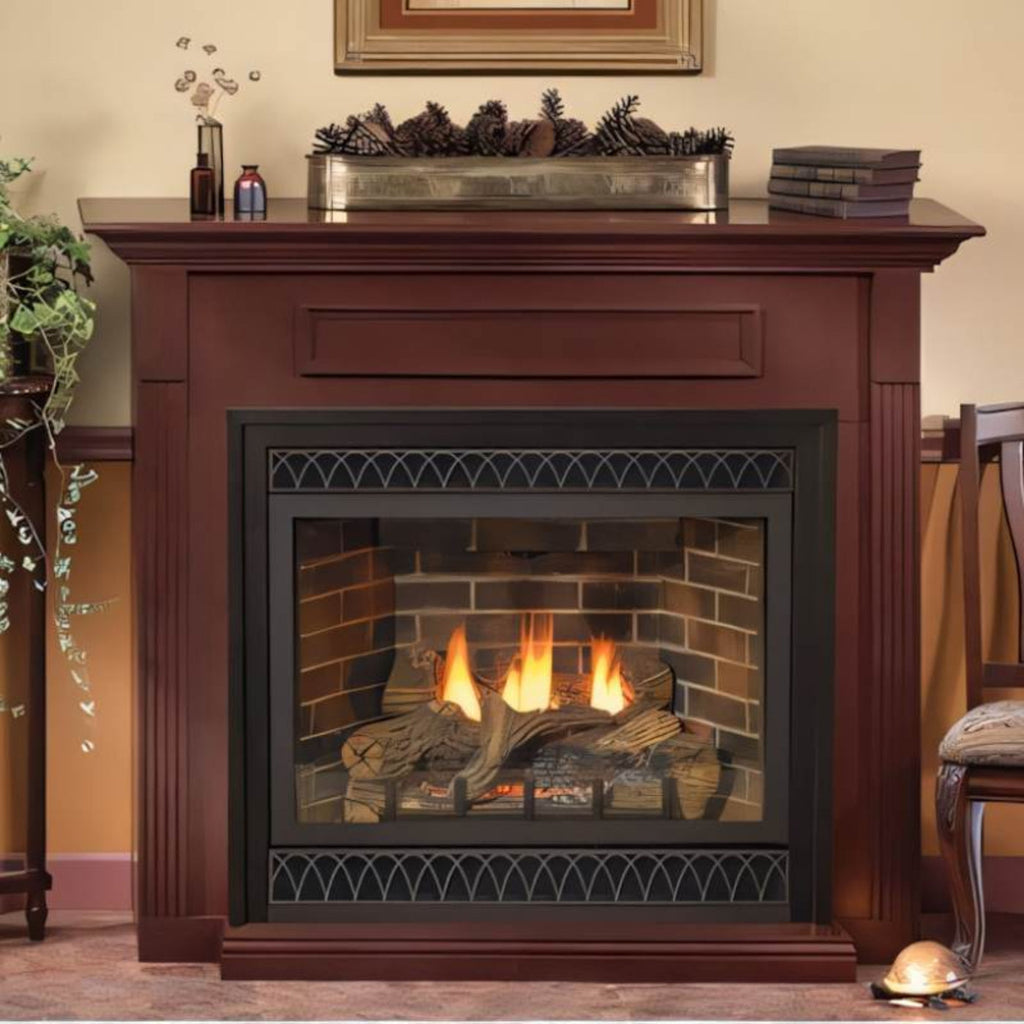

DVD models require just 16 inches of depth and use 4 x 6-5/8 venting, making it ideal for applications where wall-cavity space is tight. Conventional Deluxe fireplaces may be installed in the wall or in a cabinet or corner mantel. Tile or other non-combustible material may be used to conceal the outer edge of the fireplace to provide a true built-in appearance.
The Deluxe model is offered in Millivolt and Intermittent Pilot.
Features
Millivolt Models - DVD48FP30N
- Log Set Included
- Requires a Fireplace Barrier Screen or Door Set and Frame with Barrier Screen
- Optional Variable Speed Blower
- Optional Liners
- Venting: 4" x 6-5/8" (Refer to manual for venting requirements)
- Tempered Glass: 22 x 42 1/2
- Framing: 37 3/4 H x 49 3/8 W x 16 3/8 D (see manual before framing)
- Millivolt: Millivolt Valve with On/Off Switch
Electronic Models - DVD42FP70N
- Log Set Included
- Requires a Fireplace Barrier Screen or Door Set and Frame with Barrier Screen
- Optional Variable Speed Blower
- Optional Liners
- Venting: 4" x 6-5/8" (Refer to manual for venting requirements)
- Tempered Glass: 22 x 42 1/2
- Framing 37 3/4 H x 49 3/8 W x 16 3/8 D (see manual before framing)
- Electronic / IPI: Electronic Valve with On/Off Switch
Control Options
A remote control does not come standard with the Tahoe Deluxe. Choose from the following control options:
Millivolt Ignition (Standing Pilot)
- FRBC - On/Off Remote Control (Battery Driven)
- FRBTC2 - Thermostat Remote Control (Battery Driven)
- FRBTPS - Programmable Thermostat Touchscreen Remote Control (Battery Driven)
- TRW - Wireless Wall Thermostat
- TMV - Wall Thermostat (Reed Switch)
- FWS - On/Off Wall Switch
Electronic Ignition (Intermittent Pilot)
- RVKN - Variable Flame Thermostat Remote (Natural Gas)
- RVKP - Variable Flame Thermostat Remote (Propane)
Outer Frames and Bottom Trim
Three piece metal outer frames let you transition from your fireplace to an adjoining mantel or wall. The frames and optional bottom trim are available in black.
Decorative Louvers
- Arch Louvers (Black)
DVD48FP Liner Options
- Matte Black (Standard)
- Aged Brick
- Stacked Limestone
- Herringbone Brick
- Reflective Black Porcelain

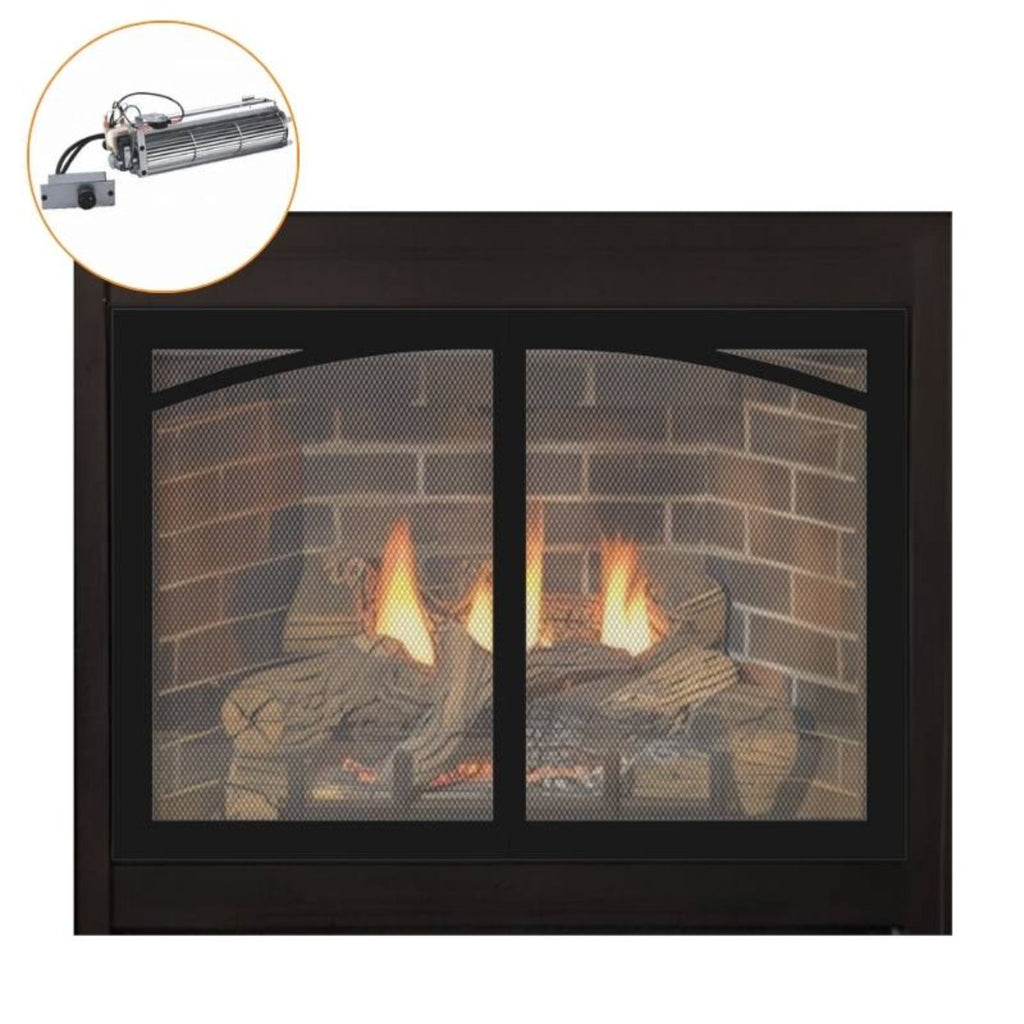

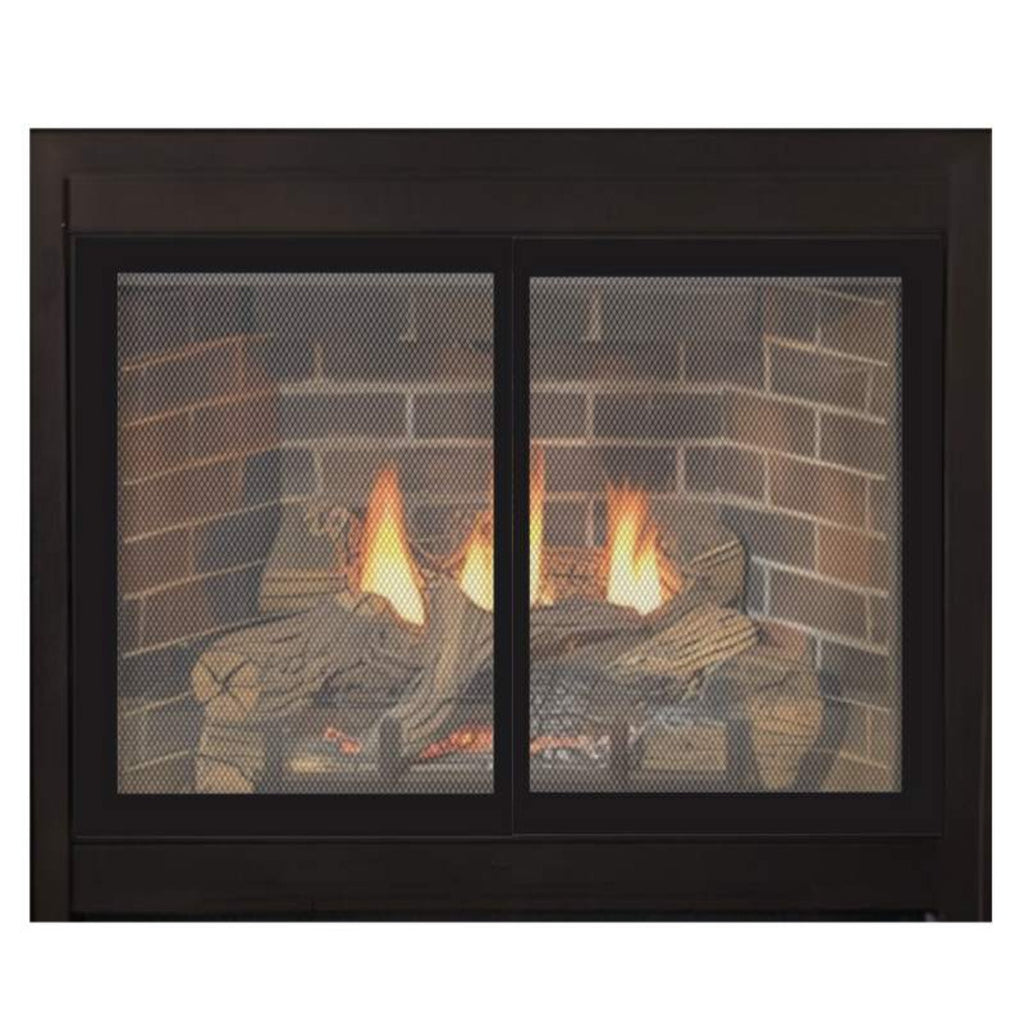

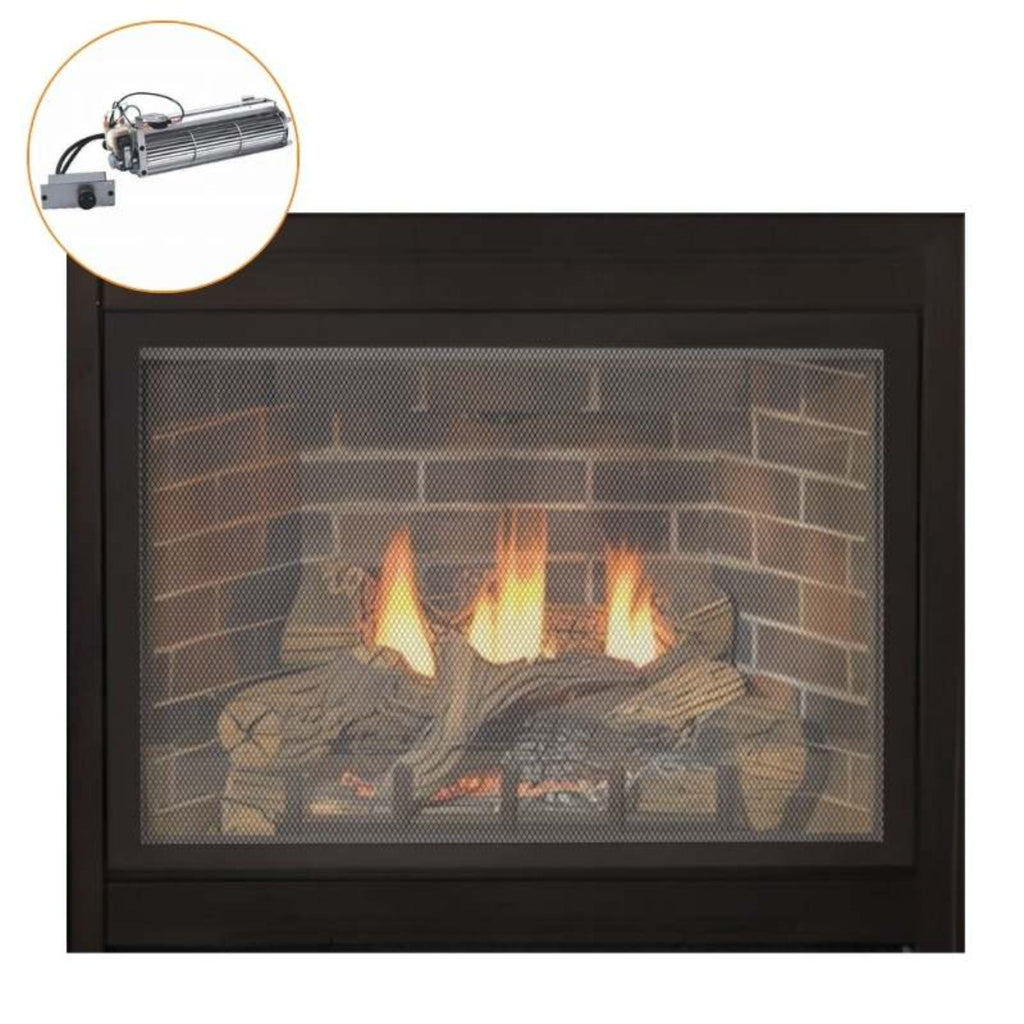

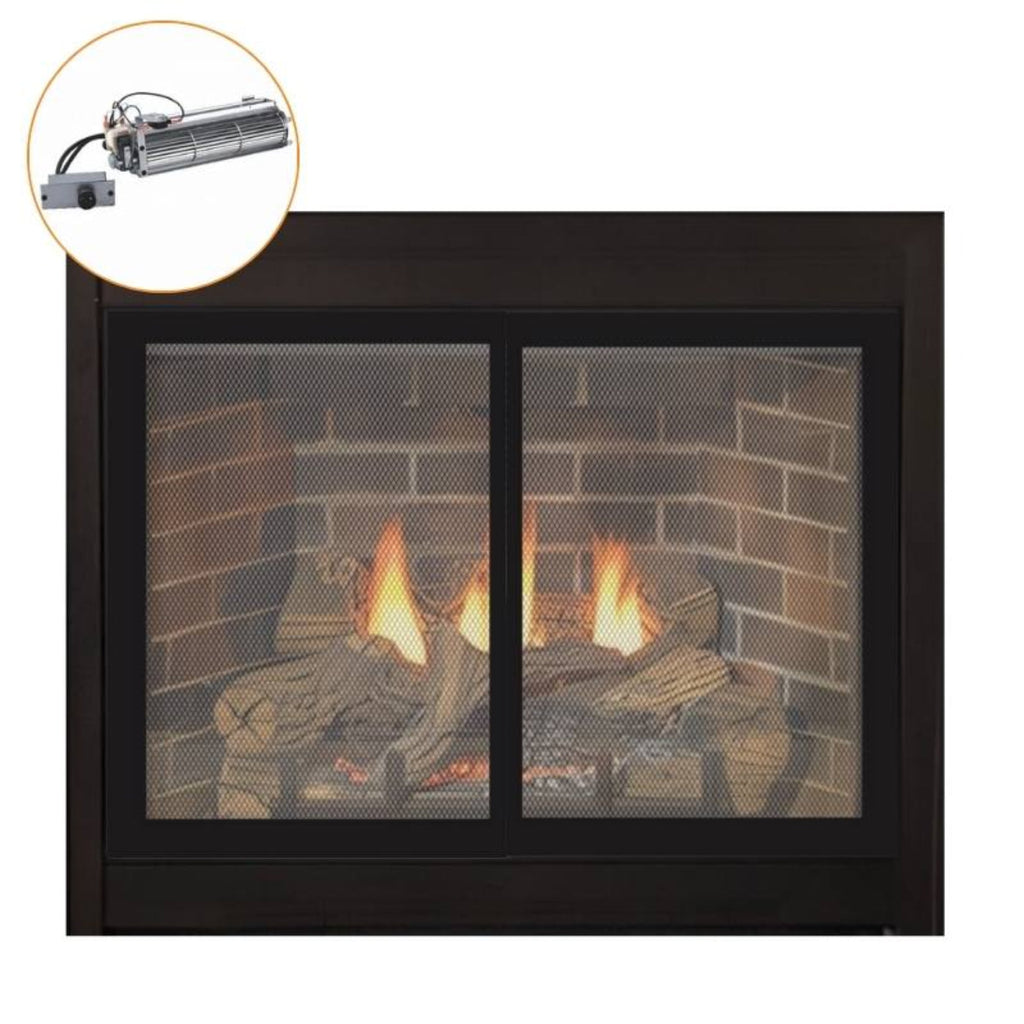

Barrier Screen
Your Direct-Vent Fireplace requires a barrier to protect against touching the hot glass. Choose a simple Barrier Screen for an ultra-clean look or opt for the Door Frame with Barrier Screen plus Hinges to accept an operable door set. Screens, Frames, and Doors are available in Matte Black only.
- Black Barrier Screen
- Black Rectangle Doors with Barrier Screen

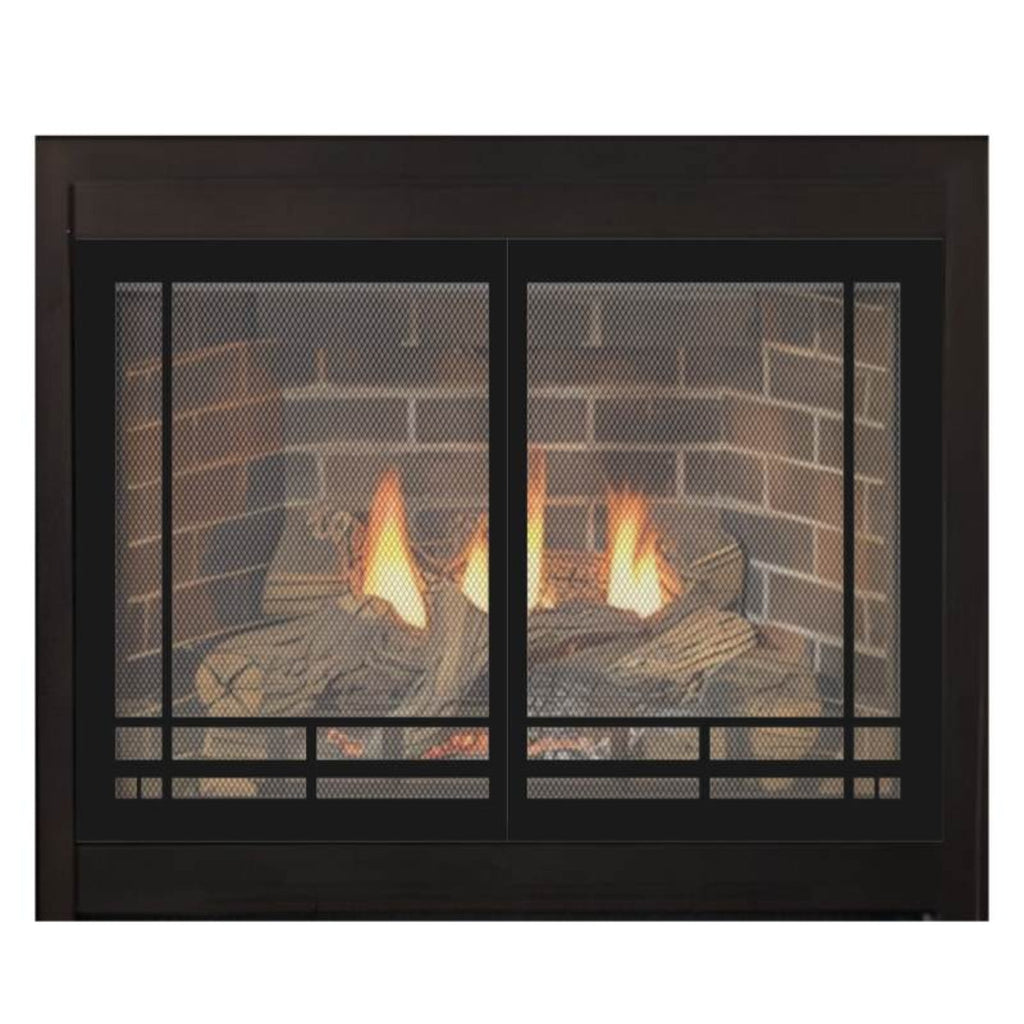

- Black Rectangle Mission Doors with Barrier Screen
- Black Arch Doors with Barrier Screen
- Black Mission Arch Doors with Barrier Screen
What our Experts Think
-
Compact Depth for Flexible Installation
Requires just 16 inches of wall cavity depth, making it ideal for tight spaces or built-in wall designs.
-
Realistic Flame Presentation
Features a large tempered-glass window with hand-painted ceramic fiber logs, creating a natural, vibrant flame effect.
-
Customizable Style Options
Offers choice of liner finishes — Aged Brick, Herringbone, Stacked Limestone, or Black Reflective — plus louvers and trim kits to match your décor.
-
Strong Heating Performance
Delivers up to 28,000 BTUs, providing effective supplemental heat while enhancing room ambiance.
-
Direct-Vent Safety & Efficiency
Uses a dual-pipe system to bring in fresh air for combustion and vent exhaust outside, keeping indoor air clean and improving efficiency.
-
Zero-Clearance Installation
Can be installed directly into walls or custom cabinetry with non-combustible finishes up to the glass edge for a seamless, built-in look.
-
Accessory-Friendly
Compatible with optional blowers, decorative doors, and frames to upgrade both aesthetics and performance over time
Q&A
Q: What is the Empire Tahoe Deluxe 48" Direct Vent Gas Fireplace?
A: A 48-inch direct vent gas fireplace designed for modern indoor living spaces, providing realistic flames, efficient heat, and safe operation with sealed combustion.
Q: What makes the Tahoe Deluxe unique?
A: It features high-definition logs, glowing ember bed, realistic flames, and a sleek contemporary design for a stunning focal point in any room.
Q: What type of gas does it use?
A: The DVD48FP30N is configured for natural gas, with a propane version available.
Q: Does it require a chimney?
A: No—its direct vent system allows installation on interior or exterior walls with minimal venting requirements.
Q: Where is it ideal for installation?
A: Perfect for living rooms, great rooms, and upscale residential interiors seeking efficient, visually striking gas fireplaces.
Maintenance Tips
-
Annual Professional Inspection: Have a certified technician inspect the burner, gas connections, and vent system each year to ensure safe and efficient operation.
-
Clean Burner & Logs: Gently brush or vacuum dust and debris from logs and burner ports—never use water or harsh chemicals.
-
Check Flame Quality: Ensure a steady, yellow flame with proper flame height; blue or uneven flames may indicate a need for service.
-
Inspect Glass & Frame: Clean the viewing glass with a non-abrasive glass cleaner and soft cloth; avoid scraping to prevent damage.
-
Maintain Venting System: Keep the vent and chimney free of obstructions to ensure proper combustion and heat efficiency.
-
Test Ignition & Safety Controls: Verify pilot, ignition, and safety shutoff features periodically for reliable operation.
-
Off-Season Care: Cover or close the fireplace when not in use to protect from dust, debris, and moisture.
