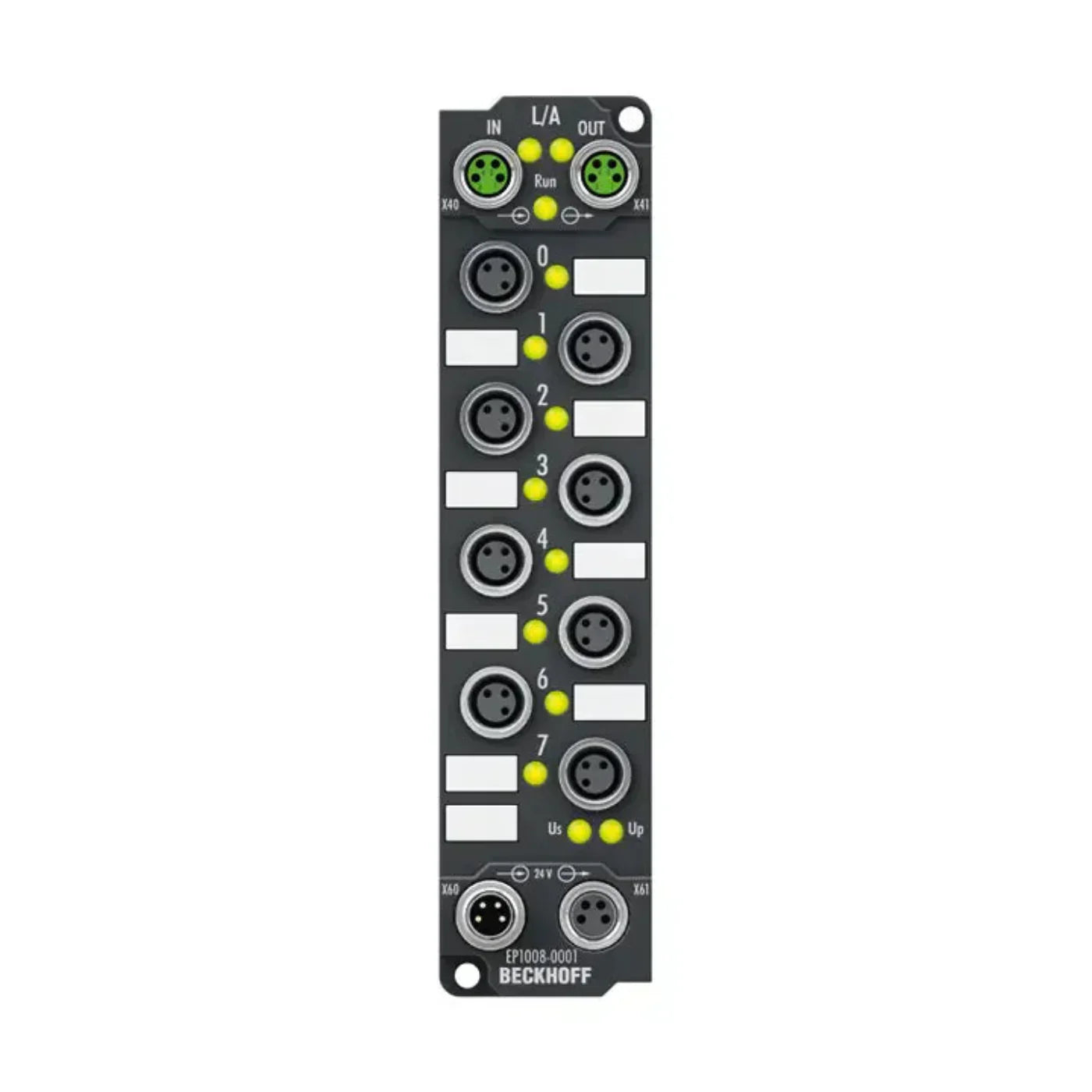

Beckhoff EtherCAT Box, 8-Channel Digital Input - EP1008-0001
The EP1008-0001 EtherCAT Box features 8-channel digital inputs designed to acquire binary control signals from the process level. Signals are transmitted to the controller in an electrically isolated manner, with signal states indicated by LEDs. Connections utilize M8 screw type connectors for robust connectivity.
Sensor power is supplied from the box supply voltage US, while the load voltage UP remains optional for forwarding to subsequent modules. Internal short-circuit proof driver modules provide up to 0.5 A total for all connected sensors.
Specifications
| Part Number |
EP1008-0001 |
| Category |
PLCs/Machine Control |
| Subcategory |
PLC Module/Rack |
| Protocol |
EtherCAT |
| Bus interface |
2 x M8 socket, 4-pin, a-coded, shielded |
| Specification |
EN 61131-2, type 1/3 |
| Number of inputs |
8 |
| Input connections |
M8 x 1, 3-pin, a-coded |
| Nominal input voltage |
24 V DC (-15%/+20%) |
| Input filter |
3.0 ms |
| "0" signal voltage |
-3…+5 V (EN 61131-2, type 3) |
| "1" signal voltage |
11…30 V (EN 61131-2, type 3) |
| Input current |
Typ. 3 mA (EN 61131-2, type 3) |
| Distributed clocks |
– |
| Sensor supply |
From control voltage, max. 0.5 A, short-circuit proof |
| Power supply connection |
Feed: 1 x M8 male socket, 4-pin, a-coded |
| Current consumption from US |
120 mA |
| Electrical isolation |
500 V |
| Weight |
Approx. 165 g |
| Operating/storage temperature |
-25…+60°C / -40…+85°C |
| Vibration/shock resistance |
Conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission |
Conforms to EN 61000-6-2/EN 61000-6-4 |
Manufacturer information
Beckhoff Automation is a German manufacturer of open automation systems, including industrial PCs, I/O and fieldbus components, drive technology, automation software, and hardware for machine vision. Beckhoff is known for its innovative and reliable automation technology, which is used in a wide range of industries. The company is committed to providing customers with the best possible automation solutions to help them succeed in their businesses.
What Our Experts Think
-
High Performance: Beckhoff control systems offer powerful computing capabilities for demanding industrial automation tasks.
-
Energy-Efficient: Designed with optimized power usage to support sustainable, low-energy operations.
-
Durable & Reliable: Built to withstand harsh industrial environments with high-quality components and rugged designs.
-
Quiet Operation: Fanless or low-noise cooling systems in many models ensure minimal disruption in sensitive areas.
-
Easy Installation: Modular design allows for quick and flexible setup in a wide range of industrial applications.
Q&A
Q: What is Beckhoff equipment used for?
A: Beckhoff products are used for industrial automation, providing control, motion, and communication solutions for a variety of industries.
Q: What features are included in Beckhoff automation systems?
A: Features include high-performance CPUs, modular I/O systems, compact form factors, and support for leading industrial communication standards like EtherCAT.
Q: Are Beckhoff products energy-efficient?
A: Yes, many Beckhoff systems are designed to reduce energy consumption while maintaining high-speed, precise control.
Q: How does Beckhoff compare to other automation brands?
A: Beckhoff stands out for its open automation systems, flexible designs, and strong performance in both small and large-scale industrial projects.
Maintenance Tips
-
Keep Units Clean: Regularly remove dust and debris from ventilation openings and surfaces.
-
Check Connections: Inspect cables and connectors periodically for wear or damage.
-
Monitor Software Updates: Keep firmware and software updated to ensure optimal performance and security.
-
Temperature Control: Ensure devices are operated within recommended temperature ranges to avoid overheating.
-
Annual System Check: Have a technician perform a full inspection and preventive maintenance annually.
