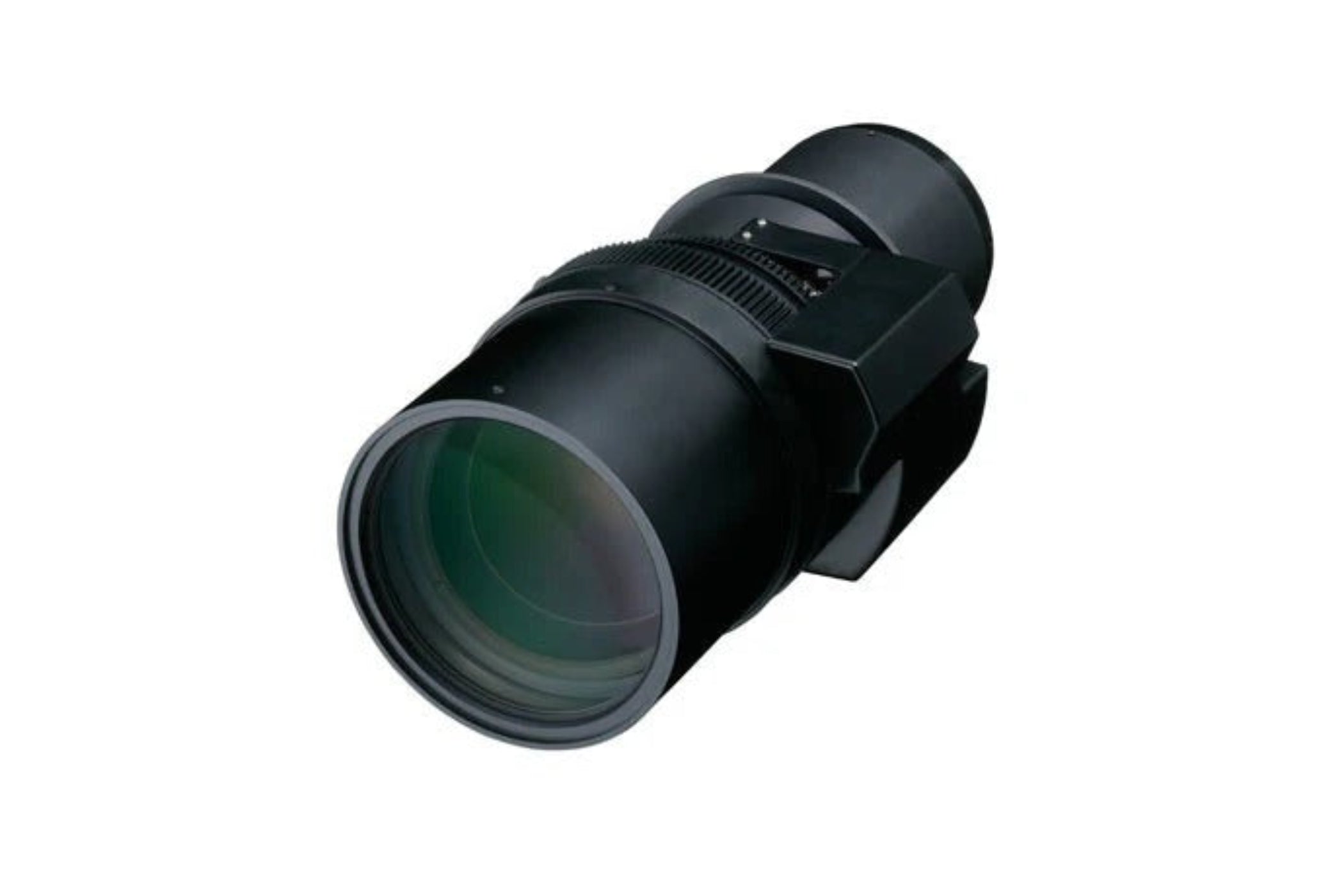

Epson ELPLM07 Middle Throw Zoom Lens #2 - V12H004M07
Epson's Middle Throw Zoom Lens #2 (ELPLM07) is an interchangeable lens that works with PowerLite Pro Z10000U, Z1005U, Z9870U, Z9875U, Z9750U, Z11000W, Z9900W, Z9800W, Z11000, Z11005 and Z9870 Projectors.
Features
- Focal Length: 80.59mm – 121.1mm
- F-Number: 1.81 – 2.34
What our Experts Think
-
Extended Projection Reach:
Throw ratios of approximately 3.66–5.60 (XGA), 3.85–5.88 (WXGA), 3.92–5.97 (WUXGA) allow placement several meters back while still achieving large screen sizes.
-
Motorized Zoom and Focus:
1.0–1.5× zoom with powered focus enables precise image framing without moving the projector.
-
Bright, Clear Optics:
Focal length 80.59 mm–121.1 mm with aperture f/1.81–2.34 ensures sharp and bright images even at higher zoom.
-
Wide Screen Compatibility:
Supports screen sizes from 60″ up to 500″, ideal for auditoriums, theaters, and large event halls.
-
Long Projection Distance:
Covers distances from roughly 4.3 m up to ~65 m, offering flexibility for very large rooms.
-
Professional-Grade Build:
Designed for high-brightness Epson Pro Z-series projectors, with durable optics and motorized components for reliable long-term use.
Q&A
Q: What is the Epson ELPLM07 (V12H004M07) Middle-Throw Zoom Lens #2?
A: A powered, interchangeable zoom lens for Epson Pro Z-series projectors, designed for medium- to long-throw installations.
Q: What throw ratios does it support?
A: XGA: 3.66–5.60:1, WXGA: 3.85–5.88:1, WUXGA: 3.92–5.97:1.
Q: What is the zoom range?
A: 1.0× to 1.5× powered zoom.
Q: What are the focal length and aperture?
A: Focal length: ~80.6 mm to 121.1 mm; aperture: f/1.81 to f/2.34.
Q: What screen sizes can it project?
A: Approximately 60″ up to 500″ diagonal.
Q: What projection distance does it require?
A: Roughly 14 ft 2 in to 213 ft 8 in (4.32 m to 65 m).
Q: Which projectors is this lens compatible with?
A: Epson PowerLite Pro Z-series projectors, including models Z10000U, Z9870U, Z9750U, Z11000W, Z9900W, Z9800W, Z11000, Z11005, and Z9870.
Q: Why choose this lens?
A: Offers motorized zoom and focus, flexible throw distance, and high-quality projection for large venues and long-throw installations.
Maintenance Tips
-
Clean the lens carefully: Use a soft microfiber cloth to remove dust and smudges; avoid harsh chemicals.
-
Use a lens cap when not in use: Protects the lens from scratches and dust buildup.
-
Handle with care: Support the lens with both hands during installation or removal to prevent misalignment.
-
Store in stable conditions: Keep in a dry, temperature-controlled environment to maintain optical quality.
-
Check secure mounting: Ensure the lens is properly seated periodically for consistent image sharpness
