98 inserts over 20' to produce a silky-smooth finish.

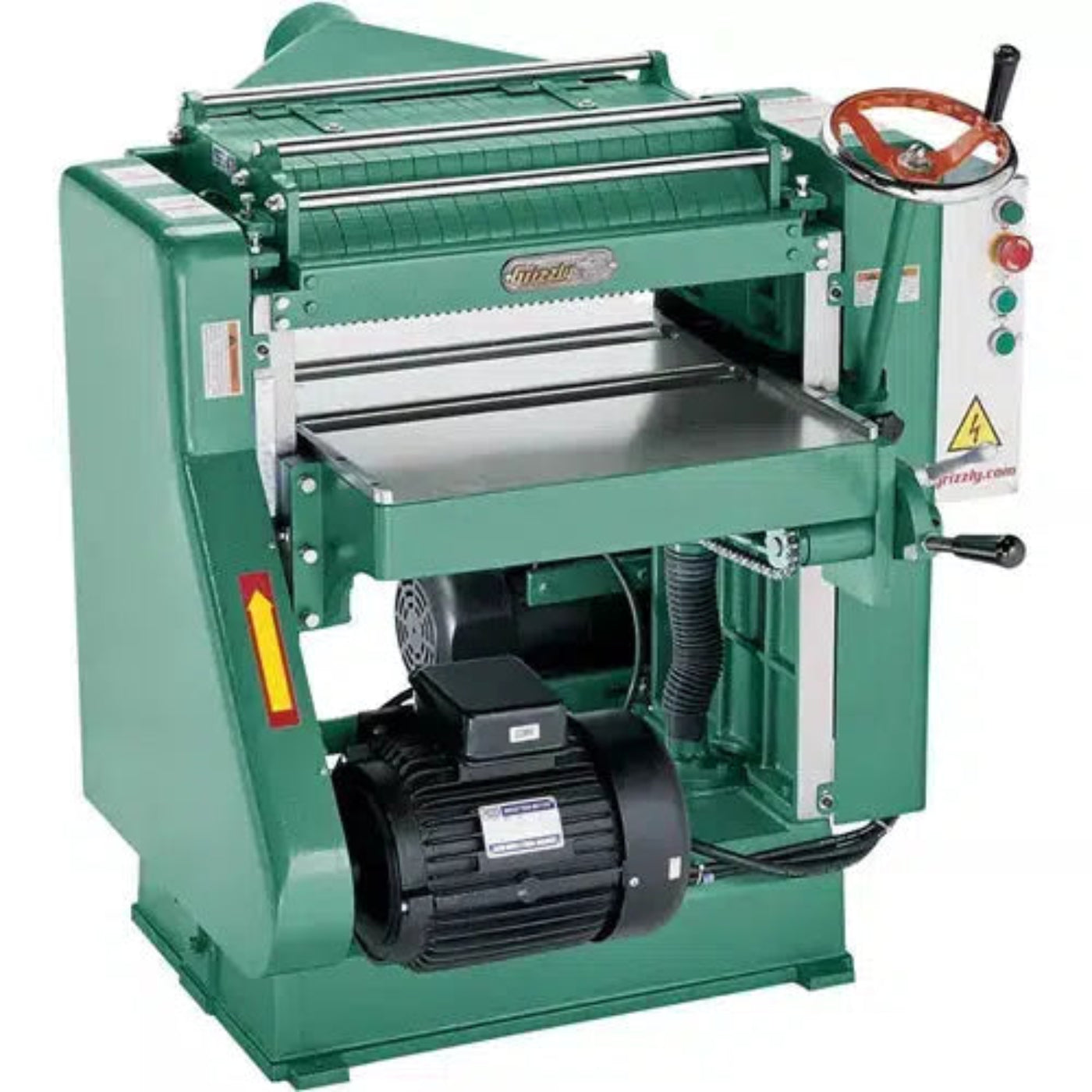

The 4-row spiral cutterhead of the G0454Z 20' 5 HP Planer produces silky-smooth finishes and greatly reduces tearout in figured woods. The 98 indexable, German-made carbide insert cutters can each be rotated three times to expose new, sharp cutting edges.
The 5 HP motor spins the cutterhead at 4800 RPM to plane your stock up to 20' wide by 8' thick. It can cut as deep as 3/16' on a 6'-wide board.
Solid cast-iron and steel construction and large planing capacity make this planer a true heavyweight. With the built-in mobile base, you’ll be able to move this planer around your shop with ease.
The precision-ground cast-iron table and extension wings provide a lengthy 55-1/2' of support of your stock. The two-speed gear box offers feed rates of 16 FPM and 20 FPM for maximum versatility.
Like all Grizzly planers, the G0454Z comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)
The G0454Z manual was written by our U.S. based Technical Documentation Department and is packed with useful information.
The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts for the planer may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
CSA certified
Note on replacement inserts:
For models manufactured April 2015 and later, use H7319 14mm x 14mm x 2mm replacement inserts.
For models manufactured March 2015 and earlier, use T21348 14.17mm x 14.17mm x 2.00mm replacement inserts.
Specifications
- Motor: 5 HP, 240V, single-phase, 19A
- Maximum stock width: 20'
- Maximum stock thickness: 8'
- Minimum stock thickness: 3/16'
- Minimum stock length: 8'
- Maximum cutting depth: 1/16'
- Cutterhead type: 4-row spiral, 98 inserts
- Insert size, type: 14mm x 14mm x 2mm, indexable carbide
- Cutterhead speed: 4800 RPM
- Feed rate: 16 FPM & 20 FPM
- Table size with extensions: 20' x 55-1/2'
- Dust port size: 5'
- Overall dimensions: 39' W x 55-5/8' L x 45-7/8' H
- Approximate shipping weight: 932 lbs.
Features
- Built-in mobile base
- Precision-ground cast-iron table and extension wings
- Board return rollers
- Built-in lifting rods
- Angled dust port hood
- Rubber-coated outfeed roller
- Adjustable bed rollers
- Magnetic switch with thermal overload protection
- Four-column support with table locks
- Two-speed feed rate
What Our Experts Think
The Grizzly Industrial 20" 5 HP Planer with Spiral Cutterhead is engineered for high-performance woodworking with a focus on smooth finishes. Here’s why it stands out:
-
Powerful 5 HP Motor: Provides the strength to handle large boards and thick stock without bogging down.
-
Spiral Cutterhead: Features indexed carbide inserts that reduce noise, improve finish quality, and extend blade life.
-
20" Planing Width: Large capacity for handling wider stock, perfect for professional-level woodworking projects.
-
Precision Feed Rollers: Ensures a smooth, even feed through the planer, minimizing snipe and ensuring consistent results.
-
Durable Construction: Built with a solid frame and high-quality components for long-term reliability and minimal maintenance.
Q&A
Q: What is the Grizzly Industrial 20" 5 HP Planer with Spiral Cutterhead designed for?
A: This heavy-duty planer is designed for smooth, precise planing of large wood pieces, offering superior performance for professionals and serious woodworkers.
Q: How powerful is the motor?
A: It features a 5 HP motor, delivering the power needed to handle large volumes of wood with ease.
Q: What is the benefit of the spiral cutterhead?
A: The spiral cutterhead uses carbide inserts to reduce noise and provide a smoother, more consistent finish with less tear-out.
Q: What is the cutting capacity?
A: It has a 20" maximum planing width, making it ideal for larger boards and more demanding tasks.
Q: How does the planer improve cut quality?
A: The spiral cutterhead provides superior cutting precision and durability, delivering a finer finish and longer-lasting results.
Q: Is the planer easy to operate and maintain?
A: Yes, it features easy adjustments, user-friendly controls, and requires minimal maintenance due to the durability of the spiral cutterhead inserts.
Q: Why choose the Grizzly 20" 5 HP Planer with Spiral Cutterhead?
A: With its powerful motor, advanced cutterhead technology, and large cutting capacity, it’s the perfect choice for professionals looking for smooth, high-quality results in woodworking
Maintenance Tips
-
Cutterhead Inspection: Regularly check the spiral cutterhead for wear and replace the inserts when they become dull or chipped.
-
Lubricate Moving Parts: Apply lubricant to the feed rollers, bed, and other moving parts to reduce friction and prevent rust.
-
Clean Dust Collection System: Keep the dust collection port and system free of clogs to maintain optimal dust removal and airflow.
-
Check Feed Rollers: Inspect and clean the feed rollers to ensure consistent material feeding without slippage.
-
Align Tables: Ensure the planer tables are level and properly aligned to maintain accuracy in planing.
-
Motor Maintenance: Inspect the motor and clean the area around it to prevent dust buildup that could cause overheating.
