Heliatos Boat Freeze Protected Solar Water Heater Kit with External Heat Exchanger

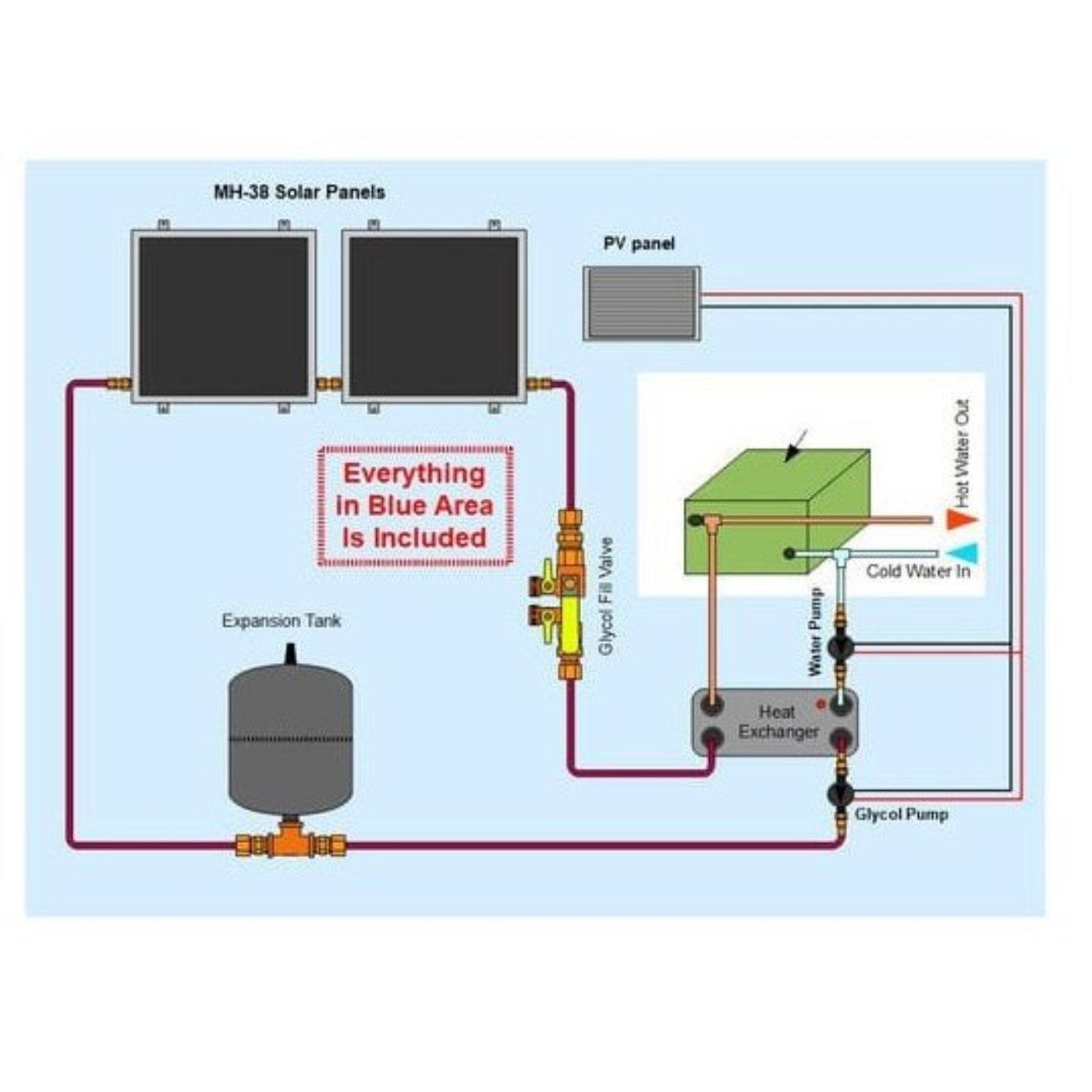

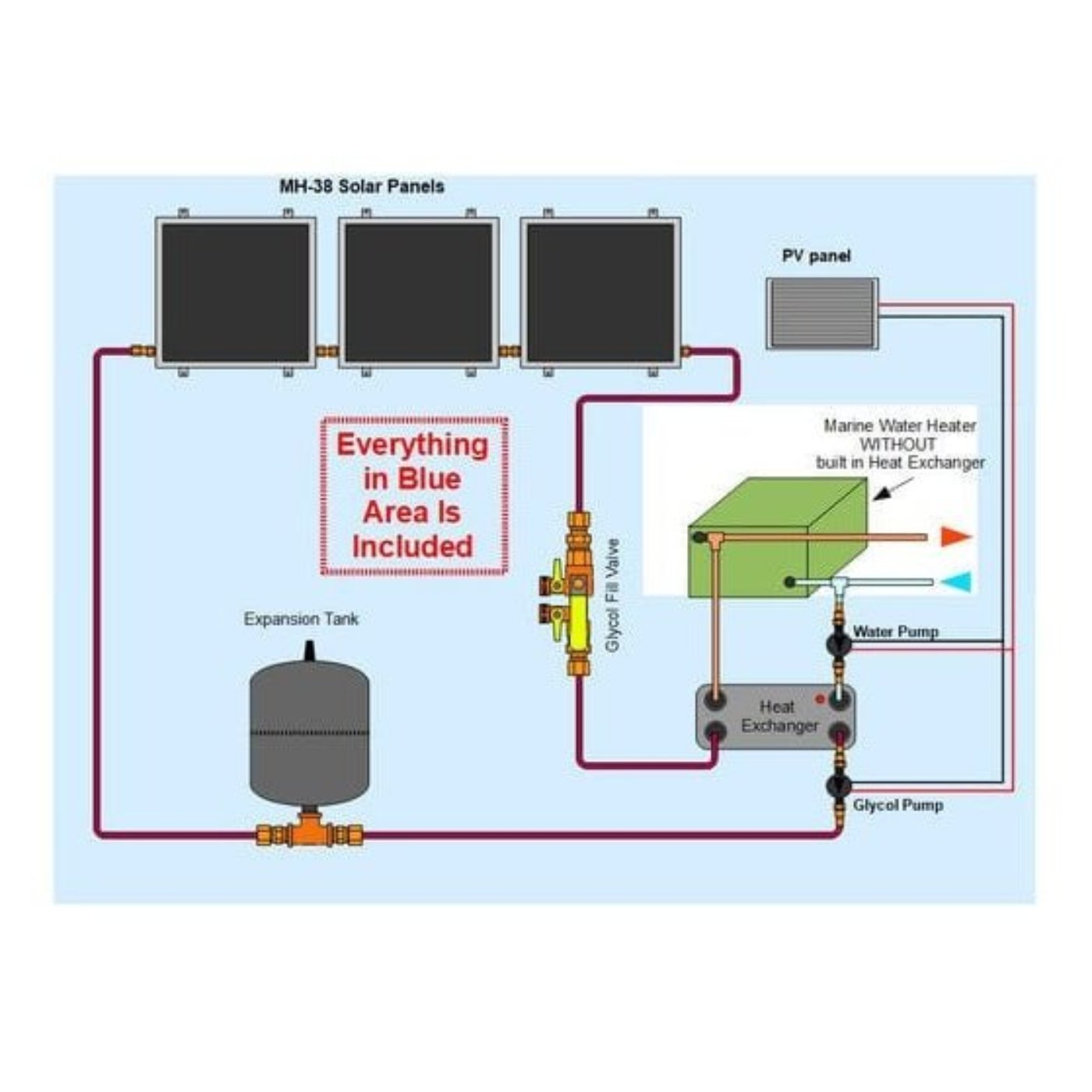

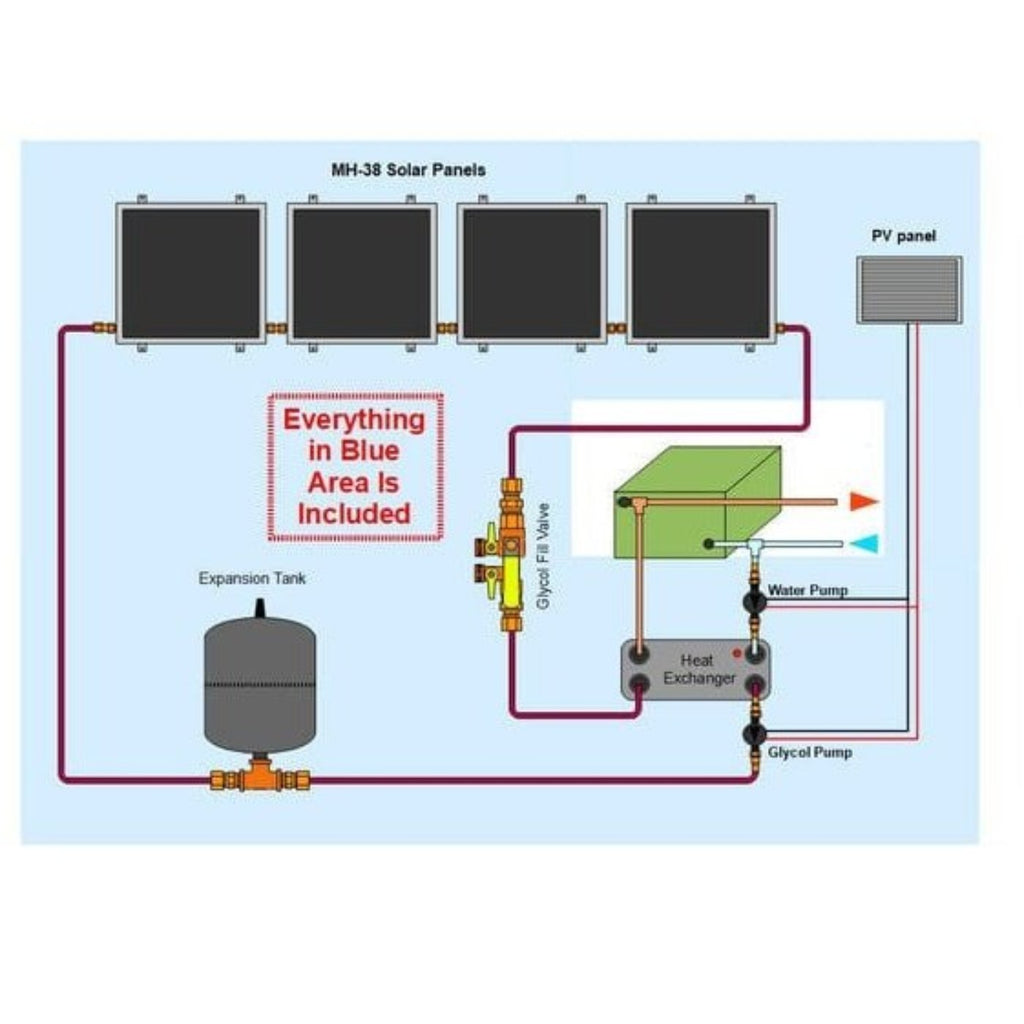

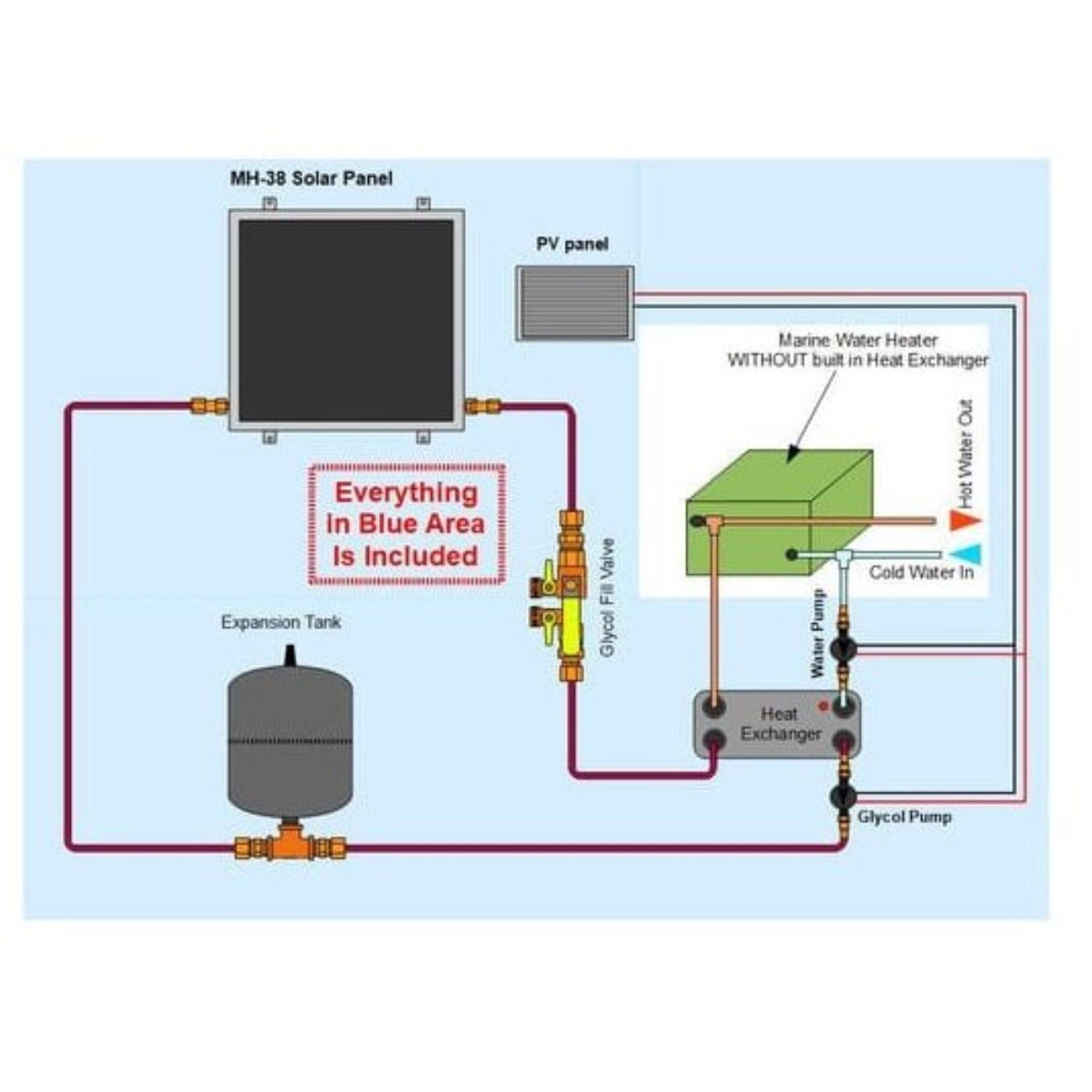

This kit contains everything you need to add a high quality solar water heater to your boat. If your boat water heater does not have a built-in heat exchanger but you still want to install a freeze protected (closed loop) system this kit is for you. Included is a compact stainless steel heat exchanger (316 alloy) and all other parts required for a closed loop system. The antifreeze in the solar loop is heated by Heliatos MH-38 solar water heating panel. This panel has unbreakable twinwall polycarbonate glazing that can withstand hail and other debris. Its strong aluminum frame makes it tough yet lightweight, only weighing 12 lbs.
The MH-38 panels include special features to prevent corrosion even in the harshest marine environments:
- Powder-coated frame and backing, gives the appearance of white enamel
- Zinc-phosphate internal corrosion protection
- Sealed construction
- Stainless steel hardware
These panels have unbreakable twinwall polycarbonate glazing, and a strong aluminum frame, yet only weighs 12 lbs.
Specifications
MH-38 Solar
Materials
-
Glazing: UV resistant twin wall polycarbonate
-
Frame: Powder coated architectural grade aluminum alloy 6063
-
Insulation: Polyiso foam (meets requirements for ASTM-C1289, Type 1
- specification)
-
Water Conduit: Copper Tubing (Alloy C12200 certified for public water supplies meeting EPA Lead and Copper Rule 56 FR26460, June 7th, 1991)
-
Fittings: Brass, Lead Free compliant with Federal Reduction of Lead in Drinking Water Act ,Dezincification resistant
-
Internal Corrosion Protection: Zinc phosphate, polyurethane foam sealant, high endurance silicone
-
Seals: Butyl rubber
Physical
-
Length: 24.0 Inches
-
Width: 25.25 Inches
-
Height: 2.125 Inches
-
Active Collector Area: 3.674 ft2
-
Mounting Hole Spacing: 24.75 x 17.00 Inches x Inches
-
Volume of Liquid in Collector: 7.7 fl. oz.
-
Total Panel Weight: 14 lb.
-
Input and Output Connections: 3/8 “ Compression Fitting
Maximum Ratings
-
Pressure: 200 Psi
-
Collector Temperature: 203 ºF
-
Mounting Surface Unevenness: ¼ Inch (corner to corner)

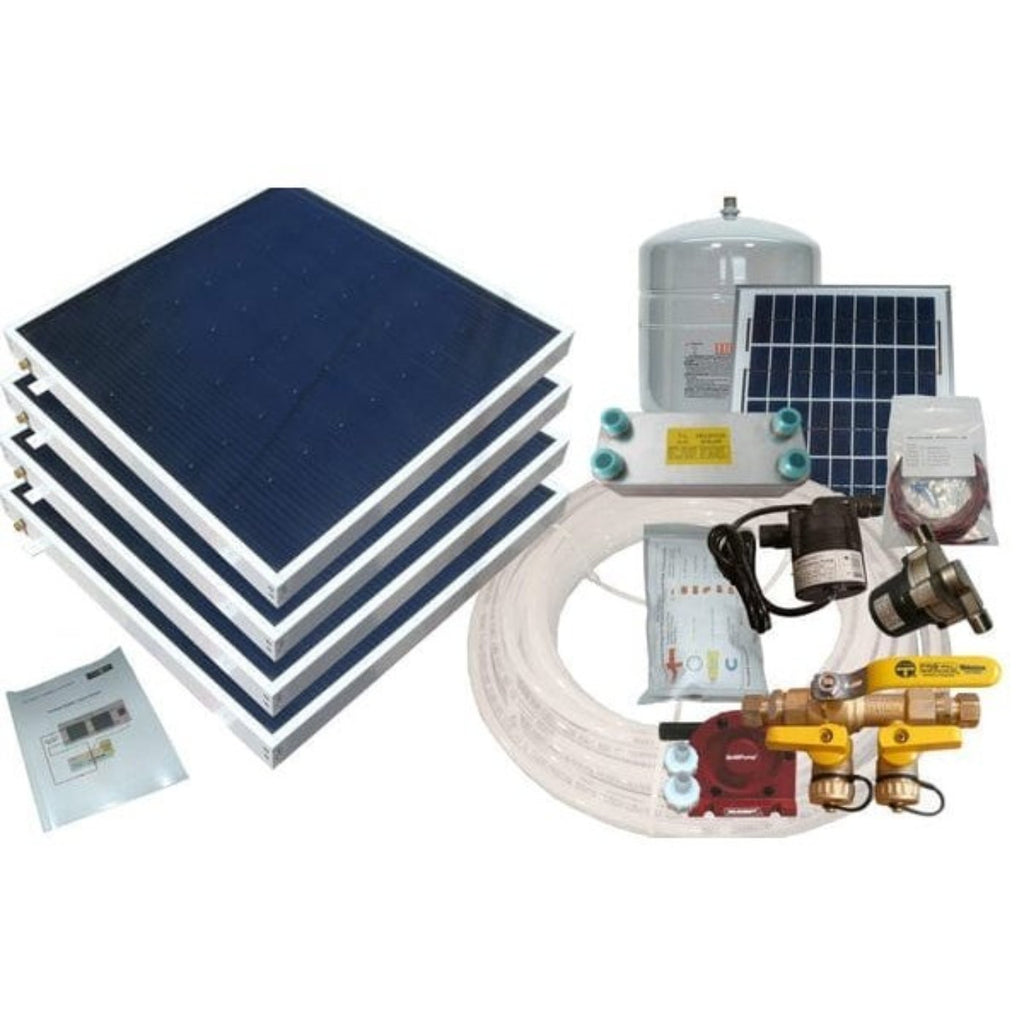

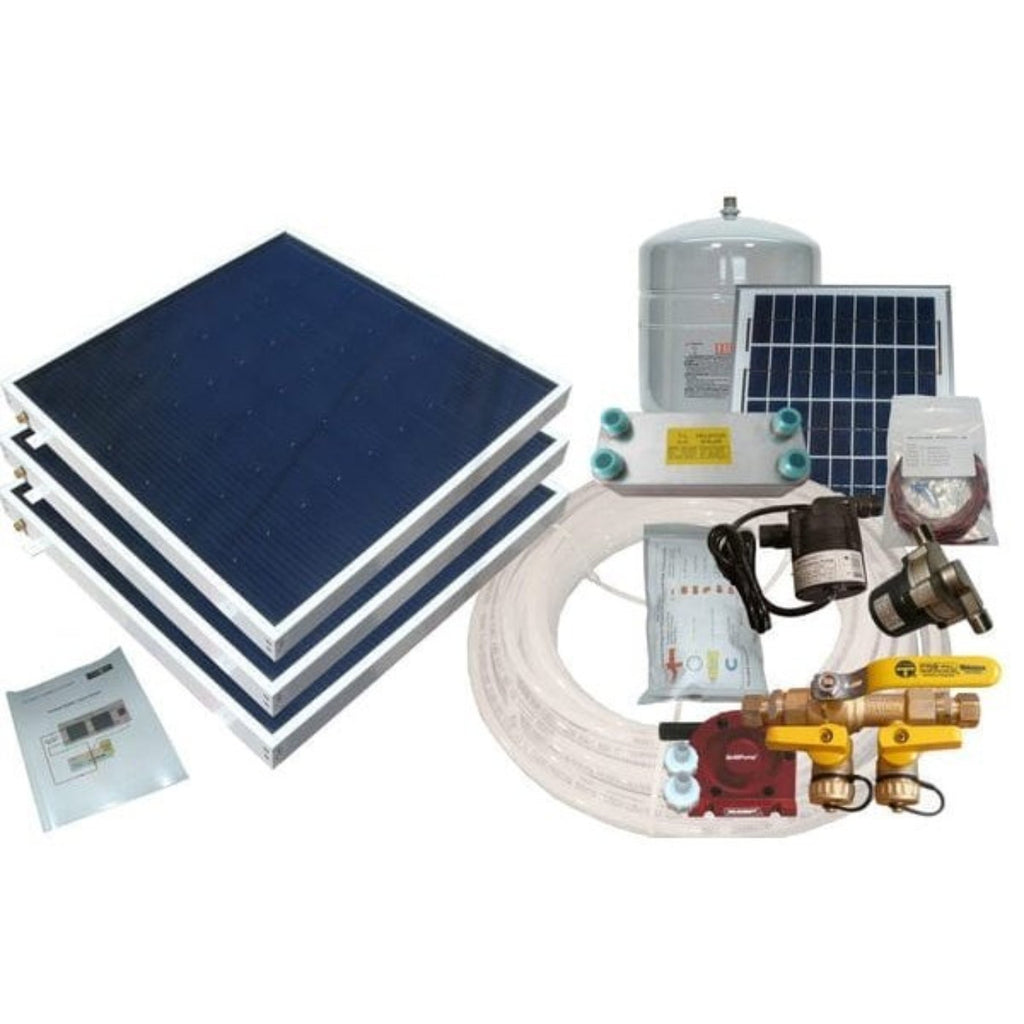

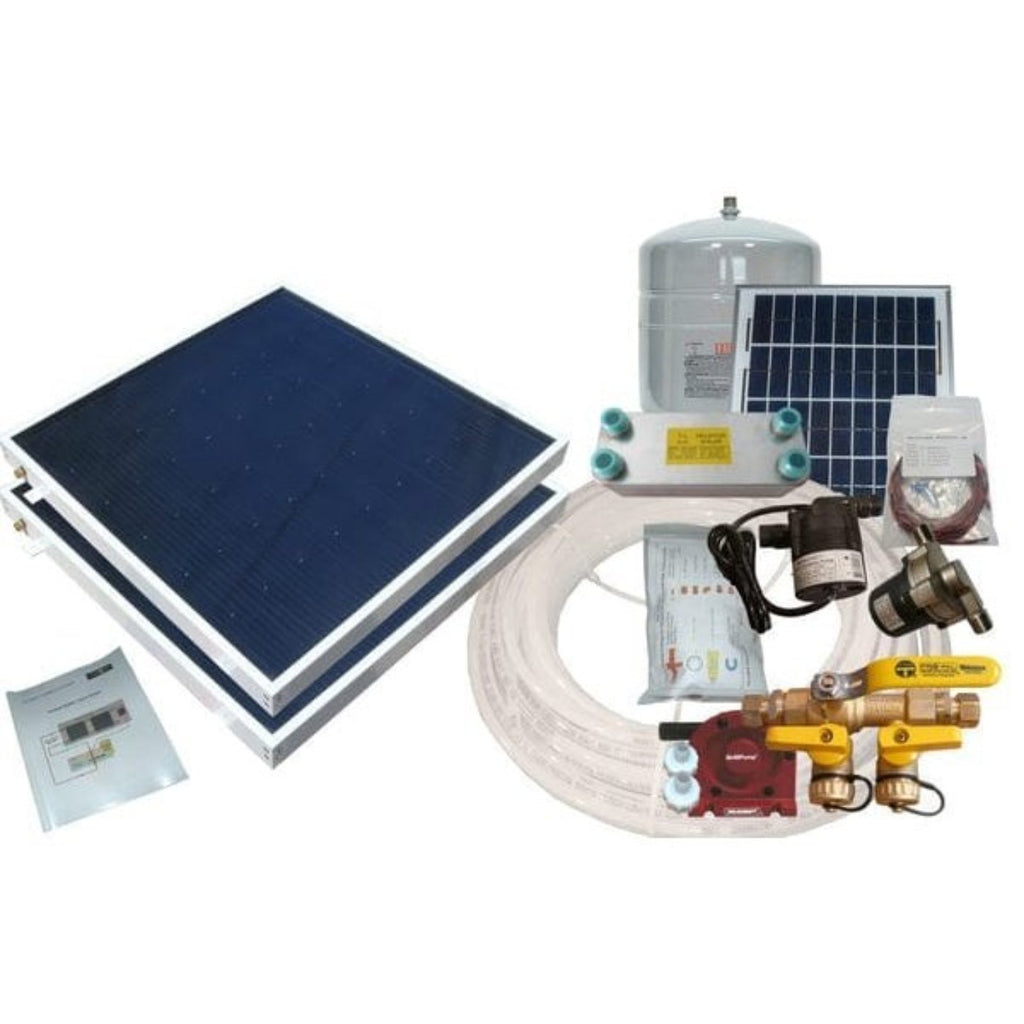

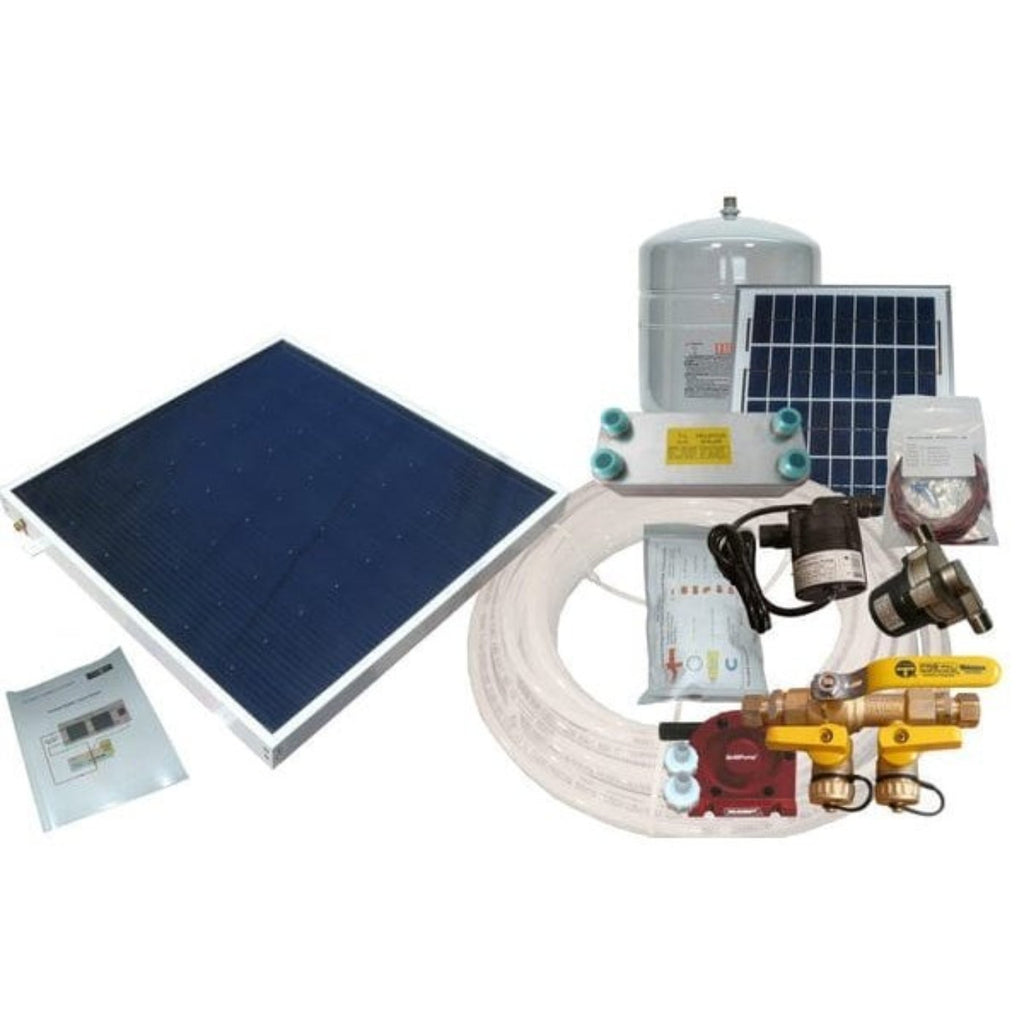

In the Box
- Your selected quantity of Heliatos MH-38 Solar Water Heating Panel

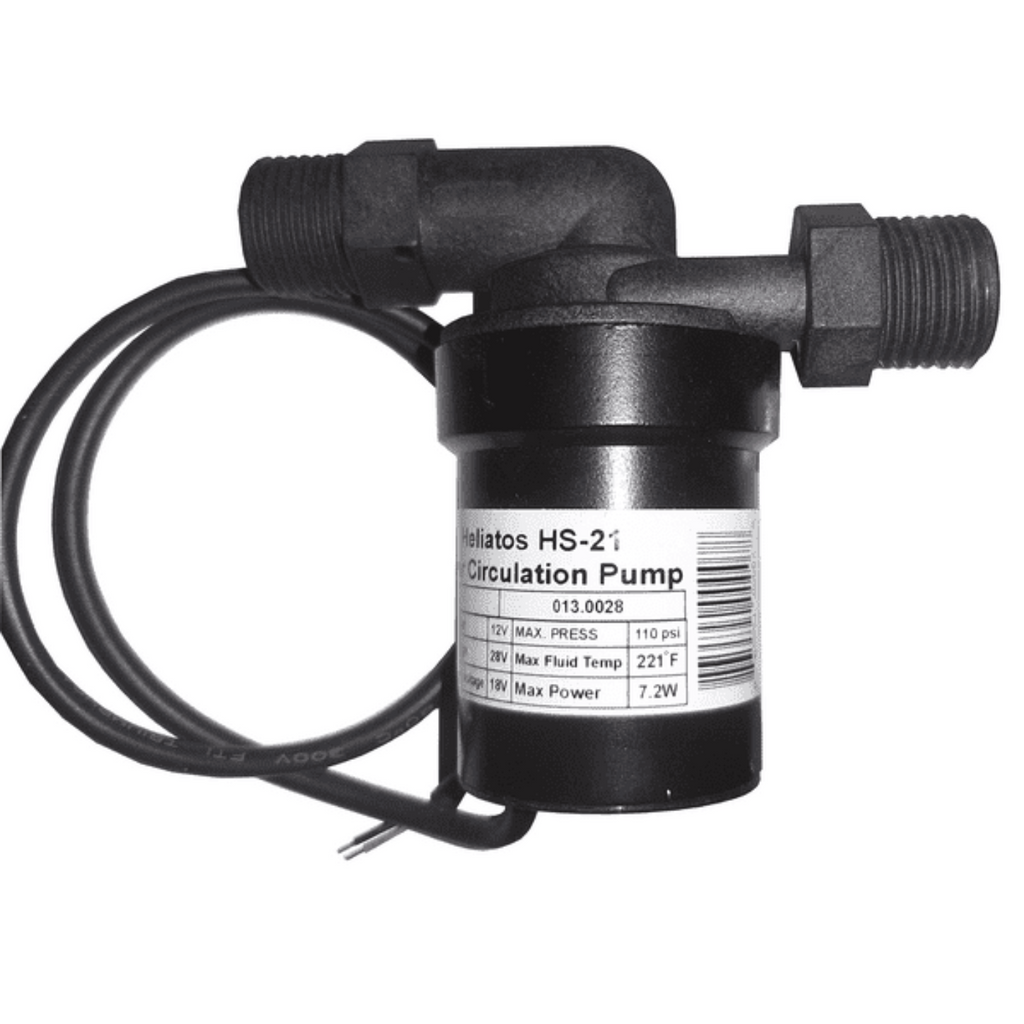

- 1 HS-21 Heliatos solar circulation pump

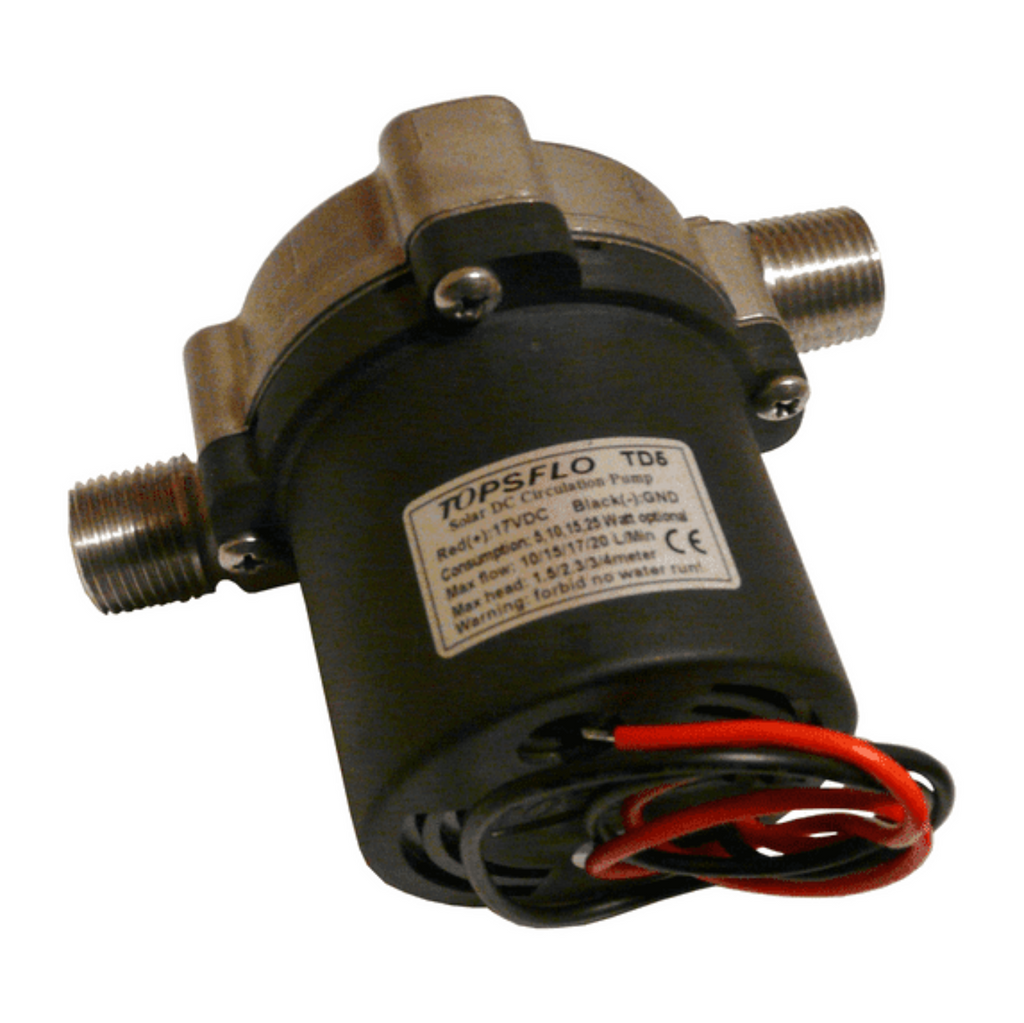

- 1 TopsFlo TD5 Stainless Steel Circulation Pump
- 1 25 Watt PV Solar panel to power the pump
- Wire and PV panel mounting tabs
- 25 ft of 1/4' PEX tubing
- Amtrol #15 Expansion Tank
- RV/Marine Glycol Fill and Purge Valve with Drill Pump and Instructions
- Compact Stainless Steel (Alloy 316) Heat Exchanger

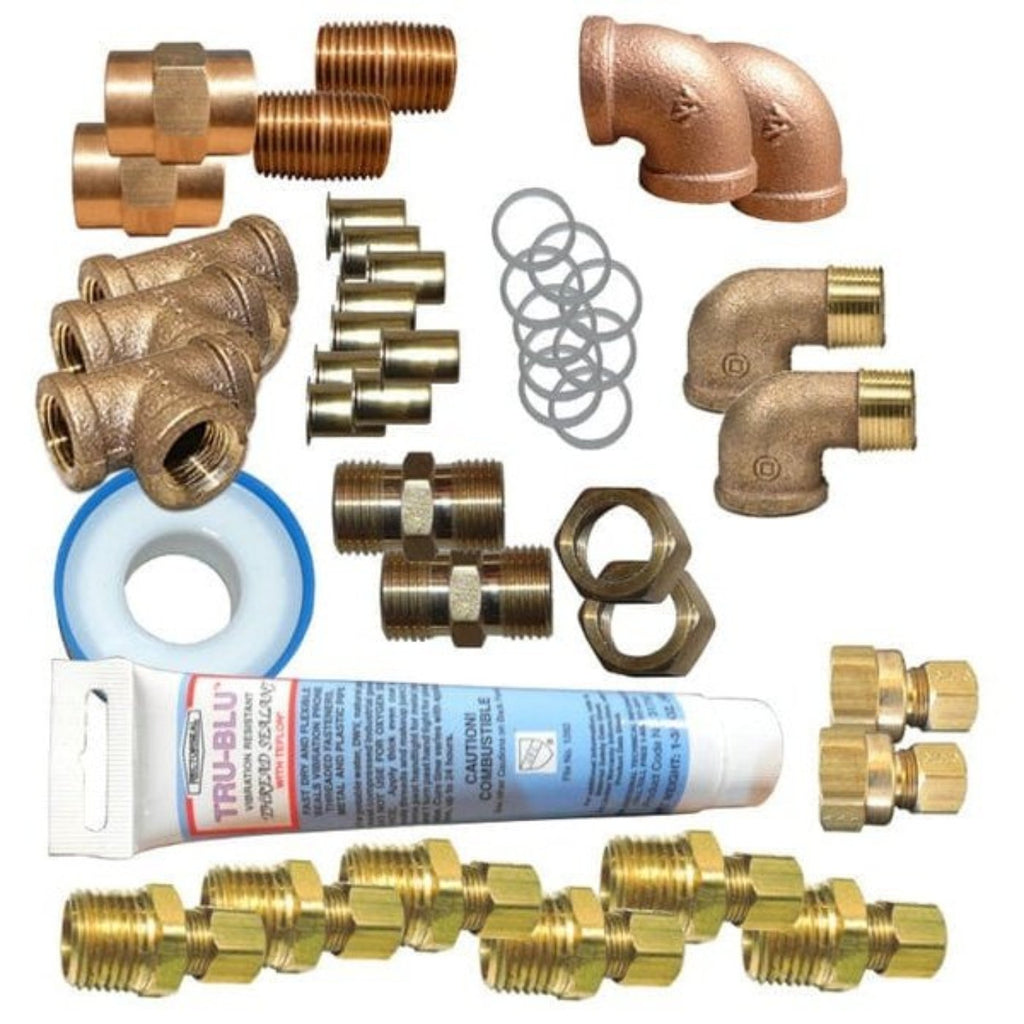

- 1 Complete Set of Fittings and Adapters
- Assumes Marine water heater with 1/2' NPT connections (most common)
- Contact us for non-standard Water Heaters or Connections
- Clear and easy to follow installation instructions
Manual
What Our Experts Think
-
Freeze Protection: The Heliatos Boat Freeze Protected Solar Water Heater Kit is designed to operate reliably in cold marine environments, with freeze protection ensuring continuous hot water even in freezing temperatures.
-
External Heat Exchanger: The external heat exchanger efficiently transfers solar energy to the water, ensuring rapid heating with minimal energy consumption, making it perfect for boating needs.
-
Durable Marine-Grade Construction: Built with high-quality, corrosion-resistant materials, this kit is ideal for the harsh marine environment, offering long-lasting performance and reliability.
-
Eco-Friendly & Cost-Efficient: The solar-powered system reduces reliance on traditional energy sources like electricity or propane, making it an eco-friendly and cost-effective way to heat water on the water.
-
Compact & Space-Saving: Its compact design is perfect for boats, offering efficient hot water heating without taking up valuable space.
-
Low Maintenance: Easy to install and maintain, this system ensures effortless operation, allowing boat owners to focus more on their boating adventures.
Q&A
Q: What is the Heliatos Boat Freeze Protected Solar Water Heater Kit with External Heat Exchanger?
A: The Heliatos Boat Freeze Protected Solar Water Heater Kit with External Heat Exchanger is a highly efficient, solar-powered water heating system designed for boats. It features freeze protection to ensure hot water even in cold temperatures and an external heat exchanger for optimal heat transfer, making it perfect for marine environments.
Q: How does the external heat exchanger work?
A: The external heat exchanger transfers heat from the solar-heated fluid to the boat’s water system, efficiently warming the water without the need for additional power sources.
Q: Can this system be used in cold weather?
A: Yes, the freeze protection feature ensures that the system continues to work even in freezing temperatures, making it reliable year-round for use on boats in various climates.
Q: Is the kit easy to install on my boat?
A: Yes, the Heliatos Boat Freeze Protected Solar Water Heater Kit is designed for easy installation and is compatible with most boat systems. It comes with all necessary components for a smooth setup.
Q: What are the benefits of using a solar water heater on my boat?
A: Solar water heaters are eco-friendly, energy-efficient, and help reduce reliance on fuel or electricity, providing a sustainable solution for hot water on your boat while reducing operating costs.
Maintenance Tips
-
Flush the System Annually:
- Flush the system annually to remove mineral buildup, sediment, or marine debris from the heat exchanger and pipes. This helps maintain performance and prevents blockages.
-
Check for Leaks:
- Inspect all seals, connections, and fittings for leaks. Tighten any loose fittings or replace worn seals to avoid water loss and ensure the system operates efficiently.
-
Prevent Blockages:
- Check the intake, outflow areas, and external heat exchanger for any blockages, such as marine growth, sand, or debris. Clean thoroughly to ensure proper water flow and heat transfer.
-
Ensure Proper Drainage:
- Ensure the system has proper drainage to prevent water from freezing in the pipes, especially in cold climates. Drain the system if necessary when the boat is not in use for extended periods.
-
Winterize the System:
- Before winter storage or exposure to freezing temperatures, properly winterize the system by draining the pipes and checking the freeze protection fluid levels. This will prevent freezing and damage to the system.
-
Inspect External Heat Exchanger:
- Regularly inspect the external heat exchanger for wear, corrosion, or damage. Clean the heat exchanger to maintain its efficiency in transferring heat from the solar panels to the water.
-
Routine Performance Check:
- Periodically check the overall system performance, ensuring the water flow is consistent and the heat exchanger is functioning properly. If the system is underperforming, inspect the heat exchanger for blockages or damage.
