Heliatos Boat Solar Water Heater Kit

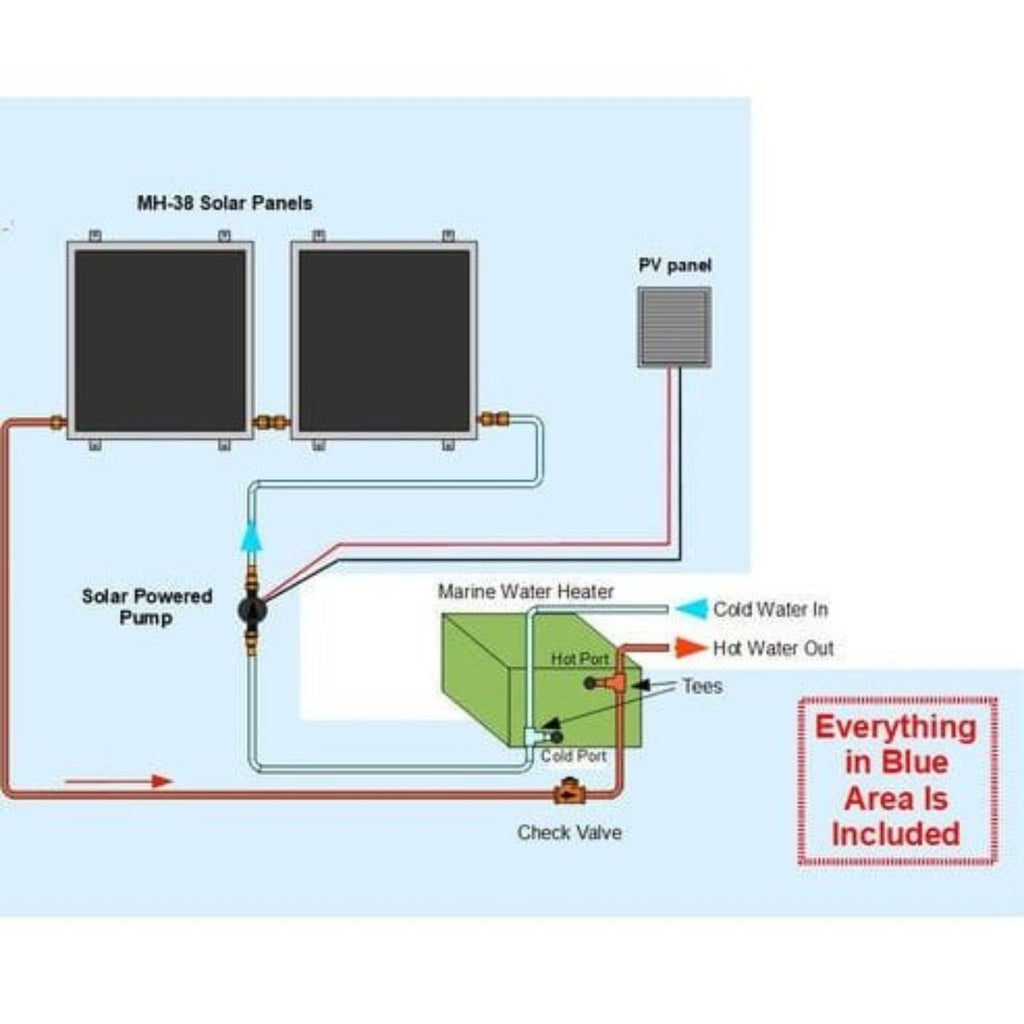

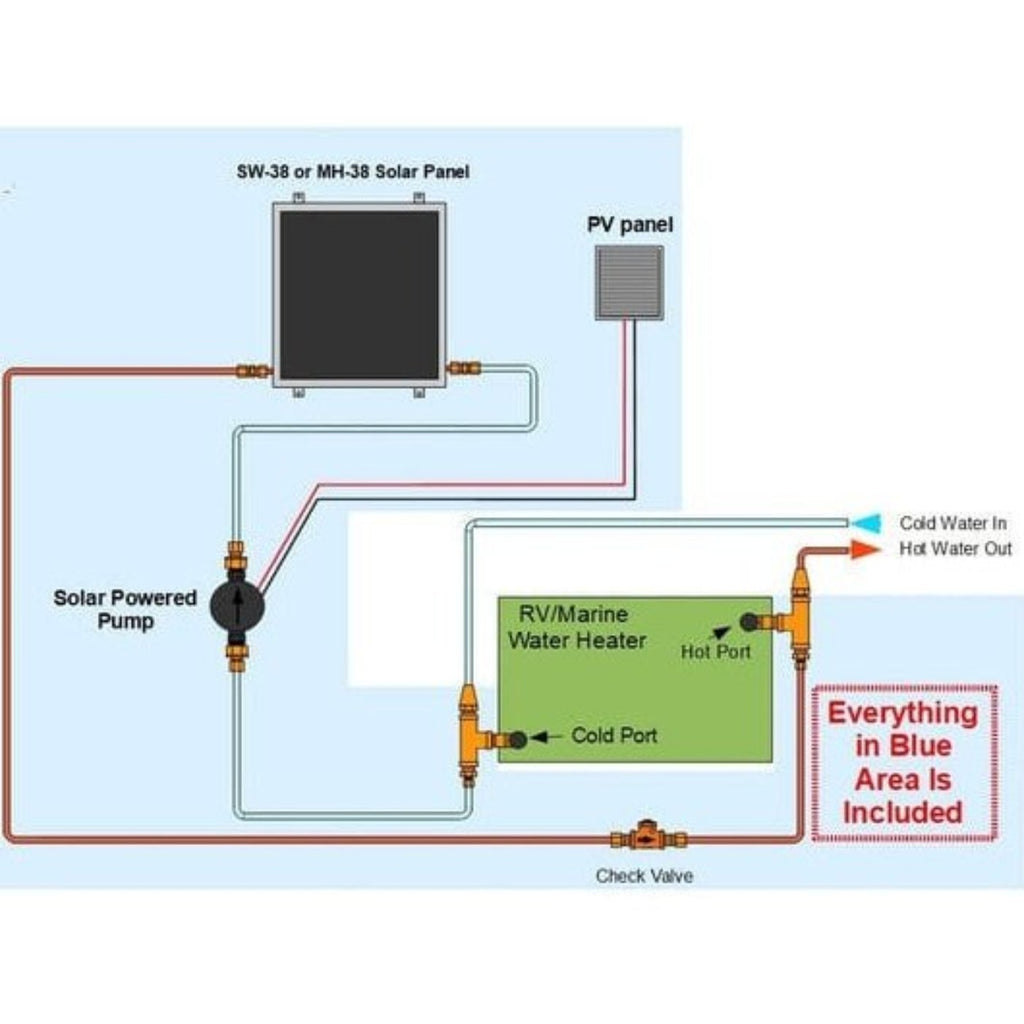

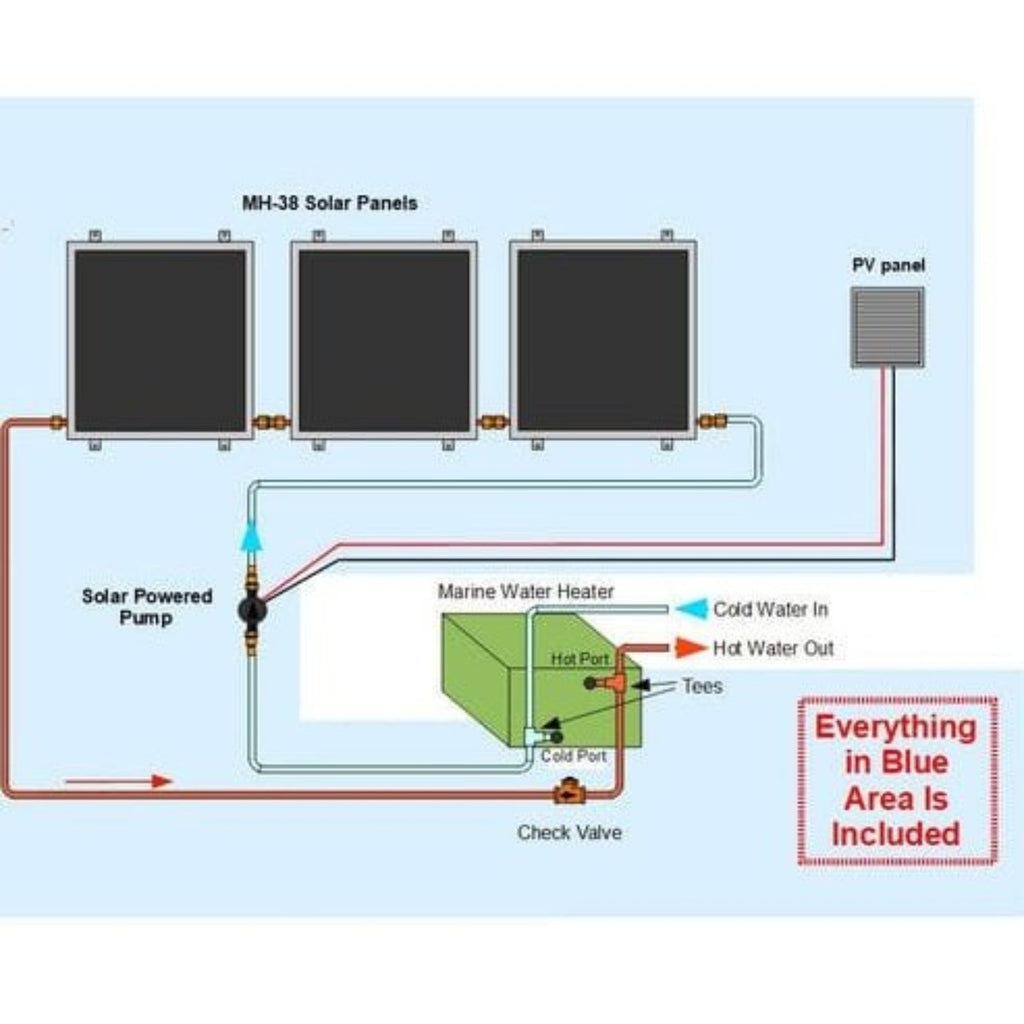

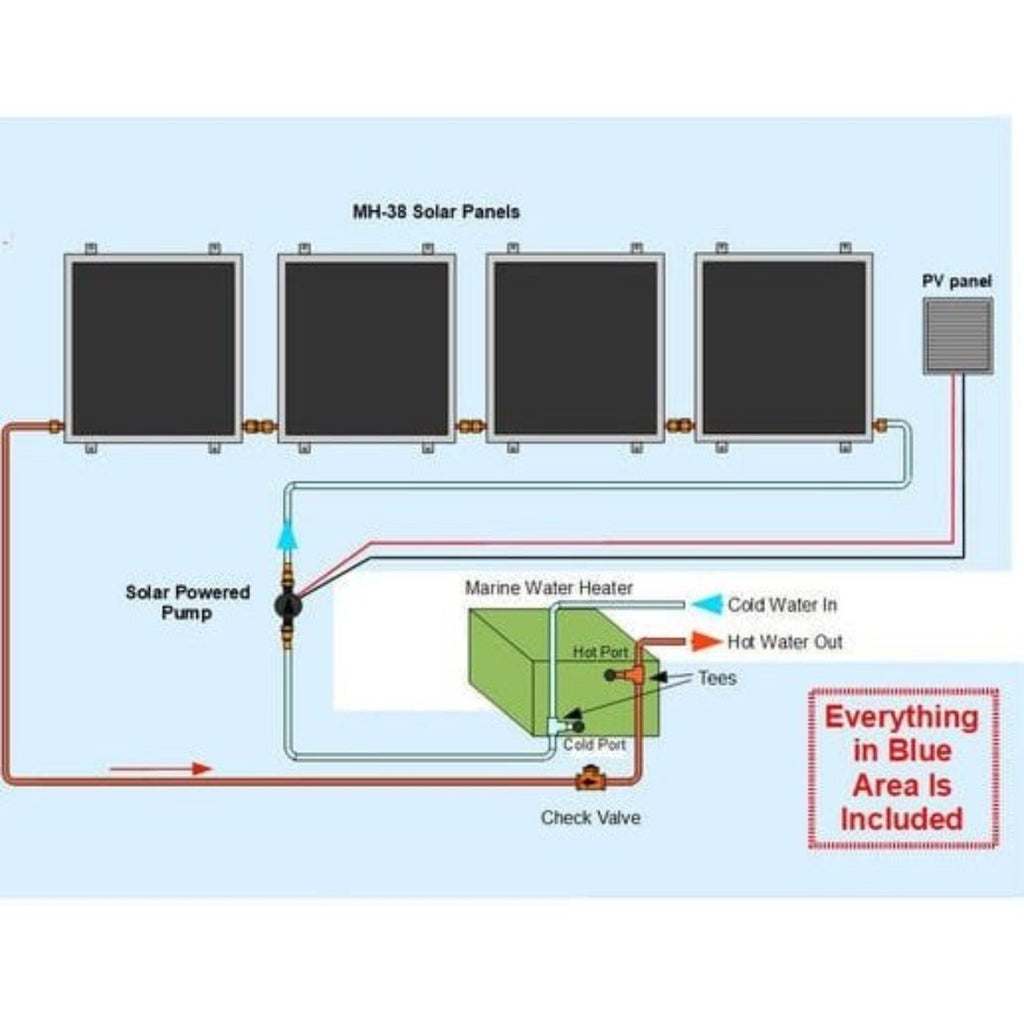

This kit contains everything you need to add a high quality solar water heater to your boat. The MH-38 panels connect directly to your hot water heater, without disconnecting your existing source of heat.
Our MH-38 panels include special features to prevent corrosion even in the harshest marine environments:
- Powder-coated frame and backing, gives the appearance of white enamel
- Zinc-phosphate internal corrosion protection
- Sealed construction
- Stainless steel hardware
These panels have unbreakable twinwall polycarbonate glazing, and a strong aluminum frame, yet only weighs 12 lbs.
Specifications
MH-38 Solar Panel
Materials
-
Glazing: UV resistant twin wall polycarbonate
-
Frame: Powder coated architectural grade aluminum alloy 6063
-
Insulation: Polyiso foam (meets requirements for ASTM-C1289, Type 1
- specification)
-
Water Conduit: Copper Tubing (Alloy C12200 certified for public water supplies meeting EPA Lead and Copper Rule 56 FR26460, June 7th, 1991)
-
Fittings: Brass, Lead Free compliant with Federal Reduction of Lead in Drinking Water Act ,Dezincification resistant
-
Internal Corrosion Protection: Zinc phosphate, polyurethane foam sealant, high endurance silicone
-
Seals: Butyl rubber
Physical
-
Length: 24.0 Inches
-
Width: 25.25 Inches
-
Height: 2.125 Inches
-
Active Collector Area: 3.674 ft2
-
Mounting Hole Spacing: 24.75 x 17.00 Inches x Inches
-
Volume of Liquid in Collector: 7.7 fl. oz.
-
Total Panel Weight: 14 lb.
-
Input and Output Connections: 3/8 “ Compression Fitting
Maximum Ratings
-
Pressure: 200 Psi
-
Collector Temperature: 203 ºF
-
Mounting Surface Unevenness: ¼ Inch (corner to corner)

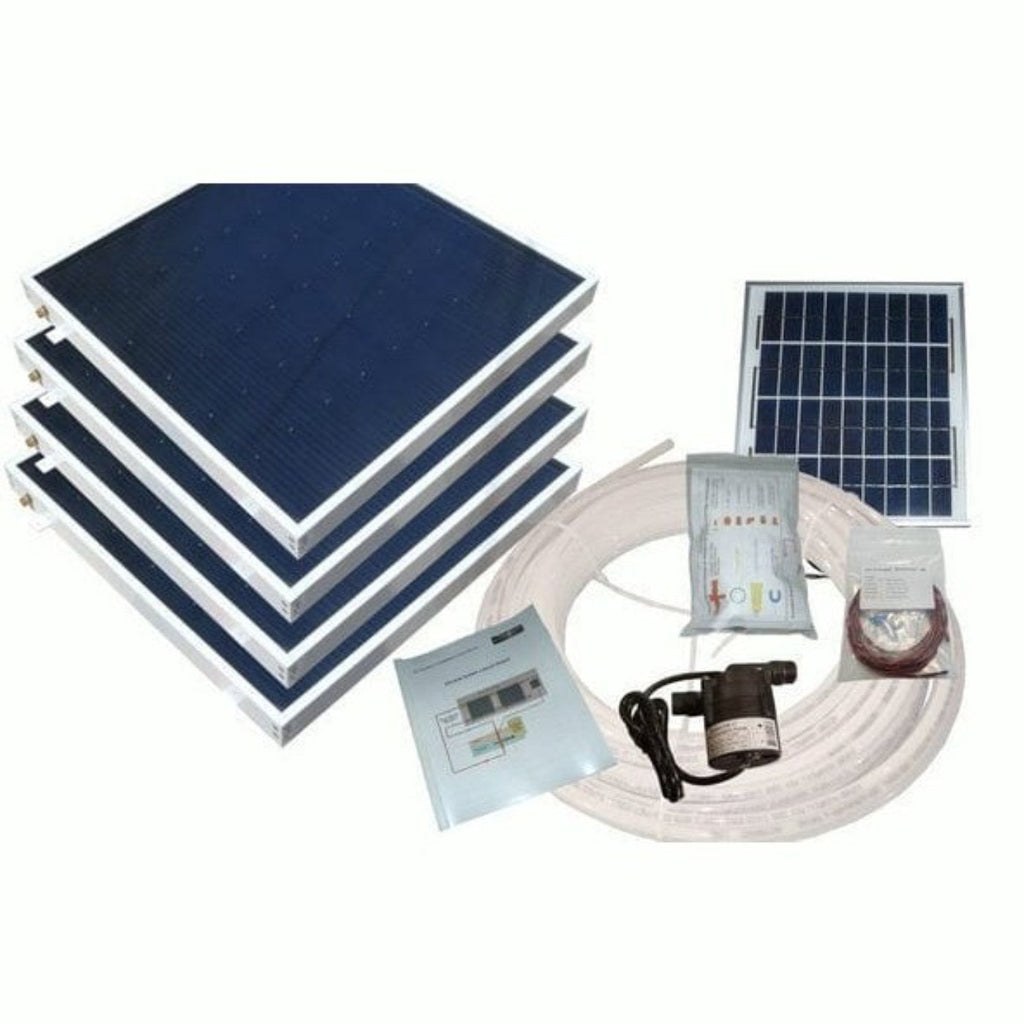

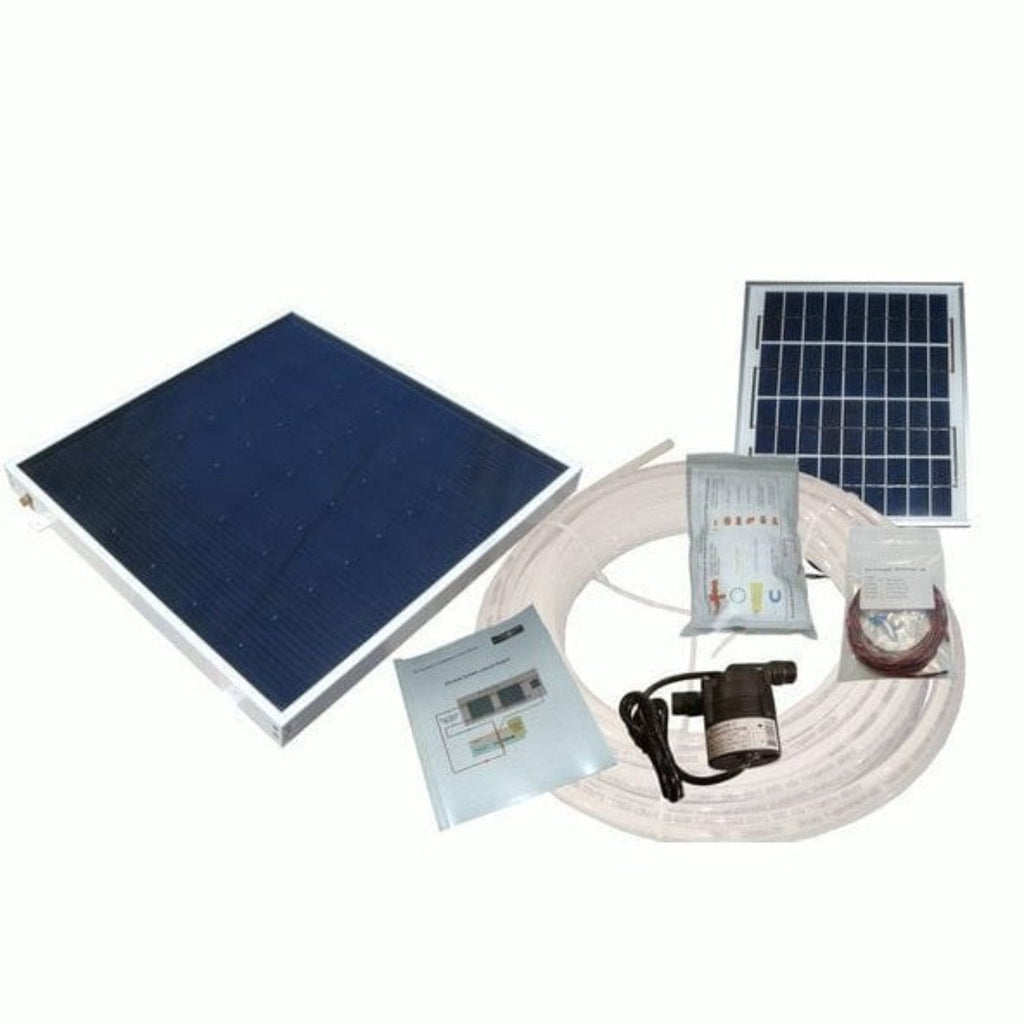

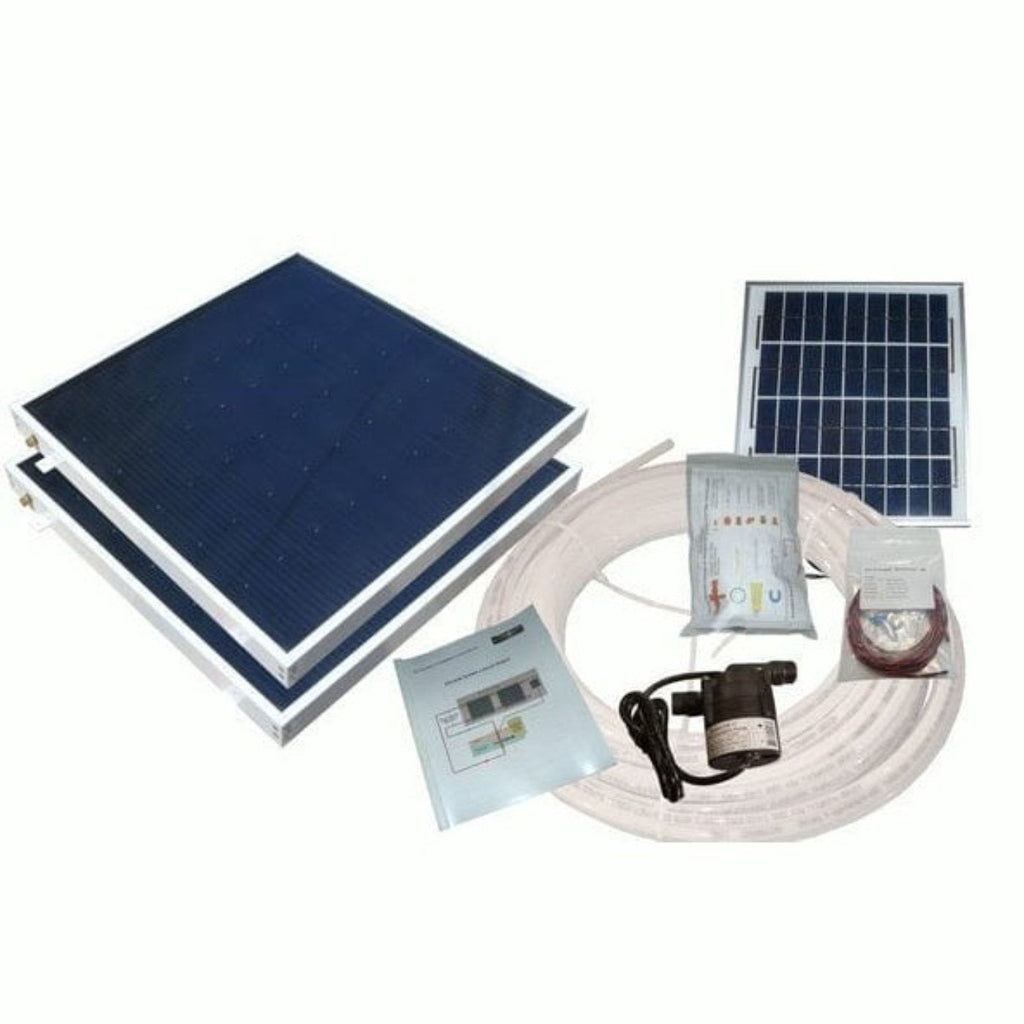

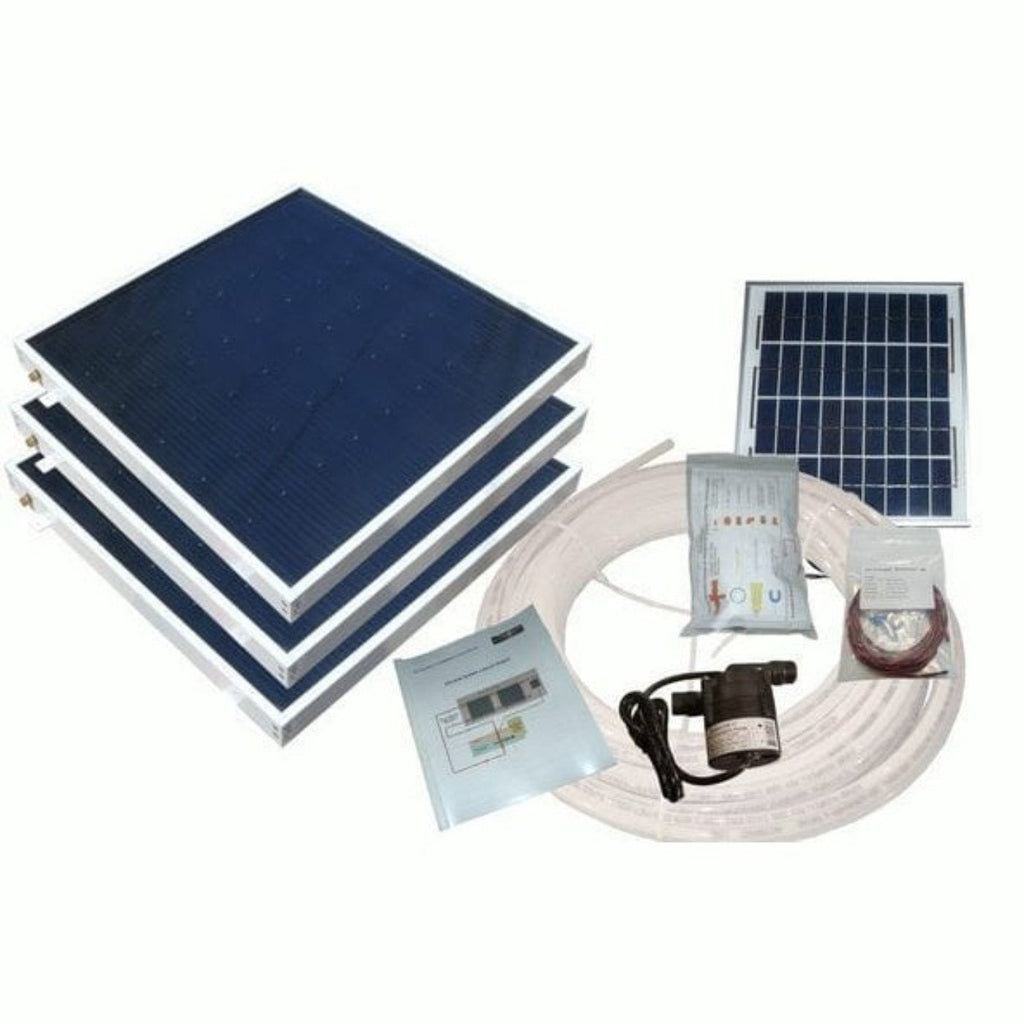

In the Box
- Your selected quantity Heliatos MH-38 Solar Water Heating Panels

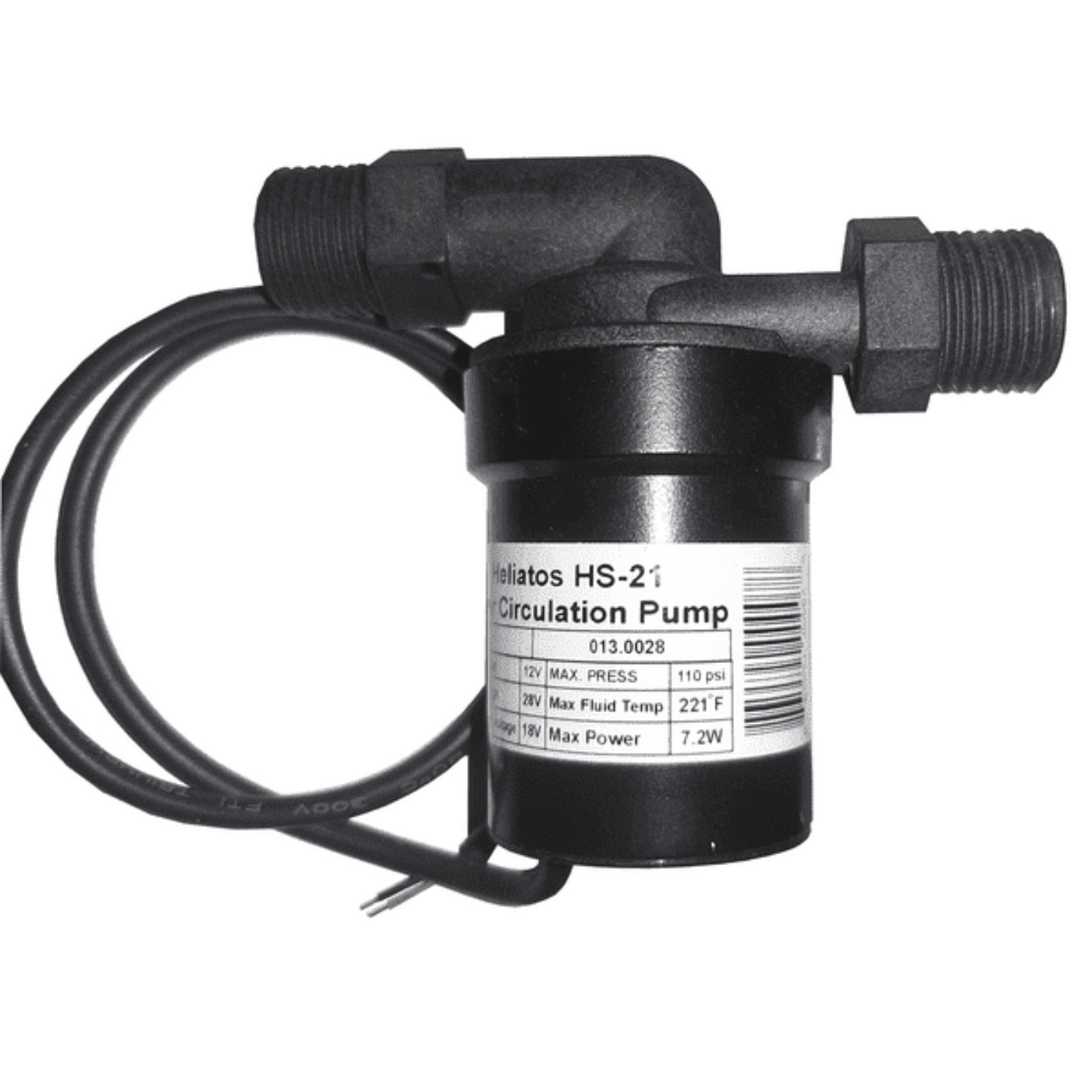

- 1 HS-21 Heliatos solar circulation pump

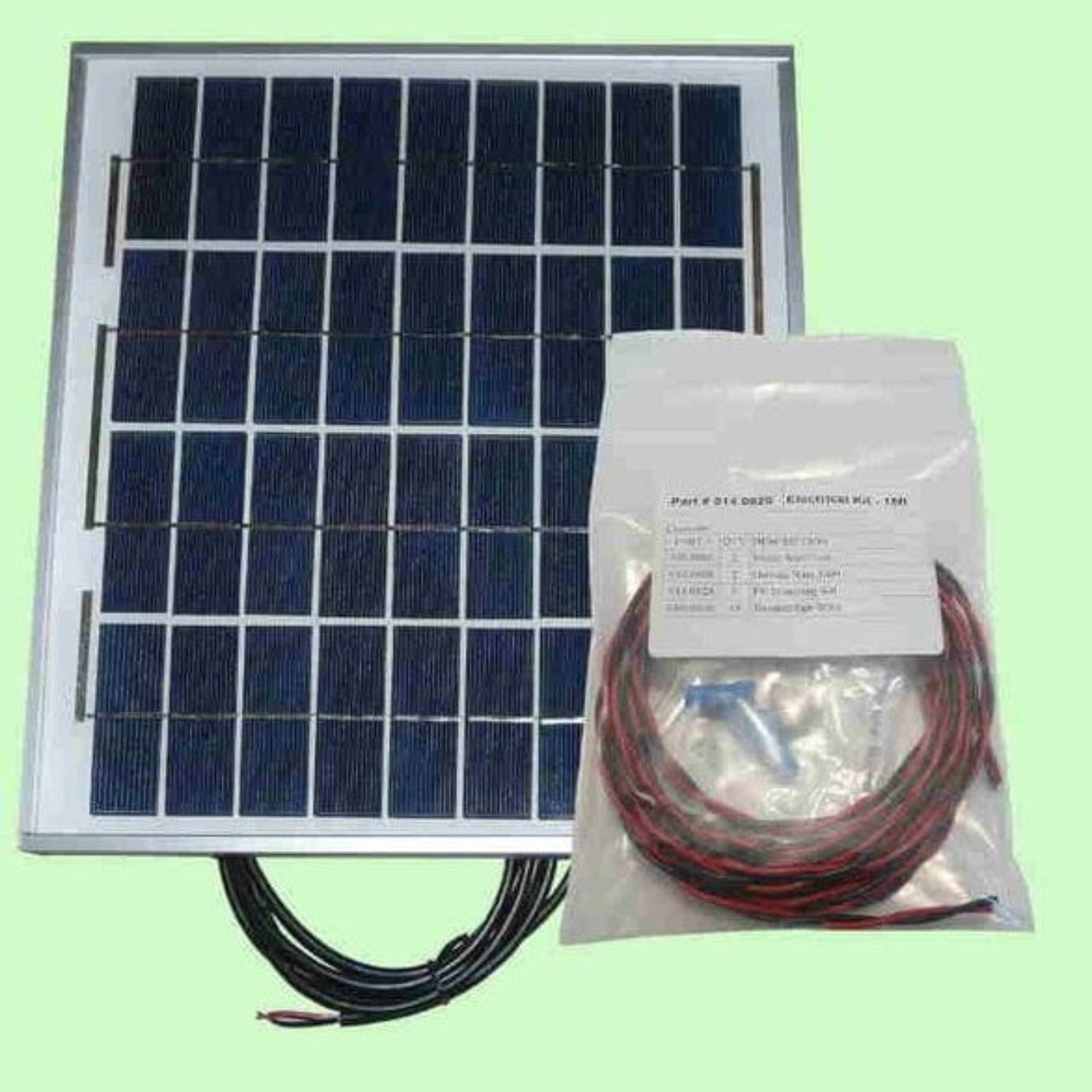

- 1 10 Watt PV Solar panel to power the pump
- Wire and PV panel mounting tabs

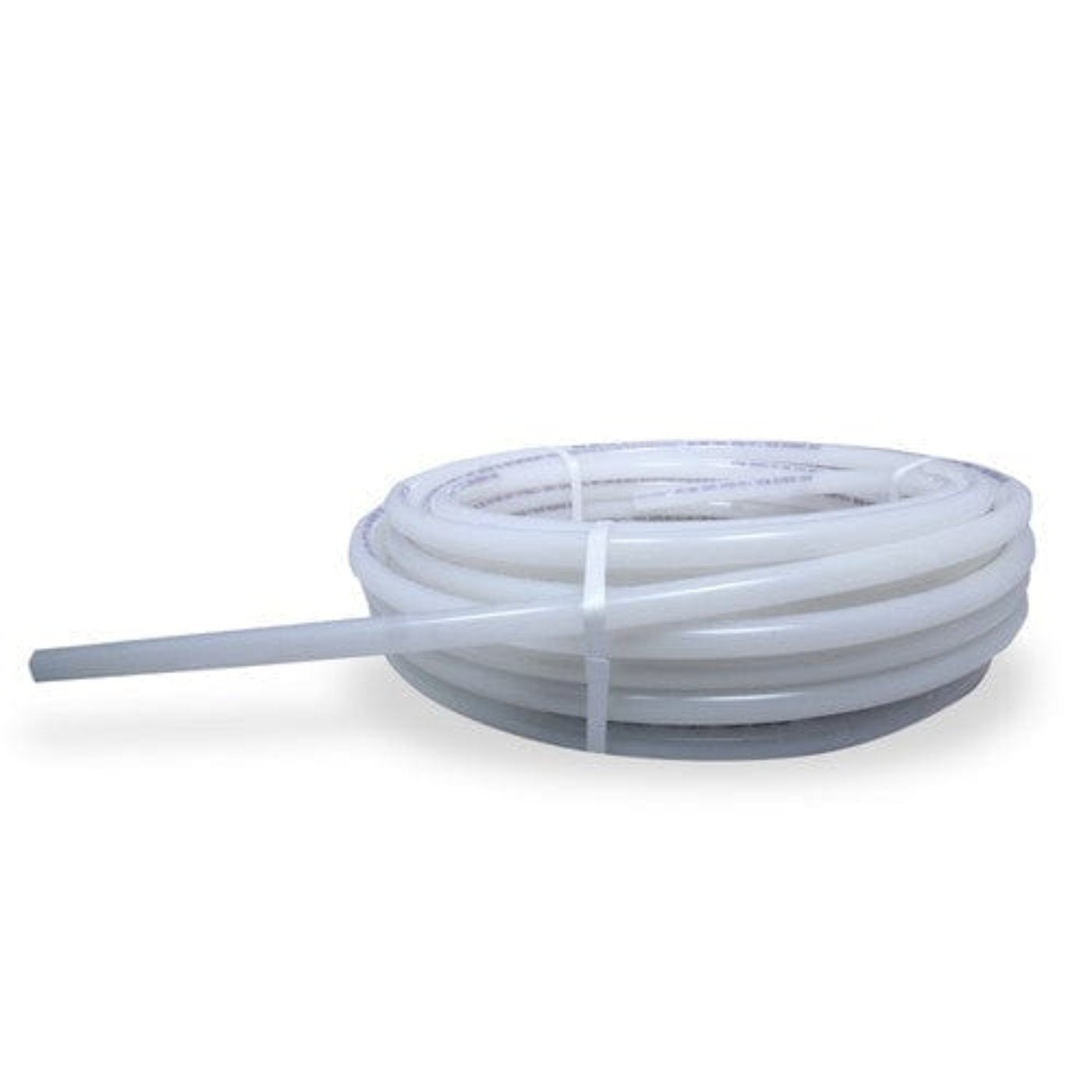

- 25 ft of 1/4' PEX tubing

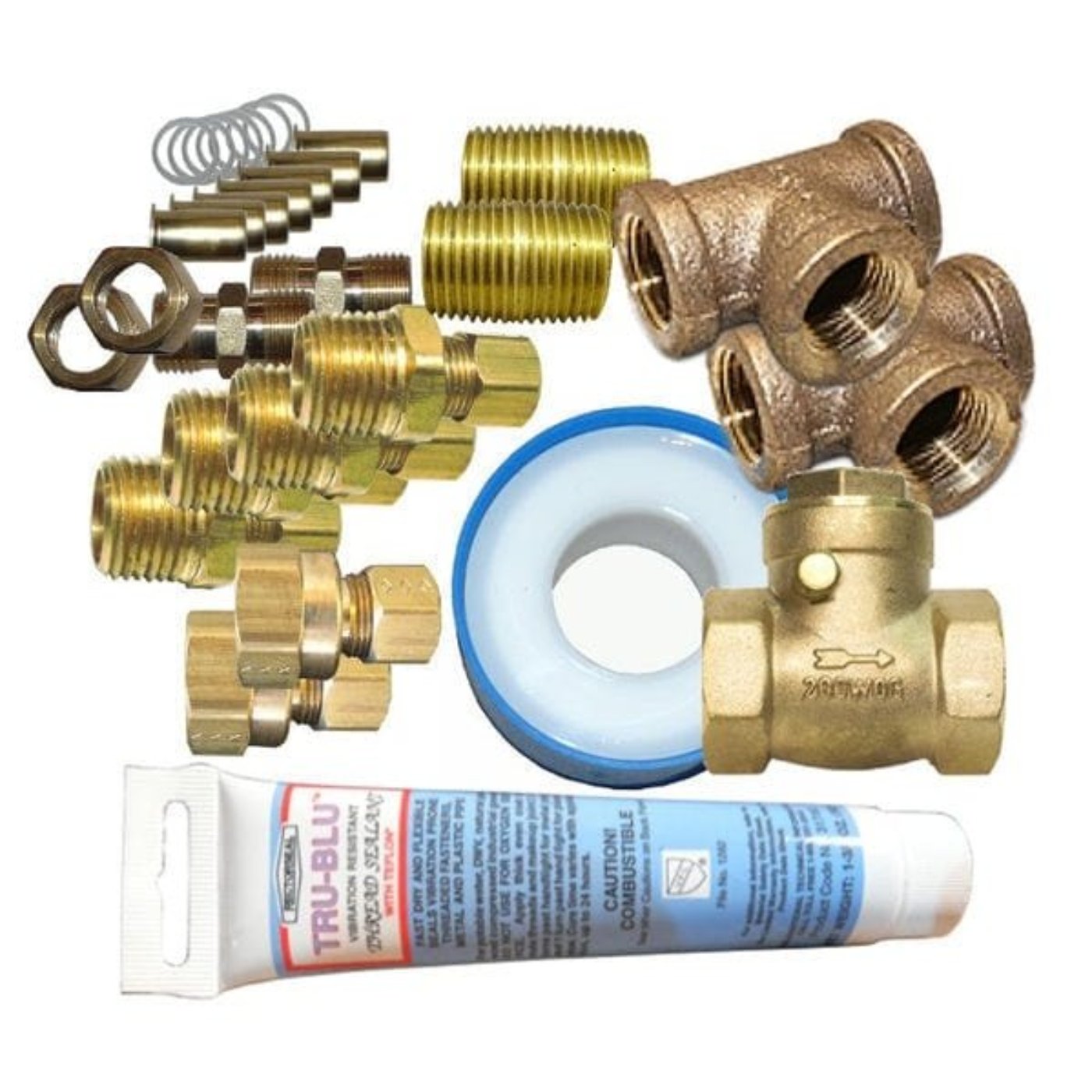

- 1 Complete Set of Fittings and Adapters
- Assumes Marine water heater with 1/2' NPT connections (most common)
- Contact us for non-standard Water Heaters or Connections
- Clear and easy to follow installation instructions
All You Have To Supply Is:
- Fasteners to attach the panels
- Insulation for the tubing
- Your existing Marine water heater
- Tools needed for installation
Manual
What Our Experts Think
-
Efficient Energy Use: The Heliatos Boat Solar Water Heater Kit harnesses the power of the sun, providing an eco-friendly solution for heating water while reducing reliance on traditional energy sources.
-
Durable Design: Built to withstand the rigors of marine environments, this system is made from high-quality, corrosion-resistant materials, ensuring long-lasting performance.
-
Compact & Space-Saving: Its sleek, compact design makes it ideal for boat use, where space is often limited, without compromising on functionality.
-
Easy Installation: Designed for easy setup, the kit is user-friendly and compatible with most boat systems, making it accessible for both experienced and novice boaters.
-
Weather-Proof: The system is engineered to handle a range of weather conditions, offering reliability whether you’re cruising in the sun or facing cooler climates.
-
Low Maintenance: With minimal upkeep required, this system is easy to maintain, allowing boat owners more time to enjoy their time on the water.
Q&A
Q: What is the Heliatos Boat Solar Water Heater Kit?
A: The Heliatos Boat Solar Water Heater Kit is an efficient, eco-friendly solution for providing hot water on boats. It uses solar energy to heat water, reducing the need for electricity or gas, and is designed to work effectively in marine environments.
Q: How does the solar water heater work?
A: The kit uses solar panels to collect energy from the sun and a heat exchanger to transfer the collected heat to the water, providing a continuous supply of hot water without the need for external power sources.
Q: Is the kit easy to install on my boat?
A: Yes, the Heliatos Boat Solar Water Heater Kit is designed for easy installation, compatible with most boats, and includes all necessary components.
Q: Can the kit work in cold weather or low sunlight conditions?
A: Yes, the system is designed to perform well in various conditions, and it includes freeze protection features to ensure reliable hot water even in colder temperatures.
Q: What are the benefits of using a solar water heater on my boat?
A: Solar water heaters are environmentally friendly, reduce energy costs, and provide a sustainable way to enjoy hot water on the water without relying on fuel or electricity.
Q: Is the Heliatos Boat Solar Water Heater Kit backed by a warranty?
A: Yes, the kit comes with a warranty for durability and peace of mind.
Maintenance Tips
-
Regular Inspections:
- Check solar panels, connections, and hoses regularly for any visible signs of wear, cracks, or leaks. Repair or replace any damaged components promptly.
-
Clean Panels:
- Clean the solar panels periodically to remove dirt, salt, or debris that may reduce efficiency. Use a soft cloth or sponge and mild soap with water.
-
Flush the System:
- Flush the system at least once a year to remove sediment, mineral buildup, or debris from the pipes and heat exchanger. This ensures optimal performance.
-
Monitor Fluid Levels:
- Check the antifreeze or solar fluid levels and top them off as needed to prevent freezing in cold weather. Replace fluid as per manufacturer recommendations.
-
Check for Leaks:
- Regularly inspect the system for any signs of leaks around pipes, connections, and fittings. Tighten or replace seals and connections as necessary.
-
Prevent Blockages:
- Ensure that the intake and outflow areas of the system are free from blockages, such as leaves or marine growth, to maintain proper water flow.
-
Winterize the System:
- If storing the boat in colder climates, make sure to properly winterize the system to avoid freezing and potential damage to the pipes or panels.
